DEHNclip Rebar Clamp
:quality(98)/dehn.at/store/f/50303757/HDVORSCHAU/308130a1_16-9.jpg)
:quality(98)/dehn.at/store/f/50303757/HDVORSCHAU/308130a1_16-9.jpg)

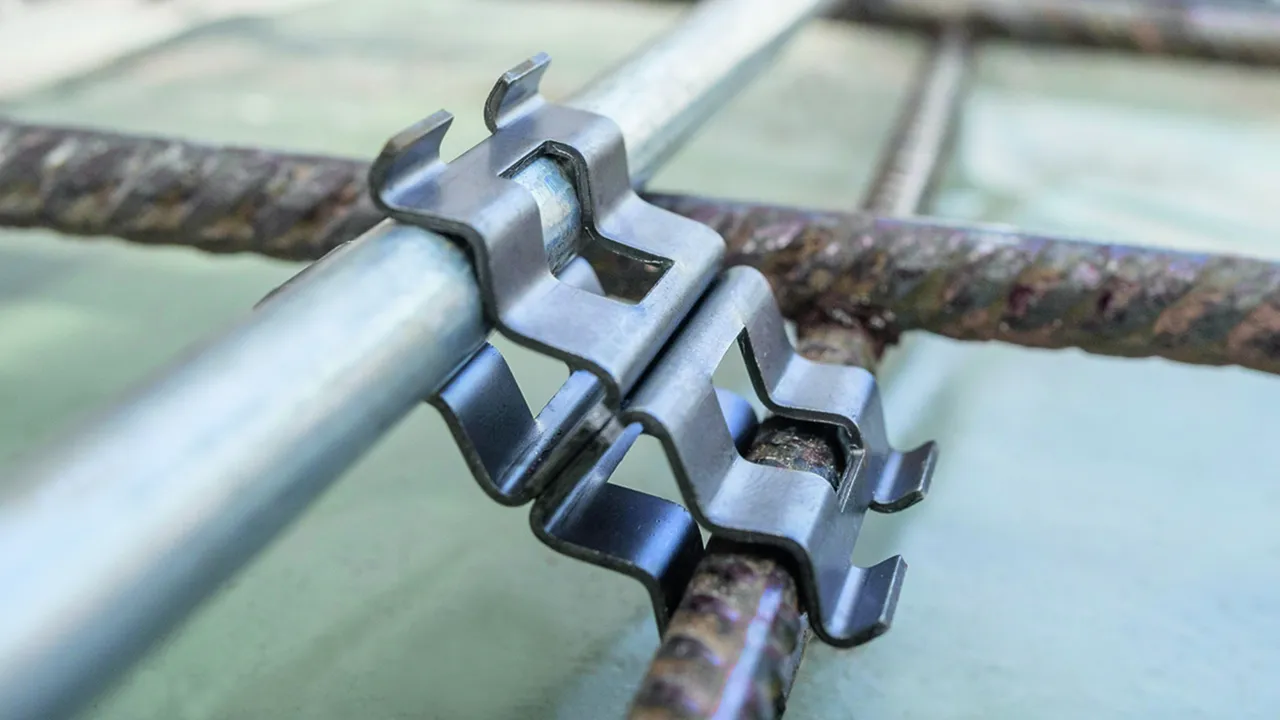

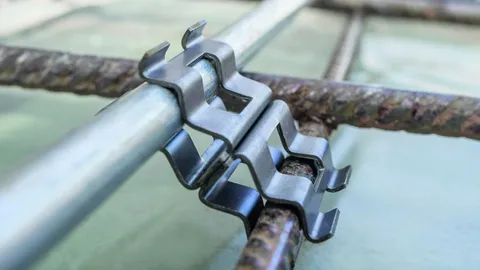

DEHNclip rebar clamp for quick connection of the earth electrode to the reinforcement without tools. DEHNclip is tested for a lightning current carrying capability of 50 kA (10/350 μs) in accordance with EN 62561-1.
The clamp meets the standard requirements for foundation earth electrodes according to DIN 18014 and lightning protection systems according to IEC/DIN EN 62305-3. Mounting safety is increased and missing screw connections or inadequate tightening torques of clamps are a thing of the past.
– Compact, light and resource-efficient
– Quick and without tools
– Efficient and time-saving
Art.-Nr. 308130 DC BK 6 RD10 STBLANK
GTIN 4013364288942, Zolltarifnr. (EU): 85359000, Bruttogewicht: 19.34 g, VPE: 50.00 pc(s)
:quality(98)/dehn.at/store/f/50303770/HDVORSCHAU/308132.jpg)
:quality(98)/dehn.at/store/f/50303770/HDVORSCHAU/308132.jpg)
:quality(98)/dehn.at/store/f/50303771/HDVORSCHAU/308130m_D.jpg)
:quality(98)/dehn.at/store/f/50303771/HDVORSCHAU/308130m_D.jpg)
Technische Daten
| Material | St/bare |
| Clamping range Rd* / Rd | 6-7 / 10 mm |
| Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.5 kA |
| Standard | EN 62561-1 |
| *) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |
|
Art.-Nr. 308131 DC BK 8 RD10 STBLANK
GTIN 4013364288881, Zolltarifnr. (EU): 85359000, Bruttogewicht: 20.30 g, VPE: 50.00 pc(s)
:quality(98)/dehn.at/store/f/50303780/HDVORSCHAU/308132.jpg)
:quality(98)/dehn.at/store/f/50303780/HDVORSCHAU/308132.jpg)
:quality(98)/dehn.at/store/f/50303781/HDVORSCHAU/308131m_D.jpg)
:quality(98)/dehn.at/store/f/50303781/HDVORSCHAU/308131m_D.jpg)
Technische Daten
| Material | St/bare |
| Clamping range Rd* / Rd | 8-9 / 10 mm |
| Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.7 kA |
| Standard | EN 62561-1 |
| *) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |
|
Art.-Nr. 308132 DC BK 10 RD10 STBLANK
GTIN 4013364288423, Zolltarifnr. (EU): 85359000, Bruttogewicht: 21.40 g, VPE: 50.00 pc(s)
:quality(98)/dehn.at/store/f/50303790/HDVORSCHAU/308132.jpg)
:quality(98)/dehn.at/store/f/50303790/HDVORSCHAU/308132.jpg)
:quality(98)/dehn.at/store/f/50303791/HDVORSCHAU/308132m_D.jpg)
:quality(98)/dehn.at/store/f/50303791/HDVORSCHAU/308132m_D.jpg)
Technische Daten
| Material | St/bare |
| Clamping range Rd* / Rd | 10 / 10 mm |
| Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.4 kA |
| Standard | EN 62561-1 |
| *) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |
|
Art.-Nr. 308133 DC BK 12 RD10 STBLANK
GTIN 4013364288911, Zolltarifnr. (EU): 85359000, Bruttogewicht: 21.80 g, VPE: 50.00 pc(s)
:quality(98)/dehn.at/store/f/50303800/HDVORSCHAU/308132.jpg)
:quality(98)/dehn.at/store/f/50303800/HDVORSCHAU/308132.jpg)
:quality(98)/dehn.at/store/f/50303801/HDVORSCHAU/308133m_D.jpg)
:quality(98)/dehn.at/store/f/50303801/HDVORSCHAU/308133m_D.jpg)
Technische Daten
| Material | St/bare |
| Clamping range Rd* / Rd | 12 / 10 mm |
| Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.7 kA |
| Standard | EN 62561-1 |
| *) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |
|
Art.-Nr. 308140 DC BK 6 FL30 STBLANK
GTIN 4013364288935, Zolltarifnr. (EU): 85359000, Bruttogewicht: 22.40 g, VPE: 50.00 pc(s)
:quality(98)/dehn.at/store/f/50303812/HDVORSCHAU/308142.jpg)
:quality(98)/dehn.at/store/f/50303812/HDVORSCHAU/308142.jpg)
:quality(98)/dehn.at/store/f/50303813/HDVORSCHAU/308140m_D.jpg)
:quality(98)/dehn.at/store/f/50303813/HDVORSCHAU/308140m_D.jpg)
Technische Daten
| Material | St/bare |
| Clamping range Rd* / Fl | 6-7 / 30 mm |
| Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.0 kA |
| Standard | EN 62561-1 |
| *) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |
|
Art.-Nr. 308141 DC BK 8 FL30 STBLANK
GTIN 4013364288904, Zolltarifnr. (EU): 85359000, Bruttogewicht: 21.04 g, VPE: 50.00 pc(s)
:quality(98)/dehn.at/store/f/50303822/HDVORSCHAU/308142.jpg)
:quality(98)/dehn.at/store/f/50303822/HDVORSCHAU/308142.jpg)
:quality(98)/dehn.at/store/f/50303823/HDVORSCHAU/308141m_D.jpg)
:quality(98)/dehn.at/store/f/50303823/HDVORSCHAU/308141m_D.jpg)
Technische Daten
| Material | St/bare |
| Clamping range Rd* / Fl | 8-9 / 30 mm |
| Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.3 kA |
| Standard | EN 62561-1 |
| *) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |
|
Art.-Nr. 308142 DC BK 10 FL30 STBLANK
GTIN 4013364288522, Zolltarifnr. (EU): 85359000, Bruttogewicht: 20.08 g, VPE: 50.00 pc(s)
:quality(98)/dehn.at/store/f/50303832/HDVORSCHAU/308142.jpg)
:quality(98)/dehn.at/store/f/50303832/HDVORSCHAU/308142.jpg)
:quality(98)/dehn.at/store/f/50303833/HDVORSCHAU/308142m_D.jpg)
:quality(98)/dehn.at/store/f/50303833/HDVORSCHAU/308142m_D.jpg)
Technische Daten
| Material | St/bare |
| Clamping range Rd* / Fl | 10 / 30 mm |
| Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.3 kA |
| Standard | EN 62561-1 |
| *) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |
|
Art.-Nr. 308143 DC BK 12 FL30 STBLANK
GTIN 4013364289123, Zolltarifnr. (EU): 85359000, Bruttogewicht: 20.00 g, VPE: 50.00 pc(s)
:quality(98)/dehn.at/store/f/50303842/HDVORSCHAU/308142.jpg)
:quality(98)/dehn.at/store/f/50303842/HDVORSCHAU/308142.jpg)
:quality(98)/dehn.at/store/f/50303843/HDVORSCHAU/308143m_D.jpg)
:quality(98)/dehn.at/store/f/50303843/HDVORSCHAU/308143m_D.jpg)
Technische Daten
| Material | St/bare |
| Clamping range Rd* / Fl | 12 / 30 mm |
| Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.3 kA |
| Standard | EN 62561-1 |
| *) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |
|
Art.-Nr. 308134 DC BK 6 RD6 STBLANK
GTIN 4013364308091, Zolltarifnr. (EU): 85359000, Bruttogewicht: 19.34 g, VPE: 50.00 pc(s)
:quality(98)/dehn.at/store/f/50303854/HDVORSCHAU/308134.jpg)
:quality(98)/dehn.at/store/f/50303854/HDVORSCHAU/308134.jpg)
:quality(98)/dehn.at/store/f/50303855/HDVORSCHAU/308134m_D.jpg)
:quality(98)/dehn.at/store/f/50303855/HDVORSCHAU/308134m_D.jpg)
Technische Daten
| Material | St/bare |
| Clamping range Rd* / Rd* | 6-7 / 6-7 mm |
| Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.2 kA |
| Standard | EN 62561-1 |
| *) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |
|
Art.-Nr. 308135 DC BK 8 RD8 STBLANK
GTIN 4013364308107, Zolltarifnr. (EU): 85359000, Bruttogewicht: 19.34 g, VPE: 50.00 pc(s)
:quality(98)/dehn.at/store/f/50303864/HDVORSCHAU/308134.jpg)
:quality(98)/dehn.at/store/f/50303864/HDVORSCHAU/308134.jpg)
:quality(98)/dehn.at/store/f/50303865/HDVORSCHAU/308135m_D.jpg)
:quality(98)/dehn.at/store/f/50303865/HDVORSCHAU/308135m_D.jpg)
Technische Daten
| Material | St/bare |
| Clamping range Rd* / Rd* | 8-9 / 8-9 mm |
| Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.4 kA |
| Standard | EN 62561-1 |
| *) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |
|
Art.-Nr. 308137 DC BK 8 RD12 STBLANK
GTIN 4013364308121, Zolltarifnr. (EU): 85359000, Bruttogewicht: 19.34 g, VPE: 50.00 pc(s)
:quality(98)/dehn.at/store/f/50303874/HDVORSCHAU/308134.jpg)
:quality(98)/dehn.at/store/f/50303874/HDVORSCHAU/308134.jpg)
:quality(98)/dehn.at/store/f/50303875/HDVORSCHAU/308137m_D.jpg)
:quality(98)/dehn.at/store/f/50303875/HDVORSCHAU/308137m_D.jpg)
Technische Daten
| Material | St/bare |
| Clamping range Rd* / Rd* | 8-9 / 12 mm |
| Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.4 kA |
| Standard | EN 62561-1 |
| *) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |
|
Art.-Nr. 308136 DC BK 12 RD12 STBLANK
GTIN 4013364308114, Zolltarifnr. (EU): 85359000, Bruttogewicht: 19.34 g, VPE: 50.00 pc(s)
:quality(98)/dehn.at/store/f/50303884/HDVORSCHAU/308134.jpg)
:quality(98)/dehn.at/store/f/50303884/HDVORSCHAU/308134.jpg)
:quality(98)/dehn.at/store/f/50303885/HDVORSCHAU/308136m_D.jpg)
:quality(98)/dehn.at/store/f/50303885/HDVORSCHAU/308136m_D.jpg)
Technische Daten
| Material | St/bare |
| Clamping range Rd* / Rd* | 12 / 12 mm |
| Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 2.6 kA |
| Standard | EN 62561-1 |
| *) Nominal diameter ds of the reinforcement **) For exact assignment see test certificate. |
|
