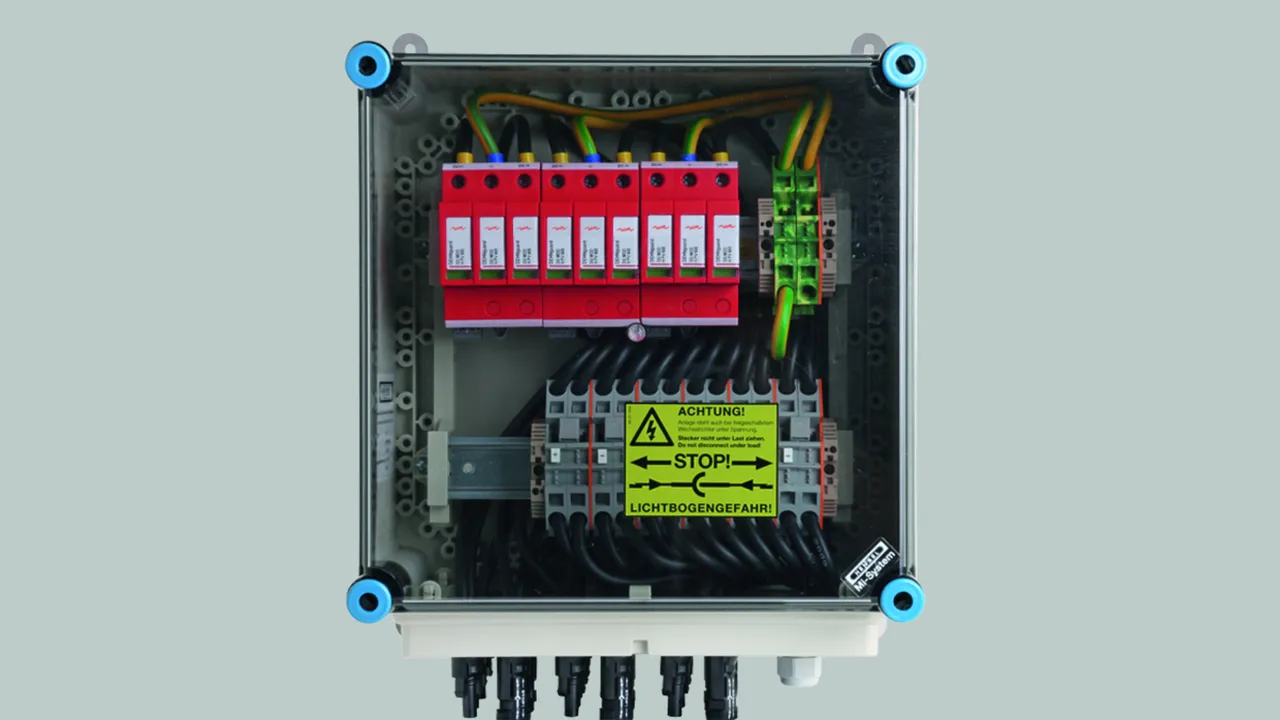

DEHNguard modular YPV ... FM

Prewired complete unit for photovoltaic systems consisting of a base part and plug-in protection modules
Fault-resistant Y circuit with three heavy-duty varistors prevents damage to the surge protective device in case of insulation faults in the generator circuit
Tested to EN 61643-31
High reliability due to "Thermo Dynamic Control" disconnector
Fault indication by red indicator flag in the inspection window
Suitable for use in accordance with IEC 60364-7-712 [Photovoltaic (PV) power systems]

DEHNguard MP YPV ... FM

Multipole modular surge arrester for use in PV systems; with remote signalling contact for monitoring device (floating changeover contact).

2 Produkte

Art.-Nr. 942565 DG MP YPV 1200 FM

GTIN 4013364495685, Zolltarifnr. (EU): 85354000, Bruttogewicht: 355.99 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DEHNguard MP YPV 1200 FM surge arrester
Multipole, modular, pluggable arrester for use in photovoltaic systems
with double push-in connection clamp suitable for
stub wiring and feed-through wiring
up to 1,170 V DC, width of 3 DIN modules
Fault indication
With remote signalling contact
Type 2 arrester as per EN 61643-31
For use according to IEC 60364-7-712
Max. PV voltage: <= 1170 V dc
Total discharge current: 40 kA
Voltage protection level: <= 4 kV
Short-circuit strength Iscpv: 10 kA

Brand: DEHN
Type: DG MP YPV 1200 FM
Part No.: 942565
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1170 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Type of remote signalling contact	changeover contact

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1170 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Nominal load current (d.c.) (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²fine stranded
Cross-sectional area (max.)	10 mm²solid / fine stranded
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm2 solid / flexible

Artikel 942565 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 942565 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 942567 DG MP YPV 1500 FM

GTIN 4013364495678, Zolltarifnr. (EU): 85354000, Bruttogewicht: 387.05 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DEHNguard MP YPV 1500 FM surge arrester
Multipole, modular, pluggable arrester for use in photovoltaic systems
with double push-in connection clamp suitable for
stub wiring and feed-through wiring
up to 1,500 V DC, width of 3 DIN modules
Fault indication
With remote signalling contact
Type 2 arrester as per EN 61643-31
For use according to IEC 60364-7-712
Max. PV voltage: <= 1500 V dc
Total discharge current: 40 kA
Voltage protection level: <= 5 kV
Short-circuit strength Iscpv: 10 kA

Brand: DEHN
Type: DG MP YPV 1500 FM
Part No.: 942567
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1500 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	15 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 5 kV
Type of remote signalling contact	changeover contact

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1500 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	15 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 5 kV
Nominal load current (d.c.) (I_L )	40 A
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid
Cross-sectional area (min.)	6 mm²fine stranded
Cross-sectional area (max.)	10 mm²solid / fine stranded
Cross-sectional area (min.) with wire end ferrule	1.5 mm²
Cross-sectional area (max.) with wire end ferrule	6 mm²
Cross-sectional area (max.) with wire end ferrule without collar	10 mm²
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm2 solid / flexible

Artikel 942567 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 942567 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNguard M YPV ... FM

Modular multipole surge arrester for PV systems with remote signalling contact for monitoring device (floating changeover contact).

2 Produkte

Art.-Nr. 952565 DG M YPV 1200 FM

GTIN 4013364327719, Zolltarifnr. (EU): 85354000, Bruttogewicht: 382.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DEHNguard M YPV 1200 FM surge arrester
Multipole, modular, pluggable arrester for use in photovoltaic systems
up to 1,170 V DC, width of 3 DIN modules
Fault indication
Type 2 arrester as per EN 61643-31
For use according to IEC 60364-7-712
Max. PV voltage: <= 1170 V dc
Total discharge current: 40 kA
Voltage protection level: <= 4 kV
Short-circuit strength Iscpv: 10 kA

Brand: DEHN
Type: DG M YPV 1200 FM
Part No.: 952565
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1170 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Approvals	UL, KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1170 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 4 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	UL, KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 5.83 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part. No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR

Artikel 952565 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952565 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 952567 DG M YPV 1500 FM

GTIN 4013364327726, Zolltarifnr. (EU): 85354000, Bruttogewicht: 411.20 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DEHNguard M YPV 1500 FM surge arrester
Multipole, modular, pluggable arrester for use in photovoltaic systems
up to 1,500 V DC, width of 3 DIN modules
Fault indication
With remote signalling contact
Type 2 arrester as per EN 61643-31
For use according to IEC 60364-7-712
Max. PV voltage: <= 1500 V dc
Total discharge current: 40 kA
Voltage protection level: <= 5 kV
Short-circuit strength Iscpv: 10 kA

Brand: DEHN
Type: DG M YPV 1500 FM
Part No.: 952567
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1500 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	15 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 5 kV
Approvals	UL, KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-31 / IEC 61643-31	type 2 / class II
Max. PV voltage (U_CPV )	1500 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (8/20 µs) (I_total )	40 kA
Nominal discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_n )	15 kA
Max. discharge current (8/20 µs) [(DC+/DC-) --> PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 5 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	3 module(s), DIN 43880
Approvals	UL, KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm2 solid / flexible
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 5.83 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR

Artikel 952567 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952567 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Ergebnisse für Produkte (0)

Ergebnisse für Inhalt (0)

DEHNguard modular YPV ... FM

DEHNguard MP YPV ... FM

Art.-Nr. 942565 DG MP YPV 1200 FM

Artikel 942565 wurde zum Merkzettel hinzugefügt.

Artikel 942565 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 942567 DG MP YPV 1500 FM

Artikel 942567 wurde zum Merkzettel hinzugefügt.

Artikel 942567 wurde zum Warenkorb hinzugefügt.

DEHNguard M YPV ... FM

Art.-Nr. 952565 DG M YPV 1200 FM

Artikel 952565 wurde zum Merkzettel hinzugefügt.

Artikel 952565 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 952567 DG M YPV 1500 FM

Artikel 952567 wurde zum Merkzettel hinzugefügt.

Artikel 952567 wurde zum Warenkorb hinzugefügt.

DEHNguard modular YPV ... FM

DEHNguard MP YPV ... FM

Art.-Nr. 942565 DG MP YPV 1200 FM

Sie müssen angemeldet sein um 942XXX_DG_MP_YPV_XXX_FM.stp herunterzuladen.

Sie müssen angemeldet sein um 942XXX_DG_MP_YPV_XXX_FM.igs herunterzuladen.

Sie müssen angemeldet sein um 942XXX_DG_MP_YPV_XXX_FM.jt herunterzuladen.

Sie müssen angemeldet sein um 942XXX_DG_MP_YPV_XXX_FM.dwg herunterzuladen.

Sie müssen angemeldet sein um 942565_942567m_E.dxf herunterzuladen.

Artikel 942565 wurde zum Merkzettel hinzugefügt.

Artikel 942565 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 942567 DG MP YPV 1500 FM

Sie müssen angemeldet sein um 942XXX_DG_MP_YPV_XXX_FM.stp herunterzuladen.

Sie müssen angemeldet sein um 942XXX_DG_MP_YPV_XXX_FM.igs herunterzuladen.

Sie müssen angemeldet sein um 942XXX_DG_MP_YPV_XXX_FM.jt herunterzuladen.

Sie müssen angemeldet sein um 942XXX_DG_MP_YPV_XXX_FM.dwg herunterzuladen.

Sie müssen angemeldet sein um 942565_942567m_E.dxf herunterzuladen.

Artikel 942567 wurde zum Merkzettel hinzugefügt.

Artikel 942567 wurde zum Warenkorb hinzugefügt.

DEHNguard M YPV ... FM

Art.-Nr. 952565 DG M YPV 1200 FM

Sie müssen angemeldet sein um 952305.stp herunterzuladen.

Sie müssen angemeldet sein um 952305.igs herunterzuladen.

Sie müssen angemeldet sein um 952305.jt herunterzuladen.

Sie müssen angemeldet sein um 952305.dwg herunterzuladen.

Sie müssen angemeldet sein um 952305m_E.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.952565.wspak herunterzuladen.

Sie müssen angemeldet sein um DEHN.952565.edz herunterzuladen.

Artikel 952565 wurde zum Merkzettel hinzugefügt.

Artikel 952565 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 952567 DG M YPV 1500 FM

Sie müssen angemeldet sein um 952305.stp herunterzuladen.

Sie müssen angemeldet sein um 952305.igs herunterzuladen.

Sie müssen angemeldet sein um 952305.jt herunterzuladen.

Sie müssen angemeldet sein um 952305.dwg herunterzuladen.

Sie müssen angemeldet sein um 952305m_E.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.952567.wspak herunterzuladen.

Sie müssen angemeldet sein um DEHN.952567.edz herunterzuladen.

Artikel 952567 wurde zum Merkzettel hinzugefügt.

Artikel 952567 wurde zum Warenkorb hinzugefügt.
