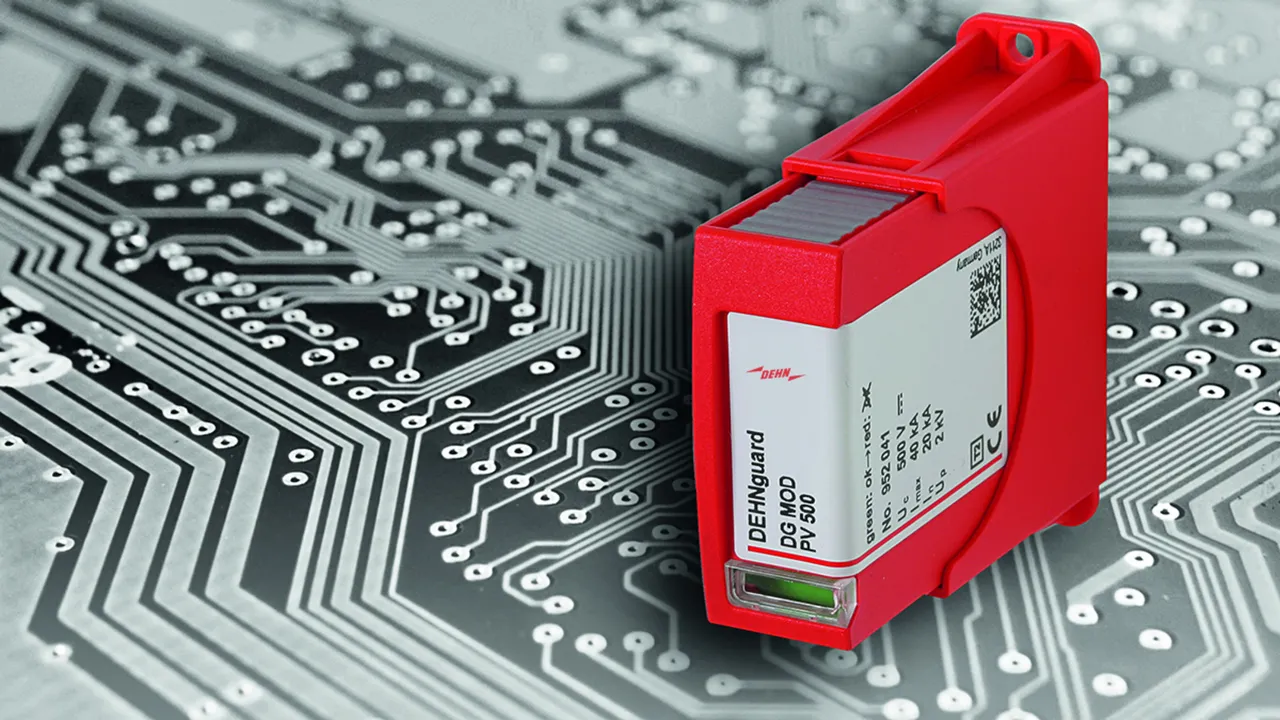

DEHNguard PCB

Base for DEHNguard protection modules to be mounted on and integrated in PCBs
Optimal integration of a type 2 arrester in devices
Easy and flexible use for all circuit configurations
Proven DEHNguard modules ensure high performance
Coded base and protection module guard against installing an incorrect module
Version with and without remote signalling contact for the monitoring device
Versions for maximum requirements on clearances and creepage distances
Versions for other DEHNguard protection modules available on request

DEHNguard PCB PV SCI ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

3 Produkte

Art.-Nr. 952653 DG PCB PV SCI 300

GTIN 4013364150713, Zolltarifnr. (EU): 85366930, Bruttogewicht: 19.89 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB PV SCI 300 single-pole base
Single-pole base for DEHNguard protection modules
for integration on PCBs
Coded base part and protection module
Mounting via screw and soldered connection on PCBs
Associated protection module:
DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module): 500 V

Brand: DEHN
Type: DG PCB PV SCI 300
Part No.: 952653
or equivalent.

Zertifikate

Technische Daten

Associated protection module	DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module)	300 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)

Artikel 952653 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952653 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 952651 DG PCB PV SCI 500

GTIN 4013364146310, Zolltarifnr. (EU): 85366930, Bruttogewicht: 19.89 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB PV SCI 500 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 500
Part No.: 952651
or equivalent.

Zertifikate

Technische Daten

Associated protection module	DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module)	500 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)

Artikel 952651 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952651 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 952654 DG PCB PV SCI 600

GTIN 4013364149878, Zolltarifnr. (EU): 85366930, Bruttogewicht: 19.79 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB PV SCI 600 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 600
Part No.: 952654
or equivalent.

Zertifikate

Technische Daten

Associated protection module	DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module)	600 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)

Artikel 952654 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952654 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNguard PCB PV SCI ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

3 Produkte

Art.-Nr. 952753 DG PCB PV SCI 300 FM

GTIN 4013364150720, Zolltarifnr. (EU): 85366930, Bruttogewicht: 19.79 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB PV SCI 300 FM single-pole base
Single-pole base for DEHNguard protection modules
is mounted and integrated on PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 300 FM
Part No.: 952753
or equivalent.

Zertifikate

Technische Daten

Associated protection module	DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module)	300 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact

Associated protection module	DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module)	300 V
Operating temperature range (T_U )	-40 °C … +80 °C
For mounting on	directly soldered into PCB
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	125 V / 0,1 A
Switching capacity (d.c.)	42 V / 0,5 A; 24 V / 1 A; 12 V / 2 A
Soldering temperature (remote signalling contact)	max. 260 °C / 5 sec.

Artikel 952753 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952753 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 952751 DG PCB PV SCI 500 FM

GTIN 4013364146327, Zolltarifnr. (EU): 85366930, Bruttogewicht: 20.49 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB PV SCI 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 500 FM
Part No.: 952751
or equivalent.

Zertifikate

Technische Daten

Associated protection module	DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module)	500 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact

Associated protection module	DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module)	500 V
Operating temperature range (T_U )	-40 °C … +80 °C
For mounting on	directly soldered into PCB
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	125 V / 0,1 A
Switching capacity (d.c.)	42 V / 0,5 A; 24 V / 1 A; 12 V / 2 A
Soldering temperature (remote signalling contact)	max. 260°C / 5 sec.

Artikel 952751 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952751 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 952754 DG PCB PV SCI 600 FM

GTIN 4013364149885, Zolltarifnr. (EU): 85366930, Bruttogewicht: 19.79 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB PV SCI 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 600 FM
Part No.: 952754
or equivalent.

Zertifikate

Technische Daten

Associated protection module	DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module)	600 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact

Associated protection module	DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module)	600 V
Operating temperature range (T_U )	-40 °C … +80 °C
For mounting on	directly soldered into PCB
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	125 V / 0,1 A
Switching capacity (d.c.)	42 V / 0,5 A; 24 V / 1 A; 12 V / 2 A
Soldering temperature (remote signalling contact)	max. 260°C / 5 sec.

Artikel 952754 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952754 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNguard PCB PV ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

3 Produkte

Art.-Nr. 952643 DG PCB PV 300

GTIN 4013364150737, Zolltarifnr. (EU): 85366930, Bruttogewicht: 19.89 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB PV 300 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 300
Part No.: 952643
or equivalent.

Zertifikate

Technische Daten

Associated protection module	DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module)	300 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)

Artikel 952643 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952643 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 952641 DG PCB PV 500

GTIN 4013364146334, Zolltarifnr. (EU): 85366930, Bruttogewicht: 19.89 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB PV 500 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 500
Part No.: 952641
or equivalent.

Zertifikate

Technische Daten

Associated protection module	DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module)	500 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)

Artikel 952641 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952641 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 952644 DG PCB PV 600

GTIN 4013364149892, Zolltarifnr. (EU): 85366930, Bruttogewicht: 19.79 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB PV 600 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 600
Part No.: 952644
or equivalent.

Zertifikate

Technische Daten

Associated protection module	DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module)	600 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)

Artikel 952644 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952644 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNguard PCB PV ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

3 Produkte

Art.-Nr. 952743 DG PCB PV 300 FM

GTIN 4013364150744, Zolltarifnr. (EU): 85366930, Bruttogewicht: 19.79 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB PV 300 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 300 FM
Part No.: 952743
or equivalent.

Zertifikate

Technische Daten

Associated protection module	DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module)	300 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact

Associated protection module	DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module)	300 V
Operating temperature range (T_U )	-40 °C … +80 °C
For mounting on	directly soldered into PCB
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	125 V / 0,1 A
Switching capacity (d.c.)	42 V / 0,5 A; 24 V / 1 A; 12 V / 2 A
Soldering temperature (remote signalling contact)	max. 260°C / 5 sec.

Artikel 952743 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952743 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 952741 DG PCB PV 500 FM

GTIN 4013364146341, Zolltarifnr. (EU): 85366930, Bruttogewicht: 20.49 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB PV 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 500 FM
Part No.: 952741
or equivalent.

Zertifikate

Technische Daten

Associated protection module	DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module)	500 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact

Associated protection module	DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module)	500 V
Operating temperature range (T_U )	-40 °C … +80 °C
For mounting on	directly soldered into PCB
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	125 V / 0,1 A
Switching capacity (d.c.)	42 V / 0,5 A; 24 V / 1 A; 12 V / 2 A
Soldering temperature (remote signalling contact)	max. 260°C / 5 sec.

Artikel 952741 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952741 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 952744 DG PCB PV 600 FM

GTIN 4013364149908, Zolltarifnr. (EU): 85366930, Bruttogewicht: 19.79 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB PV 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 600 FM
Part No.: 952744
or equivalent.

Zertifikate

Technische Daten

Associated protection module	DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module)	600 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact

Associated protection module	DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module)	600 V
Operating temperature range (T_U )	-40 °C … +80 °C
For mounting on	directly soldered into PCB
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	125 V / 0,1 A
Switching capacity (d.c.)	42 V / 0,5 A; 24 V / 1 A; 12 V / 2 A
Soldering temperature (remote signalling contact)	max. 260°C / 5 sec.

Artikel 952744 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952744 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNguard PCB ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

2 Produkte

Art.-Nr. 952610 DG PCB 275

GTIN 4013364149816, Zolltarifnr. (EU): 85366930, Bruttogewicht: 19.79 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB 275 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (d.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 275
Part No.: 952610
or equivalent.

Zertifikate

Technische Daten

Associated protection module	DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module)	275 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)

Artikel 952610 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952610 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 952614 DG PCB 385

GTIN 4013364149847, Zolltarifnr. (EU): 85366930, Bruttogewicht: 19.79 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB 385 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (d.c.) (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385
Part No.: 952614
or equivalent.

Zertifikate

Technische Daten

Associated protection module	DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module)	385 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)

Artikel 952614 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952614 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNguard PCB ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

2 Produkte

Art.-Nr. 952710 DG PCB 275 FM

GTIN 4013364149830, Zolltarifnr. (EU): 85366930, Bruttogewicht: 20.59 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB 275 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 275 FM
Part No.: 952710
or equivalent.

Zertifikate

Technische Daten

Associated protection module	DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module)	275 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact

Associated protection module	DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module)	275 V
Operating temperature range (T_U )	-40 °C … +80 °C
For mounting on	directly soldered into PCB
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	125 V / 0,1 A
Switching capacity (d.c.)	42 V / 0,5 A; 24 V / 1 A; 12 V / 2 A
Soldering temperature (remote signalling contact)	max. 260°C / 5 sec.

Artikel 952710 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952710 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 952714 DG PCB 385 FM

GTIN 4013364149854, Zolltarifnr. (EU): 85366930, Bruttogewicht: 20.59 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB 385 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385 FM
Part No.: 952714
or equivalent.

Zertifikate

Technische Daten

Associated protection module	DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module)	385 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact

Associated protection module	DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module)	385 V
Operating temperature range (T_U )	-40 °C … +80 °C
For mounting on	directly soldered into PCB
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	125 V / 0,1 A
Switching capacity (d.c.)	42 V / 0,5 A; 24 V / 1 A; 12 V / 2 A
Soldering temperature (remote signalling contact)	max. 260°C / 5 sec.

Artikel 952714 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952714 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNguard PCB NPE (FM)

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

2 Produkte

Art.-Nr. 952650 DG PCB NPE

GTIN 4013364149823, Zolltarifnr. (EU): 85366930, Bruttogewicht: 19.79 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB NPE single-pole base
Single-pole base for DEHNguard protection modules
to be integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (d.c.) (module): 255 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB NPE
Part No.: 952650
or equivalent.

Zertifikate

Technische Daten

Associated protection module	DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module)	255 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)

Artikel 952650 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952650 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 952750 DG PCB NPE FM

GTIN 4013364149861, Zolltarifnr. (EU): 85366930, Bruttogewicht: 19.79 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB NPE FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module): 255 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB NPE FM
Part No.: 952750
or equivalent.

Zertifikate

Technische Daten

Associated protection module	DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module)	255 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact

Associated protection module	DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module)	255 V
Operating temperature range (T_U )	-40 °C … +80 °C
For mounting on	directly soldered into PCB
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	125 V / 0.1 A
Switching capacity (d.c.)	42 V / 0.5 A; 24 V / 1 A; 12 V / 2 A
Soldering temperature (remote signalling contact)	max. 260°C / 5 sec.

Artikel 952750 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952750 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNguard PCB PV I ... FM

Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).

3 Produkte

Art.-Nr. 952941 DG PCB PV I 500 FM

GTIN 4013364228177, Zolltarifnr. (EU): 85366930, Bruttogewicht: 19.79 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB PV I 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 500 FM
Part No.: 952941
or equivalent.

Zertifikate

Technische Daten

Associated protection module	DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module)	500 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact

Associated protection module	DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module)	500 V
Operating temperature range (T_U )	-40 °C … +80 °C
For mounting on	directly soldered into PCB
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	125 V / 0.1 A
Switching capacity (d.c.)	42 V / 0.5 A; 24 V / 1 A; 12 V / 2 A
Soldering temperature (remote signalling contact)	max. 260°C / 5 sec.

Artikel 952941 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952941 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 952948 DG PCB PV I 600 FM

GTIN 4013364323919, Zolltarifnr. (EU): 85366930, Bruttogewicht: 19.79 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB PV I 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure
against installing an incorrect module
Associated protection module:
DG MOD H PV 600 (Part No. 952 048)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 600 FM
Part No.: 952948
or equivalent.

Zertifikate

Technische Daten

Associated protection module	DG MOD H PV 600 (Part No. 952 048)
Max. continuous operating voltage (d.c.) (module)	600 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact

Associated protection module	DG MOD H PV 600 (Part No. 952 048)
Max. continuous operating voltage (d.c.) (module)	600 V
Operating temperature range (T_U )	-40 °C … +80 °C
For mounting on	directly soldered into PCB
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	125 V / 0.1 A
Switching capacity (d.c.)	42 V / 0.5 A; 24 V / 1 A; 12 V / 2 A
Soldering temperature (remote signalling contact)	max. 260°C / 5 sec.

Artikel 952948 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952948 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 952949 DG PCB PV I 750 FM

GTIN 4013364323926, Zolltarifnr. (EU): 85366930, Bruttogewicht: 19.79 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB PV I 750 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure
against installing an incorrect module
Associated protection module:
DG MOD H PV 750 (Part No. 952 049)
Max. continuous operating voltage (d.c.) (module): 750 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 750 FM
Part No.: 952949
or equivalent.

Technische Daten

Associated protection module	DG MOD H PV 750 (Part No. 952 049)
Max. continuous operating voltage (d.c.) (module)	750 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact

Associated protection module	DG MOD H PV 750 (Part No. 952 049)
Max. continuous operating voltage (d.c.) (module)	750 V
Operating temperature range (T_U )	-40 °C … +80 °C
For mounting on	directly soldered into PCB
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	125 V / 0.1 A
Switching capacity (d.c.)	42 V / 0.5 A; 24 V / 1 A; 12 V / 2 A
Soldering temperature (remote signalling contact)	max. 260°C / 5 sec.

Artikel 952949 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952949 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNguard PCB PVSCI I ...FM

1 Produkt

Art.-Nr. 952951 DG PCB PVSCI I 500FM

GTIN 4013364228184, Zolltarifnr. (EU): 85366930, Bruttogewicht: 19.79 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB PVSCI I 500FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PVSCI I 500FM
Part No.: 952951
or equivalent.

Zertifikate

Technische Daten

Associated protection module	DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module)	500 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact

Associated protection module	DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module)	500 V
Operating temperature range (T_U )	-40 °C ... +80 °C
For mounting on	directly soldered into PCB
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	125 V / 0.1 A
Switching capacity (d.c.)	42 V / 0.5 A; 24 V / 1 A; 12 V / 2 A
Soldering temperature (remote signalling contact)	max. 260°C / 5 sec.

Artikel 952951 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952951 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNguard PCB I ... FM

1 Produkt

Art.-Nr. 952910 DG PCB I 275 FM

GTIN 4013364266865, Zolltarifnr. (EU): 85366930, Bruttogewicht: 19.79 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNguard PCB I 275 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB I 275 FM
Part No.: 952910
or equivalent.

Zertifikate

Technische Daten

Associated protection module	DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module)	275 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact

Associated protection module	DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module)	275 V
Operating temperature range (T_U )	-40 °C … +80 °C
For mounting on	directly soldered into PCB
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	125 V / 0.1 A
Switching capacity (d.c.)	42 V / 0.5 A; 24 V / 1 A; 12 V / 2 A
Soldering temperature (remote signalling contact)	max. 260 °C / 5 sec.

Artikel 952910 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952910 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DG PCB ... UL

2 Produkte

Art.-Nr. 952615 DG PCB 385 UL FM

GTIN 4013364535794, Zolltarifnr. (EU): 85366930, Bruttogewicht: 20.49 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

Single-pole base DEHNguard DG PCB 385 UL FM
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
with remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG PLU 385 (Part No. 908 014)
Max. continuous AC operating voltage (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385 UL FM
Part No.: 952615
or equivalent.

Technische Daten

Associated protection module	DG PLU 385 (Part No. 908 014)
Max. continuous operating voltage (a.c.) (module)	385 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact

Associated protection module	DG PLU 385 (Part No. 908 014)
Max. continuous operating voltage (a.c.) (module)	385 V
Operating temperature range (T_U )	-40°C to +85°C
For mounting on	directly soldered into PCB
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	125 V / 0,1 A
Switching capacity (d.c.)	42 V / 0,5 A; 24 V / 1 A; 12 V / 2 A
Soldering temperature (remote signalling contact)	max. 260°C / 5 sec.

Artikel 952615 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952615 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 952616 DG PCB 510 UL FM

GTIN 4013364535800, Zolltarifnr. (EU): 85366930, Bruttogewicht: 20.49 g, VPE: 72.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

Single-pole base DEHNguard DG PCB 510 UL FM
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
with remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG PLU 510 (Part No. 908 013)
Max. continuous AC operating voltage (module): 510 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 510 UL FM
Part No.: 952616
or equivalent.

Technische Daten

Associated protection module	DG PLU 510 (Part No. 908 013)
Max. continuous operating voltage (a.c.) (module)	510 V
For mounting on	directly soldered into PCB
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact

Associated protection module	DG PLU 510 (Part No. 908 013)
Max. continuous operating voltage (a.c.) (module)	510 V
Operating temperature range (T_U )	-40°C to +85°C
For mounting on	directly soldered into PCB
Enclosure material	thermoplastic, red, UL 94 V-0
Degree of protection	IP 20 (protection module plugged in)
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	125 V / 0,1 A
Switching capacity (d.c.)	42 V / 0,5 A; 24 V / 1 A; 12 V / 2 A
Soldering temperature (remote signalling contact)	max. 260°C / 5 sec.

Artikel 952616 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952616 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNguard PCB

DEHNguard PCB PV SCI ...

Art.-Nr. 952653 DG PCB PV SCI 300

Sie müssen angemeldet sein um 952653.stp herunterzuladen.

Sie müssen angemeldet sein um 952653.igs herunterzuladen.

Sie müssen angemeldet sein um 952653.jt herunterzuladen.

Sie müssen angemeldet sein um 952653.dwg herunterzuladen.

Sie müssen angemeldet sein um 952610m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.952653.wspak herunterzuladen.

Sie müssen angemeldet sein um DEHN.952653.edz herunterzuladen.

Artikel 952653 wurde zum Merkzettel hinzugefügt.

Artikel 952653 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 952651 DG PCB PV SCI 500

Sie müssen angemeldet sein um 952653.stp herunterzuladen.

Sie müssen angemeldet sein um 952653.igs herunterzuladen.

Sie müssen angemeldet sein um 952653.jt herunterzuladen.

Sie müssen angemeldet sein um 952653.dwg herunterzuladen.

Sie müssen angemeldet sein um 952610m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.952651.wspak herunterzuladen.

Sie müssen angemeldet sein um DEHN.952651.edz herunterzuladen.

Artikel 952651 wurde zum Merkzettel hinzugefügt.

Artikel 952651 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 952654 DG PCB PV SCI 600

Sie müssen angemeldet sein um 952653.stp herunterzuladen.

Sie müssen angemeldet sein um 952653.igs herunterzuladen.

Sie müssen angemeldet sein um 952653.jt herunterzuladen.

Sie müssen angemeldet sein um 952653.dwg herunterzuladen.

Sie müssen angemeldet sein um 952610m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.952654.wspak herunterzuladen.

Sie müssen angemeldet sein um DEHN.952654.edz herunterzuladen.

Artikel 952654 wurde zum Merkzettel hinzugefügt.

Artikel 952654 wurde zum Warenkorb hinzugefügt.

DEHNguard PCB PV SCI ... FM

Art.-Nr. 952753 DG PCB PV SCI 300 FM

Sie müssen angemeldet sein um 952653.stp herunterzuladen.

Sie müssen angemeldet sein um 952653.igs herunterzuladen.

Sie müssen angemeldet sein um 952653.jt herunterzuladen.

Sie müssen angemeldet sein um 952653.dwg herunterzuladen.

Sie müssen angemeldet sein um 952710m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.952753.wspak herunterzuladen.

Sie müssen angemeldet sein um DEHN.952753.edz herunterzuladen.

Artikel 952753 wurde zum Merkzettel hinzugefügt.

Artikel 952753 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 952751 DG PCB PV SCI 500 FM

Sie müssen angemeldet sein um 952653.stp herunterzuladen.

Sie müssen angemeldet sein um 952653.igs herunterzuladen.

Sie müssen angemeldet sein um 952653.jt herunterzuladen.

Sie müssen angemeldet sein um 952653.dwg herunterzuladen.

Sie müssen angemeldet sein um 952710m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.952751.wspak herunterzuladen.

Sie müssen angemeldet sein um DEHN.952751.edz herunterzuladen.

Artikel 952751 wurde zum Merkzettel hinzugefügt.

Artikel 952751 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 952754 DG PCB PV SCI 600 FM

Sie müssen angemeldet sein um 952653.stp herunterzuladen.

Sie müssen angemeldet sein um 952653.igs herunterzuladen.

Sie müssen angemeldet sein um 952653.jt herunterzuladen.

Sie müssen angemeldet sein um 952653.dwg herunterzuladen.

Sie müssen angemeldet sein um 952710m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.952754.wspak herunterzuladen.

Sie müssen angemeldet sein um DEHN.952754.edz herunterzuladen.

Artikel 952754 wurde zum Merkzettel hinzugefügt.

Artikel 952754 wurde zum Warenkorb hinzugefügt.

DEHNguard PCB PV ...

Art.-Nr. 952643 DG PCB PV 300

Sie müssen angemeldet sein um 952653.stp herunterzuladen.

Sie müssen angemeldet sein um 952653.igs herunterzuladen.

Sie müssen angemeldet sein um 952653.jt herunterzuladen.

Sie müssen angemeldet sein um 952653.dwg herunterzuladen.

Sie müssen angemeldet sein um 952610m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.952643.wspak herunterzuladen.

Sie müssen angemeldet sein um DEHN.952643.edz herunterzuladen.

Artikel 952643 wurde zum Merkzettel hinzugefügt.

Artikel 952643 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 952641 DG PCB PV 500

Sie müssen angemeldet sein um 952653.stp herunterzuladen.

Sie müssen angemeldet sein um 952653.igs herunterzuladen.

Sie müssen angemeldet sein um 952653.jt herunterzuladen.

Sie müssen angemeldet sein um 952653.dwg herunterzuladen.

Sie müssen angemeldet sein um 952610m_D.dxf herunterzuladen.
