Connection and bridging device for reinforcements
:quality(98)/dehn.at/store/f/51114531/HDVORSCHAU/416941_416940a4_16-9.jpg)
:quality(98)/dehn.at/store/f/51114531/HDVORSCHAU/416941_416940a4_16-9.jpg)

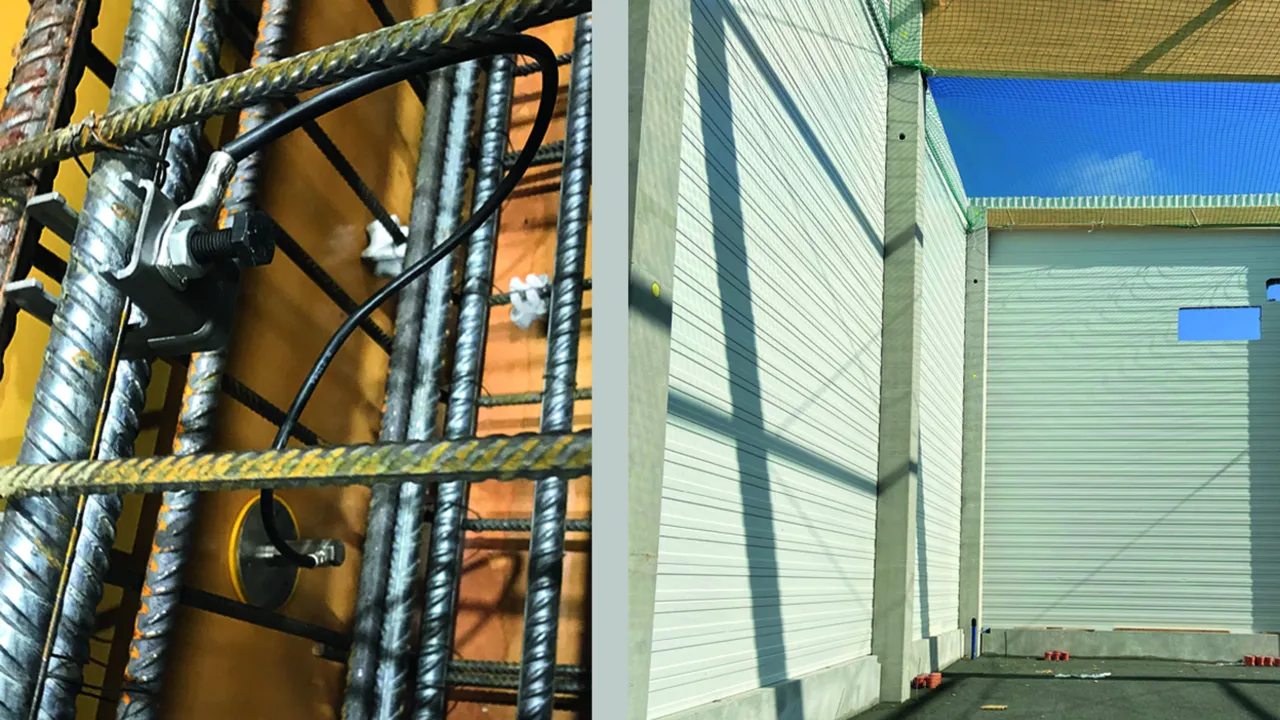

Connection and bridging device for using the reinforcing bars (longitudinal bars) of reinforced concrete supports or walls as a down conductor. By using a reinforcing bar contained in reinforced concrete supports, there is no need for the additional installation of round conductors (St/tZn) for lightning protection / earthing / equipotential bonding. The electrically relevant connection is established across the entire length of the reinforced concrete support by a vertical reinforcing bar.
Art.-Nr. 416940 UES 16 L600 VK RD8 28 FL30 EFP
GTIN 4013364360280, Zolltarifnr. (EU): 85359000, Bruttogewicht: 530.00 g, VPE: 25.00 pc(s)
:quality(98)/dehn.at/store/f/51114542/HDVORSCHAU/416940.jpg)
:quality(98)/dehn.at/store/f/51114542/HDVORSCHAU/416940.jpg)
:quality(98)/dehn.at/store/f/51114543/HDVORSCHAU/416940m_D.jpg)
:quality(98)/dehn.at/store/f/51114543/HDVORSCHAU/416940m_D.jpg)
Technische Daten
| Connecting clamp material | St/bare |
| Clamping range Rd connecting clamp | 8-28 mm |
| Clamping range Fl connecting clamp | 30 x 3-4 mm |
| Fixed earthing terminal material | StSt (V4A) |
| Fixed earthing point terminal thread | M10 / M12 |
| Bridging cable material | Flexible copper conductor, frost-resistant |
| Bridging cable cable length | 600 mm |
| Bridging cable cable cross section | 16 mm2 |
| Standard | EN 62561-1 |
| Special lengths possible on request. *) For exact assignment, see test certificate. |
|
Art.-Nr. 416950 UES 16 L1000 VK RD8 28 FL30 EFP
GTIN 4013364508620, Zolltarifnr. (EU): 85359000, Bruttogewicht: 650.00 g, VPE: 25.00 pc(s)
:quality(98)/dehn.at/store/f/51114619/HDVORSCHAU/416940.jpg)
:quality(98)/dehn.at/store/f/51114619/HDVORSCHAU/416940.jpg)
:quality(98)/dehn.at/store/f/51114620/HDVORSCHAU/416950m_D.jpg)
:quality(98)/dehn.at/store/f/51114620/HDVORSCHAU/416950m_D.jpg)
Technische Daten
| Connecting clamp material | St/bare |
| Clamping range Rd connecting clamp | 8-28 mm |
| Clamping range Fl connecting clamp | 30 x 3-4 mm |
| Fixed earthing terminal material | StSt (V4A) |
| Fixed earthing point terminal thread | M10 / M12 |
| Bridging cable material | Flexible copper conductor, frost-resistant |
| Bridging cable cable length | 1000 mm |
| Bridging cable cable cross section | 16 mm2 |
| Standard | EN 62561-1 |
| Special lengths possible on request. *) For exact assignment, see test certificate. |
|
Art.-Nr. 416941 UES 16 L600 2VK RD8 28 FL30
GTIN 4013364360273, Zolltarifnr. (EU): 85359000, Bruttogewicht: 513.00 g, VPE: 25.00 pc(s)
:quality(98)/dehn.at/store/f/51114630/HDVORSCHAU/416941.jpg)
:quality(98)/dehn.at/store/f/51114630/HDVORSCHAU/416941.jpg)
:quality(98)/dehn.at/store/f/51114631/HDVORSCHAU/416941m_D.jpg)
:quality(98)/dehn.at/store/f/51114631/HDVORSCHAU/416941m_D.jpg)
Technische Daten
| Connecting clamp material | St/bare |
| Clamping range Rd connecting clamp | 8-28 mm |
| Clamping range Fl connecting clamp | 30 x 3-4 mm |
| Bridging cable material | Flexible copper conductor, frost-resistant |
| Bridging cable cable length | 600 mm |
| Bridging cable cable cross section | 16 mm2 |
| Standard | EN 62561-1 |
| Special lengths possible on request. *) For exact assignment, see test certificate. |
|
