Connecting Sleeve for Air-Termination Rods
:quality(98)/dehn.at/store/f/50293677/HDVORSCHAU/385216a1_16-9.jpg)
:quality(98)/dehn.at/store/f/50293677/HDVORSCHAU/385216a1_16-9.jpg)

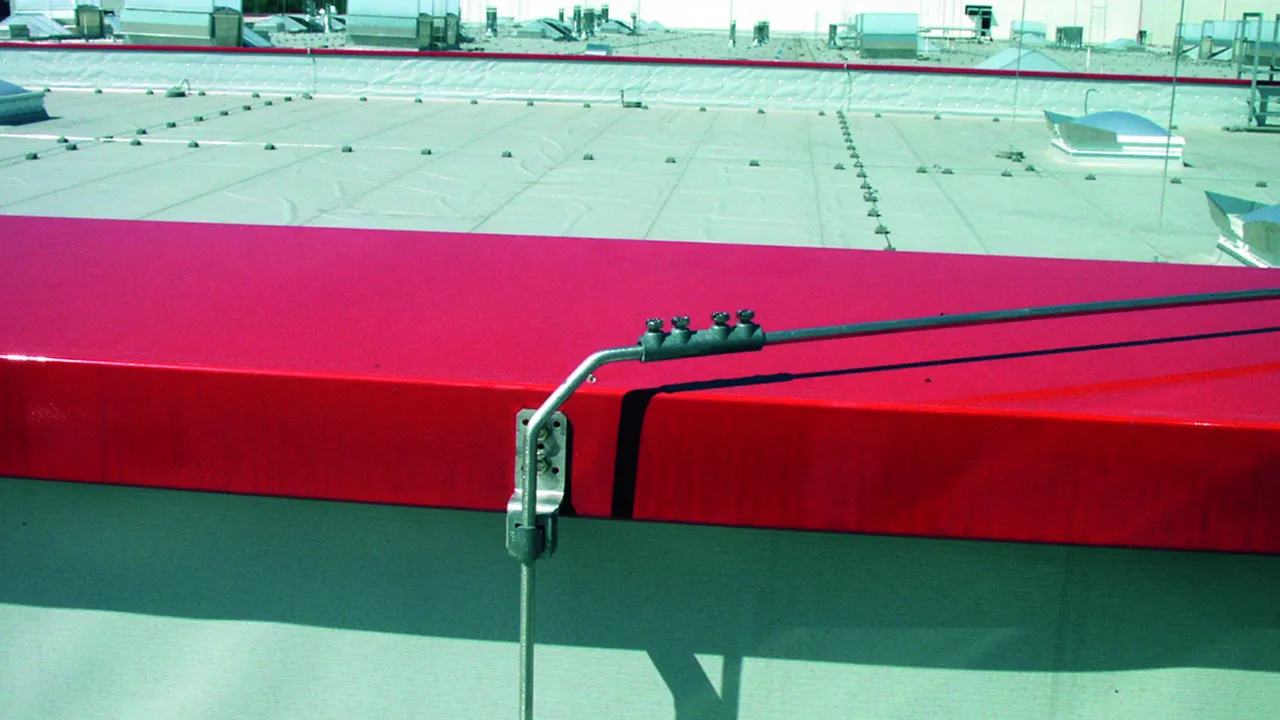

With embossings (stop) for connecting longer air-termination rods (transport length).
When using the connecting sleeve, the air-termination rod must be additionally fixed above the sleeve.
When using the connecting sleeve, the air-termination rod must be additionally fixed above the sleeve.
Art.-Nr. 385216 VM 16 SKM8X12 AL
GTIN 4013364100565, Zolltarifnr. (EU): 85359000, Bruttogewicht: 140.90 g, VPE: 10.00 pc(s)
Abbildungen
:quality(98)/dehn.at/store/f/50293689/HDVORSCHAU/385216.jpg)
:quality(98)/dehn.at/store/f/50293689/HDVORSCHAU/385216.jpg)
Zertifikate
Technische Daten
| Material | Al |
| Clamping range Rd / Rd | 16 / 16 mm |
| Screw | di M8 x 12 mm |
| Material of screw | StSt |
| Outside diameter Ø | 28 mm |
| Standard | EN 62561-1 |
| *) For exact assignment see test certificate. | |
