Telescopic Lightning Protection Mast for Bucket or Concrete Foundations

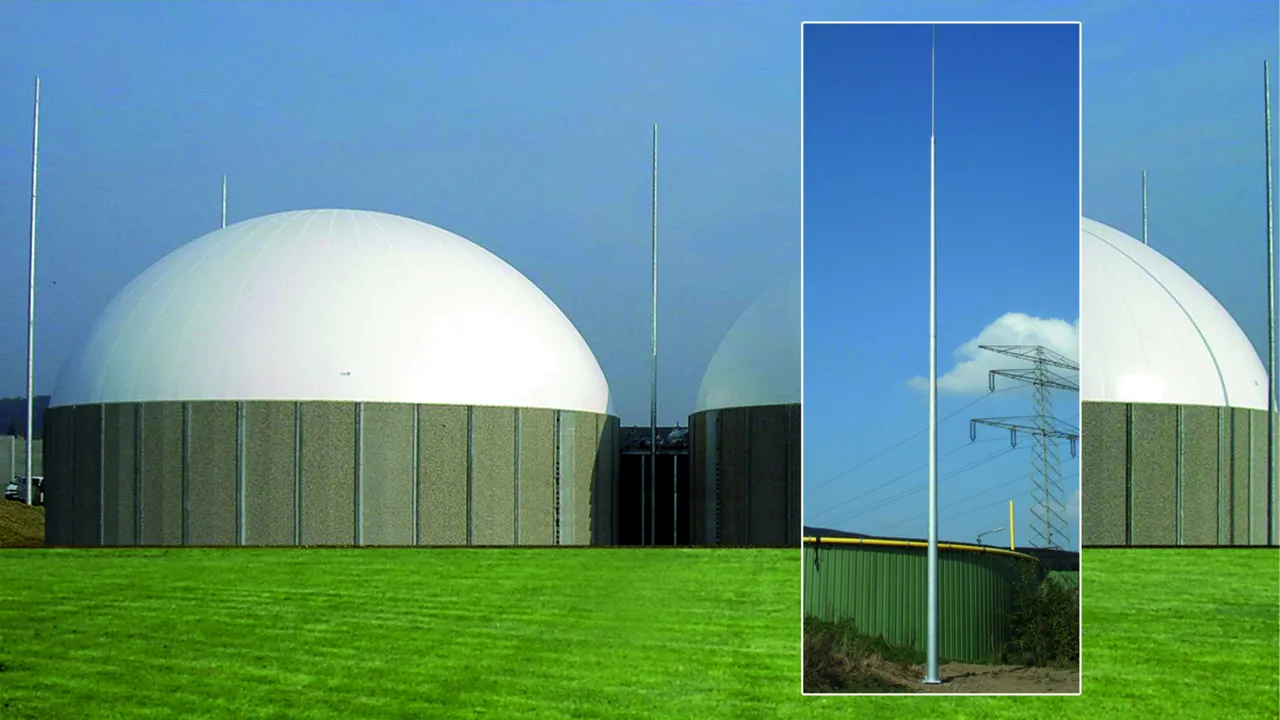

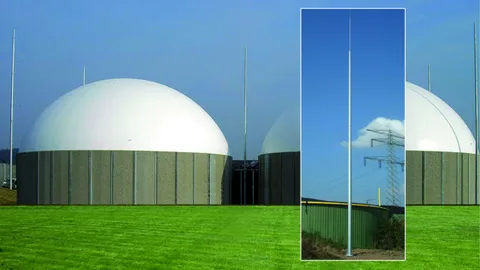

Air-termination mast for protecting special facilities such as biogas plants, free field PV systems, Ex systems and ammunition dumps against direct lightning strikes.The masts are erected in a bucket foundation (pre-fabricated) or an on-site concrete foundation with foundation basket (to be ordered separately).For detailed imformation on the plug-in system, foundation and installation, please see in installation instructions No. 1729.This air-termination mast system ensures that entire systems / areas are located in the protected volume (lightning protection zone 0_B) without installing horizontal air-termination systems (spanning cables).The separation distance s according to IEC/EN 62305-3 between the air-termination mast and the object to be protected must be observed. The air-termination masts are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).Advantages of the air-termination mast system:

Excavation work can be completed in advance
Erection in (prefabricated) bucket foundation on site with comparatively little effort, or
Erection in on-site concrete foundations with foundation basket (concrete curing time to be observed for scheduling and erection)
With flange plate for fast mounting
Easily adjustable with M24 threaded bolts
Detailed mounting instructions
Verifiable statics (upon request)

Components:

Air-termination rod, St/tZn, Ø42 / 25 / 15 mm, length 2400 or 5400 mm, with M20 thread and lock nut
Conic mast segments
Flange plate with connection lug for earth connection hole Ø12 mm (for round conductor Ø10 mm, e.g. with KS connector (Part No. 301 019))

Max. transport length 6 m.

5 Produkte

Art.-Nr. 103013 TBM 13.35M FP400 STTZN

GTIN 4013364129818, Zolltarifnr. (EU): 85389099, Bruttogewicht: 228.00 kg, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

Telescopic lightning protection mast in bucket or concrete foundation; height: 13.38 m
Telescopic lightning protection mast in bucket or concrete foundation
Air-termination mast for protecting installations against direct lightning strikes
The mast is erected in a bucket foundation (pre-fabricated)
or an on-site concrete foundation with foundation basket
The mast is dimensioned to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
for a max. gust wind speed of 194 km/h.
Plug-in system with conical mast parts
Including flange plate with terminal lug for earth connection
borehole Ø12 mm (for Ø10‑mm round conductor, e.g. with KS connector, part no. 301 019)
Material: St/tZn
Height above ground level: 13380 mm
Mast segments: 2
Dimensions of flange plate: 400 x 400 mm
Flange plate: 4x Ø27 mm for 4x M24 (300 x 300 mm)
Dim. of on-site concrete foundation : 1400 x 1400 x 900 mm
Standard: EN 62561-(1+2)

Brand: DEHN
Type: TBM 13.35M FP400 STTZN
Part No.: 103013
or equivalent.

Zertifikate

Technische Daten

Material	St/tZn
Height above ground level (l1)	13380 mm
Mast segments	2
Max. gust wind speed with Concrete foundation	194 km/h
Max. gust wind speed with bucket foundation	143 km/h
Dimensions of flange plate	400 x 400 mm
Flange plate	4x Ø27 mm for 4x M24 (300 x 300 mm)
Dim. of on-site concrete foundation (l x w x h)	1400 x 1400 x 900 mm
Standard	EN 62561-(1+2)

Material	St/tZn
Height above ground level (l1)	13380 mm
Mast segments	2
Max. gust wind speed with Concrete foundation	194 km/h
Max. gust wind speed with bucket foundation	143 km/h
Length of air-termination rod (l2)	2380 mm
Dimensions of flange plate	400 x 400 mm
Flange plate	4x Ø27 mm for 4x M24 (300 x 300 mm)
Dim. of on-site concrete foundation (l x w x h)	1400 x 1400 x 900 mm
Zinc coating acc. EN 1461	approx. 100 µm
Standard	EN 62561-(1+2)

Artikel 103013 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 103013 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 103016 TBM 16.35M FP400 STTZN

GTIN 4013364129825, Zolltarifnr. (EU): 85389099, Bruttogewicht: 230.00 kg, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

Telescopic lightning protection mast in bucket or concrete foundation; height: 16.38 m
Telescopic lightning protection mast in bucket or concrete foundation
Air-termination mast for protecting installations against direct lightning strikes
The mast is erected in a bucket foundation (pre-fabricated)
or an on-site concrete foundation with foundation basket
The mast is dimensioned to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
for a max. gust wind speed of 135 km/h.
Plug-in system with conical mast parts
Including flange plate with terminal lug for earth connection
borehole Ø12 mm (for Ø10‑mm round conductor, e.g. with KS connector, part no. 301 019)
Material: St/tZn
Height above ground level: 16380 mm
Mast segments: 2
Dimensions of flange plate: 400 x 400 mm
Flange plate: 4x Ø27mm for 4x M24 (300 x 300 mm)
Dim. of on-site concrete foundation : 1400 x 1400 x 900 mm
Standard: EN 62561-(1+2)

Brand: DEHN
Type: TBM 16.35M FP400 STTZN
Part No.: 103016
or equivalent.

Zertifikate

Technische Daten

Material	St/tZn
Height above ground level (l1)	16380 mm
Mast segments	2
Max. gust wind speed with Concrete foundation	135 km/h
Max. gust wind speed with bucket foundation	135 km/h
Dimensions of flange plate	400 x 400 mm
Flange plate	4x Ø27mm for 4x M24 (300 x 300 mm)
Dim. of on-site concrete foundation (l x w x h)	1400 x 1400 x 900 mm
Standard	EN 62561-(1+2)

Material	St/tZn
Height above ground level (l1)	16380 mm
Mast segments	2
Max. gust wind speed with Concrete foundation	135 km/h
Max. gust wind speed with bucket foundation	135 km/h
Length of air-termination rod (l2)	5380 mm
Dimensions of flange plate	400 x 400 mm
Flange plate	4x Ø27mm for 4x M24 (300 x 300 mm)
Dim. of on-site concrete foundation (l x w x h)	1400 x 1400 x 900 mm
Zinc coating acc. EN 1461	approx. 100 µm
Standard	EN 62561-(1+2)

Artikel 103016 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 103016 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 103019 TBM 19.35M FP565 STTZN

GTIN 4013364129832, Zolltarifnr. (EU): 85389099, Bruttogewicht: 310.00 kg, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

Telescopic lightning protection mast in bucket or concrete foundation; height: 19.38 m
Telescopic lightning protection mast in bucket or concrete foundation
Air-termination mast for protecting installations against direct lightning strikes
The mast is erected in a bucket foundation (pre-fabricated)
or an on-site concrete foundation with foundation basket
The mast is dimensioned to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
for a max. gust wind speed of 131 km/h.
Plug-in system with conical mast parts
Including flange plate with terminal lug for earth connection
borehole Ø12 mm (for Ø10‑mm round conductor, e.g. with KS connector, part no. 301 019)
Material: St/tZn
Height above ground level: 19380 mm
Mast segments: 3
Dimensions of flange plate: 400 x 400 mm
Flange plate: 4x Ø27 mm for 4x M24 (300 x 300 mm)
Dim. of on-site concrete foundation : 1600 x 1600 x 900 mm
Standard: EN 62561-(1+2)

Brand: DEHN
Type: TBM 19.35M FP565 STTZN
Part No.: 103019
or equivalent.

Zertifikate

Technische Daten

Material	St/tZn
Height above ground level (l1)	19380 mm
Mast segments	3
Max. gust wind speed with Concrete foundation	131 km/h
Max. gust wind speed with bucket foundation	107 km/h
Dimensions of flange plate	400 x 400 mm
Flange plate	4x Ø27 mm for 4x M24 (300 x 300 mm)
Dim. of on-site concrete foundation (l x w x h)	1600 x 1600 x 900 mm
Standard	EN 62561-(1+2)

Material	St/tZn
Height above ground level (l1)	19380 mm
Mast segments	3
Max. gust wind speed with Concrete foundation	131 km/h
Max. gust wind speed with bucket foundation	107 km/h
Length of air-termination rod (l2)	5380 mm
Dimensions of flange plate	400 x 400 mm
Flange plate	4x Ø27 mm for 4x M24 (300 x 300 mm)
Dim. of on-site concrete foundation (l x w x h)	1600 x 1600 x 900 mm
Zinc coating acc. EN 1461	approx. 100 µm
Standard	EN 62561-(1+2)

Artikel 103019 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 103019 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 103022 TBM 22.35M FP565 STTZN

GTIN 4013364129849, Zolltarifnr. (EU): 85389099, Bruttogewicht: 452.00 kg, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

Telescopic lightning protection mast in bucket or concrete foundation; height: 22.38 m
Telescopic lightning protection mast in bucket or concrete foundation
Air-termination mast for protecting installations against direct lightning strikes
The mast is erected in a bucket foundation (pre-fabricated)
or an on-site concrete foundation with foundation basket
The mast is dimensioned to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
for a max. gust wind speed of 129 km/h.
Plug-in system with conical mast parts
Including flange plate with terminal lug for earth connection
borehole Ø12 mm (for Ø10‑mm round conductor, e.g. with KS connector, part no. 301 019)
Material: St/tZn
Height above ground level: 22380 mm
Mast segments: 4
Dimensions of flange plate: 565 x 565 mm
Flange plate: 8x Ø27 mm for 8x M24 (490 x 490 mm)
Dim. of on-site concrete foundation : 1800 x 1800 x 900 mm
Standard: EN 62561-(1+2)

Brand: DEHN
Type: TBM 22.35M FP565 STTZN
Part No.: 103022
or equivalent.

Zertifikate

Technische Daten

Material	St/tZn
Height above ground level (l1)	22380 mm
Mast segments	4
Max. gust wind speed with Concrete foundation	129 km/h
Max. gust wind speed with bucket foundation	129 km/h
Dimensions of flange plate	565 x 565 mm
Flange plate	8x Ø27 mm for 8x M24 (490 x 490 mm)
Dim. of on-site concrete foundation (l x w x h)	1800 x 1800 x 900 mm
Standard	EN 62561-(1+2)

Material	St/tZn
Height above ground level (l1)	22380 mm
Mast segments	4
Max. gust wind speed with Concrete foundation	129 km/h
Max. gust wind speed with bucket foundation	129 km/h
Length of air-termination rod (l2)	5380 mm
Dimensions of flange plate	565 x 565 mm
Flange plate	8x Ø27 mm for 8x M24 (490 x 490 mm)
Dim. of on-site concrete foundation (l x w x h)	1800 x 1800 x 900 mm
Zinc coating acc. EN 1461	approx. 100 µm
Standard	EN 62561-(1+2)

Artikel 103022 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 103022 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 103025 TBM 24.85M FP565 STTZN

GTIN 4013364129856, Zolltarifnr. (EU): 85389099, Bruttogewicht: 550.00 kg, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

Telescopic lightning protection mast in bucket or concrete foundation; height: 24.88 m
Telescopic lightning protection mast in bucket or concrete foundation
Air-termination mast for protecting installations against direct lightning strikes
The mast is erected in a bucket foundation (pre-fabricated)
or an on-site concrete foundation with foundation basket
The mast is dimensioned to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
for a max. gust wind speed of 127 km/h.
Plug-in system with conical mast parts
Including flange plate with terminal lug for earth connection
borehole Ø12 mm (for Ø10‑mm round conductor, e.g. with KS connector, part no. 301 019)
Material: St/tZn
Height above ground level: 24880 mm
Mast segments: 5
Dimensions of flange plate: 565 x 565 mm
Flange plate: 8x Ø27 mm for 8x M24 (490 x 490 mm)
Dim. of on-site concrete foundation : 2000 x 2000 x 900 mm
Standard: EN 62561-(1+2)

Brand: DEHN
Type: TBM 24.85M FP565 STTZN
Part No.: 103025
or equivalent.

Zertifikate

Technische Daten

Material	St/tZn
Height above ground level (l1)	24880 mm
Mast segments	5
Max. gust wind speed with Concrete foundation	127 km/h
Max. gust wind speed with bucket foundation	127 km/h
Dimensions of flange plate	565 x 565 mm
Flange plate	8x Ø27 mm for 8x M24 (490 x 490 mm)
Dim. of on-site concrete foundation (l x w x h)	2000 x 2000 x 900 mm
Standard	EN 62561-(1+2)

Material	St/tZn
Height above ground level (l1)	24880 mm
Mast segments	5
Max. gust wind speed with Concrete foundation	127 km/h
Max. gust wind speed with bucket foundation	127 km/h
Length of air-termination rod (l2)	5380 mm
Dimensions of flange plate	565 x 565 mm
Flange plate	8x Ø27 mm for 8x M24 (490 x 490 mm)
Dim. of on-site concrete foundation (l x w x h)	2000 x 2000 x 900 mm
Zinc coating acc. EN 1461	approx. 100 µm
Standard	EN 62561-(1+2)

Artikel 103025 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 103025 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Ergebnisse für Produkte (0)

Ergebnisse für Inhalt (0)
