Air-Termination Rods for Metal Roofs
:quality(98)/dehn.at/store/f/50295788/HDVORSCHAU/123021a4_16-9.jpg)
:quality(98)/dehn.at/store/f/50295788/HDVORSCHAU/123021a4_16-9.jpg)

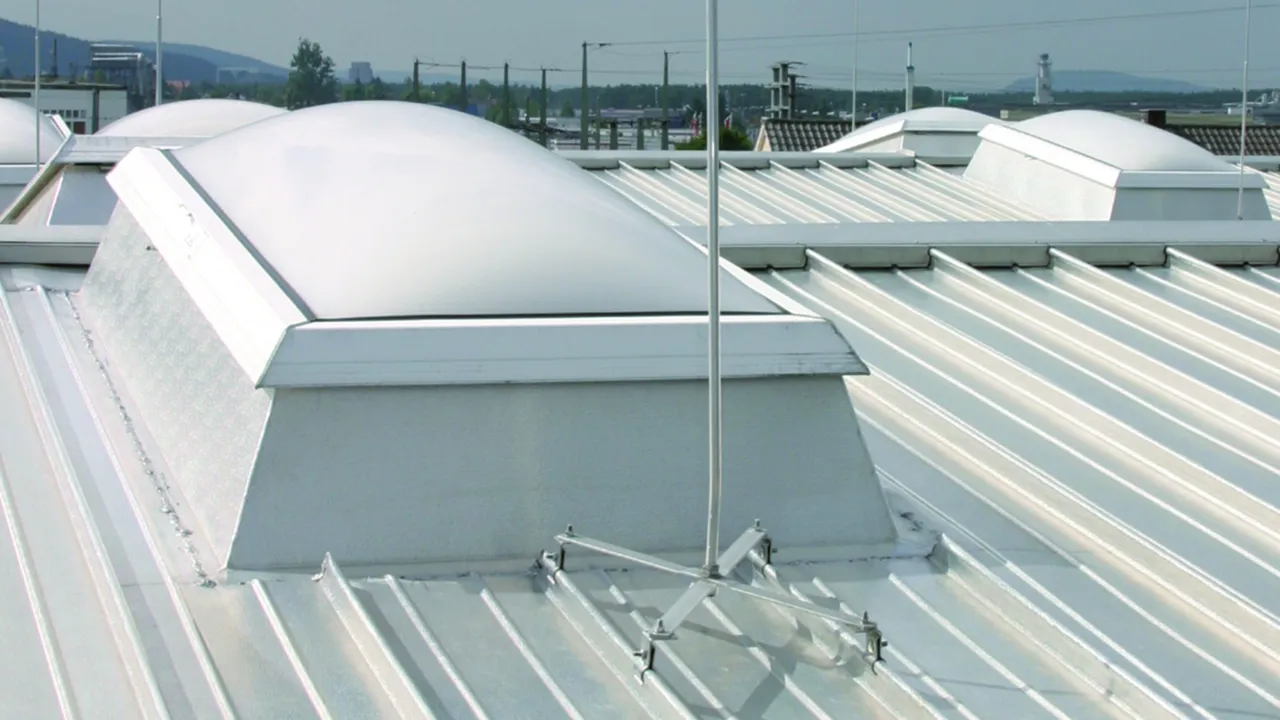

It is fixed at the end of the braces (Ø11-mm holes) by four holders for metal roofs.
The holders must be selected according to the roof profile (round standing seam part no. 123 040, clamping seam part no. 123 041, standing seam 123 042, without seam for riveting or screwing 123 043).
If these four holders for metal roofs (clamps) are used for the relevant roof profile, a lightning current carrying capability of 100 kA (10/350 µs) is ensured.
The air-termination rods are dimensioned to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA).
For the continuation of the down conductor, the roof conductor holders for metal roofs must be selected according to the roof profile (e.g. round standing seam part no. 223 010 or standing seam part no. 365 059).
Art.-Nr. 123021 FS 16 10 2000 MD AL V2A
GTIN 4013364092822, Zolltarifnr. (EU): 85389099, Bruttogewicht: 2.20 kg, VPE: 1.00 pc(s)
:quality(98)/dehn.at/store/f/50295799/HDVORSCHAU/123021.jpg)
:quality(98)/dehn.at/store/f/50295799/HDVORSCHAU/123021.jpg)
:quality(98)/dehn.at/store/f/50295800/HDVORSCHAU/123021m_D.jpg)
:quality(98)/dehn.at/store/f/50295800/HDVORSCHAU/123021m_D.jpg)
Technische Daten
| Total length (Ø16 / 10 mm) | 2000 mm |
| Max. gust wind speed | 184 km/h |
| Profile distance | 230-520 mm |
| Fixing | [4x] Ø11 mm |
| Material of braces | StSt |
| Material of air-termination rod | Al |
| Standard | EN 62561-(1+2) |
Art.-Nr. 123425 FS 22 16 10 2500 SK AL V2A
GTIN 4013364129009, Zolltarifnr. (EU): 85389099, Bruttogewicht: 2.82 kg, VPE: 1.00 pc(s)
:quality(98)/dehn.at/store/f/50295848/HDVORSCHAU/123425.jpg)
:quality(98)/dehn.at/store/f/50295848/HDVORSCHAU/123425.jpg)
:quality(98)/dehn.at/store/f/50295849/HDVORSCHAU/123425m_D.jpg)
:quality(98)/dehn.at/store/f/50295849/HDVORSCHAU/123425m_D.jpg)
Technische Daten
| Total length (Ø22 / 16 / 10 mm) | 2500 mm |
| Max. gust wind speed | 185 km/h |
| Profile distance | 230-520 mm |
| Fixing | [4x] Ø11 mm |
| Material of braces | StSt |
| Material of air-termination rod | Al |
| Standard | EN 62561-(1+2) |
Art.-Nr. 123430 FS 22 16 10 3000 SK AL V2A
GTIN 4013364129016, Zolltarifnr. (EU): 85389099, Bruttogewicht: 3.22 kg, VPE: 1.00 pc(s)
:quality(98)/dehn.at/store/f/50295858/HDVORSCHAU/123425.jpg)
:quality(98)/dehn.at/store/f/50295858/HDVORSCHAU/123425.jpg)
:quality(98)/dehn.at/store/f/50295859/HDVORSCHAU/123425m_D.jpg)
:quality(98)/dehn.at/store/f/50295859/HDVORSCHAU/123425m_D.jpg)
Technische Daten
| Total length (Ø22 / 16 / 10 mm) | 3000 mm |
| Max. gust wind speed | 149 km/h |
| Profile distance | 230-520 mm |
| Fixing | [4x] Ø11 mm |
| Material of braces | StSt |
| Material of air-termination rod | Al |
| Standard | EN 62561-(1+2) |
Art.-Nr. 123435 FS 22 16 10 3500 SK AL V2A
GTIN 4013364129023, Zolltarifnr. (EU): 85389099, Bruttogewicht: 3.42 kg, VPE: 1.00 pc(s)
:quality(98)/dehn.at/store/f/50295868/HDVORSCHAU/123425.jpg)
:quality(98)/dehn.at/store/f/50295868/HDVORSCHAU/123425.jpg)
:quality(98)/dehn.at/store/f/50295869/HDVORSCHAU/123425m_D.jpg)
:quality(98)/dehn.at/store/f/50295869/HDVORSCHAU/123425m_D.jpg)
Technische Daten
| Total length (Ø22 / 16 / 10 mm) | 3500 mm |
| Max. gust wind speed | 114 km/h |
| Profile distance | 230-520 mm |
| Fixing | [4x] Ø11 mm |
| Material of braces | StSt |
| Material of air-termination rod | Al / StSt |
| Standard | EN 62561-(1+2) |
