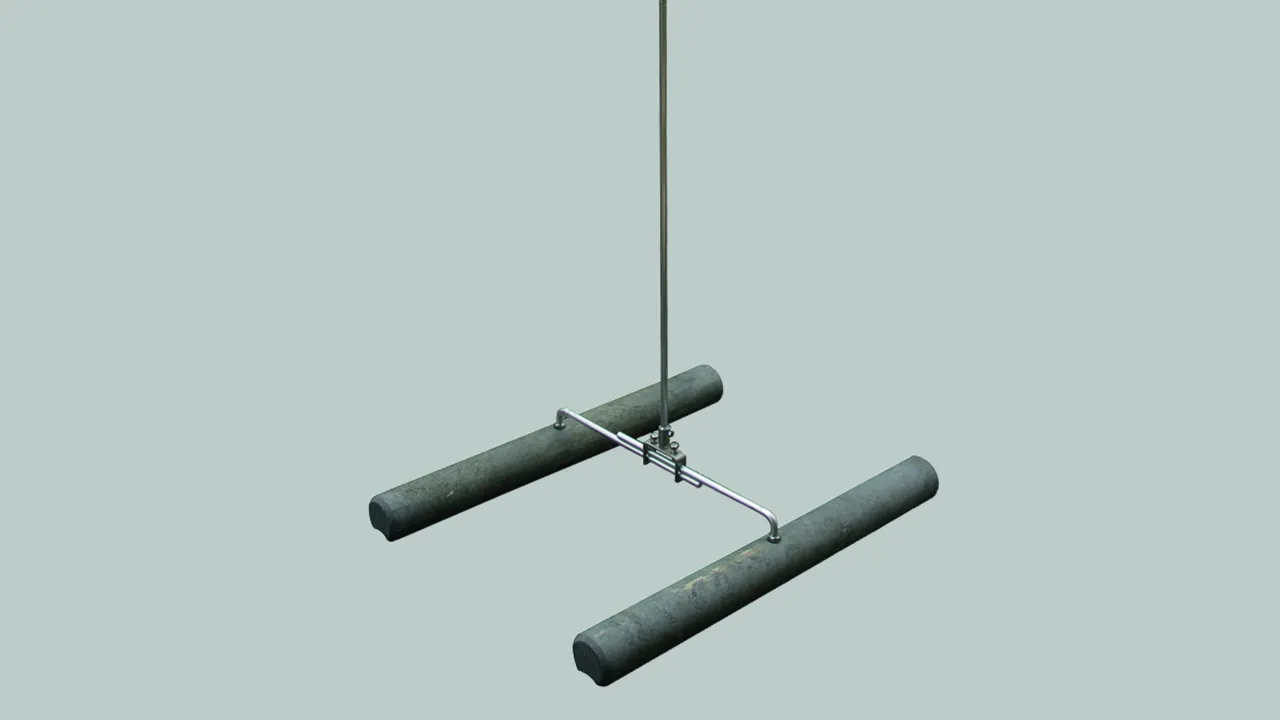

Air-Termination Rod for Trapezoidal Roofs
:quality(98)/dehn.at/store/f/50295760/HDVORSCHAU/123032_16-9.jpg)
:quality(98)/dehn.at/store/f/50295760/HDVORSCHAU/123032_16-9.jpg)
For protecting roof-mounted structures, domelights etc.
The air-termination rod is placed in the gap between the trapezoidal seams profile. The variable base frame can be adjusted to all trapeziodal profiles.
The special holder for the air-termination rod can compensate roof inclinations up to 10°.
The air-termination rod is placed in the gap between the trapezoidal seams profile. The variable base frame can be adjusted to all trapeziodal profiles.
The special holder for the air-termination rod can compensate roof inclinations up to 10°.
Art.-Nr. 123032 FS 16 10 2000 TD AL V2A K
GTIN 4013364242067, Zolltarifnr. (EU): 85389099, Bruttogewicht: 17.70 kg, VPE: 1.00 pc(s)
Vorgänger:quality(98)/dehn.at/store/f/50295773/HDVORSCHAU/123032.jpg)
:quality(98)/dehn.at/store/f/50295773/HDVORSCHAU/123032.jpg)
:quality(98)/dehn.at/store/f/50295774/HDVORSCHAU/123032m_D.jpg)
:quality(98)/dehn.at/store/f/50295774/HDVORSCHAU/123032m_D.jpg)
Technische Daten
| Total length (Ø16 / 10 mm) | 2000 mm |
| Max. gust wind speed | 137 km/h |
| Profile distance | 600-770 mm |
| Material of air-termination rod | Al |
| Material of bases | plastic |
| Standard | EN 62561-2 |
| Type with a length of 1500 mm (with Part No. 103 210) is available upon request. | |
