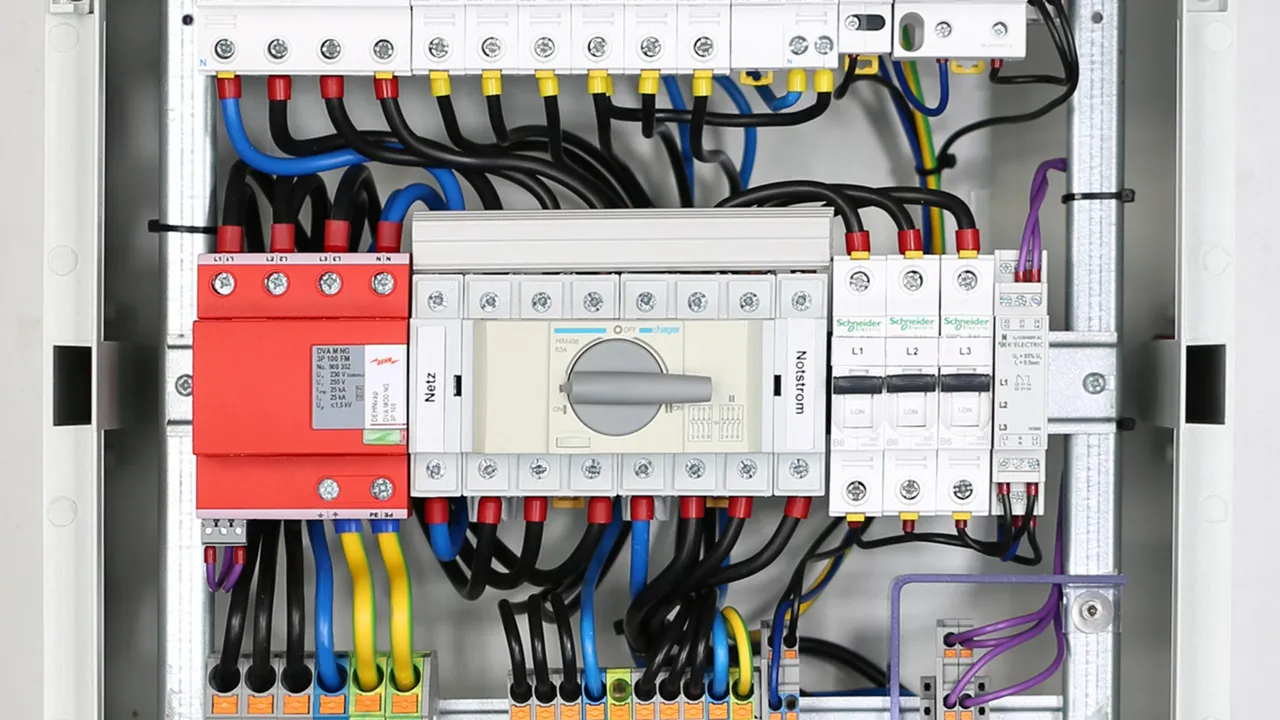

Art.-Nr. 900352 DVA M NG 3P 100 FM

GTIN 4013364455931, Zolltarifnr. (EU): 85363090, Bruttogewicht: 598.33 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Brand: DEHN
Type: DVA M NG 3P 100 FM
Part No.: 900352
or equivalent.

Technische Daten

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz) V
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Specific energy [L1+L2+L3+N-PE] (W/R)	2.50 MJ/ohms
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 kJ/ohms / 2.50 MJ/ohms
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms / 100 A_rms
Follow current limitation / Selectivity	No tripping of a 35 A gG fuse up to 25 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K = 25 kA_rms	250 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Additional abnormal voltage test: 485 V AC / 50 Hz for 24 h	withstand
Let-through energy in combination with an MOV S20K275 (Iimp = 2.5 ... 25 kA)	< 1 J
Operating temperature range [parallel]/[series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N, PE, 9) (max.)	35 mm²stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	---------------------------------
– Voltage protection level [L-PE] (U_P )	1.8 kV

Artikel 900352 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900352 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 900351 DVA M NG 1P 50 FM

GTIN 4013364455948, Zolltarifnr. (EU): 85363090, Bruttogewicht: 320.37 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Brand: DEHN
Type: DVA M NG 1P 50 FM
Part No.: 900351
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	50 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 50 kA
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz) V
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	50 kA
Specific energy [L+N-PE] (W/R)	625.00 kJ/ohms
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 50 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 / 625.00 kJ/ohms
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms / 100 A_rms
Follow current limitation / Selectivity	No tripping of a 35 A gG fuse up to 25 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K = 25 kA_rms	250 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Let-through energy in combination with an MOV S20K275 (Iimp = 2.5 ... 25 kA)	< 1 J
Operating temperature range [parallel]/[series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, N, PE, 9) (min.)	10 mm² solid / flexible
Cross-sectional area (L, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	---------------------------------
– Voltage protection level [L-PE] (U_P )	1.8 kV

Artikel 900351 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900351 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 900360 DVA CSP 3P 100 FM

GTIN 4013364111332, Zolltarifnr. (EU): 85363090, Bruttogewicht: 1.34 kg, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Brand: DEHN
Type: DVA CSP 3P 100 FM
Part No.: 900360
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_{C (N-PE)} )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Nominal discharge current (8/20 µs) (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 240 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_{C (N-PE)} )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Specific energy [L1+L2+L3+N-PE] (W/R)	2.50 MJ/ohms
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 kJ/ohms / 2.50 MJ/ohms
Nominal discharge current (8/20 µs) (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms / 100 A_rms
Follow current limitation / Selectivity	no tripping of a 20 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K = 25 kA_rms	315 A gG
Max. backup fuse (L) up to I_K > 25 kA_rms	200 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Additional abnormal voltage test: 485 V AC / 50 Hz for 24 h	withstand
Operating temperature range [parallel]/[series] (T_U )	-40°C...+80°C / -40°C...+60°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L1', L2, L2', L3, L3', N, N', PE, 9 ) (min.)	10 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N, PE) (max.)	50 mm² stranded / 35 mm² flexible
Cross-sectional area (L1', L2', L3', N', 9 ) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	8 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Artikel 900360 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900360 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 900367 DVA CSP 3P 100 S FM

GTIN 4013364322288, Zolltarifnr. (EU): 85363090, Bruttogewicht: 529.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DEHNvap CSP 3P 100 S FMTT 255 FM combined arrester
Four-pole combined arrester for 230/400 V TT und TN (C)-S systems
Width: 4 mod., With remote signalling contact
Type 1 + type 2 SPD according to EN 61643-11
Application-optimised use in compact electrical installations
Spark gap technology with follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 25 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DVA CSP 3P 100 S FM
Part No.: 900367
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Nominal discharge current (8/20 µs) (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 kJ/ohms / 2.50 MJ/ohms
Nominal discharge current (8/20 µs) (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms/ 100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K = 25 kA_rms	250 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Additional abnormal voltage test: 485 V AC / 50 Hz for 24 h	withstand
Let-through energy in combination with an MOV S20K275 (Iimp = 2.5 ... 25 kA)	< 1 J
Characteristic at U = 320 V and I_SCCR = 13.5 kA in combination with a fuse 63 A gG	withstand
Operating temperature range [parallel]/[series] (T_U )	-40°C...+80°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L2, L3, N, PE, 9) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	---------------------------------
– Voltage protection level [L-PE] (U_P )	≤ 2.0 kV

Artikel 900367 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900367 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 900366 DVA CSP 1P 50 S FM

GTIN 4013364374669, Zolltarifnr. (EU): 85363090, Bruttogewicht: 265.52 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DEHNvap CSP 1P 50 S FM combined arrester
Two-pole combined arrester
for 230/400 V TT systems,
SPD type 1 + type 2 in accordance with EN 61643-11
Width: 2 mod., With remote signalling contact
For use in compact and simply equipped electrical
installations with reduced technical requirements
Spark gap technology with follow current limitation
Fault indication
Max. continuous operating voltage: 255 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 25 kA
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DVA CSP 1P 50 S FM
Part No.: 900366
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 50 kA
Nominal discharge current (8/20 µs) (I_n )	25 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Approvals	KEMA
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / ... IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 50 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 kJ/ohms / 625.00 kJ/ohms
Nominal discharge current (8/20 µs) (I_n )	25 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 kV / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms/ 100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K = 25 kA_rms	250 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Additional abnormal voltage test: 485 V AC / 50 Hz for 24 h	withstand
Let-through energy in combination with an MOV S20K275 (Iimp = 2.5 ... 25 kA)	< 1 J
Characteristic at U = 320 V and I_SCCR = 13.5 kA in combination with a fuse 63 A gG	withstand
Operating temperature range [parallel]/[series] (T_U )	-40°C...+80°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, N, PE, 9) (min.)	1.5 mm² solid / flexible
Cross-sectional area (L, N, PE, 9) (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Artikel 900366 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900366 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Ergebnisse für Produkte (0)

Ergebnisse für Inhalt (0)

DEHNvap

DVA M NG 3P 100 FM

Art.-Nr. 900352 DVA M NG 3P 100 FM

Artikel 900352 wurde zum Merkzettel hinzugefügt.

Artikel 900352 wurde zum Warenkorb hinzugefügt.

DVA M NG 1P 50 FM

Art.-Nr. 900351 DVA M NG 1P 50 FM

Artikel 900351 wurde zum Merkzettel hinzugefügt.

Artikel 900351 wurde zum Warenkorb hinzugefügt.

DVA CSP 3P 100 FM

Art.-Nr. 900360 DVA CSP 3P 100 FM

Artikel 900360 wurde zum Merkzettel hinzugefügt.

Artikel 900360 wurde zum Warenkorb hinzugefügt.

DVA CSP 3P 100 S FM

Art.-Nr. 900367 DVA CSP 3P 100 S FM

Artikel 900367 wurde zum Merkzettel hinzugefügt.

Artikel 900367 wurde zum Warenkorb hinzugefügt.

DVA CSP 1P 50 S FM

Art.-Nr. 900366 DVA CSP 1P 50 S FM

Artikel 900366 wurde zum Merkzettel hinzugefügt.

Artikel 900366 wurde zum Warenkorb hinzugefügt.

DEHNvap

DVA M NG 3P 100 FM

Art.-Nr. 900352 DVA M NG 3P 100 FM

Sie müssen angemeldet sein um 900352.stp herunterzuladen.

Sie müssen angemeldet sein um 900352.igs herunterzuladen.

Sie müssen angemeldet sein um 900352.jt herunterzuladen.

Sie müssen angemeldet sein um 900352.dwg herunterzuladen.

Sie müssen angemeldet sein um 900352m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.900352.edz herunterzuladen.

Artikel 900352 wurde zum Merkzettel hinzugefügt.

Artikel 900352 wurde zum Warenkorb hinzugefügt.

DVA M NG 1P 50 FM

Art.-Nr. 900351 DVA M NG 1P 50 FM

Sie müssen angemeldet sein um 900351.stp herunterzuladen.

Sie müssen angemeldet sein um 900351.igs herunterzuladen.

Sie müssen angemeldet sein um 900351.jt herunterzuladen.

Sie müssen angemeldet sein um 900351.dwg herunterzuladen.

Sie müssen angemeldet sein um 900351m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.900351.edz herunterzuladen.

Artikel 900351 wurde zum Merkzettel hinzugefügt.

Artikel 900351 wurde zum Warenkorb hinzugefügt.

DVA CSP 3P 100 FM

Art.-Nr. 900360 DVA CSP 3P 100 FM

Sie müssen angemeldet sein um 900360.stp herunterzuladen.

Sie müssen angemeldet sein um 900360.igs herunterzuladen.

Sie müssen angemeldet sein um 900360.jt herunterzuladen.

Sie müssen angemeldet sein um 900360.dwg herunterzuladen.

Sie müssen angemeldet sein um 900360.dxf herunterzuladen.

Artikel 900360 wurde zum Merkzettel hinzugefügt.

Artikel 900360 wurde zum Warenkorb hinzugefügt.

DVA CSP 3P 100 S FM

Art.-Nr. 900367 DVA CSP 3P 100 S FM

Sie müssen angemeldet sein um 900367.stp herunterzuladen.

Sie müssen angemeldet sein um 900367.igs herunterzuladen.

Sie müssen angemeldet sein um 900367.jt herunterzuladen.

Sie müssen angemeldet sein um 900367.dwg herunterzuladen.

Sie müssen angemeldet sein um 900367.dxf herunterzuladen.

Artikel 900367 wurde zum Merkzettel hinzugefügt.

Artikel 900367 wurde zum Warenkorb hinzugefügt.

DVA CSP 1P 50 S FM

Art.-Nr. 900366 DVA CSP 1P 50 S FM

Sie müssen angemeldet sein um 900366.stp herunterzuladen.

Sie müssen angemeldet sein um 900366.igs herunterzuladen.

Sie müssen angemeldet sein um 900366.jt herunterzuladen.

Sie müssen angemeldet sein um 900366.dwg herunterzuladen.

Sie müssen angemeldet sein um 900367.dxf herunterzuladen.

Artikel 900366 wurde zum Merkzettel hinzugefügt.

Artikel 900366 wurde zum Warenkorb hinzugefügt.
