Art.-Nr. 956305 DV M2 TNC 255 FM

GTIN 4013364510586, Zolltarifnr. (EU): 85363090, Bruttogewicht: 519.19 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Modular combined arrester DEHNventil M2 TNC 255 FM
Three-pole, modular, pluggable combined arrester for
230/400 V- TN-C systems, 4-module width
with remote signalling contact
Type 1 + type 2 + type 3 arrester as per EN 61643-11
RAC spark gap technology
for follow current limitation
Max. continuous operating voltage: 255 V AC
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 75 kA
Follow current extinguishing capability up to 100 kArms.
Certified to VDE, KEMA
Energy coordination as per DIN CLC/TS 61643-12
Arresters of the Red/Line series, and direct to terminal equipment

Brand: DEHN
Type: DV M2 TNC 255 FM
Part No.: 956305
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 + type 3 / class I + class II + class III
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3-PEN] (I_total )	75 kA
Lightning impulse current (10/350 µs) [L-PEN] (I_imp )	25 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. backup fuse (L) up to I_K= 50 kA_rms	250 A gG
Approvals	VDE, KEMA, UL
Type of remote signalling contact	yes / changeover contact
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)


SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 + type 3 / class I + class II + class III
Energy coordination with terminal equipment (≤ 10 m)	Type 1 + Type 2 + Type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3-PEN] (I_total )	75 kA
Lightning impulse current (10/350 µs) [L-PEN] (I_imp )	25 kA
Specific energy [L-PEN] (W/R)	156.25 kJ/ohms
Nominal discharge current (8/20 µs) [L-PEN] (I_n )	25 kA
Voltage protection level (U_P )	≤ 1.5 kV
Open-circuit voltage of the combination wave generator (U_OC )	6 kV
Follow current extinguishing capability (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	No tripping of a 35 A gG fuse up to 50 kA_rms(prosp.)
Short-circuit current rating [L-N]/[N-PE] (I_SCCR )	50 kA_rms
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms	250 A gG
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Let-through energy with an S20K275 (I_imp = 2.5 to 25 kA)	< 1 J
Operating temperature range [parallel] / [series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L2, L3, PEN, 9) (min.)	6 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, PEN, 9) (max.)	35 mm²stranded / 25 mm²fine-stranded
For mounting on	35 mm DIN rails acc. to EN 60715
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	VDE, KEMA, UL
Type of remote signalling contact	yes / changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / fine-stranded
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
– Limiting/cancelling of mains follow currents	up to 100 kA_rms (220 kA_peak)
– Max. backup fuse (L) up to I_K = 100 kA_rms	250 A gG
Use for 16.7 Hz traction power supply systems
– Test voltage AC (U_C )	266 V
– Nominal voltage (a.c.) (U_N )	230 / 400 V
– Nominal frequency (a.c.) (f_N )	16.7 Hz
– Max. backup fuse	160 A gG @ 16,7 Hz

Artikel 956305 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 956305 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 956405 DV M2 TNS 255 FM

GTIN 4013364510562, Zolltarifnr. (EU): 85363090, Bruttogewicht: 583.68 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Modular combined arrester DEHNventil M2 TNS 255 FM
Four-pole, modular, pluggable combined arrester for
230/400 V- TN(C)-S systems, 4-module width
with remote signalling contact
Type 1 + type 2 + type 3 arrester as per EN 61643-11
RAC spark gap technology
for follow current limitation
Max. continuous operating voltage: 255 V AC
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 100 kA
Follow current extinguishing capability up to 100 kArms.
Certified to VDE, KEMA
Energy coordination as per DIN CLC/TS 61643-12
Arresters of the Red/Line series, and direct to terminal equipment

Brand: DEHN
Type: DV M2 TNS 255 FM
Part No.: 956405
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 + type 3 / class I + class II + class III
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	25 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to I_K= 50 kA_rms	250 A gG
Approvals	VDE, KEMA, UL
Type of remote signalling contact	yes / changeover contact
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)


SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 + type 3 / class I + class II + class III
Energy coordination with terminal equipment (≤ 10 m)	Type 1 + Type 2 + Type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Specific energy [L1+L2+L3+N-PE] (W/R)	2.50 MJ/ohms
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	25 kA
Specific energy [L,N-PE] (W/R)	156.25 kJ/ohms
Nominal discharge current (8/20 µs) [L/N-PE]/[L1+L2+L3+N-PE] (I_n )	25 / 100 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Open-circuit voltage of the combination wave generator (U_OC )	6 kV
Follow current extinguishing capability (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	No tripping of a 35 A gG fuse up to 50 kA_rms(prosp.)
Short-circuit current rating [L-N]/[N-PE] (I_SCCR )	50 kA_rms
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms	250 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Let-through energy with an S20K275 (I_imp = 2.5 to 25 kA)	< 1 J
Operating temperature range [parallel] / [series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L2, L3, N, PE, 9) (min.)	6 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, N, PE, 9) (max.)	35 mm²stranded / 25 mm²fine-stranded
For mounting on	35 mm DIN rails acc. to EN 60715
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	VDE, KEMA, UL
Type of remote signalling contact	yes / changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / fine-stranded
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
– Limiting/cancelling of mains follow currents	up to 100 kA_rms (220 kA_peak)
– Max. backup fuse (L) up to I_K = 100 kA_rms	250 A gG
Use for 16.7 Hz traction power supply systems
– Test voltage AC (U_C )	266 V
– Nominal voltage (a.c.) (U_N )	230 / 400 V
– Nominal frequency (a.c.) (f_N )	16.7 Hz
– Max. backup fuse	160 A gG @ 16,7 Hz

Artikel 956405 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 956405 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 956315 DV M2 TT 255 FM

GTIN 4013364528963, Zolltarifnr. (EU): 85363090, Bruttogewicht: 596.81 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

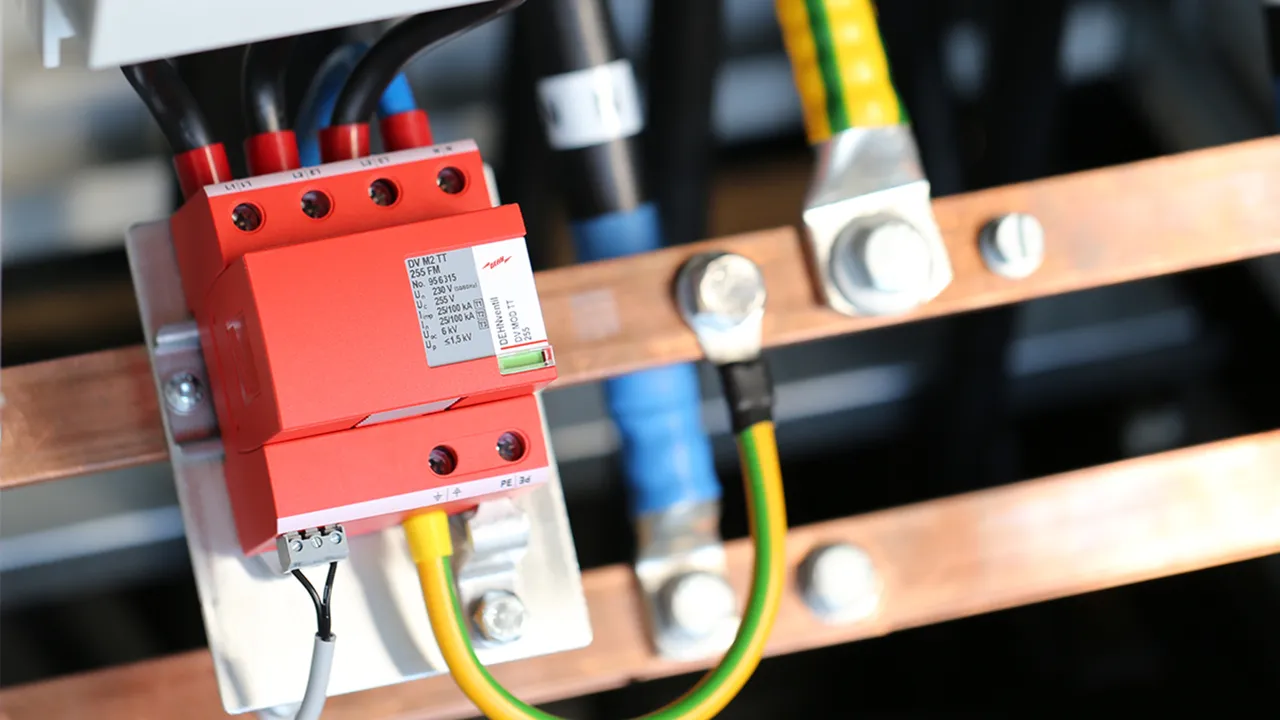

Modular combined arrester DEHNventil M2 TT 255 FM
Four-pole, modular, pluggable combined arrester for
230/400 V TT and TN(C)-S systems, 4-module width
with remote signalling contact
Type 1 + type 2 + type 3 arrester as per EN 61643-11
RAC spark gap technology
for follow current limitation
Max. continuous operating voltage: 255 V AC
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 100 kA
Follow current extinguishing capability up to 100 kArms.
Certified to VDE, KEMA
Energy coordination as per DIN CLC/TS 61643-12
Arresters of the Red/Line series, and direct to terminal equipment

Brand: DEHN
Type: DV M2 TT 255 FM
Part No.: 956315
or equivalent.

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 + type 3 / class I + class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to I_K= 50 kA_rms	250 A gG
Approvals	VDE, KEMA, UL
Type of remote signalling contact	yes / changeover contact
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
Supplementary data:	---------------------------------
– Voltage protection level [L-PE] (U_P )	1.8 kV


SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 + type 3 / class I + class II + class III
Energy coordination with terminal equipment (≤ 10 m)	Type 1 + Type 2 + Type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_{C (N-PE)} )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Specific energy [L1+L2+L3+N-PE] (W/R)	2.50 MJ/ohms
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 kJ/ohms / 2.50 MJ/ohms
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Open-circuit voltage of the combination wave generator (U_OC )	6 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	50 kA_rms/ 100 A_rms
Follow current limitation / Selectivity	No tripping of a 35 A gG fuse up to 50 kA_rms(prosp.)
Short-circuit current rating [L-N]/[N-PE] (I_SCCR )	50 kA_rms / 100 A_rms
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms	250 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Let-through energy with an S20K275 (I_imp = 2.5 to 25 kA)	< 1 J
Operating temperature range [parallel] / [series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L2, L3, N, PE, 9) (min.)	6 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, N, PE, 9) (max.)	35 mm²stranded / 25 mm²fine-stranded
For mounting on	35 mm DIN rails acc. to EN 60715
Place of installation / Degree of protection	indoors / IP 20
Capacity	4 module(s), DIN 43880
Approvals	VDE, KEMA, UL
Type of remote signalling contact	yes / changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
– Limiting/cancelling of mains follow currents	up to 100 kA_rms (220 kA_peak)
– Max. backup fuse (L) up to I_K = 100 kA_rms	250 A gG
Supplementary data:	---------------------------------
– Voltage protection level [L-PE] (U_P )	1.8 kV
Use for 16.7 Hz traction power supply systems
– Test voltage AC (U_C )	266 V
– Nominal voltage (a.c.) (U_N )	230 / 400 V
– Nominal frequency (a.c.) (f_N )	16.7 Hz
– Max. backup fuse	160 A gG @ 16,7 Hz

Artikel 956315 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 956315 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 956205 DV M2 TN 255 FM

GTIN 4013364510579, Zolltarifnr. (EU): 85363090, Bruttogewicht: 311.29 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Modular combined arrester DEHNventil M2 TN 255 FM
Two-pole, modular, pluggable combined arrester for
single-phase TN systems, 2-module width
with remote signalling contact
Type 1 + type 2 + type 3 arrester as per EN 61643-11
RAC spark gap technology
for follow current limitation
Max. continuous operating voltage: 255 V AC
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 50 kA
Follow current extinguishing capability up to 100 kArms.
Certified to VDE, KEMA
Energy coordination as per DIN CLC/TS 61643-12
Arresters of the Red/Line series, and direct to terminal equipment

Brand: DEHN
Type: DV M2 TN 255 FM
Part No.: 956205
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 + type 3 / class I + class II + class III
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	50 kA
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	25 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to I_K= 50 kA_rms	250 A gG
Approvals	VDE, KEMA, UL
Type of remote signalling contact	yes / changeover contact
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)


SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 + type 3 / class I + class II + class III
Energy coordination with terminal equipment (≤ 10 m)	Type 1 + Type 2 + Type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	50 kA
Specific energy [L+N-PE] (W/R)	625.00 kJ/ohms
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	25 kA
Specific energy [L,N-PE] (W/R)	156.25 kJ/ohms
Nominal discharge current (8/20 µs) [L/N-PE]/[L+N-PE] (I_n )	25 / 50 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Open-circuit voltage of the combination wave generator (U_OC )	6 kV
Follow current extinguishing capability (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	No tripping of a 35 A gG fuse up to 50 kA_rms(prosp.)
Short-circuit current rating [L-N]/[N-PE] (I_SCCR )	50 kA_rms
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms	250 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Let-through energy with an S20K275 (I_imp = 2.5 to 25 kA)	< 1 J
Operating temperature range [parallel] / [series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, N, PE, 9) (min.)	6 mm²solid / fine-stranded
Cross-sectional area (L, N, PE, 9) (max.)	35 mm²stranded / 25 mm²fine-stranded
For mounting on	35 mm DIN rails acc. to EN 60715
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	2 module(s), DIN 43880
Approvals	VDE, KEMA, UL
Type of remote signalling contact	yes / changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / fine-stranded
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
– Limiting/cancelling of mains follow currents	up to 100 kA_rms (220 kA_peak)
– Max. backup fuse (L) up to I_K = 100 kA_rms	250 A gG
Use for 16.7 Hz traction power supply systems
– Test voltage AC (U_C )	266 V
– Nominal voltage (a.c.) (U_N )	230 V
– Nominal frequency (a.c.) (f_N )	16.7 Hz
– Max. backup fuse	160 A gG @ 16,7 Hz

Artikel 956205 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 956205 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 956115 DV M2 TT 2P 255 FM

GTIN 4013364400924, Zolltarifnr. (EU): 85363090, Bruttogewicht: 319.82 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Modular combined arrester DEHNventil M2 TT 2P 255 FM
Two-pole, modular, pluggable combined arrester for
single-phase TT and TN systems, 2-module width
with remote signalling contact
Type 1 + type 2 + type 3 arrester as per EN 61643-11
RAC spark gap technology
for follow current limitation
Max. continuous operating voltage: 255 V AC
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 50 kA
Follow current extinguishing capability up to 100 kArms.
Certified to VDE, KEMA
Energy coordination as per DIN CLC/TS 61643-12
Arresters of the Red/Line series, and direct to terminal equipment

Brand: DEHN
Type: DV M2 TT 2P 255 FM
Part No.: 956115
or equivalent.

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 + type 3 / class I + class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	50 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to I_K= 50 kA_rms	250 A gG
Approvals	VDE, KEMA, UL
Type of remote signalling contact	yes / changeover contact
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
Supplementary data:	---------------------------------
– Voltage protection level [L-PE] (U_P )	1.8 kV


SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 + type 3 / class I + class II + class III
Energy coordination with terminal equipment (≤ 10 m)	Type 1 + Type 2 + Type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_{C (N-PE)} )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	50 kA
Specific energy [L+N-PE] (W/R)	625.00 kJ/ohms
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 50 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 / 625.00 kJ/ohms
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Open-circuit voltage of the combination wave generator (U_OC )	6 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	50 kA_rms/ 100 A_rms
Follow current limitation / Selectivity	No tripping of a 35 A gG fuse up to 50 kA_rms(prosp.)
Short-circuit current rating [L-N]/[N-PE] (I_SCCR )	50 kA_rms / 100 A_rms
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms	250 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Let-through energy with an S20K275 (I_imp = 2.5 to 25 kA)	< 1 J
Operating temperature range [parallel] / [series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, N, PE, 9) (min.)	6 mm²solid / fine-stranded
Cross-sectional area (L, N, PE, 9) (max.)	35 mm²stranded / 25 mm²fine-stranded
For mounting on	35 mm DIN rails acc. to EN 60715
Place of installation / Degree of protection	indoors / IP 20
Capacity	2 module(s), DIN 43880
Approvals	VDE, KEMA, UL
Type of remote signalling contact	yes / changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / fine-stranded
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
– Limiting/cancelling of mains follow currents	up to 100 kA_rms (220 kA_peak)
– Max. backup fuse (L) up to I_K = 100 kA_rms	250 A gG
Supplementary data:	---------------------------------
– Voltage protection level [L-PE] (U_P )	1.8 kV
Use for 16.7 Hz traction power supply systems
– Test voltage AC (U_C )	266 V
– Nominal voltage (a.c.) (U_N )	230 V
– Nominal frequency (a.c.) (f_N )	16.7 Hz
– Max. backup fuse	160 A gG @ 16,7 Hz

Artikel 956115 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 956115 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 951300 DV M TNC 255

GTIN 4013364108134, Zolltarifnr. (EU): 85363090, Bruttogewicht: 1004.00 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Modular DEHNventil M TNC 255 combined arrester
Modular and pluggable three-pole combined arrester for
230/400 V TN-C systems, width: 6 modules
Type 1 + type 2 according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Max. continuous operating voltage: 264 a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 75 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DV M TNC 255
Part No.: 951300
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3-PEN] (I_total )	75 kA
Lightning impulse current (10/350 µs) [L-PEN] (I_imp )	25 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. backup fuse (L) up to I_K= 50 kA_rms	315 A gG
Approvals	KEMA, VDE, UL
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)


SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3-PEN] (I_total )	75 kA
Specific energy [L1+L2+L3-PEN] (W/R)	1.40 MJ/ohms
Lightning impulse current (10/350 µs) [L-PEN] (I_imp )	25 kA
Specific energy [L-PEN] (W/R)	156.25 kJ/ohms
Nominal discharge current (8/20 µs) [L-PEN]/[L1+L2+L3-PEN] (I_n )	25 / 75 kA
Voltage protection level (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	no tripping of a 20 A gG fuse up to 50 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms	315 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range [parallel] / [series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L1', L2, L2', L3, L3', PEN, 9) (min.)	10 mm²solid / flexible
Cross-sectional area (L1, L2, L3, PEN) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (L1', L2', L3', 9) (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	6 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
– Limiting/cancelling of mains follow currents	up to 100 kA_rms (220 kA_peak)
– Max. backup fuse (L) up to I_K = 100 kA_rms	315 A gG
Use for 16.7 Hz traction power supply systems
– Nominal voltage (a.c.) (U_N )	230 / 400 V
– Nominal frequency (a.c.) (f_N )	16.7 Hz
– Max. backup fuse	125 A gG @ 16,7 Hz

Artikel 951300 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 951300 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 951305 DV M TNC 255 FM

GTIN 4013364108141, Zolltarifnr. (EU): 85363090, Bruttogewicht: 1020.00 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Modular DEHNventil M TNC 255 FM combined arrester
Pluggable and modular three-pole combined arrester
for use in 230/400 V TN-C systems, width: 6 mod.
with remote signalling contact
Type 1 + type 2 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Max. continuous operating voltage: 264 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 75 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DV M TNC 255 FM
Part No.: 951305
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3-PEN] (I_total )	75 kA
Lightning impulse current (10/350 µs) [L-PEN] (I_imp )	25 kA
Voltage protection level (U_P )	≤ 1.5 kV
Max. backup fuse (L) up to I_K= 50 kA_rms	315 A gG
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)


SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3-PEN] (I_total )	75 kA
Specific energy [L1+L2+L3-PEN] (W/R)	1.40 MJ/ohms
Lightning impulse current (10/350 µs) [L-PEN] (I_imp )	25 kA
Specific energy [L-PEN] (W/R)	156.25 kJ/ohms
Nominal discharge current (8/20 µs) [L-PEN]/[L1+L2+L3-PEN] (I_n )	25 / 75 kA
Voltage protection level (U_P )	≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	no tripping of a 20 A gG fuse up to 50 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms	315 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range [parallel] / [series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L1', L2, L2', L3, L3', PEN, 9) (min.)	10 mm²solid / flexible
Cross-sectional area (L1, L2, L3, PEN) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (L1', L2', L3', 9) (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	6 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
– Limiting/cancelling of mains follow currents	up to 100 kA_rms (220 kA_peak)
– Max. backup fuse (L) up to I_K = 100 kA_rms	315 A gG
Use for 16.7 Hz traction power supply systems
– Nominal voltage (a.c.) (U_N )	230 / 400 V
– Nominal frequency (a.c.) (f_N )	16.7 Hz
– Max. backup fuse	125 A gG @ 16,7 Hz

Artikel 951305 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 951305 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 951400 DV M TNS 255

GTIN 4013364108158, Zolltarifnr. (EU): 85363090, Bruttogewicht: 1.40 kg, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Modular DEHNventil M TNS 255 combined arrester
Pluggable and modular four-pole combined arrester
for use in 230/400 V TN(C)-S systems, width: 8 mod.
Type 1 + type 2 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Max. continuous operating voltage: 264 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 100 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DV M TNS 255
Part No.: 951400
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	25 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to I_K= 50 kA_rms	315 A gG
Approvals	KEMA, VDE, UL
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)


SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Specific energy [L1+L2+L3+N-PE] (W/R)	2.50 MJ/ohms
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	25 kA
Specific energy [L,N-PE] (W/R)	156.25 kJ/ohms
Nominal discharge current (8/20 µs) [L/N-PE]/[L1+L2+L3+N-PE] (I_n )	25 / 100 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	no tripping of a 20 A gG fuse up to 50 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms	315 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range [parallel] / [series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L1', L2, L2', L3, L3', N, N', PE, 9) (min.)	10 mm²solid / flexible
Cross-sectional area (L1, L2, L3, N, PE) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (L1', L2', L3', N', 9) (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	8 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
– Limiting/cancelling of mains follow currents	up to 100 kA_rms (220 kA_peak)
– Max. backup fuse (L) up to I_K = 100 kA_rms	315 A gG
Use for 16.7 Hz traction power supply systems
– Nominal voltage (a.c.) (U_N )	230 / 400 V
– Nominal frequency (a.c.) (f_N )	16.7 Hz
– Max. backup fuse	125 A gG @ 16,7 Hz

Artikel 951400 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 951400 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 951405 DV M TNS 255 FM

GTIN 4013364108165, Zolltarifnr. (EU): 85363090, Bruttogewicht: 1.40 kg, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Modular DEHNventil M TNS 255 FM combined arrester
Pluggable and modular four-pole combined arrester
for use in 230/400 V TN(C)-S systems, width: 8 mod.
with remote signalling contact
Type 1 + type 2 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Max. continuous operating voltage: 264 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 100 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DV M TNS 255 FM
Part No.: 951405
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	25 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to I_K= 50 kA_rms	315 A gG
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)


SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Specific energy [L1+L2+L3+N-PE] (W/R)	2.50 MJ/ohms
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	25 kA
Specific energy [L,N-PE] (W/R)	156.25 kJ/ohms
Nominal discharge current (8/20 µs) [L/N-PE]/[L1+L2+L3+N-PE] (I_n )	25 / 100 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	no tripping of a 20 A gG fuse up to 50 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms	315 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range [parallel] / [series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L1', L2, L2', L3, L3', N, N', PE, 9) (min.)	10 mm²solid / flexible
Cross-sectional area (L1, L2, L3, N, PE) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (L1', L2', L3', N', 9) (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	8 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
– Limiting/cancelling of mains follow currents	up to 100 kA_rms (220 kA_peak)
– Max. backup fuse (L) up to I_K = 100 kA_rms	315 A gG
Use for 16.7 Hz traction power supply systems
– Nominal voltage (a.c.) (U_N )	230 / 400 V
– Nominal frequency (a.c.) (f_N )	16.7 Hz
– Max. backup fuse	125 A gG @ 16,7 Hz

Artikel 951405 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 951405 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 951310 DV M TT 255

GTIN 4013364108172, Zolltarifnr. (EU): 85363090, Bruttogewicht: 1.31 kg, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Modular DEHNventil M TT 255 combined arrester
Pluggable and modular four-pole combined arrester
for use in 230/400 V TT and TN(C)-S systems, width: 8 mod.
Type 1 + type 2 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Max. continuous operating voltage: 264 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 100 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DV M TT 255
Part No.: 951310
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to I_K= 50 kA_rms	315 A gG
Approvals	KEMA, VDE, UL
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
Supplementary data:	---------------------------------
– Voltage protection level [L-PE] (U_P )	2.2 kV

Use for 16.7 Hz traction power supply systems
– Nominal voltage (a.c.) (U_N )	230 / 400 V
– Nominal frequency (a.c.) (f_N )	16.7 Hz
– Max. backup fuse	125 A gG @ 16,7 Hz

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_{C (N-PE)} )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Specific energy [L1+L2+L3+N-PE] (W/R)	2.50 MJ/ohms
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 kJ/ohms / 2.50 MJ/ohms
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	50 kA_rms/ 100 A_rms
Follow current limitation / Selectivity	no tripping of a 20 A gG fuse up to 50 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms	315 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range [parallel] / [series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L1', L2, L2', L3, L3', N, N', PE, 9) (min.)	10 mm²solid / flexible
Cross-sectional area (L1, L2, L3, N, PE) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (L1', L2', L3', N', 9) (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	8 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
– Limiting/cancelling of mains follow currents	up to 100 kA_rms (220 kA_peak)
– Max. backup fuse (L) up to I_K = 100 kA_rms	315 A gG
Supplementary data:	---------------------------------
– Voltage protection level [L-PE] (U_P )	2.2 kV

Artikel 951310 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 951310 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 951315 DV M TT 255 FM

GTIN 4013364108189, Zolltarifnr. (EU): 85363090, Bruttogewicht: 1.32 kg, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Modular DEHNventil M TT 255 FM combined arrester
Pluggable and modular four-pole combined arrester
for use in 230/400 V TT and TN(C)-S systems, width: 8 mod.
with remote signalling contact
Type 1 + type 2 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Max. continuous operating voltage: 264 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 100 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DV M TT 255 FM
Part No.: 951315
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to I_K= 50 kA_rms	315 A gG
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
Supplementary data:	---------------------------------
– Voltage protection level [L-PE] (U_P )	2.2 kV

Use for 16.7 Hz traction power supply systems
– Nominal voltage (a.c.) (U_N )	230 / 400 V
– Nominal frequency (a.c.) (f_N )	16.7 Hz
– Max. backup fuse	125 A gG @ 16,7 Hz

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_{C (N-PE)} )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Specific energy [L1+L2+L3+N-PE] (W/R)	2.50 MJ/ohms
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 100 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 kJ/ohms / 2.50 MJ/ohms
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 100 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	50 kA_rms/ 100 A_rms
Follow current limitation / Selectivity	no tripping of a 20 A gG fuse up to 50 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms	315 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range [parallel] / [series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L1', L2, L2', L3, L3', N, N', PE, 9) (min.)	10 mm²solid / flexible
Cross-sectional area (L1, L2, L3, N, PE) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (L1', L2', L3', N', 9) (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation / Degree of protection	indoors / IP 20
Capacity	8 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
– Limiting/cancelling of mains follow currents	up to 100 kA_rms (220 kA_peak)
– Max. backup fuse (L) up to I_K = 100 kA_rms	315 A gG
Supplementary data:	---------------------------------
– Voltage protection level [L-PE] (U_P )	2.2 kV

Artikel 951315 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 951315 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 951200 DV M TN 255

GTIN 4013364108097, Zolltarifnr. (EU): 85363090, Bruttogewicht: 754.00 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Modular DEHNventil M TN 255 combined arrester
Pluggable and modular two-pole combined arrester
for use in single-phase TN systems, width: 4 mod.
Type 1 + type 2 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Max. continuous operating voltage: 264 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 50 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DV M TN 255
Part No.: 951200
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	50 kA
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	25 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to I_K= 50 kA_rms	315 A gG
Approvals	KEMA, VDE, UL
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)


SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	50 kA
Specific energy [L+N-PE] (W/R)	625.00 kJ/ohms
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	25 kA
Specific energy [L,N-PE] (W/R)	156.25 kJ/ohms
Nominal discharge current (8/20 µs) [L/N-PE]/[L+N-PE] (I_n )	25 / 50 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	no tripping of a 20 A gG fuse up to 50 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms	315 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range [parallel] / [series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, L', N, N', PE, 9) (min.)	10 mm²solid / flexible
Cross-sectional area (L, N, PE) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (L', N', 9) (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
– Limiting/cancelling of mains follow currents	up to 100 kA_rms (220 kA_peak)
– Max. backup fuse (L) up to I_K = 100 kA_rms	315 A gG
Use for 16.7 Hz traction power supply systems
– Nominal voltage (a.c.) (U_N )	230 V
– Nominal frequency (a.c.) (f_N )	16.7 Hz
– Max. backup fuse	125 A gG @ 16,7 Hz

Artikel 951200 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 951200 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 951205 DV M TN 255 FM

GTIN 4013364108103, Zolltarifnr. (EU): 85363090, Bruttogewicht: 698.50 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Modular DEHNventil M TN 255 FM combined arrester
Pluggable and modular two-pole combined arrester
for use in single-phase TN systems, width: 4 mod.
with remote signalling contact
Type 1 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Max. continuous operating voltage: 264 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 50 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DV M TN 255 FM
Part No.: 951205
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	50 kA
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	25 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to I_K= 50 kA_rms	315 A gG
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)


SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	50 kA
Specific energy [L+N-PE] (W/R)	625.00 kJ/ohms
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	25 kA
Specific energy [L,N-PE] (W/R)	156.25 kJ/ohms
Nominal discharge current (8/20 µs) [L/N-PE]/[L+N-PE] (I_n )	25 / 50 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	no tripping of a 20 A gG fuse up to 50 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms	315 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range [parallel] / [series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, L', N, N', PE, 9) (min.)	10 mm²solid / flexible
Cross-sectional area (L, N, PE) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (L', N', 9) (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
– Limiting/cancelling of mains follow currents	up to 100 kA_rms (220 kA_peak)
– Max. backup fuse (L) up to I_K = 100 kA_rms	315 A gG
Use for 16.7 Hz traction power supply systems
– Nominal voltage (a.c.) (U_N )	230 V
– Nominal frequency (a.c.) (f_N )	16.7 Hz
– Max. backup fuse	125 A gG @ 16,7 Hz

Artikel 951205 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 951205 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 951110 DV M TT 2P 255

GTIN 4013364108110, Zolltarifnr. (EU): 85363090, Bruttogewicht: 688.59 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Modular DEHNventil M TT 2P 255 combined arrester
Pluggable and modular two-pole combined arrester
for use in single-phase TT and TN systems, width: 4 mod.
Type 1 + type 2 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Max. continuous operating voltage: 264 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 50 kA
Follow current extinguishing capability: up to 100 kArms
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DV M TT 2P 255
Part No.: 951110
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	50 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to I_K= 50 kA_rms	315 A gG
Approvals	KEMA, VDE, UL
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
Supplementary data:	---------------------------------
– Voltage protection level [L-PE] (U_P )	2.2 kV


SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_{C (N-PE)} )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	50 kA
Specific energy [L+N-PE] (W/R)	625.00 kJ/ohms
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 50 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 / 625.00 kJ/ohms
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	50 kA_rms/ 100 A_rms
Follow current limitation / Selectivity	no tripping of a 20 A gG fuse up to 50 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms	315 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range [parallel] / [series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, L', N, N', PE, 9) (min.)	10 mm²solid / flexible
Cross-sectional area (L, N, PE) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (L', N', 9) (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94-V-0
Place of installation	indoor installation
Degree of protection	IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
– Limiting/cancelling of mains follow currents	up to 100 kA_rms (220 kA_peak)
– Max. backup fuse (L) up to I_K = 100 kA_rms	315 A gG
Supplementary data:	---------------------------------
– Voltage protection level [L-PE] (U_P )	2.2 kV
Use for 16.7 Hz traction power supply systems
– Nominal voltage (a.c.) (U_N )	230 V
– Nominal frequency (a.c.) (f_N )	16.7 Hz
– Max. backup fuse	125 A gG @ 16,7 Hz

Artikel 951110 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 951110 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 951115 DV M TT 2P 255 FM

GTIN 4013364108127, Zolltarifnr. (EU): 85363090, Bruttogewicht: 694.38 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Modular DEHNventil M TT 2P 255 FM combined arrester
Pluggable and modular two-pole combined arrester
for use in single-phase TT and TN systems, width: 4 mod.
with remote signalling contact
Type 1+ type 2 SPD according to EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Max. continuous operating voltage: 264 V a.c.
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350 µs): 50 kA
Follow current extinguishing capability: up to 100 kArms
No tripping of 20 A gG fuses up to 50 kArms
Energy-coordinated according to IEC 62305-4 with
arresters of the Red/Line series and terminal equipment

Brand: DEHN
Type: DV M TT 2P 255 FM
Part No.: 951115
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	50 kA
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Max. backup fuse (L) up to I_K= 50 kA_rms	315 A gG
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
Supplementary data:	---------------------------------
– Voltage protection level [L-PE] (U_P )	2.2 kV


SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	264 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_{C (N-PE)} )	255 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L+N-PE] (I_total )	50 kA
Specific energy [L+N-PE] (W/R)	625.00 kJ/ohms
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	25 / 50 kA
Specific energy [L-N]/[N-PE] (W/R)	156.25 / 625.00 kJ/ohms
Nominal discharge current (8/20 µs) [L-N]/[N-PE] (I_n )	25 / 50 kA
Voltage protection level [L-N]/[N-PE] (U_P )	≤ 1.5 / ≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	50 kA_rms/ 100 A_rms
Follow current limitation / Selectivity	no tripping of a 20 A gG fuse up to 50 kA_rms(prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms	315 A gG
Max. backup fuse (L-L')	125 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range [parallel] / [series] (T_U )	-40 °C ... +80 °C / -40 °C ... +60 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L, L', N, N', PE, 9) (min.)	10 mm²solid / flexible
Cross-sectional area (L, N, PE) (max.)	50 mm²stranded / 35 mm²flexible
Cross-sectional area (L', N', 9) (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94-V-0
Place of installation / Degree of protection	indoors / IP 20
Capacity	4 module(s), DIN 43880
Approvals	KEMA, VDE, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / flexible
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_rms (220 kA_peak)
– Limiting/cancelling of mains follow currents	up to 100 kA_rms (220 kA_peak)
– Max. backup fuse (L) up to I_K = 100 kA_rms	315 A gG
Supplementary data:	---------------------------------
– Voltage protection level [L-PE] (U_P )	2.2 kV
Use for 16.7 Hz traction power supply systems
– Nominal voltage (a.c.) (U_N )	230 V
– Nominal frequency (a.c.) (f_N )	16.7 Hz
– Max. backup fuse	125 A gG @ 16,7 Hz

Artikel 951115 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 951115 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 961305 DV ACI M TNC 264 FM

GTIN 4013364513440, Zolltarifnr. (EU): 85363090, Bruttogewicht: 2.42 kg, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

Modular combined arrester DEHNventil ACI M TNC 264 FM
3-pole, modular, pluggable combined arrester
For 230/400 V TN-C systems with integrated
ACI switch / spark gap, width: 11 standard DIN modules
with remote signalling contact
Type 1 + type 2 + type 3 arrester as per EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Max. continuous operating voltage: 264 V AC
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 75 kA
Follow current extinguishing capability up to 100 kArms.
Certified to VDE, KEMA
Energy coordination as per IEC 61643-12
Arrester of the Red/Line series
and direct to the terminal equipment

Brand: DEHN
Type: DV ACI M TNC 264 FM
Part No.: 961305
or equivalent.

Technische Daten

SPD as per EN 61673-11 / IEC 61643-11	type 1 + type 2 + type 3 / class I + class II + class III
Max. continuous operating voltage (a.c.) (U_C )	264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3-PEN] (I_total )	75 kA
Lightning impulse current (10/350 µs) [L-PEN] (I_imp )	25 kA
Voltage protection level (U_P )	≤ 1,5 kV
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_eff (220 kA_peak)

SPD as per EN 61673-11 / IEC 61643-11	type 1 + type 2 + type 3 / class I + class II + class III
Energy coordination with terminal equipment (≤ 10 m)	Type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3-PEN] (I_total )	75 kA
Specific energy [L1+L2+L3-PEN] (W/R)	1.40 MJ/ohms
Lightning impulse current (10/350 µs) [L-PEN] (I_imp )	25 kA
Specific energy [L-PEN] (W/R)	156.25 kJ/ohms
Nominal discharge current (8/20 µs) [L-PEN] (I_n )	25 kA
Voltage protection level (U_P )	≤ 1,5 kV
Open-circuit voltage of the combination wave generator (U_OC )	20 kV
Follow current extinguishing capability (a.c.) (I_fi )	50 kA_rms
Integrated overcurrent protection	Yes, ACI technology
Short-circuit strength (I_SCCR )	50 kA_rms
Response time (t_A )	≤ 100 ns
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40°C to +80°C
Operating state / fault indication	Green / red (inspection window)
Module disconnection indication	Green (side view)
Number of ports	1
Cross-sectional area (L1, L2, L3, PEN, 9) (min.)	6 mm² solid / fine-stranded
Cross-sectional area (L1, L2, L3, PEN, 9) (max.)	35 mm² stranded / 25 mm² fine-stranded
For mounting on	35-mm DIN rail as per EN 60715 / busbar
Place of installation	Indoor
Degree of protection	IP 20
Capacity	11 module(s), DIN 43880
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_eff (220 kA_peak)
– Limiting/cancelling of mains follow currents	up to 100 kA_rms (220 kA_peak)

Artikel 961305 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 961305 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 961405 DV ACI M TNS 264 FM

GTIN 4013364513365, Zolltarifnr. (EU): 85363090, Bruttogewicht: 2.42 kg, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

Modular combined arrester DEHNventil ACI M TNS 264 FM
4-pole, modular, pluggable combined arrester
For 230/400 V TN(C)-S systems with integrated
ACI switch / spark gap
width: 11 standard DIN modules
with remote signalling contact
Type 1 + type 2 + type 3 arrester as per EN 61643-11
RADAX Flow spark gap technology
for follow current limitation
Max. continuous operating voltage: 264 V AC
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 100 kA
Follow current extinguishing capability up to 100 kArms.
Certified to VDE, KEMA
Energy coordination as per IEC 61643-12
Arrester of the Red/Line series
and direct to the terminal equipment

Brand: DEHN
Type: DV ACI M TNS 264 FM
Part No.: 961405
or equivalent.

Technische Daten

SPD as per EN 61673-11 / IEC 61643-11	type 1 + type 2 + type 3 / class I + class II + class III
Max. continuous operating voltage (a.c.) (U_C )	264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	25 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1,5 kV
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_eff (220 kA_peak)

SPD as per EN 61673-11 / IEC 61643-11	type 1 + type 2 + type 3 / class I + class II + class III
Energy coordination with terminal equipment (≤ 10 m)	Type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	264 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] (I_total )	100 kA
Specific energy [L1+L2+L3+N-PE] (W/R)	2.50 MJ/ohms
Lightning impulse current (10/350 µs) [L, N-PE] (I_imp )	25 kA
Specific energy [L,N-PE] (W/R)	156.25 kJ/ohms
Nominal discharge current (8/20 µs) [L/N-PE] (I_n )	25 kA
Voltage protection level [L-PE]/[N-PE] (U_P )	≤ 1,5 kV
Open-circuit voltage of the combination wave generator (U_OC )	20 kV
Follow current extinguishing capability (a.c.) (I_fi )	50 kA_rms
Integrated overcurrent protection	Yes, ACI technology
Short-circuit strength [L-PE]/[N-PE] (I_SCCR )	50 kA_eff
Response time (t_A )	≤ 100 ns
Temporary overvoltage (TOV) (U_T) – Characteristic	440 V / 120 min. – withstand
Operating temperature range (T_U )	-40°C to +80°C
Operating state / fault indication	Green / red (inspection window)
Module disconnection indication	Green (side view)
Number of ports	1
Cross-sectional area (L1, L2, L3, N, PE, 9) (min.)	6 mm² solid / fine-stranded
Cross-sectional area (L1, L2, L3, N, PE, 9) (max.)	35 mm² stranded / 25 mm² fine-stranded
For mounting on	35-mm DIN rail as per EN 60715 / busbar
Place of installation	Indoor
Degree of protection	IP 20
Capacity	11 module(s), DIN 43880
Extended technical data:	Use in switchgear installations with prospective short-circuit currents of more than 50 kA_rms
– Max. prospective short-circuit current	100 kA_eff (220 kA_peak)
– Limiting/cancelling of mains follow currents	up to 100 kA_rms (220 kA_peak)

Artikel 961405 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 961405 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 961151 DV M2 880 FM

GTIN 4013364532557, Zolltarifnr. (EU): 85363090, Bruttogewicht: 1.07 kg, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

Modular combined arrester DEHNventil M2 880 FM
3-pole, modular, pluggable combined arrester for
880 V unearthed three-phase systems, width of 8 DIN modules
with remote signalling contact
Type 1 + Type 2 arrester as per EN 61643-11
RAC spark gap technology
for follow current limitation
Max. continuous operating voltage: 880 V AC
Voltage protection level: <= 4 kV
Lightning impulse current (10/350): 12.5 kA
Follow current extinguishing capability up to 50 kArms

Brand: DEHN
Type: DV M2 880 FM
Part No.: 961151
or equivalent.

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) (U_C )	880 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [1,2-3] (I_imp )	12.5 kA
Max. backup fuse (L) up to I_K= 50 kA_rms	160 A gG
Type of remote signalling contact	yes / changeover contact
Supplementary data:	---------------------------------
– Anti-PID voltage (U_1-3 + U_PID )	508 V_AC + 750 V_DC – withstand

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Energy coordination with terminal equipment (≤ 10 m)	Type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	800 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	880 V (50 / 60 Hz)
Lightning impulse current (10/350 µs) [1,2-3] (I_imp )	12.5 kA
Specific energy [1,2-3] (W/R)	39.06 kJ/Ohm
Nominal discharge current (8/20 µs) [1,2-3] (I_n )	20 kA
Voltage protection level [1,2-3] (U_P )	≤ 4 kV
Follow current extinguishing capability (a.c.) (I_fi )	50 kA_rms
Follow current limitation / Selectivity	No tripping of a 35 A gG fuse up to 50 kA_rms(prosp.)
Short-circuit withstand capability [1,2-3] (I_SCCR )	50 kA_rms
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K= 50 kA_rms	160 A gG
Operating temperature range (parallel connection) (T_UP )	-40°C to +80°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area [1,2,3] (min.)	6 mm²solid / fine-stranded
Cross-sectional area [1,2,3] (max.)	35 mm²stranded / 25 mm²fine-stranded
For mounting on	35 mm DIN rails acc. to EN 60715
Place of installation	Indoor
Degree of protection	IP 20
Capacity	8 module(s), DIN 43880
Type of remote signalling contact	yes / changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / fine-stranded
Supplementary data:	---------------------------------
– Anti-PID voltage (U_1-3 + U_PID )	508 V_AC + 750 V_DC – withstand

Artikel 961151 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 961151 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNventil modular

Details

DEHNventil M2 TNC FM

Art.-Nr. 956305 DV M2 TNC 255 FM

Sie müssen angemeldet sein um 956305.jt herunterzuladen.

Sie müssen angemeldet sein um 956305.stp herunterzuladen.

Sie müssen angemeldet sein um 956305.iges herunterzuladen.

Sie müssen angemeldet sein um 956305.dwg herunterzuladen.

Sie müssen angemeldet sein um 956305m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.956305.edz herunterzuladen.

Artikel 956305 wurde zum Merkzettel hinzugefügt.

Artikel 956305 wurde zum Warenkorb hinzugefügt.

DEHNventil M2 TNS FM

Art.-Nr. 956405 DV M2 TNS 255 FM

Sie müssen angemeldet sein um 954315_954405.jt herunterzuladen.

Sie müssen angemeldet sein um 954315_954405.stp herunterzuladen.

Sie müssen angemeldet sein um 954315_954405.iges herunterzuladen.

Sie müssen angemeldet sein um 954315_954405.dwg herunterzuladen.

Sie müssen angemeldet sein um 954315+405m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.954405.edz herunterzuladen.

Artikel 956405 wurde zum Merkzettel hinzugefügt.

Artikel 956405 wurde zum Warenkorb hinzugefügt.

DEHNventil M2 TT FM

Art.-Nr. 956315 DV M2 TT 255 FM

Sie müssen angemeldet sein um 954315_954405.jt herunterzuladen.

Sie müssen angemeldet sein um 954315_954405.stp herunterzuladen.

Sie müssen angemeldet sein um 954315_954405.iges herunterzuladen.

Sie müssen angemeldet sein um 954315_954405.dwg herunterzuladen.

Sie müssen angemeldet sein um 954315+405m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.954315.edz herunterzuladen.

Artikel 956315 wurde zum Merkzettel hinzugefügt.

Artikel 956315 wurde zum Warenkorb hinzugefügt.

DEHNventil M2 TN FM

Art.-Nr. 956205 DV M2 TN 255 FM

Sie müssen angemeldet sein um 954115_954205.jt herunterzuladen.

Sie müssen angemeldet sein um 954115_954205.stp herunterzuladen.

Sie müssen angemeldet sein um 954115_954205.iges herunterzuladen.

Sie müssen angemeldet sein um 954115_954205.dwg herunterzuladen.

Sie müssen angemeldet sein um 954115+205m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.954205.edz herunterzuladen.

Artikel 956205 wurde zum Merkzettel hinzugefügt.

Artikel 956205 wurde zum Warenkorb hinzugefügt.

DEHNventil M2 TT 2P FM

Art.-Nr. 956115 DV M2 TT 2P 255 FM

Sie müssen angemeldet sein um 954115_954205.jt herunterzuladen.

Sie müssen angemeldet sein um 954115_954205.stp herunterzuladen.

Sie müssen angemeldet sein um 954115_954205.iges herunterzuladen.

Sie müssen angemeldet sein um 954115_954205.dwg herunterzuladen.

Sie müssen angemeldet sein um 954115+205m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.954115.edz herunterzuladen.

Artikel 956115 wurde zum Merkzettel hinzugefügt.

Artikel 956115 wurde zum Warenkorb hinzugefügt.

DEHNventil M TNC (FM)

Art.-Nr. 951300 DV M TNC 255

Sie müssen angemeldet sein um 951300.jt herunterzuladen.

Sie müssen angemeldet sein um 951300.stp herunterzuladen.

Sie müssen angemeldet sein um 951300.igs herunterzuladen.

Sie müssen angemeldet sein um 951300.dwg herunterzuladen.

Sie müssen angemeldet sein um 951300m_E.dxf herunterzuladen.

Sie müssen angemeldet sein um 951300_eplan.zip herunterzuladen.

Sie müssen angemeldet sein um DEHN.951300.wspak herunterzuladen.

Artikel 951300 wurde zum Merkzettel hinzugefügt.

Artikel 951300 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 951305 DV M TNC 255 FM

Sie müssen angemeldet sein um 951305.jt herunterzuladen.

Sie müssen angemeldet sein um 951305.stp herunterzuladen.

Sie müssen angemeldet sein um 951305.igs herunterzuladen.

Sie müssen angemeldet sein um 951305.dwg herunterzuladen.

Sie müssen angemeldet sein um 951305m_E.dxf herunterzuladen.

Sie müssen angemeldet sein um 951305_eplan.zip herunterzuladen.

Sie müssen angemeldet sein um DEHN.951305.wspak herunterzuladen.

Artikel 951305 wurde zum Merkzettel hinzugefügt.

Artikel 951305 wurde zum Warenkorb hinzugefügt.

DEHNventil M TNS (FM)

Art.-Nr. 951400 DV M TNS 255

Sie müssen angemeldet sein um 951400.jt herunterzuladen.

Sie müssen angemeldet sein um 951400.stp herunterzuladen.

Sie müssen angemeldet sein um 951400.igs herunterzuladen.

Sie müssen angemeldet sein um 951400.dwg herunterzuladen.

Sie müssen angemeldet sein um 951400_310m_E.dxf herunterzuladen.
