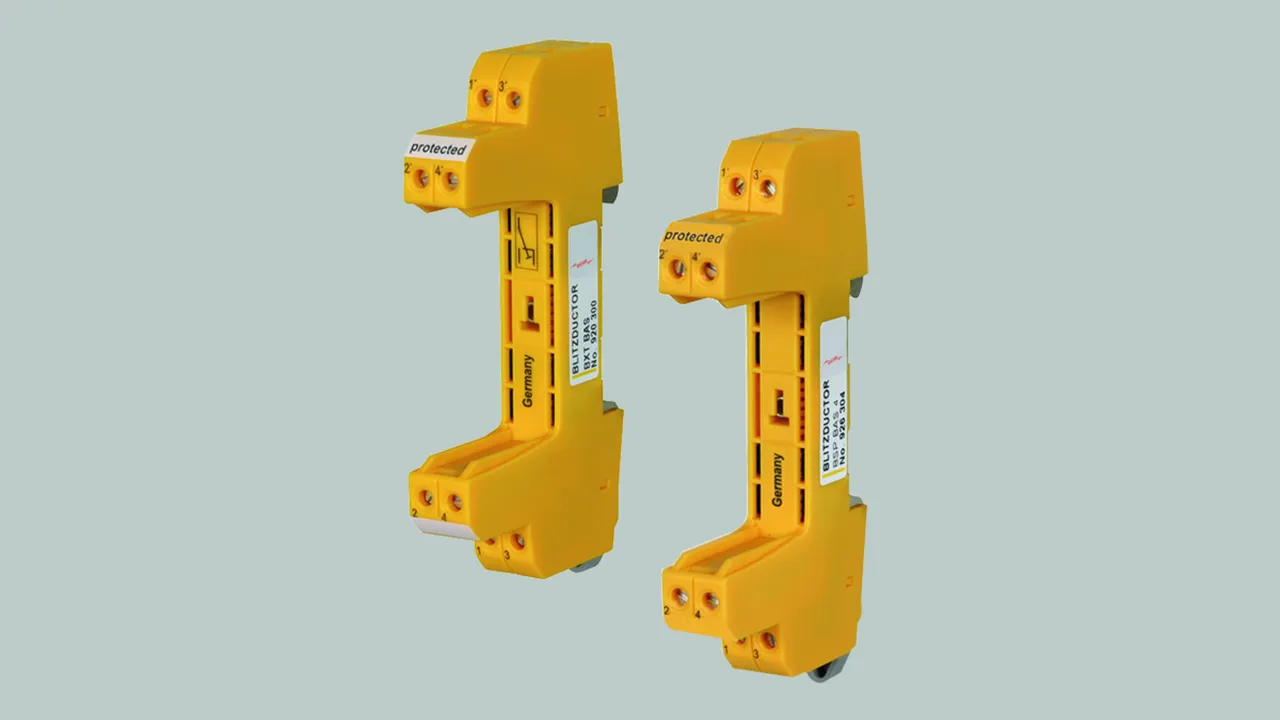

BLITZDUCTOR – Base Parts
:quality(98)/dehn.at/store/f/50283074/HDVORSCHAU/920300_926304_16-9.jpg)
:quality(98)/dehn.at/store/f/50283074/HDVORSCHAU/920300_926304_16-9.jpg)
- Universal base parts for protection modules of the BLITZDUCTOR XT/XTU/SP series
- Two base parts with or without signal disconnection if the protection module is removed
- Connection of up to four lines
BXT BAS
The BLITZDUCTOR XT base part is an extremely space-saving and universal four-pole feed-through terminal for the insertion of a protection module without signal disconnection if the protection module is removed. The snap-in mechanism at the supporting foot of the base part allows the protection module to be safely earthed via the DIN rail. Since no components of the protective circuit are situated in the base part, maintenance is only required for the protection modules.
1 Produkt
Art.-Nr. 920300 BXT BAS
GTIN 4013364109179, Zolltarifnr. (EU): 85369010, Bruttogewicht: 46.00 g, VPE: 1.00 pc(s)
Vorgänger:quality(98)/dehn.at/store/f/50283125/HDVORSCHAU/920300.jpg)
:quality(98)/dehn.at/store/f/50283125/HDVORSCHAU/920300.jpg)
:quality(98)/dehn.at/store/f/50283126/HDVORSCHAU/920300p.jpg)
:quality(98)/dehn.at/store/f/50283126/HDVORSCHAU/920300p.jpg)
:quality(98)/dehn.at/store/f/50283127/HDVORSCHAU/920300m_E.jpg)
:quality(98)/dehn.at/store/f/50283127/HDVORSCHAU/920300m_E.jpg)
Technische Daten
| For mounting on | 35 mm DIN rails acc. to EN 60715 |
| Cross-sectional area, solid | 0.08-4 mm2 |
| Cross-sectional area, flexible | 0.08-2.5 mm2 |
| Tightening torque (terminals) | 0.4 Nm |
| Earthing via | 35 mm DIN rails acc. to EN 60715 |
| Approvals | CSA, UL 497B, ATEX, IECEx, CCC *) |
| *) only in connection with an approved protection module | |
BSP BAS 4
The BLITZDUCTOR SP base part is an extremely space-saving and universal four-pole terminal for the insertion of a protection module with signal disconnection if the protection module is removed. The snap-in mechanism at the supporting foot of the base part allows the protection module to be safely earthed via the DIN rail. Since no components of the protective circuit are situated in the base part, maintenance operation is only required for the protection modules.
1 Produkt
Art.-Nr. 926304 BSP BAS 4
GTIN 4013364157125, Zolltarifnr. (EU): 85369010, Bruttogewicht: 54.00 g, VPE: 1.00 pc(s)
:quality(98)/dehn.at/store/f/50283165/HDVORSCHAU/926304.jpg)
:quality(98)/dehn.at/store/f/50283165/HDVORSCHAU/926304.jpg)
:quality(98)/dehn.at/store/f/50283166/HDVORSCHAU/926304p.jpg)
:quality(98)/dehn.at/store/f/50283166/HDVORSCHAU/926304p.jpg)
:quality(98)/dehn.at/store/f/50283167/HDVORSCHAU/920300m_D.jpg)
:quality(98)/dehn.at/store/f/50283167/HDVORSCHAU/920300m_D.jpg)
Technische Daten
| For mounting on | 35 mm DIN rails acc. to EN 60715 |
| Cross-sectional area, solid | 0.08-4 mm2 |
| Cross-sectional area, flexible | 0.08-2.5 mm2 |
| Tightening torque (terminals) | 0.4 Nm |
| Earthing via | 35 mm DIN rails acc. to EN 60715 |
| Approvals | UL 497B, CSA *) |
| *) only in connection with an approved protection module | |
