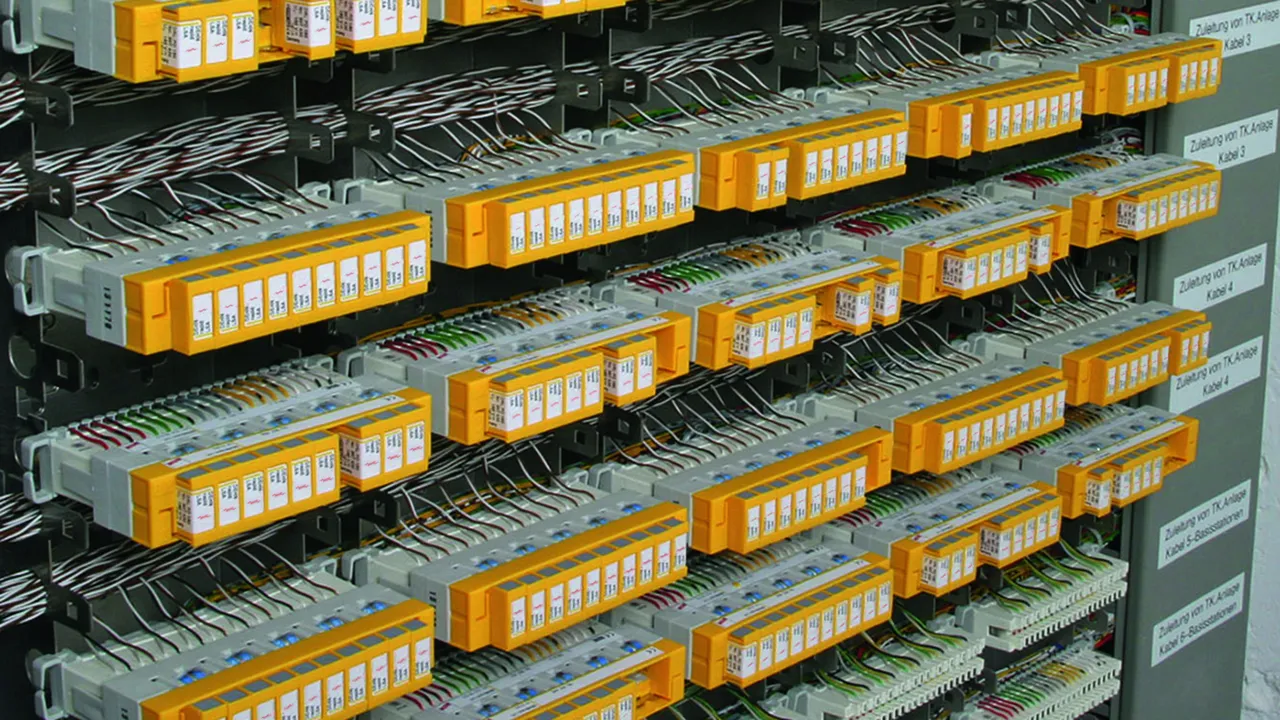

DEHNrapid LSA – Lightning Current / Surge Arrester

Variable protection for 1 to 10 pairs in LSA systems of the 2/10 series
LSA disconnection block function integrated in the lightning current arrester allows protected testing, disconnecting and patching
Modular system of lightning current and surge arresters can be combined to a single combined arrester

Details

Combined lightning current and surge arrester for LSA terminal blocks.

lorem ipsum — Combined lightning current and surge arrester for LSA terminal blocks.

Pluggable surge arresters in the form of protection magazines can be plugged into terminal or disconnection blocks.

Lightning current carrying SPD block with gas discharge tubes optionally available with visual fault indication and fail-safe function.

Modular design consisting of a plug-in SPD block with gas discharge tubes, earthing frame and application-specific protection modules.

Application-specific surge protection modules for protecting terminal equipment.

Produkte filtern

DRL 10 B

Lightning current carrying DRL plug-in SPD block (10 pairs) with three-pole gas discharge tubes for almost all applications. Expandable to a combined lightning current and surge arrester by means of a DRL protective plug. The integrated disconnection block contacts allow testing, measuring and patching with plugged-in protection.

1 Produkt

Art.-Nr. 907400 DRL 10 B 180

GTIN 4013364107557, Zolltarifnr. (EU): 85363010, Bruttogewicht: 69.90 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

DRL 10 B 180 lightning current carrying DRL plug-in SPD block
Lightning current arrester plug-in block
DEHNrapid LSA, SPD class TYPE 1,
for 10/2 LSA disconnection block,
complete supplied with 10 GDT 230 B3,
tested acc. to EN 61643-21, extendible
to a combined lightning current and surge
arrester with DRL protective plug,
integrated disconnection block contacts
allow testing, measuring and patching
at plugged-in protection

Max. continuous operating voltage (d.c.): 180 V
Nominal current: 0.4 A

Brand: DEHN
Type: DRL 10 B 180
Part No.: 907400
or equivalent.

Zertifikate

Technische Daten

SPD class	G
Max. continuous operating voltage (d.c.) (U_C )	180 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	≤ 0.005 ohms
Plugs into	LSA disconnection block 2/10

SPD class	G
Nominal voltage (U_N )	180 V
Max. continuous operating voltage (d.c.) (U_C )	180 V
Max. continuous operating voltage (a.c.) (U_C )	127 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	5 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	2.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_impD1 (U_P )	≤ 500 V
Voltage protection level line-PG for I_impD1 (U_P )	≤ 500 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 500 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 450 V
Series resistance per line	≤ 0.005 ohms
Capacitance line-line (C)	≤ 5 pF
Capacitance line-PG (C)	≤ 5 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 10
Plugs into	LSA disconnection block 2/10
Earthing via	mounting frame
Enclosure material	polyamide PA 6.6
Colour	grey
Test standards	IEC 61643-21 / EN 61643-21

Artikel 907400 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 907400 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DRL 10 B FSD

Lightning current carrying DRL plug-in SPD block (10 pairs) for almost all applications. Expandable to a combined lightning current and surge arrester by means of a DRL protective plug. The integrated disconnection block contacts allow testing, measuring and patching with plugged-in protection. The three-pole gas discharge tubes have a fail-safe function with visual fault indication.

1 Produkt

Art.-Nr. 907401 DRL 10 B 180 FSD

GTIN 4013364107564, Zolltarifnr. (EU): 85363010, Bruttogewicht: 74.30 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DRL 10 B 180 FSD lightning current carrying DRL plug-in SPD block
Lightning current arrester plug-in block
DEHNrapid LSA, SPD class TYPE 1,
for 10/2 LSA disconnection block,
complete supplied with 10 GDT 230 B3 FSD,
tested acc. to EN 61643-21, extendible
to a combined lightning current and surge
arrester with DRL protective plug,
integrated disconnection block contacts
allow testing, measuring and patching
at plugged-in protection, GDT‘s with
fail-safe function and visual fault indicator

Max. continuous operating voltage (d.c.): 180 V
Nominal current: 0.4 A

Brand: DEHN
Type: DRL 10 B 180 FSD
Part No.: 907401
or equivalent.

Zertifikate

Technische Daten

SPD class	G
Fault indication	visual, colour change
Max. continuous operating voltage (d.c.) (U_C )	180 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	≤ 0.005 ohms
Plugs into	LSA disconnection block 2/10

SPD class	G
Fault indication	visual, colour change
Nominal voltage (U_N )	180 V
Max. continuous operating voltage (d.c.) (U_C )	180 V
Max. continuous operating voltage (a.c.) (U_C )	127 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	5 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	2.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_impD1 (U_P )	≤ 500 V
Voltage protection level line-PG for I_impD1 (U_P )	≤ 500 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 500 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 450 V
Series resistance per line	≤ 0.005 ohms
Capacitance line-line (C)	≤ 5 pF
Capacitance line-PG (C)	≤ 5 pF
Fail-safe function	gas discharge tube with spring contacts
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 10
Plugs into	LSA disconnection block 2/10
Earthing via	mounting frame
Enclosure material	polyamide PA 6.6
Colour	grey
Test standards	IEC 61643-21 / EN 61643-21

Artikel 907401 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 907401 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DRL RE

Protective plug (one pair), energy-coordinated with DRL plug-in SPD block, for use as single-stage protective device for terminal equipment with decoupling impedances. Ideally suited for signal circuits sharing a common reference potential. Earthing via EF 10 DRL. For disconnection blocks or DRL plug-in SPD blocks only.

5 Produkte

Art.-Nr. 907421 DRL RE 12

GTIN 4013364107618, Zolltarifnr. (EU): 85363010, Bruttogewicht: 5.40 g, VPE: 10.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

DRL RE 12 protective plug (1 pair)
DEHNrapid LSA surge protective plug
SPD class: type 3/P1
Tested to EN 61643-21 and energy-
coordinated acc. to IEC 61643-22
with type 1 DRL plug-in SPD block
For protecting two single cores
In conjunction with the earthing
frame, it can be plugged into LSA disconnection
blocks of the 2/10 series or directly into the DRL
plug-in SPD block as an extension to the combined
arrester
Max. continuous operating voltage (d.c.): 14 V
Nominal current: 0.4 A

Brand: DEHN
Type: DRL RE 12
Part No.: 907421
or equivalent.

Zertifikate

Technische Daten

SPD class	O
Max. continuous operating voltage (d.c.) (U_C )	14 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
Series resistance per line	4.7 ohms
Cut-off frequency line-PG (f_G )	2.7 MHz
Plugs into	LSA disconnection block 2/10 or DRL 10 B ... plug-in SPD block

SPD class	O
Nominal voltage (U_N )	12 V
Max. continuous operating voltage (d.c.) (U_C )	14 V
Max. continuous operating voltage (a.c.) (U_C )	9.5 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
D1 Lightning impulse current (10/350 µs) per line in combination with DRL 10 B... (I_imp )	2.5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line in combination with DRL 10 B... (I_n )	5 kA
C1 Nominal discharge current (8/20 µs) per line without DRL 10 B... (I_n )	0.5 kA
Voltage protection level line-PG for I_impD1 in combination with DRL 10 B... (U_P )	≤ 45 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 36 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 19 V
Series resistance per line	4.7 ohms
Cut-off frequency line-PG (f_G )	2.7 MHz
Capacitance line-line (C)	≤ 1 nF
Capacitance line-PG (C)	≤ 2 nF
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 20 (when plugged in)
Plugs into	LSA disconnection block 2/10 or DRL 10 B ... plug-in SPD block
Earthing via	earthing frame
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21

Artikel 907421 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 907421 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 907422 DRL RE 24

GTIN 4013364107625, Zolltarifnr. (EU): 85363010, Bruttogewicht: 5.40 g, VPE: 10.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

DRL RE 24 surge protective plug (1 pair)
DEHNrapid LSA surge protective plug
SPD class: type 3/P1
Tested to EN 61643-21 and energy-
coordinated acc. to IEC 61643-22
with type 1 DRL plug-in SPD block
For protecting two single cores
In conjunction with the earthing
frame, it can be plugged into LSA disconnection
blocks of the 2/10 series or directly into the DRL
plug-in SPD block as an extension to the combined
arrester
Max. continuous operating voltage (d.c.): 28 V
Nominal current: 0.4 A

Brand: DEHN
Type: DRL RE 24
Part No.: 907422
or equivalent.

Zertifikate

Technische Daten

SPD class	O
Max. continuous operating voltage (d.c.) (U_C )	28 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
Series resistance per line	4.7 ohms
Cut-off frequency line-PG (f_G )	4.5 MHz
Plugs into	LSA disconnection block 2/10 or DRL 10 B ... plug-in SPD block

SPD class	O
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	28 V
Max. continuous operating voltage (a.c.) (U_C )	19.5 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
D1 Lightning impulse current (10/350 µs) per line in combination with DRL 10 B... (I_imp )	2.5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line in combination with DRL 10 B... (I_n )	5 kA
C1 Nominal discharge current (8/20 µs) per line without DRL 10 B... (I_n )	0.5 kA
Voltage protection level line-PG for I_impD1 in combination with DRL 10 B... (U_P )	≤ 65 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 72 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 38 V
Series resistance per line	4.7 ohms
Cut-off frequency line-PG (f_G )	4.5 MHz
Capacitance line-line (C)	≤ 0.55 pF
Capacitance line-PG (C)	≤ 1.1 nF
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 20 (when plugged in)
Plugs into	LSA disconnection block 2/10 or DRL 10 B ... plug-in SPD block
Earthing via	earthing frame
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21

Artikel 907422 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 907422 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 907423 DRL RE 48

GTIN 4013364107632, Zolltarifnr. (EU): 85363010, Bruttogewicht: 5.40 g, VPE: 10.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

DRL RE 48 surge protective plug (1 pair)
DEHNrapid LSA surge protective plug
SPD class: type 3/P1
Tested to EN 61643-21 and energy-
coordinated acc. to IEC 61643-22
with type 1 DRL plug-in SPD block
For protecting two single cores
In conjunction with the earthing
frame, it can be plugged into LSA disconnection
blocks of the 2/10 series or directly into the DRL
plug-in SPD block as an extension to the combined
arrester
Max. continuous operating voltage (d.c.): 54 V
Nominal current: 0.4 A

Brand: DEHN
Type: DRL RE 48
Part No.: 907423
or equivalent.

Zertifikate

Technische Daten

SPD class	O
Max. continuous operating voltage (d.c.) (U_C )	54 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
Series resistance per line	6.8 ohms
Cut-off frequency line-PG (f_G )	7.35 MHz
Plugs into	LSA disconnection block 2/10 or DRL 10 B ... plug-in SPD block

SPD class	O
Nominal voltage (U_N )	48 V
Max. continuous operating voltage (d.c.) (U_C )	54 V
Max. continuous operating voltage (a.c.) (U_C )	38 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
D1 Lightning impulse current (10/350 µs) per line in combination with DRL 10 B... (I_imp )	2.5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line in combination with DRL 10 B... (I_n )	5 kA
C1 Nominal discharge current (8/20 µs) per line without DRL 10 B... (I_n )	0.25 kA
Voltage protection level line-PG for I_impD1 in combination with DRL 10 B... (U_P )	≤ 95 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 135 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 70 V
Series resistance per line	6.8 ohms
Cut-off frequency line-PG (f_G )	7.35 MHz
Capacitance line-line (C)	≤ 350 pF
Capacitance line-PG (C)	≤ 700 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 20 (when plugged in)
Plugs into	LSA disconnection block 2/10 or DRL 10 B ... plug-in SPD block
Earthing via	earthing frame
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21

Artikel 907423 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 907423 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 907424 DRL RE 60

GTIN 4013364107649, Zolltarifnr. (EU): 85363010, Bruttogewicht: 5.40 g, VPE: 10.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

DRL RE 60 surge protective plug (1 pair)
DEHNrapid LSA surge protective plug
SPD class: type 3/P1
Tested to EN 61643-21 and energy-
coordinated acc. to IEC 61643-22
with type 1 DRL plug-in SPD block
For protecting two single cores
In conjunction with the earthing
frame, it can be plugged into LSA disconnection
blocks of the 2/10 series or directly into the DRL
plug-in SPD block as an extension to the combined
arrester
Max. continuous operating voltage (d.c.): 70 V
Nominal current: 0.4 A

Brand: DEHN
Type: DRL RE 60
Part No.: 907424
or equivalent.

Zertifikate

Technische Daten

SPD class	O
Max. continuous operating voltage (d.c.) (U_C )	70 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
Series resistance per line	6.8 ohms
Cut-off frequency line-PG (f_G )	10.5 MHz
Plugs into	LSA disconnection block 2/10 or DRL 10 B ... plug-in SPD block

SPD class	O
Nominal voltage (U_N )	60 V
Max. continuous operating voltage (d.c.) (U_C )	70 V
Max. continuous operating voltage (a.c.) (U_C )	49.5 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
D1 Lightning impulse current (10/350 µs) per line in combination with DRL 10 B... (I_imp )	2.5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line in combination with DRL 10 B... (I_n )	5 kA
C1 Nominal discharge current (8/20 µs) per line without DRL 10 B... (I_n )	0.25 kA
Voltage protection level line-PG for I_impD1 in combination with DRL 10 B... (U_P )	≤ 115 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 185 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 95 V
Series resistance per line	6.8 ohms
Cut-off frequency line-PG (f_G )	10.5 MHz
Capacitance line-line (C)	≤ 250 pF
Capacitance line-PG (C)	≤ 500 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 20 (when plugged in)
Plugs into	LSA disconnection block 2/10 or DRL 10 B ... plug-in SPD block
Earthing via	earthing frame
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21

Artikel 907424 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 907424 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 907425 DRL RE 180

GTIN 4013364107656, Zolltarifnr. (EU): 85363010, Bruttogewicht: 5.40 g, VPE: 10.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

DRL RE 180 surge protective plug (1 pair)
DEHNrapid LSA surge protective plug
SPD class: type 3/P1
Tested to EN 61643-21 and energy-
coordinated acc. to IEC 61643-22
with type 1 DRL plug-in SPD block
For protecting two single cores
In conjunction with the earthing
frame, it can be plugged into LSA disconnection
blocks of the 2/10 series or directly into the DRL
plug-in SPD block as an extension to the combined
arrester
Max. continuous operating voltage (d.c.): 180 V
Nominal current: 0.1 A

Brand: DEHN
Type: DRL RE 180
Part No.: 907425
or equivalent.

Zertifikate

Technische Daten

SPD class	O
Max. continuous operating voltage (d.c.) (U_C )	180 V
Nominal current (I_L )	0.1 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
Series resistance per line	4.7 ohms
Cut-off frequency line-PG (f_G )	42 MHz
Plugs into	LSA disconnection block 2/10 or DRL 10 B ... plug-in SPD block

SPD class	O
Nominal voltage (U_N )	180 V
Max. continuous operating voltage (d.c.) (U_C )	180 V
Max. continuous operating voltage (a.c.) (U_C )	127 V
Nominal current (I_L )	0.1 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
D1 Lightning impulse current (10/350 µs) per line in combination with DRL 10 B... (I_imp )	2.5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line in combination with DRL 10 B... (I_n )	5 kA
C1 Nominal discharge current (8/20 µs) per line without DRL 10 B... (I_n )	0.5 kA
Voltage protection level line-PG for I_impD1 in combination with DRL 10 B... (U_P )	≤ 280 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 500 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 270 V
Series resistance per line	4.7 ohms
Cut-off frequency line-PG (f_G )	42 MHz
Capacitance line-line (C)	≤ 50 pF
Capacitance line-PG (C)	≤ 80 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 20 (when plugged in)
Plugs into	LSA disconnection block 2/10 or DRL 10 B ... plug-in SPD block
Earthing via	earthing frame
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21

Artikel 907425 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 907425 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DRL RD

Protective plug (one pair), energy-coordinated with DRL plug-in SPD block, for use as single-stage protective device for terminal equipment. Low voltage protection level line-line for unearthed interfaces. To be mounted into EF 10 DRL. Installation recommended only in combination with DRL plug-in SPD block.

5 Produkte

Art.-Nr. 907441 DRL RD 12

GTIN 4013364107694, Zolltarifnr. (EU): 85363010, Bruttogewicht: 5.40 g, VPE: 10.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

DRL RD 12 surge protective plug (1 pair)
DEHNrapid LSA surge protective plug
SPD class: type 3/P1
Tested to EN 61643-21 and energy-
coordinated acc. to IEC 61643-22
with type 1 DRL plug-in SPD block
For protecting one pair
In conjunction with the earthing
frame, it can be plugged into LSA disconnection
blocks of the 2/10 series or directly into the DRL
plug-in SPD block as an extension to the combined
arrester
Max. continuous operating voltage (d.c.): 14 V
Nominal current: 0.4 A

Brand: DEHN
Type: DRL RD 12
Part No.: 907441
or equivalent.

Zertifikate

Technische Daten

SPD class	O
Max. continuous operating voltage (d.c.) (U_C )	14 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
Series resistance per line	2.2 ohms
Cut-off frequency line-line (f_G )	2.7 MHz
Plugs into	LSA disconnection block 2/10 or DRL 10 B ... plug-in SPD block

SPD class	O
Nominal voltage (U_N )	12 V
Max. continuous operating voltage (d.c.) (U_C )	14 V
Max. continuous operating voltage (a.c.) (U_C )	9.5 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
D1 Lightning impulse current (10/350 µs) per line in combination with DRL 10 B... (I_imp )	2.5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line in combination with DRL 10 B... (I_n )	5 kA
C1 Nominal discharge current (8/20 µs) per line without DRL 10 B... (I_n )	0.5 kA
Voltage protection level line-PG for I_impD1 in combination with DRL 10 B... (U_P )	≤ 500 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 18 V
Series resistance per line	2.2 ohms
Cut-off frequency line-line (f_G )	2.7 MHz
Capacitance line-line (C)	≤ 2.0 nF
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 20 (when plugged in)
Plugs into	LSA disconnection block 2/10 or DRL 10 B ... plug-in SPD block
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21

Artikel 907441 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 907441 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 907442 DRL RD 24

GTIN 4013364107700, Zolltarifnr. (EU): 85363010, Bruttogewicht: 5.40 g, VPE: 10.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DRL RD 24 surge protective plug (1 pair)
DEHNrapid LSA surge protective plug
SPD class: type 3/P1
Tested to EN 61643-21 and energy-
coordinated acc. to IEC 61643-22
with type 1 DRL plug-in SPD block
For protecting one pair
In conjunction with the earthing
frame, it can be plugged into LSA disconnection
blocks of the 2/10 series or directly into the DRL
plug-in SPD block as an extension to the combined
arrester
Max. continuous operating voltage (d.c.): 28 V
Nominal current: 0.4 A

Brand: DEHN
Type: DRL RD 24
Part No.: 907442
or equivalent.

Zertifikate

Technische Daten

SPD class	O
Max. continuous operating voltage (d.c.) (U_C )	28 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
Series resistance per line	2.2 ohms
Cut-off frequency line-line (f_G )	5.4 MHz
Plugs into	LSA disconnection block 2/10 or DRL 10 B ... plug-in SPD block

SPD class	O
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	28 V
Max. continuous operating voltage (a.c.) (U_C )	19.5 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
D1 Lightning impulse current (10/350 µs) per line in combination with DRL 10 B... (I_imp )	2.5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line in combination with DRL 10 B... (I_n )	5 kA
C1 Nominal discharge current (8/20 µs) per line without DRL 10 B... (I_n )	0.5 kA
Voltage protection level line-PG for I_impD1 in combination with DRL 10 B... (U_P )	≤ 500 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 36 V
Series resistance per line	2.2 ohms
Cut-off frequency line-line (f_G )	5.4 MHz
Capacitance line-line (C)	≤ 1.1 nF
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 20 (when plugged in)
Plugs into	LSA disconnection block 2/10 or DRL 10 B ... plug-in SPD block
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21

Artikel 907442 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 907442 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 907443 DRL RD 48

GTIN 4013364107717, Zolltarifnr. (EU): 85363010, Bruttogewicht: 5.40 g, VPE: 10.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DRL RD 48 surge protective plug (1 pair)
DEHNrapid LSA surge protective plug
SPD class: type 3/P1
Tested to EN 61643-21 and energy-
coordinated acc. to IEC 61643-22
with type 1 DRL plug-in SPD block
For protecting one pair
In conjunction with the earthing
frame, it can be plugged into LSA disconnection
blocks of the 2/10 series or directly into the DRL
plug-in SPD block as an extension to the combined
arrester
Max. continuous operating voltage (d.c.): 54 V
Nominal current: 0.4 A

Brand: DEHN
Type: DRL RD 48
Part No.: 907443
or equivalent.

Zertifikate

Technische Daten

SPD class	O
Max. continuous operating voltage (d.c.) (U_C )	54 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
Series resistance per line	4.7 ohms
Cut-off frequency line-line (f_G )	7.8 MHz
Plugs into	LSA disconnection block 2/10 or DRL 10 B ... plug-in SPD block

SPD class	O
Nominal voltage (U_N )	48 V
Max. continuous operating voltage (d.c.) (U_C )	54 V
Max. continuous operating voltage (a.c.) (U_C )	38 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
D1 Lightning impulse current (10/350 µs) per line in combination with DRL 10 B... (I_imp )	2.5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line in combination with DRL 10 B... (I_n )	5 kA
C1 Nominal discharge current (8/20 µs) per line without DRL 10 B... (I_n )	0.25 kA
Voltage protection level line-PG for I_impD1 in combination with DRL 10 B... (U_P )	≤ 500 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 70 V
Series resistance per line	4.7 ohms
Cut-off frequency line-line (f_G )	7.8 MHz
Capacitance line-line (C)	≤ 700 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 20 (when plugged in)
Plugs into	LSA disconnection block 2/10 or DRL 10 B ... plug-in SPD block
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21

Artikel 907443 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 907443 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 907444 DRL RD 60

GTIN 4013364107724, Zolltarifnr. (EU): 85363010, Bruttogewicht: 5.40 g, VPE: 10.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DRL RD 60 surge protective plug (1 pair)
DEHNrapid LSA surge protective plug
SPD class: type 3/P1
Tested to EN 61643-21 and energy-
coordinated acc. to IEC 61643-22
with type 1 DRL plug-in SPD block
For protecting one pair
In conjunction with the earthing
frame, it can be plugged into LSA disconnection
blocks of the 2/10 series or directly into the DRL
plug-in SPD block as an extension to the combined
arrester
Max. continuous operating voltage (d.c.): 70 V
Nominal current: 0.4 A

Brand: DEHN
Type: DRL RD 60
Part No.: 907444
or equivalent.

Zertifikate

Technische Daten

SPD class	O
Max. continuous operating voltage (d.c.) (U_C )	70 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
Series resistance per line	4.7 ohms
Cut-off frequency line-line (f_G )	11 MHz
Plugs into	LSA disconnection block 2/10 or DRL 10 B ... plug-in SPD block

SPD class	O
Nominal voltage (U_N )	60 V
Max. continuous operating voltage (d.c.) (U_C )	70 V
Max. continuous operating voltage (a.c.) (U_C )	49.5 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
D1 Lightning impulse current (10/350 µs) per line in combination with DRL 10 B... (I_imp )	2.5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line in combination with DRL 10 B... (I_n )	5 kA
C1 Nominal discharge current (8/20 µs) per line without DRL 10 B... (I_n )	0.25 kA
Voltage protection level line-PG for I_impD1 in combination with DRL 10 B... (U_P )	≤ 500 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 95 V
Series resistance per line	4.7 ohms
Cut-off frequency line-line (f_G )	11 MHz
Capacitance line-line (C)	≤ 500 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 20 (when plugged in)
Plugs into	LSA disconnection block 2/10 or DRL 10 B ... plug-in SPD block
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21

Artikel 907444 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 907444 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 907445 DRL RD 110

GTIN 4013364118461, Zolltarifnr. (EU): 85363010, Bruttogewicht: 3.30 g, VPE: 10.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DRL RD 110 surge protective plug (1 pair)
DEHNrapid LSA surge protective plug
SPD class: type 3/P1
Tested to EN 61643-21 and energy-
coordinated acc. to IEC 61643-22
with type 1 DRL plug-in SPD block
For protecting one pair
In conjunction with the earthing
frame, it can be plugged into LSA disconnection
blocks of the 2/10 series or directly into the DRL
plug-in SPD block as an extension to the combined
arrester
Max. continuous operating voltage (d.c.): 180 V
Nominal current: 0.4 A

Brand: DEHN
Type: DRL RD 110
Part No.: 907445
or equivalent.

Zertifikate

Technische Daten

SPD class	O
Max. continuous operating voltage (d.c.) (U_C )	180 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
Series resistance per line	4.7 ohms
Cut-off frequency line-line (f_G )	20 MHz
Plugs into	LSA disconnection block 2/10 or DRL 10 B ... plug-in SPD block

SPD class	O
Nominal voltage (U_N )	110 V
Max. continuous operating voltage (d.c.) (U_C )	180 V
Max. continuous operating voltage (a.c.) (U_C )	127 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
D1 Lightning impulse current (10/350 µs) per line in combination with DRL 10 B... (I_imp )	2.5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line in combination with DRL 10 B... (I_n )	5 kA
C1 Nominal discharge current (8/20 µs) per line without DRL 10 B... (I_n )	0.25 kA
Voltage protection level line-PG for I_impD1 in combination with DRL 10 B... (U_P )	≤ 500 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 250 V
Series resistance per line	4.7 ohms
Cut-off frequency line-line (f_G )	20 MHz
Capacitance line-line (C)	≤ 200 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 20 (when plugged in)
Plugs into	LSA disconnection block 2/10 or DRL 10 B ... plug-in SPD block
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21

Artikel 907445 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 907445 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DRL PD

Protective plug (one pair), energy-coordinated with DRL plug-in SPD block, for use as single-stage protective device for terminal equipment. Low voltage protection level line-line and integrated overcurrent protection for ADSL, ISDN U_k0or a/b lines. To be mounted into EF 10 DRL. Installation recommended only in combination with DRL plug-in SPD block.

1 Produkt

Art.-Nr. 907430 DRL PD 180

GTIN 4013364107670, Zolltarifnr. (EU): 85363010, Bruttogewicht: 3.90 g, VPE: 10.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

DRL PD 180 surge protective plug (1 pair)
DEHNrapid LSA surge protective plug
SPD class: type 3/P1
With overcurrent protection against power crossing
Tested to EN 61643-21 and energy-
coordinated acc. to IEC 61643-22
with type 1 DRL plug-in SPD blocks
For protecting one pair
In conjunction with the earthing
frame, it can be plugged into LSA disconnection
blocks of the 2/10 series or directly into the DRL
plug-in SPD block as an extension to the combined
arrester
Max. continuous operating voltage (d.c.): 180 V
Nominal current: 0.1 A

Brand: DEHN
Type: DRL PD 180
Part No.: 907430
or equivalent.

Zertifikate

Technische Daten

SPD class	O
Max. continuous operating voltage (d.c.) (U_C )	180 V
Nominal current (I_L )	0.1 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
Series resistance per line	10 ohms +/- 15%
Cut-off frequency line-line (f_G )	61 MHz
Plugs into	LSA disconnection block 2/10 or DRL 10 B... plug-in SPD block

SPD class	O
Nominal voltage (U_N )	180 V
Max. continuous operating voltage (d.c.) (U_C )	180 V
Max. continuous operating voltage (a.c.) (U_C )	127 V
Nominal current (I_L )	0.1 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
D1 Lightning impulse current (10/350 µs) per line in combination with DRL 10 B... (I_imp )	2.5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line in combination with DRL 10 B... (I_n )	5 kA
C1 Nominal discharge current (8/20 µs) per line without DRL 10 B... (I_n )	0.25 kA
Voltage protection level line-PG for I_impD1 in combination with DRL 10 B... (U_P )	≤ 500 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 270 V
Series resistance per line	10 ohms +/- 15%
Cut-off frequency line-line (f_G )	61 MHz
Capacitance line-line (C)	≤ 80 pF
Version	integrated overcurrent protection
Operating temperature range (T_U )	0 °C ... +70 °C
Degree of protection	IP 20 (when plugged in)
Plugs into	LSA disconnection block 2/10 or DRL 10 B... plug-in SPD block
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21

Artikel 907430 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 907430 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DRL HD

Protective plug (one pair), energy-coordinated with DRL plug-in SPD block, for use as single-stage protective device for terminal equipment for high-frequency transmissions such as G.703 or ISDN U_2m,S_2mand S_0.To be mounted into EF 10 DRL. Installation recommended only in combination with DRL plug-in SPD block.

1 Produkt

Art.-Nr. 907470 DRL HD 24

GTIN 4013364107663, Zolltarifnr. (EU): 85363010, Bruttogewicht: 5.40 g, VPE: 10.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

DRL HD 24 protective plug (1 pair)
Surge protective plug DEHNrapid LSA,
SPD class TYPE 3/P1, tested acc. to
EN 61643-21 and energy coordinated
acc. to IEC 61643-22 for DRL plug-in SPD
block TYPE 1, for the protection of 1 pair
of systems of maximum transmission rates.
Together with earthing frame pluggable into
LSA disconnection blocks 10/2 or directly
into the DRL plug-in block as extension to
the combined lightning current and surge
arrester

Max. continuous operating voltage (d.c.): 28 V
Nominal current: 0.4 A

Brand: DEHN
Type: DRL HD 24
Part No.: 907470
or equivalent.

Zertifikate

Technische Daten

SPD class	O
Max. continuous operating voltage (d.c.) (U_C )	28 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
Series resistance per line	4.7 ohms
Plugs into	LSA disconnection block 2/10 or DRL 10 B... plug-in SPD block

SPD class	O
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	28 V
Max. continuous operating voltage (a.c.) (U_C )	19.5 V
Nominal current (I_L )	0.4 A
D1 Total lightning impulse current (10/350 µs) in combination with DRL 10 B... (I_imp )	5 kA
D1 Lightning impulse current (10/350 µs) per line in combination with DRL 10 B... (I_imp )	2.5 kA
C2 Total nominal discharge current (8/20 µs) in combination with DRL 10 B... (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line in combination with DRL 10 B... (I_n )	5 kA
C1 Nominal discharge current (8/20 µs) per line without DRL 10 B... (I_n )	0.5 kA
Voltage protection level line-PG for I_impD1 in combination with DRL 10 B... (U_P )	≤ 500 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 46 V
Series resistance per line	4.7 ohms
Cut-off frequency line-line (100 ohms) (f_G )	85 MHz
Capacitance line-line (C)	≤ 22 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Degree of protection	IP 20 (when plugged in)
Plugs into	LSA disconnection block 2/10 or DRL 10 B... plug-in SPD block
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21

Artikel 907470 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 907470 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNrapid LSA – Lightning Current / Surge Arrester

Details

DRL 10 B

Art.-Nr. 907400 DRL 10 B 180

Sie müssen angemeldet sein um 907400.stp herunterzuladen.

Sie müssen angemeldet sein um 907400.igs herunterzuladen.

Sie müssen angemeldet sein um 907400.jt herunterzuladen.

Sie müssen angemeldet sein um 907400.dwg herunterzuladen.

Sie müssen angemeldet sein um 907400m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.907400.wspak herunterzuladen.

Sie müssen angemeldet sein um DEHN.907400.edz herunterzuladen.

Artikel 907400 wurde zum Merkzettel hinzugefügt.

Artikel 907400 wurde zum Warenkorb hinzugefügt.

DRL 10 B FSD

Art.-Nr. 907401 DRL 10 B 180 FSD

Sie müssen angemeldet sein um 907401.stp herunterzuladen.

Sie müssen angemeldet sein um 907401.igs herunterzuladen.

Sie müssen angemeldet sein um 907401.jt herunterzuladen.

Sie müssen angemeldet sein um 907401.dwg herunterzuladen.

Sie müssen angemeldet sein um 907400m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.907401.wspak herunterzuladen.

Sie müssen angemeldet sein um DEHN.907401.edz herunterzuladen.

Artikel 907401 wurde zum Merkzettel hinzugefügt.

Artikel 907401 wurde zum Warenkorb hinzugefügt.

DRL RE

Art.-Nr. 907421 DRL RE 12

Sie müssen angemeldet sein um 907425.stp herunterzuladen.

Sie müssen angemeldet sein um 907425.igs herunterzuladen.

Sie müssen angemeldet sein um 907425.jt herunterzuladen.

Sie müssen angemeldet sein um 907425.dwg herunterzuladen.

Sie müssen angemeldet sein um 907420m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.907421.wspak herunterzuladen.

Sie müssen angemeldet sein um DEHN.907421.edz herunterzuladen.

Artikel 907421 wurde zum Merkzettel hinzugefügt.

Artikel 907421 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 907422 DRL RE 24

Sie müssen angemeldet sein um 907425.stp herunterzuladen.

Sie müssen angemeldet sein um 907425.igs herunterzuladen.

Sie müssen angemeldet sein um 907425.jt herunterzuladen.

Sie müssen angemeldet sein um 907425.dwg herunterzuladen.

Sie müssen angemeldet sein um 907420m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.907422.wspak herunterzuladen.

Sie müssen angemeldet sein um DEHN.907422.edz herunterzuladen.

Artikel 907422 wurde zum Merkzettel hinzugefügt.

Artikel 907422 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 907423 DRL RE 48

Sie müssen angemeldet sein um 907425.stp herunterzuladen.

Sie müssen angemeldet sein um 907425.igs herunterzuladen.

Sie müssen angemeldet sein um 907425.jt herunterzuladen.

Sie müssen angemeldet sein um 907425.dwg herunterzuladen.

Sie müssen angemeldet sein um 907420m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.907423.wspak herunterzuladen.

Sie müssen angemeldet sein um DEHN.907423.edz herunterzuladen.

Artikel 907423 wurde zum Merkzettel hinzugefügt.

Artikel 907423 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 907424 DRL RE 60

Sie müssen angemeldet sein um 907425.stp herunterzuladen.

Sie müssen angemeldet sein um 907425.igs herunterzuladen.

Sie müssen angemeldet sein um 907425.jt herunterzuladen.

Sie müssen angemeldet sein um 907425.dwg herunterzuladen.

Sie müssen angemeldet sein um 907420m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.907424.wspak herunterzuladen.

Sie müssen angemeldet sein um DEHN.907424.edz herunterzuladen.

Artikel 907424 wurde zum Merkzettel hinzugefügt.

Artikel 907424 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 907425 DRL RE 180

Sie müssen angemeldet sein um 907425.stp herunterzuladen.

Sie müssen angemeldet sein um 907425.igs herunterzuladen.

Sie müssen angemeldet sein um 907425.jt herunterzuladen.

Sie müssen angemeldet sein um 907425.dwg herunterzuladen.

Sie müssen angemeldet sein um 907420m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.907425.wspak herunterzuladen.

Sie müssen angemeldet sein um DEHN.907425.edz herunterzuladen.

Artikel 907425 wurde zum Merkzettel hinzugefügt.

Artikel 907425 wurde zum Warenkorb hinzugefügt.

DRL RD

Art.-Nr. 907441 DRL RD 12

Sie müssen angemeldet sein um 907425.stp herunterzuladen.

Sie müssen angemeldet sein um 907425.igs herunterzuladen.

Sie müssen angemeldet sein um 907425.jt herunterzuladen.
