HVI power Conductor

High-voltage-resistant, insulated down conductor for maintaining the separation distance from electrically conductive parts according to IEC 62305-3.

For use up to an equivalent separation distance s ≤ 90 cm (in air) or s ≤ 180 cm (solid building material).

The following maximum cable lengths therefore apply for the down conductor, depending on the class of lightning protection system (LPS):
LPS I max. 11.25 m
LPS II max. 15.0 m
LPS III/IV max. 22.50 m

The HVI power long Conductor meets the requirements of DIN IEC/TS 62561-8 (VDE V 0185-561-8).
Processing temperature -5 to +40 °C and permanent temperature range (in case of fixed installation) of -30 to +70 °C to be observed.

HVI power Conductor (pre-assembled, installation inside the tube)

With one head piece and one connection element (enclosed loose). Minimum order length 6 m, conductor length has to be stated when ordering (in steps of 0.5 m).

1 Produkt

Art.-Nr. 819160 HVI P RIV 90 27 L6M SW

GTIN 4013364152298, Zolltarifnr. (EU): 85446010, Bruttogewicht: 5.47 kg, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

  • CAD-Daten
    • 819160.stp

      Sie müssen angemeldet sein um 819160.stp herunterzuladen.

      Login
    • 819160.igs

      Sie müssen angemeldet sein um 819160.igs herunterzuladen.

      Login
    • 819160.jt

      Sie müssen angemeldet sein um 819160.jt herunterzuladen.

      Login
    • 819160.dwg

      Sie müssen angemeldet sein um 819160.dwg herunterzuladen.

      Login
    • 819160m_D.dxf

      Sie müssen angemeldet sein um 819160m_D.dxf herunterzuladen.

      Login
HVI power Conductor (pre-assembled for installation in the supp. tube)
HVI power Conductor
High-voltage-resistant down conductor for keeping the separation distance
from conductive parts according to IEC 62305-3
Equivalent separation distance s =< 90 cm (in air)
or s =< 180 cm (for solid material).
HVI power Conductor with pre-assembled head piece and loose connection element.
Weather-proof and UV-stabilised
Material of conductor: Cu
Material of insulation: PE
Material of sheath: PE
Diameter Ø conductor: 27 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: HVI P RIV 90 27 L6M SW
Part No.: 819160
or equivalent.

Zertifikate



Technische Daten

Material of conductor Cu
Material of insulation PE
Material of sheath PE
Colour of conductor black ●
Diameter Ø conductor 27 mm
Minimum order length 6 m
Maximum order length 35 m
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Artikel 819160 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 819160 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

HVI power Conductor (pre-assembled, installation outside the tube) for HVI power supporting tube GRP / Al

HVI power Conductor pre-assembled for installation outside the tube with one head piece and one connection element (enclosed loose).
Connection kit for installing the HVI power Conductor on HVI power supporting tubes GRP / Al consists of threaded pins, a connection part, heat-shrinkable sleeve and fixing ring with slotted conductor holder (Ø27 mm) for the sealing end (including cable ties).
Minimum order length 6 m, conductor length has to be stated when ordering (in steps of 0.5 m).

1 Produkt

Art.-Nr. 819165 HVI P RAV 90 27 L6M SW

GTIN 4013364272224, Zolltarifnr. (EU): 85446010, Bruttogewicht: 6.28 kg, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

HVI power Conductor (pre-assembled for installation outside the supporting tube)
HVI power Conductor
High-voltage-resistant down conductor for keeping the separation distance from conductive parts according to IEC 62305-3
Equivalent separation distance s =< 90 cm (in air)
or s =< 180 cm (for solid material).
HVI power Conductor with pre-assembled head piece and loose connection element.
Weather-proof and UV-stabilised
Material of conductor: Cu
Material of insulation: PE
Material of sheath: PE
Diameter Ø conductor: 27 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: HVI P RAV 90 27 L6M SW
Part No.: 819165
or equivalent.

Zertifikate



Technische Daten

Material of conductor Cu
Material of insulation PE
Material of sheath PE
Colour of conductor black ●
Diameter Ø conductor 27 mm
Minimum order length 6 m
Maximum order length 35 m
Standard DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Artikel 819165 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 819165 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

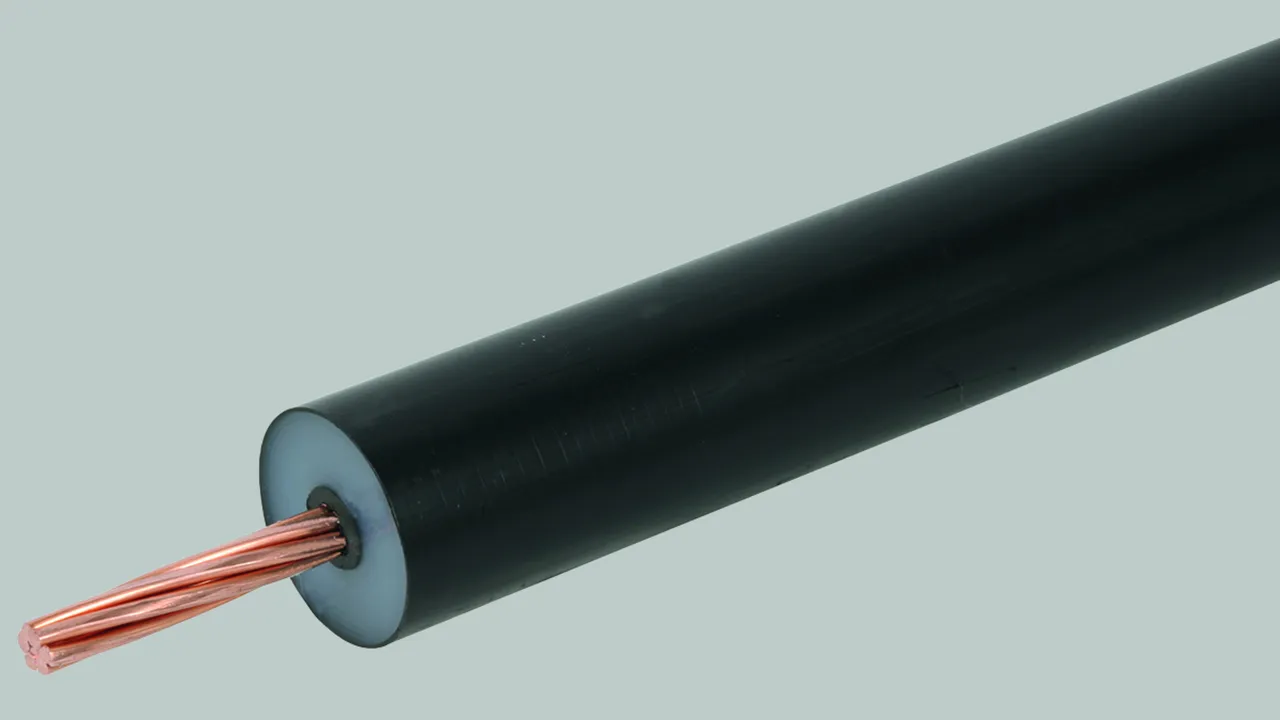

HVI power long Conductor (on a reel)
