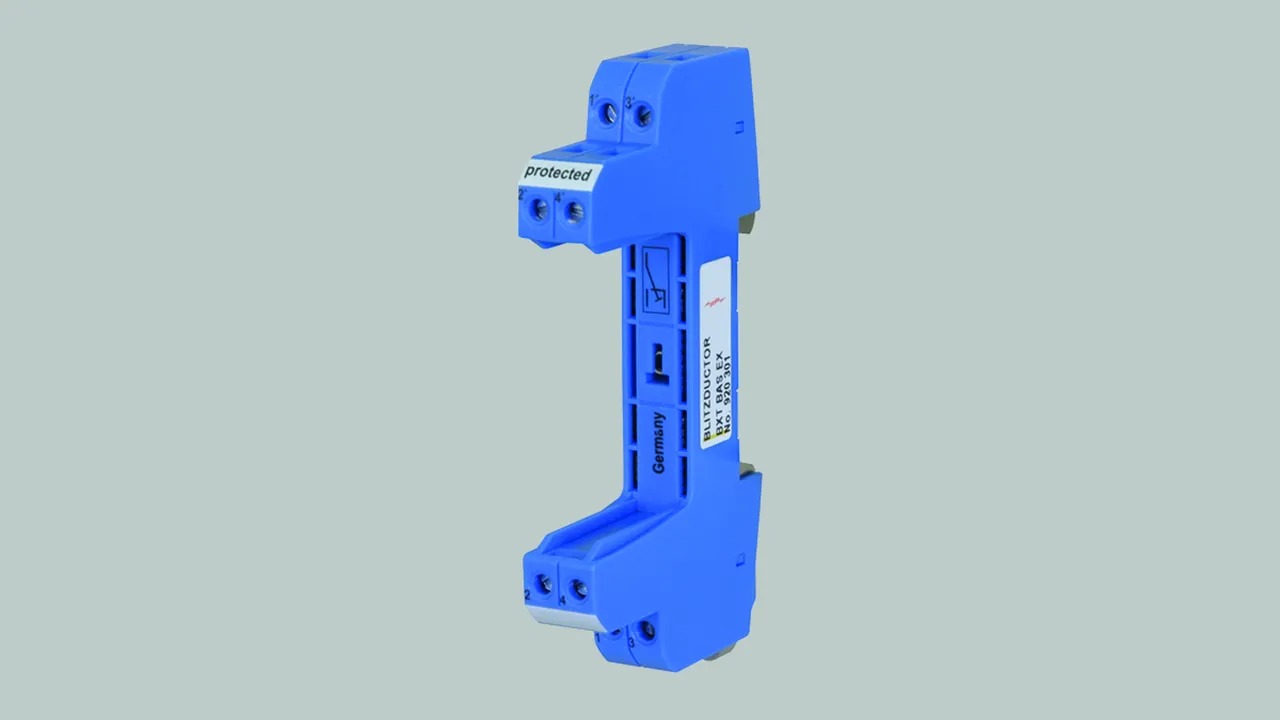

BLITZDUCTOR XT Ex (i) – Base Part
:quality(98)/dehn.at/store/f/50284649/HDVORSCHAU/920301_16-9.jpg)
:quality(98)/dehn.at/store/f/50284649/HDVORSCHAU/920301_16-9.jpg)
- Universal base part for protection modules of the BLITZDUCTOR XT Ex (i) series
- No signal disconnection if the protection module is removed
- Connection of up to four lines
BXT BAS EX
BLITZDUCTOR XT base part for use as an extremely space-saving and universal four-pole feed-through terminal for intrinsically safe circuits for the insertion of the protection module, no signal disconnection if the protection module is removed. The snap-in mechanism at the supporting foot of the base part allows the device to be safely earthed via the DIN rail. Since no components of the protective circuit are situated in the base part, only the protection modules need to be serviced.
1 Produkt
Art.-Nr. 920301 BXT BAS EX
GTIN 4013364109186, Zolltarifnr. (EU): 85369010, Bruttogewicht: 61.00 g, VPE: 1.00 pc(s)
Vorgänger:quality(98)/dehn.at/store/f/50284671/HDVORSCHAU/920301.jpg)
:quality(98)/dehn.at/store/f/50284671/HDVORSCHAU/920301.jpg)
:quality(98)/dehn.at/store/f/50284672/HDVORSCHAU/920300p.jpg)
:quality(98)/dehn.at/store/f/50284672/HDVORSCHAU/920300p.jpg)
:quality(98)/dehn.at/store/f/50284673/HDVORSCHAU/920300m_E.jpg)
:quality(98)/dehn.at/store/f/50284673/HDVORSCHAU/920300m_E.jpg)
Technische Daten
| For mounting on | 35 mm DINs rails acc. to EN 60715 |
| Cross-sectional area, solid | 0.08-4 mm2 |
| Cross-sectional area, flexible | 0.08-2.5 mm2 |
| Tightening torque (terminals) | 0.4 Nm |
| Earthing via | 35 mm DIN rails acc. to EN 60715 |
| Approvals | UL 497B, CSA, ATEX, IECEx, CCC, Inmetro *) |
| *) only in connection with an approved protection module | |
