Art.-Nr. 106115 DIDH 16 530 BP V2A GFK

GTIN 4013364100213, Zolltarifnr. (EU): 85389099, Bruttogewicht: 488.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNiso spacer with rod holder; length: 530 mm, StSt
DEHNiso spacer for fixing air-termination rods
e.g. on air-conditioning systems or structural components
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The spacers are dimensioned to
Eurocode1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
in conjunction with an air-termination rod 16/10 mm
(free length 2.0 m / clamping length 0.5 to 1.0 m)
including concrete base 17 kg.
Conductor support Rd: 16 mm
Material of conductor holder: StSt
Length: 530 mm
Insulating clearance: 445 mm
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 16 530 BP V2A GFK
Part No.: 106115
or equivalent.

Zertifikate

Technische Daten

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	530 mm
Insulating clearance (l2)	445 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Permanent temperature range	-50 °C ... +100 °C
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	530 mm
Insulating clearance (l2)	445 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Material of plate	StSt
Application note	for insulated fixing of conductors
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	two-screw clamp
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Type	UV-stabilised and weather-resistant
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Artikel 106115 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 106115 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 106120 DIDH 16 690 BP V2A GFK

GTIN 4013364092945, Zolltarifnr. (EU): 85389099, Bruttogewicht: 552.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

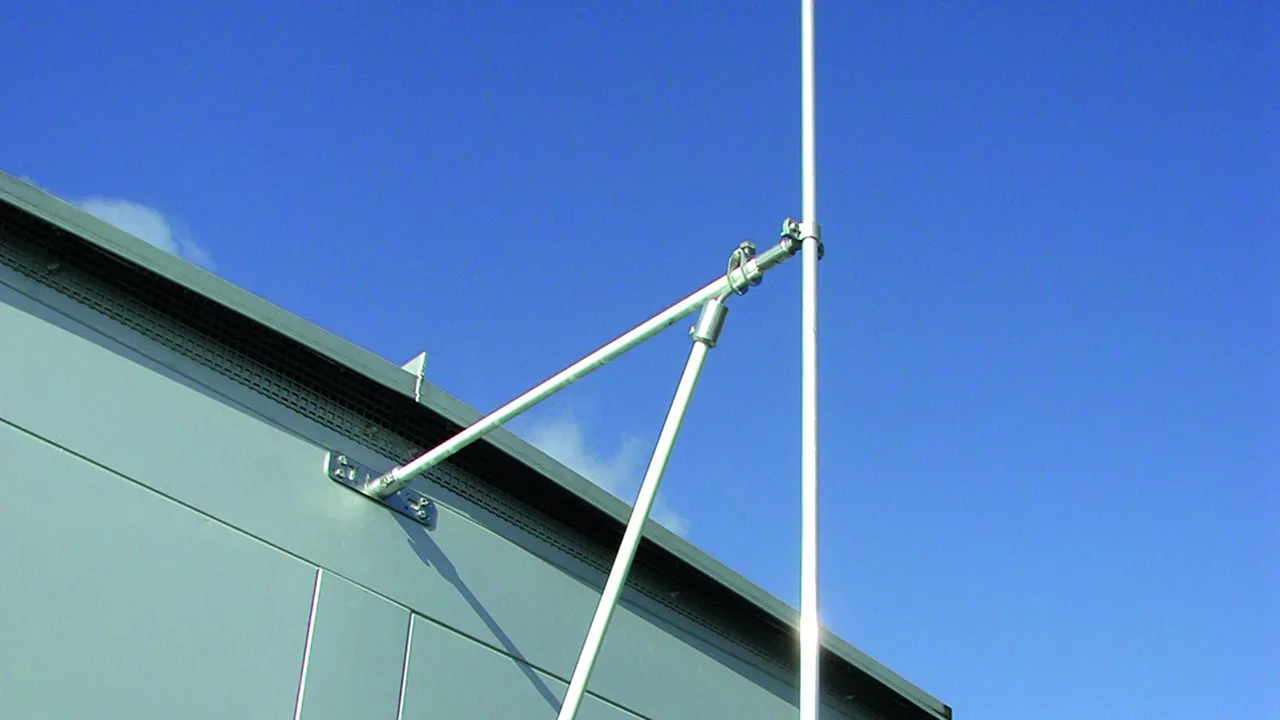

DEHNiso spacer with rod holder; length: 690 mm, StSt
DEHNiso spacer for fixing air-termination rods
e.g. on air-conditioning systems or structural components
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised
The spacers are dimensioned to
Eurocode1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
in conjunction with an air-termination rod 16/10 mm
(free length 2.0 m / clamping length 0.5 to 1.0 m)
including concrete base 17 kg.
Conductor support Rd: 16 mm
Material of conductor holder: StSt
Length: 690 mm
Insulating clearance: 605 mm
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 16 690 BP V2A GFK
Part No.: 106120
or equivalent.

Zertifikate

Technische Daten

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	690 mm
Insulating clearance (l2)	605 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Permanent temperature range	-50 °C ... +100 °C
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	690 mm
Insulating clearance (l2)	605 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Material of plate	StSt
Application note	for insulated fixing of conductors
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	two-screw clamp
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Type	UV-stabilised and weather-resistant
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Artikel 106120 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 106120 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 106123 DIDH 16 1030 BP V2A GFK

GTIN 4013364100220, Zolltarifnr. (EU): 85389099, Bruttogewicht: 686.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNiso spacer with rod holder; length: 1030 mm, StSt
DEHNiso spacer for fixing air-termination rods
e.g. on air-conditioning systems or structural components
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The spacers are dimensioned to
Eurocode1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
in conjunction with an air-termination rod 16/10 mm
(free length 2.0 m / clamping length 0.5 to 1.0 m)
including concrete base 17 kg.
Conductor support Rd: 16 mm
Material of conductor holder: StSt
Length: 1030 mm
Insulating clearance: 945 mm
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 16 1030 BP V2A GFK
Part No.: 106123
or equivalent.

Zertifikate

Technische Daten

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	1030 mm
Insulating clearance (l2)	945 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Permanent temperature range	-50 °C ... +100 °C
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	1030 mm
Insulating clearance (l2)	945 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Material of plate	StSt
Application note	for insulated fixing of conductors
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	two-screw clamp
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Type	UV-stabilised and weather-resistant
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Artikel 106123 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 106123 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 106090 DIDH 7.10 530 BP V2A GFK

GTIN 4013364100190, Zolltarifnr. (EU): 85389099, Bruttogewicht: 470.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNiso spacer with conductor holder; length: 530 mm, StSt
DEHNiso spacer for fixing conductors
e.g. on air-conditioning systems or structural components
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The spacers are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a
max. gust wind speed (holder distance: 1.0 m, Al, Ø8–10 mm)
of 240 km/h.
Conductor support Rd: 7-10 mm
Material of conductor holder: StSt
Length: 530 mm
Insulating clearance: 445 mm
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 7.10 530 BP V2A GFK
Part No.: 106090
or equivalent.

Zertifikate

Technische Daten

Conductor support Rd	7-10 mm
Material of conductor holder	StSt
Length (l1)	530 mm
Insulating clearance (l2)	445 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Permanent temperature range	-50 °C ... +100 °C
Max. gust wind speed (holder distance 1000 mm, Al Ø8 mm)	240 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	7-10 mm
Material of conductor holder	StSt
Length (l1)	530 mm
Insulating clearance (l2)	445 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Material of plate	StSt
Application note	for insulated fixing of conductors
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	two-screw clamp
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Type	UV-stabilised and weather-resistant
Max. gust wind speed (holder distance 1000 mm, Al Ø8 mm)	240 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Artikel 106090 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 106090 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 106100 DIDH 7.10 690 BP V2A GFK

GTIN 4013364092907, Zolltarifnr. (EU): 85389099, Bruttogewicht: 544.80 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNiso spacer with conductor holder; length: 690 mm, StSt
DEHNiso spacer for fixing conductors
e.g. on air-conditioning systems or structural components
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The spacers are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a
max. gust wind speed (holder distance: 1.0 m, Al, Ø8–10 mm)
of 198 km/h.
Conductor support Rd: 7-10 mm
Material of conductor holder: StSt
Length: 690 mm
Insulating clearance: 605 mm
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 7.10 690 BP V2A GFK
Part No.: 106100
or equivalent.

Zertifikate

Technische Daten

Conductor support Rd	7-10 mm
Material of conductor holder	StSt
Length (l1)	690 mm
Insulating clearance (l2)	605 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Permanent temperature range	-50 °C ... +100 °C
Max. gust wind speed (holder distance 1000 mm, Al Ø8 mm)	198 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	7-10 mm
Material of conductor holder	StSt
Length (l1)	690 mm
Insulating clearance (l2)	605 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Material of plate	StSt
Application note	for insulated fixing of conductors
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	two-screw clamp
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Type	UV-stabilised and weather resistant
Max. gust wind speed (holder distance 1000 mm, Al Ø8 mm)	198 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Artikel 106100 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 106100 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 106105 DIDH 7.10 1030 BP V2A GFK

GTIN 4013364100206, Zolltarifnr. (EU): 85389099, Bruttogewicht: 658.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNiso spacer with conductor holder; length: 1030 mm, StSt
DEHNiso spacer for ring conductors
installed in a installed in a concrete base (8.5 kg)
with fixing wedge (part no. 102 075)
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The spacers are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a
max. gust wind speed (holder distance: 1.0 m, Al, Ø8–10 mm)
of 140 km/h.
Conductor support Rd: 7-10 mm
Material of conductor holder: StSt
Length: 1030 mm
Insulating clearance: 945 mm
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 7.10 1030 BP V2A GFK
Part No.: 106105
or equivalent.

Zertifikate

Technische Daten

Conductor support Rd	7-10 mm
Material of conductor holder	StSt
Length (l1)	1030 mm
Insulating clearance (l2)	945 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Permanent temperature range	-50 °C ... +100 °C
Max. gust wind speed (holder distance 1000 mm, Al Ø8 mm)	140 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	7-10 mm
Material of conductor holder	StSt
Length (l1)	1030 mm
Insulating clearance (l2)	945 mm
Fixing	[8x] Ø5.1 / [4x] 7 x 10 / [2x] 11 x 20 mm
Material of plate	StSt
Application note	for insulated fixing of conductors
Diameter Ø of spacer	16 mm mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	two-screw clamp
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Type	UV-stabilised and weather-resistant
Max. gust wind speed (holder distance 1000 mm, Al Ø8 mm)	140 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Artikel 106105 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 106105 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 106225 DIDH 16 530 RS40.60 V2A

GTIN 4013364100299, Zolltarifnr. (EU): 85389099, Bruttogewicht: 684.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNiso spacer with rod holder; length: 530 mm, StSt
DEHNiso spacer for fixing air-termination rods
e.g. on pipes or masts
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The spacers are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
in conjunction with an air-termination rod 16/10 mm
(free length 2.0 m / clamping length 0.5 to 1.0 m).
Conductor support Rd: 16 mm
Material of conductor holder: StSt
Length: 530 mm
Insulating clearance: 445 mm
Clamping range of pipe: 40-60 mm (1 1/4-2")
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 16 530 RS40.60 V2A
Part No.: 106225
or equivalent.

Zertifikate

Technische Daten

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	530 mm
Insulating clearance (l2)	445 mm
Clamping range of pipe	40-60 mm (1 ¹/₄-2")
Permanent temperature range	-50 °C ... +100 °C
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	530 mm
Insulating clearance (l2)	445 mm
Clamping range of pipe	40-60 mm (1 ¹/₄-2")
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	two-screw clamp
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Material of fixing element	StSt
Type	UV-stabilised and weather-resistant
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Artikel 106225 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 106225 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 106226 DIDH 16 690 RS40.60 V2A

GTIN 4013364098930, Zolltarifnr. (EU): 85389099, Bruttogewicht: 722.20 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNiso spacer with rod holder; length: 690 mm, StSt
DEHNiso spacer for fixing air-termination rods
e.g. on pipes or masts
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The spacers are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
in conjunction with an air-termination rod 16/10 mm
(free length 2.0 m / clamping length 0.5 to 1.0 m).
Conductor support Rd: 16 mm
Material of conductor holder: StSt
Length: 690 mm
Insulating clearance: 605 mm
Clamping range of pipe: 40-60 mm (1 1/4-2")
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 16 690 RS40.60 V2A
Part No.: 106226
or equivalent.

Zertifikate

Technische Daten

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	690 mm
Insulating clearance (l2)	605 mm
Clamping range of pipe	40-60 mm (1 ¹/₄-2")
Permanent temperature range	-50 °C ... +100 °C
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	690 mm
Insulating clearance (l2)	605 mm
Clamping range of pipe	40-60 mm (1 ¹/₄-2")
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	two-screw clamp
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Material of fixing element	StSt
Type	UV-stabilised and weather-resistant
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Artikel 106226 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 106226 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 106228 DIDH 16 1030 RS40.60 V2A

GTIN 4013364100305, Zolltarifnr. (EU): 85389099, Bruttogewicht: 877.60 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNiso spacer with rod holder; length: 1030 mm, StSt
DEHNiso spacer for fixing air-termination rods
e.g. on pipes or masts
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The spacers are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
in conjunction with an air-termination rod 16/10 mm
(free length 2.0 m / clamping length 0.5 to 1.0 m).
Conductor support Rd: 16 mm
Material of conductor holder: StSt
Length: 1030 mm
Insulating clearance: 945 mm
Clamping range of pipe: 40-60 mm (1 1/4-2")
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 16 1030 RS40.60 V2A
Part No.: 106228
or equivalent.

Zertifikate

Technische Daten

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	1030 mm
Insulating clearance (l2)	945 mm
Clamping range of pipe	40-60 mm (1 ¹/₄-2")
Permanent temperature range	-50 °C ... +100 °C
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	1030 mm
Insulating clearance (l2)	945 mm
Clamping range of pipe	40-60 mm (1 ¹/₄-2")
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	two-screw clamp
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Material of fixing element	StSt
Type	UV-stabilised and weather-resistant
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Artikel 106228 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 106228 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 106245 DIDH 16 530 SB50.300 V2A

GTIN 4013364100336, Zolltarifnr. (EU): 85389099, Bruttogewicht: 561.40 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNiso spacer with rod holder; length: 530 mm, StSt
DEHNiso spacer for fixing air-termination rods
e.g. on pipes or masts
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The spacers are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
in conjunction with an air-termination rod 16/10 mm
(free length 2.0 m / clamping length 0.5 to 1.0 m).
Conductor support Rd: 16 mm
Material of conductor holder: StSt
Length: 530 mm
Insulating clearance: 445 mm
Clamping range of pipe: 50-300 mm
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 16 530 SB50.300 V2A
Part No.: 106245
or equivalent.

Zertifikate

Technische Daten

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	530 mm
Insulating clearance (l2)	445 mm
Clamping range of pipe	50-300 mm
Permanent temperature range	-50 °C ... +100 °C
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	530 mm
Insulating clearance (l2)	445 mm
Clamping range of pipe	50-300 mm
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	2-screw cleat
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Material of fixing element	StSt
Type	UV stabilised and weather resistant
Dimension of strap (w x d)	25 x 0.3 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Artikel 106245 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 106245 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 106246 DIDH 16 690 SB50.300 V2A

GTIN 4013364098954, Zolltarifnr. (EU): 85389099, Bruttogewicht: 608.10 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNiso spacer with rod holder; length: 690 mm, StSt
DEHNiso spacer for fixing air-termination rods
e.g. on pipes or masts
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The spacers are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
in conjunction with an air-termination rod 16/10 mm
(free length 2.0 m / clamping length 0.5 to 1.0 m).
Conductor support Rd: 16 mm
Material of conductor holder: StSt
Length: 690 mm
Insulating clearance: 605 mm
Clamping range of pipe: 50-300 mm
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 16 690 SB50.300 V2A
Part No.: 106246
or equivalent.

Zertifikate

Technische Daten

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	690 mm
Insulating clearance (l2)	605 mm
Clamping range of pipe	50-300 mm
Permanent temperature range	-50 °C ... +100 °C
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	690 mm
Insulating clearance (l2)	605 mm
Clamping range of pipe	50-300 mm
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	2-screw cleat
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Material of fixing element	StSt
Type	UV stabilised and weather resistant
Dimension of strap (w x d)	25 x 0.3 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Artikel 106246 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 106246 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 106248 DIDH 16 1030 SB50.300 V2A

GTIN 4013364100343, Zolltarifnr. (EU): 85389099, Bruttogewicht: 762.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNiso spacer; length with rod holder: 1030 mm, StSt
DEHNiso spacer for fixing air-termination rods
e.g. on pipes or masts
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The spacers are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)
in conjunction with an air-termination rod 16/10 mm
(free length 2.0 m / clamping length 0.5 to 1.0 m).
Conductor support Rd: 16 mm
Material of conductor holder: StSt
Length: 1030 mm
Insulating clearance: 945 mm
Clamping range of pipe: 50-300 mm
Permanent temperature range: -50 °C ... +100 °C
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 16 1030 SB50.300 V2A
Part No.: 106248
or equivalent.

Zertifikate

Technische Daten

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	1030 mm
Insulating clearance (l2)	945 mm
Clamping range of pipe	50-300 mm
Permanent temperature range	-50 °C ... +100 °C
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	16 mm
Material of conductor holder	StSt
Length (l1)	1030 mm
Insulating clearance (l2)	945 mm
Clamping range of pipe	50-300 mm
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	2-screw cleat
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	ZDC
Material of fixing element	StSt
Type	UV stabilised and weather resistant
Dimension of strap (w x d)	25 x 0.3 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Artikel 106248 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 106248 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 106160 DIDH 8 675 KT V2A GFK

GTIN 4013364092938, Zolltarifnr. (EU): 85389099, Bruttogewicht: 286.50 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNiso spacer with DEHNgrip conductor holder; length: 675 mm, StSt
DEHNiso spacer for ring conductors
installed in a concrete base with fixing wedge for maintaining the
separation distance to electrically conductive parts as per DIN
EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The DEHNiso spacers are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a
max. gust wind speed of 176 km/h.
Conductor support Rd: 8 mm
Material of conductor holder: StSt
Length: 675 mm
Insulating clearance: 590 mm
Permanent temperature range: -50 °C ... +100 °C
Max. gust wind speed (base 8.5 kg, holder distance 1000 mm, Al Ø8 mm): 104 km/h
Max. gust wind speed (base 17 kg, holder distance 1000 mm, Al Ø8 mm): 176 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 8 675 KT V2A GFK
Part No.: 106160
or equivalent.

Zertifikate

Technische Daten

Conductor support Rd	8 mm
Material of conductor holder	StSt
Length (l1)	675 mm
Insulating clearance (l2)	590 mm
Permanent temperature range	-50 °C ... +100 °C
Max. gust wind speed (base 8.5 kg, holder distance 1000 mm, Al Ø8 mm)	104 km/h
Max. gust wind speed (base 17 kg, holder distance 1000 mm, Al Ø8 mm)	176 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	8 mm
Material of conductor holder	StSt
Length (l1)	675 mm
Insulating clearance (l2)	590 mm
Application note	for elevated leading of the air termination conductor for increasing the separation distance, fixing in a concrete base for wedge mounting
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	loose
Rod / conductor holder	DEHNgrip
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	Al
Type	UV stabilised and weather resistant
Max. gust wind speed (base 8.5 kg, holder distance 1000 mm, Al Ø8 mm)	104 km/h
Max. gust wind speed (base 17 kg, holder distance 1000 mm, Al Ø8 mm)	176 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Artikel 106160 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 106160 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 106150 DIDH 6.10 675 MMV KT V2A GFK

GTIN 4013364092914, Zolltarifnr. (EU): 85389099, Bruttogewicht: 340.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

DEHNiso spacer with MMV clamp, 675 mm long, StSt
DEHNiso spacer with MMV clamp, fixed conductor routing
e.g. for cross points for ring conductors
installed in a concrete base with fixing wedge for maintaining
the separation distance to electrically conductive parts as per
DIN EN 62305-3 (VDE 0185-305-3)
Spacer bar (insulating clearance) made of glass-fibre reinforced
plastic (GRP) Ø16 mm,
material factor km = 0.7
Light grey colour, UV-stabilised.
The DEHNiso spacers are dimensioned to
Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a
max. gust wind speed of 176 km/h.
Conductor support Rd: 6-10 mm
Material of conductor holder: StSt
Length: 675 mm
Insulating clearance: 590 mm
Permanent temperature range: -50 °C ... +100 °C
Max. gust wind speed (base 8.5 kg, holder distance 1000 mm, Al Ø8 mm): 104 km/h
Max. gust wind speed (base 17 kg, holder distance 1000 mm, Al Ø8 mm): 176 km/h
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: DIDH 6.10 675 MMV KT V2A GFK
Part No.: 106150
or equivalent.

Zertifikate

Technische Daten

Conductor support Rd	6-10 mm
Material of conductor holder	StSt
Length (l1)	675 mm
Insulating clearance (l2)	590 mm
Permanent temperature range	-50 °C ... +100 °C
Max. gust wind speed (base 8.5 kg, holder distance 1000 mm, Al Ø8 mm)	104 km/h
Max. gust wind speed (base 17 kg, holder distance 1000 mm, Al Ø8 mm)	176 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Conductor support Rd	6-10 mm
Material of conductor holder	StSt
Length (l1)	675 mm
Insulating clearance (l2)	590 mm
Application note	for elevated leading of the air termination conductor for increasing the separation distance, fixing in a wedged concrete base
Diameter Ø of spacer	16 mm
Colour of spacer	light grey (RAL 7035) ●
Conductor routing	fixed
Rod / conductor holder	MMV clamp
Material of spacer	GRP
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Material of fixing bush	Al
Type	UV stabilised and weater resistant
Max. gust wind speed (base 8.5 kg, holder distance 1000 mm, Al Ø8 mm)	104 km/h
Max. gust wind speed (base 17 kg, holder distance 1000 mm, Al Ø8 mm)	176 km/h
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Artikel 106150 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 106150 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNiso Spacers

Details

With rod holder and fixing plate

Art.-Nr. 106115 DIDH 16 530 BP V2A GFK

Sie müssen angemeldet sein um 106115.stp herunterzuladen.

Sie müssen angemeldet sein um 106115.igs herunterzuladen.

Sie müssen angemeldet sein um 106115.jt herunterzuladen.

Sie müssen angemeldet sein um 106115.dwg herunterzuladen.

Sie müssen angemeldet sein um 106115m_D.dxf herunterzuladen.

Artikel 106115 wurde zum Merkzettel hinzugefügt.

Artikel 106115 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 106120 DIDH 16 690 BP V2A GFK

Sie müssen angemeldet sein um 106120.stp herunterzuladen.

Sie müssen angemeldet sein um 106120.igs herunterzuladen.

Sie müssen angemeldet sein um 106120.jt herunterzuladen.

Sie müssen angemeldet sein um 106120.dwg herunterzuladen.

Sie müssen angemeldet sein um 106115m_D.dxf herunterzuladen.

Artikel 106120 wurde zum Merkzettel hinzugefügt.

Artikel 106120 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 106123 DIDH 16 1030 BP V2A GFK

Sie müssen angemeldet sein um 106123.stp herunterzuladen.

Sie müssen angemeldet sein um 106123.igs herunterzuladen.

Sie müssen angemeldet sein um 106123.jt herunterzuladen.

Sie müssen angemeldet sein um 106123.dwg herunterzuladen.

Sie müssen angemeldet sein um 106115m_D.dxf herunterzuladen.

Artikel 106123 wurde zum Merkzettel hinzugefügt.

Artikel 106123 wurde zum Warenkorb hinzugefügt.

With conductor holder and fixing plate

Art.-Nr. 106090 DIDH 7.10 530 BP V2A GFK

Sie müssen angemeldet sein um 106090.stp herunterzuladen.

Sie müssen angemeldet sein um 106090.igs herunterzuladen.

Sie müssen angemeldet sein um 106090.jt herunterzuladen.

Sie müssen angemeldet sein um 106090.dwg herunterzuladen.

Sie müssen angemeldet sein um 106090m_D.dxf herunterzuladen.

Artikel 106090 wurde zum Merkzettel hinzugefügt.

Artikel 106090 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 106100 DIDH 7.10 690 BP V2A GFK

Sie müssen angemeldet sein um 106100.stp herunterzuladen.

Sie müssen angemeldet sein um 106100.igs herunterzuladen.

Sie müssen angemeldet sein um 106100.jt herunterzuladen.

Sie müssen angemeldet sein um 106100.dwg herunterzuladen.

Sie müssen angemeldet sein um 106090m_D.dxf herunterzuladen.

Artikel 106100 wurde zum Merkzettel hinzugefügt.

Artikel 106100 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 106105 DIDH 7.10 1030 BP V2A GFK

Sie müssen angemeldet sein um 106105.stp herunterzuladen.

Sie müssen angemeldet sein um 106105.igs herunterzuladen.

Sie müssen angemeldet sein um 106105.jt herunterzuladen.

Sie müssen angemeldet sein um 106105.dwg herunterzuladen.

Sie müssen angemeldet sein um 106090m_D.dxf herunterzuladen.

Artikel 106105 wurde zum Merkzettel hinzugefügt.

Artikel 106105 wurde zum Warenkorb hinzugefügt.

With rod holder and pipe clamp

Art.-Nr. 106225 DIDH 16 530 RS40.60 V2A

Sie müssen angemeldet sein um 106225.stp herunterzuladen.

Sie müssen angemeldet sein um 106225.igs herunterzuladen.

Sie müssen angemeldet sein um 106225.jt herunterzuladen.

Sie müssen angemeldet sein um 106225.dwg herunterzuladen.

Sie müssen angemeldet sein um 106225m_D.dxf herunterzuladen.

Artikel 106225 wurde zum Merkzettel hinzugefügt.

Artikel 106225 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 106226 DIDH 16 690 RS40.60 V2A

Sie müssen angemeldet sein um 106226.stp herunterzuladen.

Sie müssen angemeldet sein um 106226.igs herunterzuladen.

Sie müssen angemeldet sein um 106226.jt herunterzuladen.

Sie müssen angemeldet sein um 106226.dwg herunterzuladen.

Sie müssen angemeldet sein um 106225m_D.dxf herunterzuladen.

Artikel 106226 wurde zum Merkzettel hinzugefügt.

Artikel 106226 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 106228 DIDH 16 1030 RS40.60 V2A

Sie müssen angemeldet sein um 106228.stp herunterzuladen.

Sie müssen angemeldet sein um 106228.igs herunterzuladen.

Sie müssen angemeldet sein um 106228.jt herunterzuladen.

Sie müssen angemeldet sein um 106228.dwg herunterzuladen.

Sie müssen angemeldet sein um 106225m_D.dxf herunterzuladen.

Artikel 106228 wurde zum Merkzettel hinzugefügt.

Artikel 106228 wurde zum Warenkorb hinzugefügt.

With rod holder and pipe clamp

Art.-Nr. 106245 DIDH 16 530 SB50.300 V2A

Sie müssen angemeldet sein um 106245.stp herunterzuladen.
