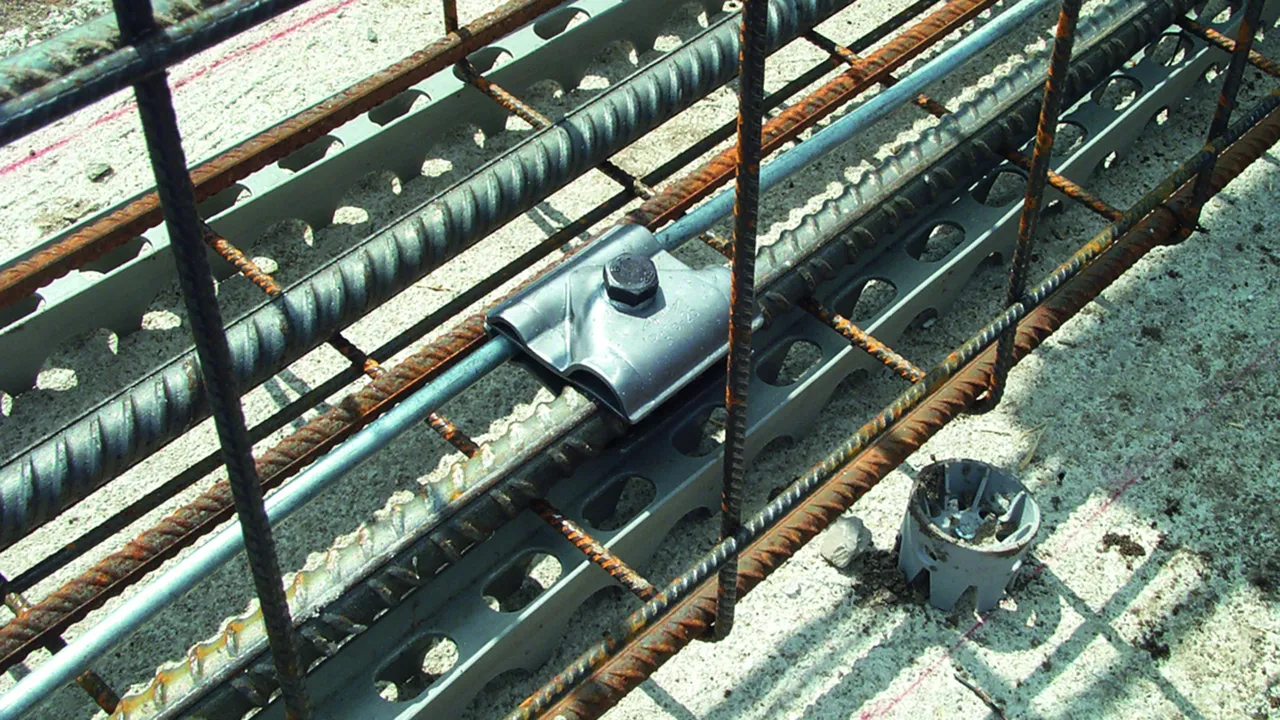

MAXI MV Clamps
:quality(98)/dehn.at/store/f/50291670/HDVORSCHAU/308041a1_16-9.jpg)
:quality(98)/dehn.at/store/f/50291670/HDVORSCHAU/308041a1_16-9.jpg)
Art.-Nr. 308041 MAMVK 8.16 15.25 STTZN
GTIN 4013364056411, Zolltarifnr. (EU): 85359000, Bruttogewicht: 483.40 g, VPE: 20.00 pc(s)
:quality(98)/dehn.at/store/f/50291683/HDVORSCHAU/308041.jpg)
:quality(98)/dehn.at/store/f/50291683/HDVORSCHAU/308041.jpg)
:quality(98)/dehn.at/store/f/50291684/HDVORSCHAU/308040m_D.jpg)
:quality(98)/dehn.at/store/f/50291684/HDVORSCHAU/308040m_D.jpg)
Technische Daten
| Material of clamp | St/tZn |
| Clamping range Rd | 8-16 / 15-25 mm |
| Material thickness | 3.0 / 2.0 mm |
| Standard | EN 62561-1 |
| Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 6.2 kA |
| *) For exact assignment see test certificate. | |
Art.-Nr. 308040 MAMVK 8.16 15.25 STBL
GTIN 4013364055902, Zolltarifnr. (EU): 85359000, Bruttogewicht: 462.30 g, VPE: 20.00 pc(s)
:quality(98)/dehn.at/store/f/50291695/HDVORSCHAU/308040.jpg)
:quality(98)/dehn.at/store/f/50291695/HDVORSCHAU/308040.jpg)
:quality(98)/dehn.at/store/f/50291696/HDVORSCHAU/308040m_D.jpg)
:quality(98)/dehn.at/store/f/50291696/HDVORSCHAU/308040m_D.jpg)
Technische Daten
| Material of clamp | St/bare |
| Clamping range Rd | 8-16 / 15-25 mm |
| Material thickness | 3.0 / 2.0 mm |
| Standard | EN 62561-1 |
| Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 10.2 kA |
| Approvals | UL 467 |
| *) For exact assignment see test certificate. | |
With defined tightening torque
Same design as Part No. 308 041, but with StSt (V2A) tear-off screw, with tear-off torque 35 +/-3 Nm, instead of standard hexagon head screw
- Reliable mounting quality due to constant torque and defined clamping force
- Easy mounting without torque spanner
- Enormously time saving compared to exothermic welding
- No welding smoke hazard for the installer
- No environmental risk
1 Produkt
Art.-Nr. 308044 MAMVK 8.16 15.25 STTZN ARS35NM PAR 20P
GTIN 4013364522992, Zolltarifnr. (EU): 85359000, Bruttogewicht: 479.50 g, VPE: 20.00 pc(s)
:quality(98)/dehn.at/store/f/50291707/HDVORSCHAU/308044.jpg)
:quality(98)/dehn.at/store/f/50291707/HDVORSCHAU/308044.jpg)
:quality(98)/dehn.at/store/f/50291708/HDVORSCHAU/S05635m_D.jpg)
:quality(98)/dehn.at/store/f/50291708/HDVORSCHAU/S05635m_D.jpg)
Technische Daten
| Material of clamp | St/tZn |
| Clamping range Rd | 8-16 / 15-25 mm |
| Material thickness | 3.0 / 2.0 mm |
| Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 6.2 kA |
