Conductor Holders DEHNfix
:quality(98)/dehn.at/store/f/50289132/HDVORSCHAU/250000a1_16-9.jpg)
:quality(98)/dehn.at/store/f/50289132/HDVORSCHAU/250000a1_16-9.jpg)

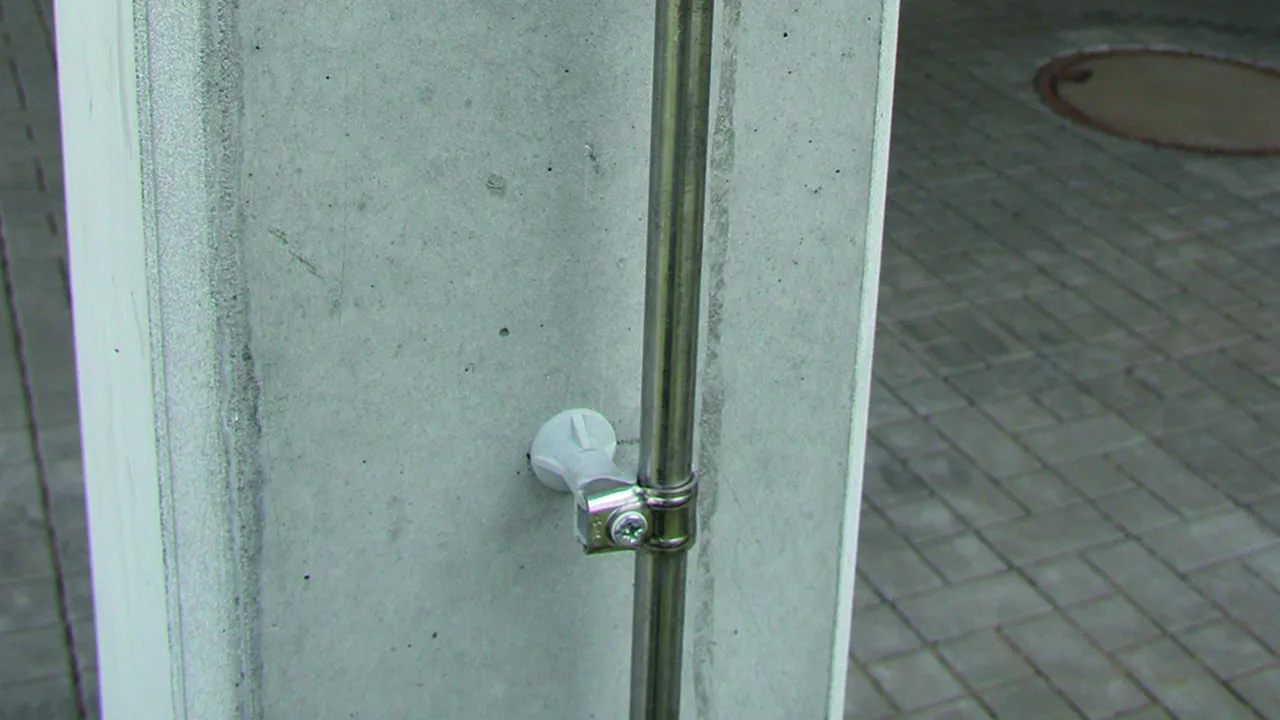

Height 30 mm, drilling depth 45 mm, hole Ø8 mm.
Easy mounting:
– Pre-drill the holes
– Push in the holder with inserted conductor
– Fix with a few hammer blows
Advantages:
– Clamp, spacer and dowel form a single unit
– Pre-assembled, ready for mounting
Art.-Nr. 250000 LH DFI DQ 6.10 STTZN H30 GR
GTIN 4013364023871, Zolltarifnr. (EU): 85389099, Bruttogewicht: 31.60 g, VPE: 50.00 pc(s)
VorgängerAbbildungen
:quality(98)/dehn.at/store/f/50289144/HDVORSCHAU/250000.jpg)
:quality(98)/dehn.at/store/f/50289144/HDVORSCHAU/250000.jpg)
:quality(98)/dehn.at/store/f/50289145/HDVORSCHAU/250000m_D.jpg)
:quality(98)/dehn.at/store/f/50289145/HDVORSCHAU/250000m_D.jpg)
Technische Daten
| Material of clamp | St/tZn |
| Material of base part | plastic |
| Conductor support Rd | 6-10 mm |
| Colour of conductor holder | grey ● |
| Nail plug | Ø8 x 80 mm |
| Drilling depth | 45 mm |
Art.-Nr. 250001 LH DFI DQ 6.10 V2A H30 GR
GTIN 4013364023888, Zolltarifnr. (EU): 85389099, Bruttogewicht: 30.60 g, VPE: 50.00 pc(s)
VorgängerAbbildungen
:quality(98)/dehn.at/store/f/50289154/HDVORSCHAU/250001.jpg)
:quality(98)/dehn.at/store/f/50289154/HDVORSCHAU/250001.jpg)
:quality(98)/dehn.at/store/f/50289155/HDVORSCHAU/250000m_D.jpg)
:quality(98)/dehn.at/store/f/50289155/HDVORSCHAU/250000m_D.jpg)
Technische Daten
| Material of clamp | StSt |
| Material of base part | plastic |
| Conductor support Rd | 6-10 mm |
| Colour of conductor holder | grey ● |
| Nail plug | Ø8 x 80 mm |
| Drilling depth | 45 mm |
Art.-Nr. 250007 LH DFI DQ 6.10 CU H30 BR
GTIN 4013364023895, Zolltarifnr. (EU): 85389099, Bruttogewicht: 31.30 g, VPE: 50.00 pc(s)
VorgängerAbbildungen
:quality(98)/dehn.at/store/f/50289164/HDVORSCHAU/250007.jpg)
:quality(98)/dehn.at/store/f/50289164/HDVORSCHAU/250007.jpg)
:quality(98)/dehn.at/store/f/50289165/HDVORSCHAU/250000m_D.jpg)
:quality(98)/dehn.at/store/f/50289165/HDVORSCHAU/250000m_D.jpg)
Technische Daten
| Material of clamp | Cu |
| Material of base part | plastic |
| Conductor support Rd | 6-10 mm |
| Colour of conductor holder | brown ● |
| Nail plug | Ø8 x 80 mm |
| Drilling depth | 45 mm |
