Art.-Nr. 900070 DCB YPV 1200

GTIN 6942299504521, Zolltarifnr. (EU): 85354000, Bruttogewicht: 639.16 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

DEHNcombo YPV 1200 combined arrester
Multipole type 1 + type 2 combined arrester
for PV generator circuits up to 1200 V d.c.
with three-step d.c. switching device, width: 4 modules
Type 1 + type 2 arrester according to EN 50539-11
For use according to IEC 60364-7-712
Combined disconnection and short-circuiting device
Fault indication
Maximum PV voltage: <= 1200 V d.c.
Total discharge current: 12.5 kA
Voltage protection level: <= 3.8 kV
Short-circuit current rating Iscpv: 10 kA

Brand: DEHN
Type: DCB YPV 1200
Part No.: 900070
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1200 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 3.8 kV
Approvals	KEMA, UL

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1200 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	≤ 1200 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 3.8 kV
Voltage protection level [DC+ -> DC-] (U_P )	< 3.8 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	4 module(s), DIN 43880
Approvals	KEMA, UL
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 5.83 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part. No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR

Artikel 900070 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900070 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 900071 DCB YPV 1500

GTIN 6942299504545, Zolltarifnr. (EU): 85354000, Bruttogewicht: 636.22 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

DEHNcombo YPV 1500 combined arrester
Multipole type 1 + type 2 combined arrester
for PV generator circuits up to 1500 V d.c.
with three-step d.c. switching device, width: 4 modules
Type 1 + type 2 arrester according to EN 50539-11
For use according to IEC 60364-7-712
Combined disconnection and short-circuiting device
Fault indication
Maximum PV voltage: <= 1500 V d.c.
Total discharge current: 12.5 kA
Voltage protection level: <= 4.5 kV
Short-circuit current rating Iscpv: 10 kA
Fault indication

Brand: DEHN
Type: DCB YPV 1500
Part No.: 900071
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1500 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 4.5 kV
Approvals	KEMA, UL

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1500 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	≤ 1500 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 4.5 kV
Voltage protection level [DC+ -> DC-] (U_P )	< 4.5 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	4 module(s), DIN 43880
Approvals	KEMA, UL
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 5.83 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part. No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR

Artikel 900071 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900071 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 900075 DCB YPV 1200 FM

GTIN 6942299504538, Zolltarifnr. (EU): 85354000, Bruttogewicht: 587.94 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

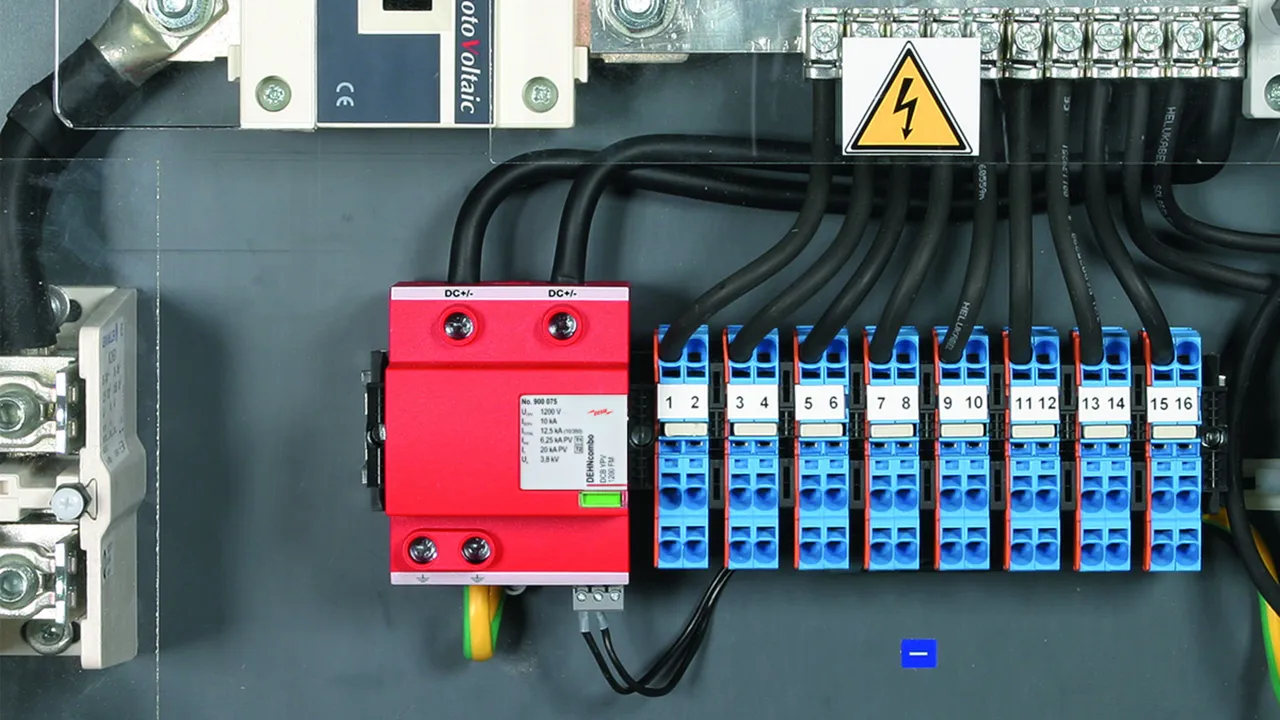

DEHNcombo YPV 1200 FM combined arrester
Multipole type 1 + type 2 combined arrester
for PV generator circuits up to 1200 V d.c.
with three-step d.c. switching device, width: 4 modules
Type 1 + type 2 arrester according to EN 50539-11
For use according to IEC 60364-7-712
Combined disconnection and short-circuiting device
With remote signalling contact
Fault indication
Maximum PV voltage: <= 1200 V d.c.
Total discharge current: 12.5 kA
Voltage protection level: <= 3.8 kV
Short-circuit current rating Iscpv: 10 kA
Fault indication

Brand: DEHN
Type: DCB YPV 1200 FM
Part No.: 900075
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1200 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 3.8 kV
Approvals	KEMA, UL
Type of remote signalling contact	Changeover contact

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1200 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	≤ 1200 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 3.8 kV
Voltage protection level [DC+ -> DC-] (U_P )	< 3.8 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	4 module(s), DIN 43880
Approvals	KEMA, UL
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 5.83 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR

Artikel 900075 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900075 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 900076 DCB YPV 1500 FM

GTIN 6942299504552, Zolltarifnr. (EU): 85354000, Bruttogewicht: 638.51 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

DEHNcombo YPV 1500 FM combined arrester
Multipole type 1 + type 2 combined arrester
for PV generator circuits up to 1500 V d.c.
with three-step d.c. switching device, width: 4 modules
Type 1 + type 2 arrester according to EN 50539-11
For use according to IEC 60364-7-712
Combined disconnection and short-circuiting device
With remote signalling contact
Fault indication
Maximum PV voltage: <= 1500 V d.c.
Total discharge current: 12.5 kA
Voltage protection level: <= 4.5 kV
Short-circuit current rating Iscpv: 10 kA
Fault indication

Brand: DEHN
Type: DCB YPV 1500 FM
Part No.: 900076
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1500 V
Short-circuit current rating (I_SCPV )	10 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 4.5 kV
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1500 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	≤ 1500 V
Short-circuit current rating (I_SCPV )	10 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 4.5 kV
Voltage protection level [DC+ -> DC-] (U_P )	< 4.5 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	4 module(s), DIN 43880
Approvals	KEMA, UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 5.83 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR

Artikel 900076 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900076 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 971020 DCB MOD 600

GTIN 4013364532861, Bruttogewicht: 0.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

DEHNcombo YPV 1200 combined arrester
Multipole type 1 + type 2 combined arrester
for PV generator circuits up to 1200 V d.c.
with three-step d.c. switching device, width: 4 modules
Type 1 + type 2 arrester according to EN 50539-11
For use according to IEC 60364-7-712
Combined disconnection and short-circuiting device
Fault indication
Maximum PV voltage: <= 1200 V d.c.
Total discharge current: 12.5 kA
Voltage protection level: <= 3.8 kV
Short-circuit current rating Iscpv: 10 kA

Brand: DEHN
Type: DCB MOD 600
Part No.: 971020
or equivalent.

Technische Daten

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1200 V
Short-circuit current rating (I_SCPV )	20 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 3.8 kV
Approvals	DEKRA, UL

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1200 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	≤ 1200 V
Short-circuit current rating (I_SCPV )	20 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 3.8 kV
Voltage protection level [DC+ -> DC-] (U_P )	< 3.8 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	3 module(s), DIN 43880
Approvals	DEKRA, UL
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 5.83 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part. No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR

Artikel 971020 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 971020 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 971021 DCB MOD 750

GTIN 4013364532878, Bruttogewicht: 0.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

DEHNcombo YPV 1200 combined arrester
Multipole type 1 + type 2 combined arrester
for PV generator circuits up to 1200 V d.c.
with three-step d.c. switching device, width: 4 modules
Type 1 + type 2 arrester according to EN 50539-11
For use according to IEC 60364-7-712
Combined disconnection and short-circuiting device
Fault indication
Maximum PV voltage: <= 1200 V d.c.
Total discharge current: 12.5 kA
Voltage protection level: <= 3.8 kV
Short-circuit current rating Iscpv: 10 kA

Brand: DEHN
Type: DCB MOD 750
Part No.: 971021
or equivalent.

Technische Daten

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1200 V
Short-circuit current rating (I_SCPV )	20 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 3.8 kV
Approvals	DEKRA, UL

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1200 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	≤ 1200 V
Short-circuit current rating (I_SCPV )	20 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 3.8 kV
Voltage protection level [DC+ -> DC-] (U_P )	< 3.8 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	3 module(s), DIN 43880
Approvals	DEKRA, UL
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 5.83 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part. No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR

Artikel 971021 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 971021 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 971020 DCB MOD 600

GTIN 4013364532861, Bruttogewicht: 0.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

DEHNcombo YPV 1200 combined arrester
Multipole type 1 + type 2 combined arrester
for PV generator circuits up to 1200 V d.c.
with three-step d.c. switching device, width: 4 modules
Type 1 + type 2 arrester according to EN 50539-11
For use according to IEC 60364-7-712
Combined disconnection and short-circuiting device
Fault indication
Maximum PV voltage: <= 1200 V d.c.
Total discharge current: 12.5 kA
Voltage protection level: <= 3.8 kV
Short-circuit current rating Iscpv: 10 kA

Brand: DEHN
Type: DCB MOD 600
Part No.: 971020
or equivalent.

Technische Daten

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1200 V
Short-circuit current rating (I_SCPV )	20 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 3.8 kV
Approvals	DEKRA, UL

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1200 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	≤ 1200 V
Short-circuit current rating (I_SCPV )	20 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 3.8 kV
Voltage protection level [DC+ -> DC-] (U_P )	< 3.8 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	3 module(s), DIN 43880
Approvals	DEKRA, UL
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 5.83 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part. No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR

Artikel 971020 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 971020 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 971021 DCB MOD 750

GTIN 4013364532878, Bruttogewicht: 0.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

DEHNcombo YPV 1200 combined arrester
Multipole type 1 + type 2 combined arrester
for PV generator circuits up to 1200 V d.c.
with three-step d.c. switching device, width: 4 modules
Type 1 + type 2 arrester according to EN 50539-11
For use according to IEC 60364-7-712
Combined disconnection and short-circuiting device
Fault indication
Maximum PV voltage: <= 1200 V d.c.
Total discharge current: 12.5 kA
Voltage protection level: <= 3.8 kV
Short-circuit current rating Iscpv: 10 kA

Brand: DEHN
Type: DCB MOD 750
Part No.: 971021
or equivalent.

Technische Daten

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1200 V
Short-circuit current rating (I_SCPV )	20 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 3.8 kV
Approvals	DEKRA, UL

SPD according to EN 61643-31 / IEC 61643-31	type 1 + type 2 / class I + class II
Max. PV voltage [DC+ -> DC-] (U_CPV )	≤ 1200 V
Max. PV voltage [DC+/DC- -> PE] (U_CPV )	≤ 1200 V
Short-circuit current rating (I_SCPV )	20 kA
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Total discharge current (8/20 µs) [DC+/DC- -> PE] (I_total )	40 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	12.5 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	6.25 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 3.8 kV
Voltage protection level [DC+ -> DC-] (U_P )	< 3.8 kV
Response time (t_A )	≤ 25 ns
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm² solid / flexible
Cross-sectional area (max.)	35 mm² stranded / 25 mm² flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP 20
Dimensions	3 module(s), DIN 43880
Approvals	DEKRA, UL
Extended technical data:	---------------------------------
– Use in DC battery storage systems up to I_SCCR	≤ 100 kA (t ≤ 5.83 ms)
– Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc / 200 A 2+/A173 DST aR, manufacturer's Part. No.: 170M2040
– Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR

Artikel 971021 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 971021 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Ergebnisse für Produkte (0)

Ergebnisse für Inhalt (0)

DEHNcombo

DEHNcombo YPV ...

Art.-Nr. 900070 DCB YPV 1200

Artikel 900070 wurde zum Merkzettel hinzugefügt.

Artikel 900070 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 900071 DCB YPV 1500

Artikel 900071 wurde zum Merkzettel hinzugefügt.

Artikel 900071 wurde zum Warenkorb hinzugefügt.

DEHNcombo YPV ... FM

Art.-Nr. 900075 DCB YPV 1200 FM

Artikel 900075 wurde zum Merkzettel hinzugefügt.

Artikel 900075 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 900076 DCB YPV 1500 FM

Artikel 900076 wurde zum Merkzettel hinzugefügt.

Artikel 900076 wurde zum Warenkorb hinzugefügt.

<TRANSLATION_PLACEHOLDER>

Art.-Nr. 971020 DCB MOD 600

Artikel 971020 wurde zum Merkzettel hinzugefügt.

Artikel 971020 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 971021 DCB MOD 750

Artikel 971021 wurde zum Merkzettel hinzugefügt.

Artikel 971021 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 971020 DCB MOD 600

Artikel 971020 wurde zum Merkzettel hinzugefügt.

Artikel 971020 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 971021 DCB MOD 750

Artikel 971021 wurde zum Merkzettel hinzugefügt.

Artikel 971021 wurde zum Warenkorb hinzugefügt.

DEHNcombo

DEHNcombo YPV ...

Art.-Nr. 900070 DCB YPV 1200

Sie müssen angemeldet sein um 900060.stp herunterzuladen.

Sie müssen angemeldet sein um 900060.igs herunterzuladen.

Sie müssen angemeldet sein um 900060.jt herunterzuladen.

Sie müssen angemeldet sein um 900060.dwg herunterzuladen.

Sie müssen angemeldet sein um 900060m_E.dxf herunterzuladen.

Sie müssen angemeldet sein um 900070_eplan.zip herunterzuladen.

Sie müssen angemeldet sein um DEHN.900070.wspak herunterzuladen.

Artikel 900070 wurde zum Merkzettel hinzugefügt.

Artikel 900070 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 900071 DCB YPV 1500

Sie müssen angemeldet sein um 900060.stp herunterzuladen.

Sie müssen angemeldet sein um 900060.igs herunterzuladen.

Sie müssen angemeldet sein um 900060.jt herunterzuladen.

Sie müssen angemeldet sein um 900060.dwg herunterzuladen.

Sie müssen angemeldet sein um 900060m_E.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.900060.edz herunterzuladen.

Sie müssen angemeldet sein um DEHN.900071.wspak herunterzuladen.

Artikel 900071 wurde zum Merkzettel hinzugefügt.

Artikel 900071 wurde zum Warenkorb hinzugefügt.

DEHNcombo YPV ... FM

Art.-Nr. 900075 DCB YPV 1200 FM

Sie müssen angemeldet sein um 900065.stp herunterzuladen.

Sie müssen angemeldet sein um 900065.igs herunterzuladen.

Sie müssen angemeldet sein um 900065.jt herunterzuladen.

Sie müssen angemeldet sein um 900065.dwg herunterzuladen.

Sie müssen angemeldet sein um 900065m_E.dxf herunterzuladen.

Sie müssen angemeldet sein um 900075_eplan.zip herunterzuladen.

Sie müssen angemeldet sein um DEHN.900075.wspak herunterzuladen.

Artikel 900075 wurde zum Merkzettel hinzugefügt.

Artikel 900075 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 900076 DCB YPV 1500 FM

Sie müssen angemeldet sein um 900065.stp herunterzuladen.

Sie müssen angemeldet sein um 900065.igs herunterzuladen.

Sie müssen angemeldet sein um 900065.jt herunterzuladen.

Sie müssen angemeldet sein um 900065.dwg herunterzuladen.

Sie müssen angemeldet sein um 900065m_E.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.900065.edz herunterzuladen.

Sie müssen angemeldet sein um DEHN.900076.wspak herunterzuladen.

Artikel 900076 wurde zum Merkzettel hinzugefügt.

Artikel 900076 wurde zum Warenkorb hinzugefügt.

<TRANSLATION_PLACEHOLDER>

Art.-Nr. 971020 DCB MOD 600

Artikel 971020 wurde zum Merkzettel hinzugefügt.

Artikel 971020 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 971021 DCB MOD 750

Artikel 971021 wurde zum Merkzettel hinzugefügt.

Artikel 971021 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 971020 DCB MOD 600

Artikel 971020 wurde zum Merkzettel hinzugefügt.

Artikel 971020 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 971021 DCB MOD 750

Artikel 971021 wurde zum Merkzettel hinzugefügt.

Artikel 971021 wurde zum Warenkorb hinzugefügt.
