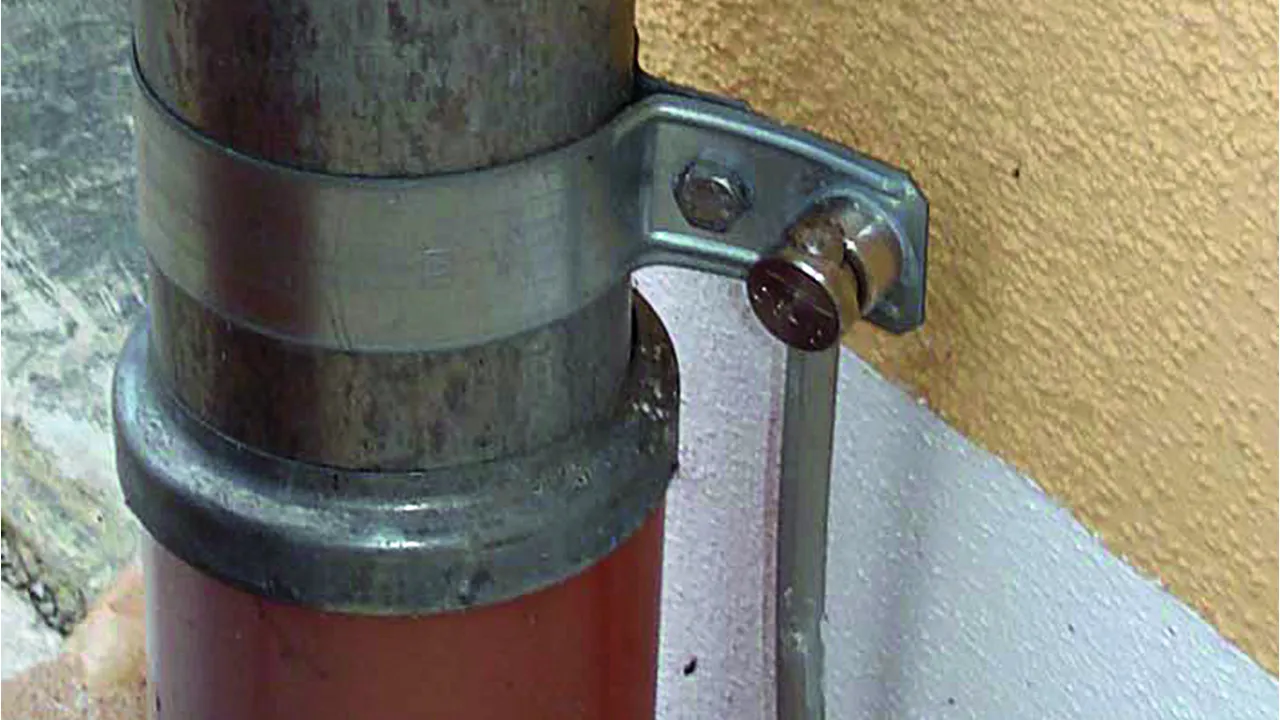

KS Connectors
:quality(98)/dehn.at/store/f/51123491/HDVORSCHAU/420100a2_16-9.jpg)
:quality(98)/dehn.at/store/f/51123491/HDVORSCHAU/420100a2_16-9.jpg)
Art.-Nr. 301000 KSV 7.10 STTZN
GTIN 4013364067035, Zolltarifnr. (EU): 85359000, Bruttogewicht: 62.00 g, VPE: 100.00 pc(s)
:quality(98)/dehn.at/store/f/51123503/HDVORSCHAU/301000.jpg)
:quality(98)/dehn.at/store/f/51123503/HDVORSCHAU/301000.jpg)
:quality(98)/dehn.at/store/f/51123504/HDVORSCHAU/301000m_D.jpg)
:quality(98)/dehn.at/store/f/51123504/HDVORSCHAU/301000m_D.jpg)
Technische Daten
| Material of clamping screw | St/tZn |
| Material of clamp | ZDC |
| Clamping range Rd | 7-10 mm |
| Standard | EN 62561-1 |
| *) For exact classification, see test certificate. | |
Art.-Nr. 301010 KSV 7.10 FER STTZN
GTIN 4013364067028, Zolltarifnr. (EU): 85359000, Bruttogewicht: 62.00 g, VPE: 100.00 pc(s)
:quality(98)/dehn.at/store/f/51123516/HDVORSCHAU/301010.jpg)
:quality(98)/dehn.at/store/f/51123516/HDVORSCHAU/301010.jpg)
:quality(98)/dehn.at/store/f/51123517/HDVORSCHAU/301010m_D.jpg)
:quality(98)/dehn.at/store/f/51123517/HDVORSCHAU/301010m_D.jpg)
Technische Daten
| Material of clamping screw | St/tZn |
| Material of clamp | ZDC |
| Clamping range Rd | 7-10 mm |
| Type | + spring washer |
| Standard | EN 62561-1 |
| *) For exact classification, see test certificate. | |
Art.-Nr. 301007 KSV 6.10 CU
GTIN 4013364021358, Zolltarifnr. (EU): 85359000, Bruttogewicht: 76.00 g, VPE: 100.00 pc(s)
:quality(98)/dehn.at/store/f/51123529/HDVORSCHAU/301007.jpg)
:quality(98)/dehn.at/store/f/51123529/HDVORSCHAU/301007.jpg)
:quality(98)/dehn.at/store/f/51123530/HDVORSCHAU/301007m_D.jpg)
:quality(98)/dehn.at/store/f/51123530/HDVORSCHAU/301007m_D.jpg)
Technische Daten
| Material of clamping screw | Cu |
| Material of clamp | high copper alloy |
| Clamping range Rd | 6-10 mm |
| Connection (single-wire / multi-wire) | 16-50 mm2 |
| Standard | EN 62561-1 |
| *) For exact classification, see test certificate. | |
Art.-Nr. 301017 KSV 6.10 FER CU
GTIN 4013364053502, Zolltarifnr. (EU): 85359000, Bruttogewicht: 79.60 g, VPE: 100.00 pc(s)
:quality(98)/dehn.at/store/f/51123540/HDVORSCHAU/301017.jpg)
:quality(98)/dehn.at/store/f/51123540/HDVORSCHAU/301017.jpg)
:quality(98)/dehn.at/store/f/51123541/HDVORSCHAU/301007m_D.jpg)
:quality(98)/dehn.at/store/f/51123541/HDVORSCHAU/301007m_D.jpg)
Technische Daten
| Material of clamping screw | Cu |
| Material of clamp | high copper alloy |
| Clamping range Rd | 6-10 mm |
| Connection (single-wire / multi-wire) | 25-70 mm2 |
| Type | + spring washer |
| Standard | EN 62561-1 |
| *) For exact classification, see test certificate. | |
Art.-Nr. 301009 KSV 6.10 V2A
GTIN 4013364081284, Zolltarifnr. (EU): 85359000, Bruttogewicht: 61.80 g, VPE: 100.00 pc(s)
:quality(98)/dehn.at/store/f/51123553/HDVORSCHAU/301009.jpg)
:quality(98)/dehn.at/store/f/51123553/HDVORSCHAU/301009.jpg)
:quality(98)/dehn.at/store/f/51123554/HDVORSCHAU/301009m_D.jpg)
:quality(98)/dehn.at/store/f/51123554/HDVORSCHAU/301009m_D.jpg)
Technische Daten
| Material of clamping screw | StSt |
| Material of clamp | StSt |
| Clamping range Rd | 6-10 mm |
| Connection (single-wire / multi-wire) | 25-70 mm2 |
| Standard | EN 62561-1 |
| *) For exact classification, see test certificate. | |
Art.-Nr. 301089 KSV 6.10 V4A
GTIN 4013364304161, Zolltarifnr. (EU): 85359000, Bruttogewicht: 63.00 g, VPE: 100.00 pc(s)
:quality(98)/dehn.at/store/f/51123565/HDVORSCHAU/301099.jpg)
:quality(98)/dehn.at/store/f/51123565/HDVORSCHAU/301099.jpg)
:quality(98)/dehn.at/store/f/51123566/HDVORSCHAU/301009m_D.jpg)
:quality(98)/dehn.at/store/f/51123566/HDVORSCHAU/301009m_D.jpg)
Technische Daten
| Material of clamping screw | StSt (V4A) |
| Material of clamp | StSt (V4A) |
| Clamping range Rd | 6-10 mm |
| Connection (single-wire / multi-wire) | 25-70 mm2 |
| Material No. | 1.4571 / 1.4404 / 1.4401 |
| Standard | EN 62561-1 |
| *) For exact classification, see test certificate. | |
Art.-Nr. 301019 KSV 6.10 FER V2A
GTIN 4013364081277, Zolltarifnr. (EU): 85359000, Bruttogewicht: 63.80 g, VPE: 100.00 pc(s)
:quality(98)/dehn.at/store/f/51123577/HDVORSCHAU/301019.jpg)
:quality(98)/dehn.at/store/f/51123577/HDVORSCHAU/301019.jpg)
:quality(98)/dehn.at/store/f/51123578/HDVORSCHAU/301019m_D.jpg)
:quality(98)/dehn.at/store/f/51123578/HDVORSCHAU/301019m_D.jpg)
Technische Daten
| Material of clamping screw | StSt |
| Material of clamp | StSt |
| Clamping range Rd | 6-10 mm |
| Connection (single-wire / multi-wire) | 25-70 mm2 |
| Type | + spring washer |
| Standard | EN 62561-1 |
| *) For exact classification, see test certificate. | |
Art.-Nr. 301099 KSV 6.10 FER V4A
GTIN 4013364304178, Zolltarifnr. (EU): 85359000, Bruttogewicht: 65.00 g, VPE: 100.00 pc(s)
:quality(98)/dehn.at/store/f/51123588/HDVORSCHAU/301099.jpg)
:quality(98)/dehn.at/store/f/51123588/HDVORSCHAU/301099.jpg)
:quality(98)/dehn.at/store/f/51123589/HDVORSCHAU/301019m_D.jpg)
:quality(98)/dehn.at/store/f/51123589/HDVORSCHAU/301019m_D.jpg)
Technische Daten
| Material of clamping screw | StSt (V4A) |
| Material of clamp | StSt (V4A) |
| Clamping range Rd | 6-10 mm |
| Connection (single-wire / multi-wire) | 25-70 mm2 |
| Type | + spring washer |
| Material No. | 1.4571 / 1.4404 / 1.4401 |
| Standard | EN 62561-1 |
| *) For exact classification, see test certificate. | |
Art.-Nr. 540122 UKSV 6.10 AQ16 50 V4A
GTIN 4013364379930, Zolltarifnr. (EU): 85359000, Bruttogewicht: 66.00 g, VPE: 25.00 pc(s)
:quality(98)/dehn.at/store/f/51123601/HDVORSCHAU/540122.jpg)
:quality(98)/dehn.at/store/f/51123601/HDVORSCHAU/540122.jpg)
:quality(98)/dehn.at/store/f/51123602/HDVORSCHAU/540122m_D.jpg)
:quality(98)/dehn.at/store/f/51123602/HDVORSCHAU/540122m_D.jpg)
Technische Daten
| Material of clamping screw | StSt (V4A) |
| Material of clamp | StSt (V4A) |
| Clamping range Rd | 6-10 mm |
| Connection (single-wire / multi-wire) | 16-50 mm2 |
| Type | + spring washer |
| Material No. | 1.4401 |
| Standard | EN 62561-1 |
| *) For exact classification, see test certificate. | |
Art.-Nr. 301020 KSVL 6.10 FER V2A
GTIN 4013364481541, Zolltarifnr. (EU): 85359000, Bruttogewicht: 120.00 g, VPE: 50.00 pc(s)
:quality(98)/dehn.at/store/f/51123614/HDVORSCHAU/301020.jpg)
:quality(98)/dehn.at/store/f/51123614/HDVORSCHAU/301020.jpg)
:quality(98)/dehn.at/store/f/51123615/HDVORSCHAU/301020m_D.jpg)
:quality(98)/dehn.at/store/f/51123615/HDVORSCHAU/301020m_D.jpg)
Technische Daten
| Material of clamping screw | StSt |
| Material of clamp | StSt |
| Clamping range Rd | 6-10 mm |
| Connection (single-wire / multi-wire) | 25-70 mm2 |
| Type | + spring washer |
| Standard | EN 62561-1 |
Art.-Nr. 300002 KSV 8.12.5 STTZN
GTIN 4013364024052, Zolltarifnr. (EU): 85359000, Bruttogewicht: 118.20 g, VPE: 25.00 pc(s)
:quality(98)/dehn.at/store/f/51123628/HDVORSCHAU/300002.jpg)
:quality(98)/dehn.at/store/f/51123628/HDVORSCHAU/300002.jpg)
:quality(98)/dehn.at/store/f/51123629/HDVORSCHAU/300002m_D.jpg)
:quality(98)/dehn.at/store/f/51123629/HDVORSCHAU/300002m_D.jpg)
Technische Daten
| Material of clamping screw | St/tZn |
| Material of clamp | MCI |
| Clamping range Rd | 8-12.5 mm |
| Connection (single-wire / multi-wire) | 50-95 mm2 |
| Standard | EN 62561-1 |
| *) For exact classification, see test certificate. | |
Art.-Nr. 300017 KSV 8.12.5 CU
GTIN 4013364024069, Zolltarifnr. (EU): 85359000, Bruttogewicht: 157.20 g, VPE: 1.00 pc(s)
:quality(98)/dehn.at/store/f/51123639/HDVORSCHAU/300017.jpg)
:quality(98)/dehn.at/store/f/51123639/HDVORSCHAU/300017.jpg)
:quality(98)/dehn.at/store/f/51123640/HDVORSCHAU/300000m_D.jpg)
:quality(98)/dehn.at/store/f/51123640/HDVORSCHAU/300000m_D.jpg)
Technische Daten
| Material of clamping screw | Cu |
| Material of clamp | high copper alloy |
| Clamping range Rd | 8-12.5 mm |
| Connection (single-wire / multi-wire) | 50-95 mm2 |
| Standard | EN 62561-1 |
| *) For exact classification, see test certificate. | |
Art.-Nr. 302010 KSV 2X7.10 STTZN
GTIN 4013364134904, Zolltarifnr. (EU): 85359000, Bruttogewicht: 138.80 g, VPE: 50.00 pc(s)
:quality(98)/dehn.at/store/f/51123653/HDVORSCHAU/302010.jpg)
:quality(98)/dehn.at/store/f/51123653/HDVORSCHAU/302010.jpg)
:quality(98)/dehn.at/store/f/51123654/HDVORSCHAU/302010m_D.jpg)
:quality(98)/dehn.at/store/f/51123654/HDVORSCHAU/302010m_D.jpg)
Technische Daten
| Material of clamping screw | St/tZn |
| Material of clamp | ZDC |
| Clamping range Rd | 7-10 mm |
| Standard | EN 62561-1 |
| *) For exact classification, see test certificate. | |
Art.-Nr. 301229 AP 2X6.10 V2A
GTIN 4013364101562, Zolltarifnr. (EU): 85389099, Bruttogewicht: 167.00 g, VPE: 1.00 pc(s)
:quality(98)/dehn.at/store/f/51123669/HDVORSCHAU/301229_2.jpg)
:quality(98)/dehn.at/store/f/51123669/HDVORSCHAU/301229_2.jpg)
:quality(98)/dehn.at/store/f/51123670/HDVORSCHAU/301229m_D.jpg)
:quality(98)/dehn.at/store/f/51123670/HDVORSCHAU/301229m_D.jpg)
Technische Daten
| Material of clamping screw | StSt |
| Material of clamp | StSt |
| Clamping range Rd | 6-10 mm |
| Type | + spring washer |
| Standard | EN 62561-1 |
| *) For exact classification, see test certificate. | |
