DEHNcord

Single-pole, two-pole or three-pole surge protective device with monitoring system and disconnector
Visual fault indication
Types with disconnection of the load circuit in the event of a fault and protection of the control phase
Compact design also for outdoor use
Can be fitted in junction boxes, flush-mounted systems, cable ducts and flush-type boxes

Details

DEHNcord 3P TT 275 FM

Compact three-phase arrester for TT and TN-S systems.

1 Produkt

Art.-Nr. 900439 DCOR 3P TT 275 FM

GTIN 4013364436053, Zolltarifnr. (EU): 85363030, Bruttogewicht: 129.38 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DEHNcord 3P TT 275 FM surge arrester
Multipole type 2 + type 3 surge arrester according to EN 61643-11
for use in installation systems
with remote signalling contact, operating state/fault indication
mounted on DIN rails or using screw lugs
Compact dimensions: 94 x 39.5 x 36 mm
Max. continuous operating voltage: 275 V a.c.
Max. continuous operating voltage: 350 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 10 kA
Total discharge current (8/20): 40 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Max. mains-side overcurrent protection: 25 A gG (series connection) / 40 A gG (parallel connection)
Max. load current (a.c.): 25 A
Conductor connection: Push-in
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: DCOR 3P TT 275 FM
Part No.: 900439
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal load current (a.c.) / (d.c.) (I_L )	25 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	40 kA
Combination wave [L-N]/[N-PE] (U_OC )	20 kV
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	25 ns
Response time [L/N-PE] (t_A )	100 ns
Max. mains-side overcurrent protection (series connection)	25 A gG
Max. mains-side overcurrent protection (parallel connection)	40 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms. – withstand
Insulation measurement	up to 500 V DC when connected
Operating state / fault indication	green / red
Cross-sectional area for push-in terminals	0.2 ... 6 mm²solid / flexible
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation
Degree of protection of installed device	IP 20
Dimensions	2 modules, DIN 43880
Approvals	KEMA
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Artikel 900439 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900439 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNcord L 2P

Two-pole surge arrester for all installation systems (1+1 configuration) and luminaires of protection class I; compact design.

2 Produkte

Art.-Nr. 900430 DCOR L 2P 275

GTIN 4013364157286, Zolltarifnr. (EU): 85363030, Bruttogewicht: 73.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DEHNcord L 2P 275 surge arrester
Two-pole surge arrester for all 230 V installation
systems
Type 2 SPD according to EN 61643-11
For use in cable duct systems, flush-mounted
systems and flush-type boxes
Fault indication
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA
Total discharge current: 20 kA
Max. mains-side overcurrent protection: 25 A gG
or B/C 16 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DCOR L 2P 275
Part No.: 900430
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	25 A gG
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating state / fault indication	green / red
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm²,Length: 230 mm (L, N) / 240 mm (PE)
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation
Degree of protection of installed device	IP 20
Approvals	KEMA

Artikel 900430 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900430 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 900432 DCOR L 2P 320

GTIN 4013364157309, Zolltarifnr. (EU): 85363030, Bruttogewicht: 74.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DEHNcord L 2P 320 surge arrester
Two-pole surge arrester for all 230/277 V installation
systems
Type 2 SPD according to EN 61643-11
For use in cable duct systems, flush-mounted
systems and flush-type boxes
Fault indication
Max. continuous operating voltage: 320 V a.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 5 kA
Total discharge current: 20 kA
Max. mains-side overcurrent protection: 25 A gG
or B/C 16 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DCOR L 2P 320
Part No.: 900432
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.75 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	25 A gG
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 277 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.75 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	25 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating state / fault indication	green / red
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm²,Length: 230 mm (L, N) / 240 mm (PE)
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation
Degree of protection of installed device	IP 20
Approvals	KEMA

Artikel 900432 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900432 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNcord L 1P

Single-pole surge arrester for luminaires of protection class II; compact design.

2 Produkte

Art.-Nr. 900431 DCOR L 1P 275

GTIN 4013364310827, Zolltarifnr. (EU): 85363030, Bruttogewicht: 60.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DEHNcord L 1P 275 surge arrester
Single-pole surge arrester for all 230 V installation
systems
Type 2 SPD according to EN 61643-11
For use in cable duct systems, flush-mounted
systems and flush-type boxes
Fault indication
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA
Max. mains-side overcurrent protection: 25 A gG
or B/C 16 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DCOR L 1P 275
Part No.: 900431
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	25 A gG
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Response time [L-N] (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	25 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating state / fault indication	green / red
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm²,Length 230 mm
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation
Degree of protection of installed device	IP 20
Approvals	KEMA

Artikel 900431 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900431 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 900433 DCOR L 1P 320

GTIN 4013364157316, Zolltarifnr. (EU): 85363030, Bruttogewicht: 61.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DEHNcord L 1P 320 surge arrester
Single-pole surge arrester for all 230/277 V installation
systems
Type 2 SPD according to EN 61643-11
For use in cable duct systems, flush-mounted
systems and flush-type boxes
Fault indication
Max. continuous operating voltage: 320 V a.c.
Voltage protection level: <= 1.75 kV
Nominal discharge current: 5 kA
Max. mains-side overcurrent protection: 25 A gG
or B/C 16 A
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DCOR L 1P 320
Part No.: 900433
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.75 kV
Max. mains-side overcurrent protection	25 A gG
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 277 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.75 kV
Response time [L-N] (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	25 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Operating state / fault indication	green / red
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm²,Length 230 mm
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation
Degree of protection of installed device	IP 20
Approvals	KEMA

Artikel 900433 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900433 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNcord L 2P SN1864

Surge arrester for luminaires of protection class II; compact design. With disconnection in the event of a fault.

1 Produkt

Art.-Nr. 999906 DCOR L 2P SN1864

GTIN 4013364310926, Zolltarifnr. (EU): 85363030, Bruttogewicht: 70.50 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Surge arrester DEHNcord L 2P SN1864
Multi-pole surge arrester Type 2 according to EN 61643-11
for use in cable junction boxes.
With protection of the control phase
Disconnection of the light in case of fault and
integrated visual fault indication
for supply voltage
Max. continuous operating voltage: 275 V ac
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Total discharge current: 20 kA
Max. mains-side overcurrent
protection: 16 A gG
Max. load current AC: 10 A
Energy coordination acc. to DIN EN 62305-4
with arresters of the Red/Line family

Brand: DEHN
Type: DCOR L 2P SN1864
Part No.: 999906
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Response time [L-N] (t_A )	≤ 25 ns
Max. load current (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm², 60 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation, LED head / fuse box for mast installation
Degree of protection of installed device	IP 20
Additional tests:	---------------------------------
– Total discharge current (I_sum )	20 kA

Artikel 999906 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 999906 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNcord L 2P SN1860

Surge arrester for all installation systems; compact design. With disconnection of the load circuit in the event of a fault.

1 Produkt

Art.-Nr. 999937 DCOR L 2P SN1860

GTIN 4013364303195, Zolltarifnr. (EU): 85363030, Bruttogewicht: 86.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DEHNcord L 2P SN1860 surge arrester
Multipole type 2 surge arrester according to EN 61643-11
with cables for installation in junction boxes.
LED can be disconnected in case of a fault
Integrated visual fault indication for the supply voltage
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Summary discharge current: 20 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Max. mains-side overcurrent protection: 16 A gG
Max. load current (a.c.): 10 A
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: DCOR L 2P SN1860
Part No.: 999937
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. load current (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm², 160 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation, fuse boxes for mast installation
Degree of protection of installed device	IP 20
Additional tests:	---------------------------------
– Total discharge current (I_sum )	20 kA
Extended technical data:	---------------------------------
– Combination wave (U_OC )	10 kV

Artikel 999937 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 999937 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNcord L 2P 275 SO LTG

Surge arrester for all installation systems; compact design. With disconnection of the load circuit in the event of a fault.

1 Produkt

Art.-Nr. 900446 DCOR L 2P 275 SO LTG

GTIN 4013364292970, Zolltarifnr. (EU): 85363030, Bruttogewicht: 62.50 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DEHNcord L 2P 275 SO LTG surge arrester
Multipole type 2 surge arrester according to EN 61643-11
with cables for installation in junction boxes.
LED can be disconnected in case of a fault
Integrated visual fault indication for the supply voltage
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Summary discharge current: 20 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Max. mains-side overcurrent protection: 16 A gG
Max. load current (a.c.): 10 A
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: DCOR L 2P 275 SO LTG
Part No.: 900446
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. load current (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm², 60 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation, fuse boxes for mast installation
Degree of protection of installed device	IP 20
Approvals	KEMA
Additional tests:	---------------------------------
– Total discharge current (I_sum )	20 kA
Extended technical data:	---------------------------------
– Combination wave (U_OC )	10 kV

Artikel 900446 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900446 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNcord L 3P 275 SO LTG

Three-pole surge arrester for all installation systems; compact design. With disconnection of the load circuit in the event of a fault and protection of the control phase.

1 Produkt

Art.-Nr. 900445 DCOR L 3P 275 SO LTG

GTIN 4013364280380, Zolltarifnr. (EU): 85363030, Bruttogewicht: 71.50 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DEHNcord L 3P 275 SO LTG surge arrester
Multipole type 2 surge arrester according to EN 61643-11
for installation in junction boxes.
Protection of the control phase
LED can be disconnected in case of a fault
Integrated separate visual fault indication for the supply voltage and control phase
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Total discharge current (8/20): 20 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Max. mains-side overcurrent protection: 16 A gG
Max. load current (a.c.): 10 A
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: DCOR L 3P 275 SO LTG
Part No.: 900445
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. load current (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm², 60 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation, fuse box for mast installation
Degree of protection of installed device	IP 20
Approvals	KEMA
Extended technical data:	---------------------------------
– Combination wave (U_OC )	10 kV

Artikel 900445 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900445 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

SK EK480 G2S-2d LM DCOR

The EK480 fuse box is a high-quality product from Langmatz which stands out for its excellent workmanship and tried and tested features. The EK480 series meets all mechanical and electrical requirements and standards. This ensures the effective protection of luminaires with high-quality electronics against surges resulting from switching operations or nearby lightning strikes.

1 Produkt

Art.-Nr. 900443 SK EK480 G2S-2d LM DCOR

GTIN 4013364394322, Zolltarifnr. (EU): 85362010, Bruttogewicht: 788.00 g, VPE: 20.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

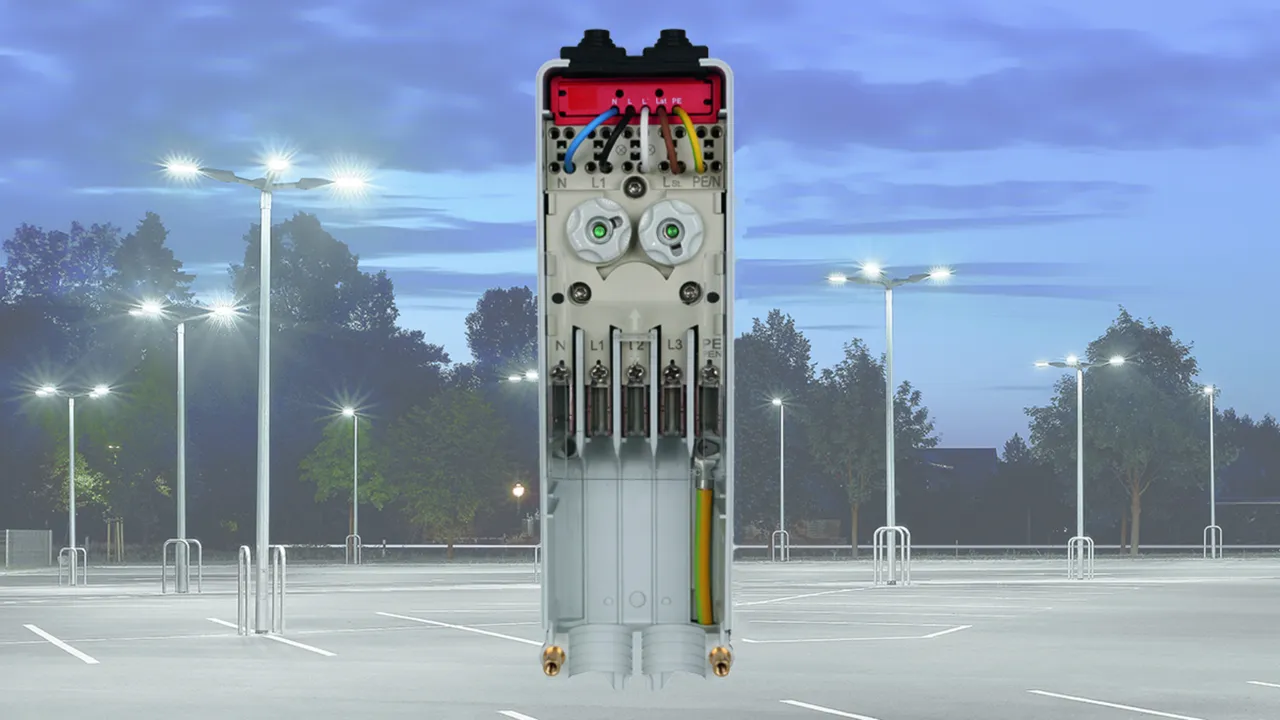

EK480 fuse box with surge arrester
DEHNcord L 3P 275 SO LTG
for protecting LED masts
Protection of the control phase
LED can be disconnected in case of a fault
Integrated separate visual fault indication for the supply voltage and control phase
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Total discharge current (8/20): 20 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Max. mains-side overcurrent protection: 16 A gG
Max. load current (a.c.): 10 A
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: SK EK480 G2S-2d LM DCOR
Part No.: 900443
or equivalent.

Zertifikate

Technische Daten

Data of fuse box
Dimensions	276 x 81 x 70 mm
For masts with an inside diameter from	89 mm
Clamping technology	incoming: sliding clamp technology / outgoing: spring clamp technology
Max. cross-section of connectable cable	1 - 3 cables (4 or 5 x 16 mm²)
Outgoing terminals	max. 2.5 mm²
Data of DEHNcord L 3P 275 SO LTG surge protective device
SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating a.c. voltage [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A

Data of fuse box
Designation	EK480 with surge protective device
Dimensions	276 x 81 x 70 mm
For masts with an inside diameter from	89 mm
Enclosure material	polyamide
Enclosure colour	standard colour RAL 7035 light grey
Design	according to DIN 43 628 and VDE 0660 Part 505
Degree of protection	IP 54 according to DIN VDE 0470
Protection class	II
Cover	transparent or grey
Clamping technology	incoming: sliding clamp technology / outgoing: spring clamp technology
Max. cross-section of connectable cable	1 - 3 cables (4 or 5 x 16 mm²)
Outgoing terminals	max. 2.5 mm²
Data of DEHNcord L 3P 275 SO LTG surge protective device
SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz) V (50 / 60 Hz)
Max. continuous operating a.c. voltage [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating a.c. voltage [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. load current (a.c.) (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Terminal wires	1.5 mm², 60 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation, fuse boxes for mast installation
Degree of protection of installed device	IP 20
Approvals	KEMA
Extended technical data:	---------------------------------
– Combination wave (U_OC )	10 kV

Artikel 900443 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900443 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNcord L 2P 275 SO LT

Two-pole surge arrester for TNC systems; compact design. With disconnection of the load circuit in the event of a fault and protection of the control phase.

1 Produkt

Art.-Nr. 900435 DCOR L 2P 275 SO LT

GTIN 4013364292963, Zolltarifnr. (EU): 85363030, Bruttogewicht: 70.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DEHNcord L 2P 275 SO LT surge arrester
Multipole type 2 surge arrester according to EN 61643-11
with cables for installation in junction boxes.
Protection of the control phase
LED can be disconnected in case of a fault
Integrated visual fault indication for the supply voltage
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Summary discharge current: 20 kA
Max. mains-side overcurrent protection: 16 A gG
Max. load current (a.c.): 10 A
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: DCOR L 2P 275 SO LT
Part No.: 900435
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-PEN] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-PEN] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A
Approvals	KEMA

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-PEN] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-PEN] (U_P )	≤ 1.5 kV
Voltage protection level [L-PEN] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-PEN] at 1.5 kA (U_P )	≤ 0.85 kV
Response time [L-PEN] (t_A )	≤ 25 ns
Max. load current (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-PEN] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-PEN] (U_T) – Characteristic	440 V / 120 min. – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting wires	1.5 mm², 60 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Place of installation	indoor installation, fuse box for mast installation
Degree of protection of installed device	IP 20
Approvals	KEMA
Additional tests:	---------------------------------
– Total discharge current (I_sum )	20 kA
Extended technical data:	---------------------------------
– Combination wave (U_OC )	10 kV

Artikel 900435 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900435 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNcord L 3P 275 SO IP

Three-pole surge arrester for all installation systems; compact design. IP 65 degree of protection. With disconnection of the load circuit in the event of a fault and protection of the control phase.

1 Produkt

Art.-Nr. 900447 DCOR L 3P 275 SO IP

GTIN 4013364282216, Zolltarifnr. (EU): 85363030, Bruttogewicht: 146.60 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DEHNcord L 2P 275 SO IP surge arrester
Multipole type 2 surge arrester according to EN 61643-11
with cables for outdoor installation
(IP65 degree of protection) e.g. on junction boxes.
With protection of the control phase
LED can be disconnected in case of a fault
Integrated visual fault indication for the
supply voltage and control phase
With fixing lug
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Summary discharge current: 20 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Max. mains-side overcurrent protection: 16 A gG
Max. load current (a.c.): 10 A
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: DCOR L 3P 275 SO IP
Part No.: 900447
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. load current (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting cable	1.5 mm², 230 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Degree of protection of installed device	IP 65
Extended technical data:	---------------------------------
– Combination wave (U_OC )	10 kV

Artikel 900447 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900447 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNcord L 2P 275 SO IP

Two-pole arrester for all installation systems; compact design. IP 65 degree of protection. With disconnection of the load circuit in the event of a fault.

1 Produkt

Art.-Nr. 900448 DCOR L 2P 275 SO IP

GTIN 4013364293007, Zolltarifnr. (EU): 85363030, Bruttogewicht: 139.90 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DEHNcord L 2P 275 SO IP surge arrester
Multipole type 2 surge arrester according to EN 61643-11
with cables for outdoor installation
(IP65 degree of protection) e.g. on junction boxes.
LED can be disconnected in case of a fault
Integrated visual fault indication for the supply voltage
With fixing lug
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 5 kA
Summary discharge current: 20 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Max. mains-side overcurrent protection: 16 A gG
Max. load current (a.c.): 10 A
Energy coordination with arresters
of the Red/Line series according to EN 62305-4

Brand: DEHN
Type: DCOR L 2P 275 SO IP
Part No.: 900448
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Max. mains-side overcurrent protection	B 16 A

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	5 kA
Max. discharge current (8/20 µs) (I_max )	10 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [L-N] at 3 kA (U_P )	≤ 1 kV
Voltage protection level [L-N] at 1.5 kA (U_P )	≤ 0.85 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Max. load current (I_L )	10 A
Max. mains-side overcurrent protection	B 16 A
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Short-circuit withstand capability for mains-side overcurrent protection with 16 A gG (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – safe failure
Fault indication	red
Interruption of the load circuit in the event of a fault	yes
Number of ports	1
Operating temperature range (T_U )	-40 °C ... +80 °C
Connecting cable	1.5 mm², 230 mm long
Enclosure material	thermoplastic, red, UL 94 V-2
Degree of protection of installed device	IP 65
Additional tests:	---------------------------------
– Total discharge current (I_sum )	20 kA
Extended technical data:	---------------------------------
– Combination wave (U_OC )	10 kV

Artikel 900448 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900448 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNcord R 3P

Surge arrester for electric Venetian blinds; compact design.

1 Produkt

Art.-Nr. 900449 DCOR R 3P 275

GTIN 4013364320031, Zolltarifnr. (EU): 85363030, Bruttogewicht: 151.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DEHNcord R 3P 275 surge arrester
Multipole type 2 surge arrester according to EN 61643-11
for outdoor installation (degree of protection IP54)
for protecting electric sun blinds/blinds or Venetian blinds
Interruption of the load circuit in the event of a fault
For downstream operation
Acoustic fault indication for both protective paths
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20): 2.5 kA
Total discharge current (8/20) [L+N-PE]: 15 kA
Follow current extinguishing capability [N-PE]: 100 A rms
Nominal load current (a.c.): 10 A
Energy coordination according to IEC/EN 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DCOR R 3P 275
Part No.: 900449
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	2.5 kA
Max. discharge current (8/20 µs) (I_max )	5 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Connector	Hirschmann STAK 3 / STAS 3

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal load current (a.c.) (I_L )	10 A
Nominal discharge current (8/20 µs) (I_n )	2.5 kA
Max. discharge current (8/20 µs) (I_max )	5 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	15 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	≤ 25 ns
Response time [L/N-PE] (t_A )	≤ 100 ns
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	1 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – safe failure
Acoustic fault indication	yes
Interruption of the load circuit in the event of a fault	yes for downstream operation
Number of ports	1
Connector	Hirschmann STAK 3 / STAS 3
Operating temperature range (T_U )	-20 °C ... +70 °C
Degree of protection of installed device	IP 54

Artikel 900449 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900449 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNcord

Details

DEHNcord 3P TT 275 FM

Art.-Nr. 900439 DCOR 3P TT 275 FM

Sie müssen angemeldet sein um 900439.stp herunterzuladen.

Sie müssen angemeldet sein um 900439.igs herunterzuladen.

Sie müssen angemeldet sein um 900439.jt herunterzuladen.

Sie müssen angemeldet sein um 900439.dwg herunterzuladen.

Sie müssen angemeldet sein um 900439m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um 900439_eplan.zip herunterzuladen.

Sie müssen angemeldet sein um DEHN.900439.wspak herunterzuladen.

Artikel 900439 wurde zum Merkzettel hinzugefügt.

Artikel 900439 wurde zum Warenkorb hinzugefügt.

DEHNcord L 2P

Art.-Nr. 900430 DCOR L 2P 275

Sie müssen angemeldet sein um 900430.stp herunterzuladen.

Sie müssen angemeldet sein um 900430.igs herunterzuladen.

Sie müssen angemeldet sein um 900430.jt herunterzuladen.

Sie müssen angemeldet sein um 900430.dwg herunterzuladen.

Sie müssen angemeldet sein um 900430m.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.900430.edz herunterzuladen.

Sie müssen angemeldet sein um DEHN.900430.wspak herunterzuladen.

Artikel 900430 wurde zum Merkzettel hinzugefügt.

Artikel 900430 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 900432 DCOR L 2P 320

Sie müssen angemeldet sein um 900430.stp herunterzuladen.

Sie müssen angemeldet sein um 900430.igs herunterzuladen.

Sie müssen angemeldet sein um 900430.jt herunterzuladen.

Sie müssen angemeldet sein um 900430.dwg herunterzuladen.

Sie müssen angemeldet sein um 900430m.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.900432.edz herunterzuladen.

Sie müssen angemeldet sein um DEHN.900432.wspak herunterzuladen.

Artikel 900432 wurde zum Merkzettel hinzugefügt.

Artikel 900432 wurde zum Warenkorb hinzugefügt.

DEHNcord L 1P

Art.-Nr. 900431 DCOR L 1P 275

Sie müssen angemeldet sein um 900431.stp herunterzuladen.

Sie müssen angemeldet sein um 900431.igs herunterzuladen.

Sie müssen angemeldet sein um 900431.jt herunterzuladen.

Sie müssen angemeldet sein um 900431.dwg herunterzuladen.

Sie müssen angemeldet sein um 900431m.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.900431.edz herunterzuladen.

Sie müssen angemeldet sein um DEHN.900431.wspak herunterzuladen.

Artikel 900431 wurde zum Merkzettel hinzugefügt.

Artikel 900431 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 900433 DCOR L 1P 320

Sie müssen angemeldet sein um 900431.stp herunterzuladen.

Sie müssen angemeldet sein um 900431.igs herunterzuladen.

Sie müssen angemeldet sein um 900431.jt herunterzuladen.

Sie müssen angemeldet sein um 900431.dwg herunterzuladen.

Sie müssen angemeldet sein um 900431m.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.900433.edz herunterzuladen.

Sie müssen angemeldet sein um DEHN.900433.wspak herunterzuladen.

Artikel 900433 wurde zum Merkzettel hinzugefügt.

Artikel 900433 wurde zum Warenkorb hinzugefügt.

DEHNcord L 2P SN1864

Art.-Nr. 999906 DCOR L 2P SN1864

Sie müssen angemeldet sein um 999906.stp herunterzuladen.

Sie müssen angemeldet sein um 999906.igs herunterzuladen.

Sie müssen angemeldet sein um 999906.jt herunterzuladen.

Sie müssen angemeldet sein um 999906.dwg herunterzuladen.

Sie müssen angemeldet sein um 999906m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.999906.edz herunterzuladen.

Sie müssen angemeldet sein um DEHN.999906.wspak herunterzuladen.

Artikel 999906 wurde zum Merkzettel hinzugefügt.

Artikel 999906 wurde zum Warenkorb hinzugefügt.

DEHNcord L 2P SN1860

Art.-Nr. 999937 DCOR L 2P SN1860

Sie müssen angemeldet sein um 999937.stp herunterzuladen.

Sie müssen angemeldet sein um 999937.igs herunterzuladen.

Sie müssen angemeldet sein um 999937.jt herunterzuladen.

Sie müssen angemeldet sein um 999937.dwg herunterzuladen.

Sie müssen angemeldet sein um 999937m_D.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.999937.edz herunterzuladen.

Sie müssen angemeldet sein um DEHN.999937.wspak herunterzuladen.

Artikel 999937 wurde zum Merkzettel hinzugefügt.

Artikel 999937 wurde zum Warenkorb hinzugefügt.

DEHNcord L 2P 275 SO LTG

Art.-Nr. 900446 DCOR L 2P 275 SO LTG

Sie müssen angemeldet sein um 900446.stp herunterzuladen.
