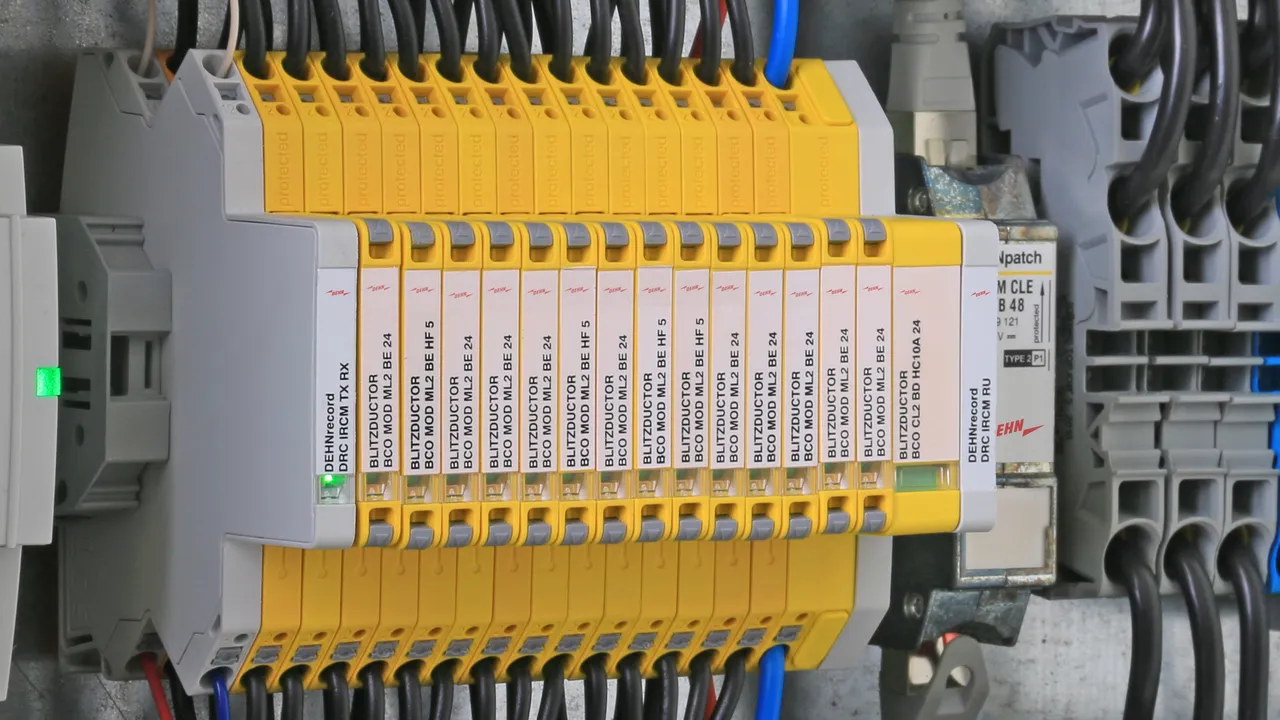

BLITZDUCTORconnect – Modular

Lightning current and surge arrester for universal use

protecting measuring and control circuits, bus and telecommunication systems
High total discharge capacity of 3 kA (10/350 µs), 10 kA (8/20 µs)
Max. impulse current carrying capability (8/20 µs) I_max up to 20 kA
Low voltage protection level, also capable of protecting terminal equipment

Arrester separable into module and base part

Fast and simple conductor connection thanks to push-in connection terminals
All protection components integrated in the module
secR release buttons on both sides for safe module replacement
High system availability thanks to fail-safe performance

Function-optimised design with a width of 6 mm

LifeCheck and visual status indication integrated in the module
Simple remote signalling of the status with the help of an optional remote signalling unit
Tool-free signal circuit disconnection for maintenance purposes
Vibration and shock-tested for safe operation

Details

**Quickly tested – at a glance**
Integrated indication for easy and fast maintenance

lorem ipsum — **Quickly tested – at a glance**
Integrated indication for easy and fast maintenance

**Maximum system availability**
Approvals for use in intrinsically safe measuring circuits

**Connect = Protect**
Simple status message with monitoring unit for arrester groups

**Securely locked** – **precisely removed**
secR release buttons on both sides for safe handling

Produkte filtern

BCO ML2 B 180

Space-saving, modular lightning current arrester with a width of 6 mm and push-in connection technology with status indication for protecting two single lines for lightning equipotential bonding as well as indirect earthing of shielded cables. With signal disconnection for maintenance purposes.

1 Produkt

Art.-Nr. 927210 BCO ML2 B 180

GTIN 4013364405585, Zolltarifnr. (EU): 85363010, Bruttogewicht: 57.75 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Lightning current arrester BLITZDUCTORconnect ML2 B 180
Modular, pluggable lightning current arrester for protecting
two single lines for lightning equipotential bonding as well
as indirect earthing of shielded cables
Tested to EN/IEC 61643-21 and energy coordinated according
to IEC 61643-22
SPD class: type 1
Impulse category: C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 180.0 V DC / 127.0 V AC
Nominal current at 80°C: 1.2 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
with signal disconnection for maintenance purposes
Cable connection: Push-in

Brand: DEHN
Type: BCO ML2 B 180
Part No.: 927210
or equivalent.

Zertifikate

Technische Daten

SPD class	A
Nominal voltage (U_N )	180 V
Max. continuous operating voltage (d.c.) (U_C )	180 V
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	0 ohm(s)
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	A
Impulse category	D1, C2, C3
Nominal voltage (U_N )	180 V
Max. continuous operating voltage (d.c.) (U_C )	180 V
Max. continuous operating voltage (a.c.) (U_C )	127 V
Nominal current (I_L )	1.2 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 1100 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 800 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 950 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 700 V
Series resistance per line	0 ohm(s)
Cut-off frequency line-line at 100 ohms (f_G )	150 MHz
Capacitance line-line (C)	≤ 10 pF
Capacitance line-PG (C)	≤ 13 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
Connection (input / output)	push-in / push-in
Cross-sectional area (solid)	0.2-2.5 mm²
Cross-sectional area (fine stranded)	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 700 V
^*) For details, see: www.dehn-international.com

Artikel 927210 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927210 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

BCO ML2 BE

Space-saving, modular combined arrester with a width of 6 mm and push-in connection technology with status indication for protecting two single lines sharing a common reference potential as well as unbalanced interfaces. With signal disconnection for maintenance purposes.

4 Produkte

Art.-Nr. 927222 BCO ML2 BE 12

GTIN 4013364405592, Zolltarifnr. (EU): 85363010, Bruttogewicht: 59.19 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Combined arrester BLITZDUCTORconnect ML2 BE 12
Modular, pluggable combined arrester for protecting
two single lines sharing a common reference potential
as well as unbalanced interfaces
Tested to EN/IEC 61643-21 and energy coordinated according
to IEC 61643-22
SPD class: type 1 / P1
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 15.0 V DC / 10.6 V AC
Nominal current at 70°C: 0.75 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
with signal disconnection for maintenance purposes
Cable connection: Push-in

Brand: DEHN
Type: BCO ML2 BE 12
Part No.: 927222
or equivalent.

Zertifikate

Technische Daten

SPD class	M
Nominal voltage (U_N )	12 V
Max. continuous operating voltage (d.c.) (U_C )	15 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	1.4 MHz
Approvals	UL 479B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	M
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	12 V
Max. continuous operating voltage (d.c.) (U_C )	15 V
Max. continuous operating voltage (a.c.) (U_C )	10.6 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 48 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 45 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 48 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 45 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 38 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 20 V
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	1.4 MHz
Capacitance line-line (C)	≤ 2.5 nF
Capacitance line-PG (C)	≤ 4 nF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
Connection (input / output)	push-in / push-in
Cross-sectional area (solid)	0.2-2.5 mm²
Cross-sectional area (fine stranded)	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 479B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 20 V
^*) For details, see: www.dehn-international.com

Artikel 927222 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927222 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 927224 BCO ML2 BE 24

GTIN 4013364405608, Zolltarifnr. (EU): 85363010, Bruttogewicht: 59.68 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Combined arrester BLITZDUCTORconnect ML2 BE 24
Modular, pluggable combined arrester for protecting
two single lines sharing a common reference potential
as well as unbalanced interfaces
Tested to EN/IEC 61643-21 and energy coordinated according
to IEC 61643-22
SPD class: type 1 / P1
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 33.0 V DC /23.3 V AC
Nominal current at 70°C: 0.75 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
with signal disconnection for maintenance purposes
Cable connection: Push-in

Brand: DEHN
Type: BCO ML2 BE 24
Part No.: 927224
or equivalent.

Zertifikate

Technische Daten

SPD class	M
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	33 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	3.4 MHz
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	M
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	33 V
Max. continuous operating voltage (a.c.) (U_C )	23.3 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 90 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 75 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 90 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 75 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 85 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 45 V
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	3.4 MHz
Capacitance line-line (C)	≤ 1 nF
Capacitance line-PG (C)	≤ 2 nF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
Connection (input / output)	push-in / push-in
Cross-sectional area (solid)	0.2-2.5 mm²
Cross-sectional area (fine stranded)	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 45 V
^*) For details, see: www.dehn-international.com

Artikel 927224 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927224 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 927225 BCO ML2 BE 48

GTIN 4013364405615, Zolltarifnr. (EU): 85363010, Bruttogewicht: 58.22 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Combined arrester BLITZDUCTORconnect ML2 BE 48
Modular, pluggable combined arrester for protecting
two single lines sharing a common reference potential
as well as unbalanced interfaces
Tested to EN/IEC 61643-21 and energy coordinated according
to IEC 61643-22
SPD class: type 1 / P1
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 54.0 V DC / 38.1 V AC
Nominal current at 70°C: 0.75 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
with signal disconnection for maintenance purposes
Cable connection: Push-in

Brand: DEHN
Type: BCO ML2 BE 48
Part No.: 927225
or equivalent.

Zertifikate

Technische Daten

SPD class	M
Nominal voltage (U_N )	48 V
Max. continuous operating voltage (d.c.) (U_C )	54 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	5 MHz
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	M
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	48 V
Max. continuous operating voltage (d.c.) (U_C )	54 V
Max. continuous operating voltage (a.c.) (U_C )	38.1 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 140 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 90 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 140 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 90 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 130 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 68 V
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	5 MHz
Capacitance line-line (C)	≤ 1 nF
Capacitance line-PG (C)	≤ 1.5 nF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
Connection (input / output)	push-in / push-in
Cross-sectional area (solid)	0.2-2.5 mm²
Cross-sectional area (fine stranded)	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 68 V
^*) For details, see: www.dehn-international.com

Artikel 927225 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927225 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 927227 BCO ML2 BE 180

GTIN 4013364468658, Zolltarifnr. (EU): 85363010, Bruttogewicht: 58.85 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Combined arrester BLITZDUCTORconnect ML2 BE 180
Modular, pluggable combined arrester
for protecting two single lines sharing a common
reference potential as well as unbalanced interfaces
Tested to EN/IEC 61643-21 and energetically
coordinated according to IEC 61643-22
SPD class type 1 / P1
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 180 V DC / 127 V AC
Nominal current at 70°C: 0.5 A
C2 nominal impulse discharge current per line (8/20): 5 kA
C2 total nominal impulse discharge current (8/20): 10 kA
D1 lightning current impulse (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
with signal disconnection for maintenance purposes
Conductor connection: Push-in

Brand: DEHN
Type: BCO ML2 BE 180
Part No.: 927227
or equivalent.

Zertifikate

Technische Daten

SPD class	M
Nominal voltage (U_N )	180 V
Max. continuous operating voltage (d.c.) (U_C )	180 V
Nominal current at 70 °C (I_L )	0.5 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1.8 ohm(s)
Cut-off frequency line-line (f_G )	10 MHz
Approvals	UL 497B, SIL
^*) For details, see: www.dehn-international.com

SPD class	M
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	180 V
Max. continuous operating voltage (d.c.) (U_C )	180 V
Max. continuous operating voltage (a.c.) (U_C )	127 V
Nominal current at 70 °C (I_L )	0.5 A
Nominal current at 40°C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 630 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 450 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 630 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 450 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 460 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 230 V
Series resistance per line	1.8 ohm(s)
Cut-off frequency line-line (f_G )	10 MHz
Capacitance line-line (C)	≤ 250 pF
Capacitance line-PG (C)	≤ 450 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
Connection (input / output)	push-in / push-in
Cross-sectional area (solid)	0.2-2.5 mm²
Cross-sectional area (fine stranded)	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, SIL
SIL classification	up to SIL3 ^*)
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 230 V
^*) For details, see: www.dehn-international.com

Artikel 927227 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927227 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

BCO ML2 BD

Space-saving, modular combined arrester with a width of 6 mm and push-in connection technology with status indication for protecting one pair of unearthed balanced interfaces. With signal disconnection for maintenance purposes.

4 Produkte

Art.-Nr. 927242 BCO ML2 BD 12

GTIN 4013364405622, Zolltarifnr. (EU): 85363010, Bruttogewicht: 58.35 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Combined arrester BLITZDUCTORconnect ML2 BD 12
Modular, pluggable combined arrester for protecting
one pair of unearthed balanced interfaces
Tested to EN/IEC 61643-21 and energy coordinated according
to IEC 61643-22
SPD class: type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 15.0 V DC / 10.6 V AC
Nominal current at 70°C: 0.75 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
with signal disconnection for maintenance purposes
Cable connection: Push-in

Brand: DEHN
Type: BCO ML2 BD 12
Part No.: 927242
or equivalent.

Zertifikate

Technische Daten

SPD class	L
Nominal voltage (U_N )	12 V
Max. continuous operating voltage (d.c.) (U_C )	15 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	2.6 MHz
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	12 V
Max. continuous operating voltage (d.c.) (U_C )	15 V
Max. continuous operating voltage (a.c.) (U_C )	10.6 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 32 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 600 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 32 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 600 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 20 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 600 V
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	2.6 MHz
Capacitance line-line (C)	≤ 2.5 nF
Capacitance line-PG (C)	≤ 16 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
Connection (input / output)	push-in / push-in
Cross-sectional area (solid)	0.2-2.5 mm²
Cross-sectional area (fine stranded)	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 600 V
^*) For details, see: www.dehn-international.com

Artikel 927242 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927242 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 927244 BCO ML2 BD 24

GTIN 4013364405639, Zolltarifnr. (EU): 85363010, Bruttogewicht: 58.64 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Combined arrester BLITZDUCTORconnect ML2 BD 24
Modular, pluggable combined arrester for protecting
one pair of unearthed balanced interfaces
Tested to EN/IEC 61643-21 and energy coordinated according
to IEC 61643-22
SPD class: type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 36.0 V DC / 25.4 V AC
Nominal current at 70°C: 0.75 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
with signal disconnection for maintenance purposes
Cable connection: Push-in

Brand: DEHN
Type: BCO ML2 BD 24
Part No.: 927244
or equivalent.

Zertifikate

Technische Daten

SPD class	L
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	5.8 MHz
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Max. continuous operating voltage (a.c.) (U_C )	25.4 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 57 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 600 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 57 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 600 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 46 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 600 V
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	5.8 MHz
Capacitance line-line (C)	≤ 1.5 nF
Capacitance line-PG (C)	≤ 16 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
Connection (input / output)	push-in / push-in
Cross-sectional area (solid)	0.2-2.5 mm²
Cross-sectional area (fine stranded)	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 600 V
^*) For details, see: www.dehn-international.com

Artikel 927244 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927244 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 927245 BCO ML2 BD 48

GTIN 4013364405646, Zolltarifnr. (EU): 85363010, Bruttogewicht: 58.49 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Combined arrester BLITZDUCTORconnect ML2 BD 48
Modular, pluggable combined arrester for protecting
one pair of unearthed balanced interfaces
Tested to EN/IEC 61643-21 and energy coordinated according
to IEC 61643-22
SPD class: type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 56.0 V DC / 39.6 V AC
Nominal current at 70°C: 0.75 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
with signal disconnection for maintenance purposes
Cable connection: Push-in

Brand: DEHN
Type: BCO ML2 BD 48
Part No.: 927245
or equivalent.

Zertifikate

Technische Daten

SPD class	L
Nominal voltage (U_N )	48 V
Max. continuous operating voltage (d.c.) (U_C )	56 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	7.2 MHz
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	48 V
Max. continuous operating voltage (d.c.) (U_C )	56 V
Max. continuous operating voltage (a.c.) (U_C )	39.6 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 90 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 600 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 90 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 600 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 70 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 600 V
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	7.2 MHz
Capacitance line-line (C)	≤ 1 nF
Capacitance line-PG (C)	≤ 16 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
Connection (input / output)	push-in / push-in
Cross-sectional area (solid)	0.2-2.5 mm²
Cross-sectional area (fine stranded)	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 600 V
^*) For details, see: www.dehn-international.com

Artikel 927245 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927245 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 927247 BCO ML2 BD 180

GTIN 4013364468665, Zolltarifnr. (EU): 85363010, Bruttogewicht: 58.92 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Combined arrester BLITZDUCTORconnect ML2 BD 180
Modular, pluggable combined arrester
For protecting one pair of unearthed
balanced interfaces
Tested to EN/IEC 61643-21 and
energy-coordinated according to IEC 61643-22
SPD class type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 180 V DC / 127 V AC
Nominal current at 70°C: 0.5 A
C2 nominal impulse discharge current per line (8/20): 5 kA
C2 total nominal impulse discharge current (8/20): 10 kA
D1 lightning current impulse (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
with signal disconnection for maintenance purposes
Conductor connection: Push-in

Brand: DEHN
Type: BCO ML2 BD 180
Part No.: 927247
or equivalent.

Zertifikate

Technische Daten

SPD class	L
Nominal voltage (U_N )	180 V
Max. continuous operating voltage (d.c.) (U_C )	180 V
Nominal current at 70 °C (I_L )	0.5 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1.8 ohm(s)
Cut-off frequency line-line (f_G )	10 MHz
Approvals	UL 497B, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	180 V
Max. continuous operating voltage (d.c.) (U_C )	180 V
Max. continuous operating voltage (a.c.) (U_C )	127 V
Nominal current at 70 °C (I_L )	0.5 A
Nominal current at 40°C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 420 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 800 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 420 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 800 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 240 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 700 V
Series resistance per line	1.8 ohm(s)
Cut-off frequency line-line (f_G )	10 MHz
Capacitance line-line (C)	≤ 450 pF
Capacitance line-PG (C)	≤ 20 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
Connection (input / output)	push-in / push-in
Cross-sectional area (solid)	0.2-2.5 mm²
Cross-sectional area (fine stranded)	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, SIL
SIL classification	up to SIL3 ^*)
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 700 V
^*) For details, see: www.dehn-international.com

Artikel 927247 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927247 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

BCO ML2 BE HF

Space-saving, modular combined arrester with a width of 6 mm and push-in connection technology with status indication for protecting two single lines of high-frequency transmissions sharing a common reference potential as well as unbalanced interfaces. With signal disconnection for maintenance purposes.

2 Produkte

Art.-Nr. 927270 BCO ML2 BE HF 5

GTIN 4013364405653, Zolltarifnr. (EU): 85363010, Bruttogewicht: 58.57 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Combined arrester BLITZDUCTORconnect ML2 BE HF 5
Modular, pluggable combined arrester for protecting
two single lines of high-frequency transmissions sharing
a common reference potential as well as unbalanced interfaces
Tested to EN/IEC 61643-21 and energy coordinated according
to IEC 61643-22
SPD class: type 1 / P1
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 8.5 V DC / 6.0 V AC
Nominal current at 70°C: 0.75 A
Cut-off frequency 100 MHz
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
with signal disconnection for maintenance purposes
Cable connection: Push-in

Brand: DEHN
Type: BCO ML2 BE HF 5
Part No.: 927270
or equivalent.

Zertifikate

Technische Daten

SPD class	M
Nominal voltage (U_N )	5 V
Max. continuous operating voltage (d.c.) (U_C )	8.5 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohm(s)
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	M
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	5 V
Max. continuous operating voltage (d.c.) (U_C )	8.5 V
Max. continuous operating voltage (a.c.) (U_C )	6.0 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 50 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 70 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 50 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 70 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 15 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 15 V
Series resistance per line	1 ohm(s)
Cut-off frequency line-PG (f_G )	100 MHz
Capacitance line-line (C)	≤ 20 pF
Capacitance line-PG (C)	≤ 23 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
Connection (input / output)	push-in / push-in
Cross-sectional area (solid)	0.2-2.5 mm²
Cross-sectional area (fine stranded)	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 15 V
^*) For details, see: www.dehn-international.com

Artikel 927270 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927270 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 927274 BCO ML2 BE HF 24

GTIN 4013364468559, Zolltarifnr. (EU): 85363010, Bruttogewicht: 58.30 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Combined arrester BLITZDUCTORconnect ML2 BE HF 24
Modular, pluggable combined arrester
for protecting two single lines of high-frequency
transmissions with a common reference potential
as well as unbalanced interfaces
Tested to EN/IEC 61643-21 and energetically
coordinated according to IEC 61643-22
SPD class type 1 / P1
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 36 V DC / 25.4 V AC
Nominal current at 70°C: 0.75 A
Cut-off frequency 100 MHz
C2 nominal impulse discharge current per line (8/20): 5 kA
C2 total nominal impulse discharge current (8/20): 10 kA
D1 lightning current impulse (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
with signal disconnection for maintenance purposes
Conductor connection: Push-in

Brand: DEHN
Type: BCO ML2 BE HF 24
Part No.: 927274
or equivalent.

Zertifikate

Technische Daten

SPD class	M
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohm(s)
Approvals	UL 497B, SIL
^*) For details, see: www.dehn-international.com

SPD class	M
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Max. continuous operating voltage (a.c.) (U_C )	25.4 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 100 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 115 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 100 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 115 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 48 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 48 V
Series resistance per line	1 ohm(s)
Cut-off frequency line-PG (f_G )	100 MHz
Capacitance line-line (C)	≤ 25 pF
Capacitance line-PG (C)	≤ 25 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
Connection (input / output)	push-in / push-in
Cross-sectional area (solid)	0.2-2.5 mm²
Cross-sectional area (fine stranded)	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, SIL
SIL classification	up to SIL3 ^*)
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 48 V
^*) For details, see: www.dehn-international.com

Artikel 927274 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927274 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

BCO ML2 BD HF

Space-saving, modular combined arrester with a width of 6 mm and push-in connection technology with status indication for protecting one pair of unearthed, high-frequency bus systems and balanced interfaces. With signal disconnection for maintenance purposes.

2 Produkte

Art.-Nr. 927271 BCO ML2 BD HF 5

GTIN 4013364405660, Zolltarifnr. (EU): 85363010, Bruttogewicht: 58.42 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Combined arrester BLITZDUCTORconnect ML2 BD HF 5
Modular, pluggable combined arrester for protecting
one pair of unearthed high-frequency bus systems
as well as balanced interfaces
Tested to EN/IEC 61643-21 and energy coordinated according
to IEC 61643-22
SPD class: type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 8.5 V DC / 6.0 V AC
Nominal current at 70°C: 0.75 A
Cut-off frequency 100 MHz
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
with signal disconnection for maintenance purposes
Cable connection: Push-in

Brand: DEHN
Type: BCO ML2 BD HF 5
Part No.: 927271
or equivalent.

Zertifikate

Technische Daten

SPD class	L
Nominal voltage (U_N )	5 V
Max. continuous operating voltage (d.c.) (U_C )	8.5 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	100 MHz
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	5 V
Max. continuous operating voltage (d.c.) (U_C )	8.5 V
Max. continuous operating voltage (a.c.) (U_C )	6.0 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 42 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 600 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 42 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 600 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 15 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 600 V
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	100 MHz
Capacitance line-line (C)	≤ 21 pF
Capacitance line-PG (C)	≤ 15 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
Connection (input / output)	push-in / push-in
Cross-sectional area (solid)	0.2-2.5 mm²
Cross-sectional area (fine stranded)	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 600 V
^*) For details, see: www.dehn-international.com

Artikel 927271 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927271 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 927275 BCO ML2 BD HF 24

GTIN 4013364468566, Zolltarifnr. (EU): 85363010, Bruttogewicht: 58.60 g, VPE: 1.00 pc(s)

Vorgänger

Abbildungen

Weitere Information

CAD-Daten

Combined arrester BLITZDUCTORconnect ML2 BD HF 24
Modular, pluggable combined arrester for protecting
1 pair of unearthed high-frequency
bus systems and balanced interfaces
Tested to EN/IEC 61643-21 and energetically
coordinated according to IEC 61643-22
SPD class type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 36 V DC / 25.4 V AC
Nominal current at 70°C: 0.75 A
Cut-off frequency 100 MHz
C2 nominal impulse discharge current per line (8/20): 5 kA
C2 total nominal impulse discharge current (8/20): 10 kA
D1 lightning current impulse (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
with signal disconnection for maintenance purposes
Conductor connection: Push-in

Brand: DEHN
Type: BCO ML2 BD HF 24
Part No.: 927275
or equivalent.

Zertifikate

Technische Daten

SPD class	L
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	100 MHz
Approvals	UL 497B, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Max. continuous operating voltage (a.c.) (U_C )	25.4 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 85 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 650 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 85 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 650 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 48 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 600 V
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	100 MHz
Capacitance line-line (C)	≤ 25 pF
Capacitance line-PG (C)	≤ 15 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
Connection (input / output)	push-in / push-in
Cross-sectional area (solid)	0.2-2.5 mm²
Cross-sectional area (fine stranded)	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, SIL
SIL classification	up to SIL3 ^*)
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 600 V
^*) For details, see: www.dehn-international.com

Artikel 927275 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927275 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

BCO ML2 BD HC5A 24

1 Produkt

Art.-Nr. 927254 BCO ML2 BD HC5A 24

GTIN 4013364513419, Zolltarifnr. (EU): 85363010, Bruttogewicht: 60.63 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Combined arrester BLITZDUCTORconnect ML2 BD HC5A 24
Modular, pluggable combined arrester for protecting
1 pair of unearthed signal circuits
with a high nominal current in IT
systems and measuring and control circuits.
Tested to EN/IEC 61643-21 and energetically
coordinated according to IEC 61643-22
SPD class type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 36 V DC / 25.4 V AC
Nominal current at 80°C: 5 A
C2 nominal impulse discharge current per line (8/20): 5 kA
C2 total nominal impulse discharge current (8/20): 10 kA
D1 lightning current impulse (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
with signal disconnection for maintenance purposes
Conductor connection: Push-in

Brand: DEHN
Type: BCO ML2 BD HC5A 24
Part No.: 927254
or equivalent.

Zertifikate

Technische Daten

SPD class	L
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Nominal current at 80 °C (I_L )	5 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	0 ohm(s)
Approvals	UL 497B, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Max. continuous operating voltage (a.c.) (U_C )	25.4 V
Nominal current at 80 °C (I_L )	5 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
C1 Nominal discharge current (8/20 µs) per line (I_n )	1 kA
Voltage protection level line-PG for I_n C2 (U_P )	≤ 750 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 70 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 750 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 60 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 750 V
Series resistance per line	0 ohm(s)
Cut-off frequency line-line at 100 ohms (f_G )	1.5 MHz
Capacitance line-line (C)	≤ 4 nF
Capacitance line-PG (C)	≤ 40 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
Connection (input / output)	push-in / push-in
Cross-sectional area (solid)	0.2-2.5 mm²
Cross-sectional area (fine stranded)	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, SIL
SIL classification	up to SIL3 ^*)
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 750 V
^*) For details, see: www.dehn-international.com

Artikel 927254 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927254 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

BCO ML2 BPD 24

Space-saving, modular combined arrester with a width of 6 mm and push-in connection technology with status indication for protecting one pair in 24 V DC systems. Also suitable for use with earthed negative pole; integrated PTC resistors allow for secure resetting of the arrester after interference in the system circuit with short-circuit currents of up to 40 A. With signal disconnection for maintenance purposes.

1 Produkt

Art.-Nr. 927214 BCO ML2 BPD 24

GTIN 4013364473003, Zolltarifnr. (EU): 85363010, Bruttogewicht: 58.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Combined arrester BLITZDUCTORconnect ML2 BPD 24
Modular, pluggable combined arrester for protecting
a pair in 24 V DC systems,
Also suitable for use with an earthed negative pole,
with integrated PTC resistors for
overcurrent protection of up to 40 A
Tested to EN/IEC 61643-21 and energetically
coordinated according to IEC 61643-22
SPD class type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 33.0 V DC / 23.3 V AC
Nominal current at 70°C: 0.1 A
C2 nominal impulse discharge current per line (8/20): 5 kA
C2 total nominal impulse discharge current (8/20): 10 kA
D1 lightning current impulse (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
with signal disconnection for maintenance purposes
Conductor connection: Push-in

Brand: DEHN
Type: BCO ML2 BPD 24
Part No.: 927214
or equivalent.

Zertifikate

Technische Daten

SPD class	L
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	33 V
Nominal current at 70 °C (I_L )	0.1 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	10 ohm(s)
Cut-off frequency line-line (f_G )	4.5 MHz
Approvals	UL 497B, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	33 V
Max. continuous operating voltage (a.c.) (U_C )	23.3 V
Nominal current at 70 °C (I_L )	0.1 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 65 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 650 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 65 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 650 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 44 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 600 V
Series resistance per line	10 ohm(s)
Cut-off frequency line-line (f_G )	4.5 MHz
Capacitance line-line (C)	≤ 1 nF
Capacitance line-PG (C)	≤ 15 pF
Operating temperature range (T_U )	-40°C to +70°C
Operating state / fault indication	green / red
Degree of protection	IP 20
Connection (input / output)	push-in / push-in
Cross-sectional area (solid)	0.2-2.5 mm²
Cross-sectional area (fine stranded)	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, SIL
SIL classification	up to SIL3 ^*)
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 600 V
^*) For details, see: www.dehn-international.com

Artikel 927214 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927214 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

BCO ML2 MVG 230

Space-saving, modular surge arrester with a width of 6 mm and push-in connection technology with status indication for protecting 2 lines of stranded unearthed signal interfaces with a nominal voltage of 230 V. With signal disconnection for maintenance purposes.
Meets, amongst other things, the requirements for signalling systems in the railway industry (e.g. DB RIL 819.0808 railway directive).

1 Produkt

Art.-Nr. 927290 BCO ML2 MVG 230

GTIN 4013364466524, Zolltarifnr. (EU): 85363010, Bruttogewicht: 60.12 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Surge arrester BLITZDUCTORconnect ML2 MVG 230
modular, pluggable surge arrester
For protecting 2 lines of stranded
signal interfaces with a nominal voltage of 230 V AC.
Tested to EN/IEC 61643-21 and energetically
coordinated according to IEC 61643-22
SPD class type 2 / P3
Impulse category: C1, C2, C3
Status indication, width of 6 mm
Max. continuous operating voltage: 320 V DC / 250 V AC
Nominal current at 80°C: 3 A
C2 nominal impulse discharge current per line (8/20): 3 kA
C2 total nominal impulse discharge current (8/20): 6 kA
with signal disconnection for maintenance purposes
Conductor connection: Push-in
Compliant with DB Ril 819.0808.

Brand: DEHN
Type: BCO ML2 MVG 230
Part No.: 927290
or equivalent.

Zertifikate

Technische Daten

SPD class	V
Nominal voltage (U_N )	230 V
Nominal current at 80 °C (I_L )	3 A
C2 Total nominal discharge current (8/20 µs) (I_n )	6 kA
Series resistance per line	0 ohm(s)
Approvals	SIL
^*) For details, see: www.dehn-international.com

SPD class	V
Impulse category	C1, C2, C3
Nominal voltage (U_N )	230 V
Max. continuous operating voltage (DC) line-PG (U_C )	320 V
Max. continuous operating voltage (AC) line-PG (U_C )	250 V
Nominal current at 80 °C (I_L )	3 A
Nominal current at 80°C (I_L )	6 A for 240 ms
Total lightning impulse current (10/350 µs)	0.5 kA
Lightning impulse current (10/350 µs) per line	0.25 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	6 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	3 kA
Voltage protection level line-PG for I_n C2 (U_P )	≤ 1100 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 1100 V
Series resistance per line	0 ohm(s)
Cut-off frequency line-PG at 100 ohms (f_G )	200 MHz
Capacitance line-line (C)	≤ 7.32 pF
Capacitance line-PG (C)	≤ 12 pF
Operating temperature range (T_U )	-40°C to +80°C
Operating state / fault indication	green / red
Degree of protection	IP 20
Connection (input / output)	Push-in / Push-in
Cross-sectional area (solid)	0.2-2.5 mm²
Cross-sectional area (fine stranded)	0.2-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	Polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	SIL
SIL classification	up to SIL3 ^*)
^*) For details, see: www.dehn-international.com

Artikel 927290 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927290 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

BCO ML2 BD EX 24

Space-saving, modular combined arrester with a width of 6 mm and push-in connection technology with status indication for protecting one pair of intrinsically safe measuring circuits and bus systems, meets FISCO requirements. Insulation strength > 500 V line-ground. With signal disconnection for maintenance purposes.

1 Produkt

Art.-Nr. 927284 BCO ML2 BD EX 24

GTIN 4013364405677, Zolltarifnr. (EU): 85363010, Bruttogewicht: 65.18 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Combined arrester BLITZDUCTORconnect ML2 BD EX 24
Modular, pluggable combined arrester for protecting
one pair of intrinsically safe measuring circuits and bus systems
Tested to EN/IEC 61643-21 and energy coordinated according
to IEC 61643-22
SPD class: type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 36.0 V DC / 25.4 V AC
Nominal current at 70°C: 0.75 A
Max. input voltage according to EN 60079-11: 30 V
Max. input current according to EN 60079-11: 0.5 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
with signal disconnection for maintenance purposes
Cable connection: Push-in

Brand: DEHN
Type: BCO ML2 BD EX 24
Part No.: 927284
or equivalent.

Zertifikate

Technische Daten

SPD class	L
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Nominal current at 80 °C (I_L )	0.5 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	3.5 MHz
Approvals	ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Max. continuous operating voltage (a.c.) (U_C )	25.4 V
Nominal current at 80 °C (I_L )	0.5 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 65 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 1100 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 48 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 1000 V
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	3.5 MHz
Capacitance line-line (C)	≤ 2 nF
Capacitance line-PG (C)	≤ 15 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection	IP 20
Connection (input / output)	push-in / push-in
Cross-sectional area (solid)	0.08-2.5 mm²
Cross-sectional area (fine stranded)	0.08-2.5 mm²
Earthing via	35 mm DIN rails acc. to EN 60715
Enclosure material	polyamide PA 6.6
Colour	blue
Test standards	IEC 61643-21 / EN 61643-21
Approvals	ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals (1)	TÜV 19 ATEX 8476 X: II (1)2 G Ex ia [ia Ga] IIC T4 ... T6 Gb
ATEX approvals (2)	TÜV 19 ATEX 8476 X: II 2 G Ex ib IIC T4 ... T6 Gb
ATEX approvals (3)	TÜV 19 ATEX 8476 X: II (1) D [Ex ia Da] IIIC
IECEx approvals (1)	IECEx TUR 20.0025X: Ex ia [ia Ga] IIC T4 ... T6 Gb
IECEx approvals (2)	IECEx TUR 20.0025X: Ex ib IIC T4 ... T6 Gb
IECEx approvals (3)	IECEx TUR 20.0025X: [Ex ia Da] IIIC
China Compulsory Certification	CCC No. 2021312304001130 (Ex ia, Ex ib)
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 1000 V
^*) For details, see: www.dehn-international.com

Artikel 927284 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927284 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

BCO MOD ML2 B

Protection module with a width of 6 mm for BLITZDUCTORconnect lightning current arrester with status inidication for protecting two single lines for lightning equipotential bonding as well as indirect earthing of shielded cables.

1 Produkt

Art.-Nr. 927010 BCO MOD ML2 B 180

GTIN 4013364410114, Zolltarifnr. (EU): 85363010, Bruttogewicht: 39.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Lightning current arrester protection module
BLITZDUCTORconnect MOD ML2 B 180
Pluggable lightning current arrester module
for protecting two single lines for lightning
equipotential bonding as well as indirect earthing of shielded cables
Tested to EN/IEC 61643-21 and energy coordinated according
to IEC 61643-22
SPD class: type 1
Impulse category: C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 180.0 V DC / 127.0 V AC
Nominal current at 80°C: 1.2 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Replacement module

Brand: DEHN
Type: BCO MOD ML2 B 180
Part No.: 927010
or equivalent.

Zertifikate

Technische Daten

SPD class	A
Nominal voltage (U_N )	180 V
Max. continuous operating voltage (d.c.) (U_C )	180 V
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	0 ohm(s)
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	A
Impulse category	D1, C2, C3
Nominal voltage (U_N )	180 V
Max. continuous operating voltage (d.c.) (U_C )	180 V
Max. continuous operating voltage (a.c.) (U_C )	127 V
Nominal current (I_L )	1.2 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 1100 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 800 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 950 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 700 V
Series resistance per line	0 ohm(s)
Cut-off frequency line-line at 100 ohms (f_G )	150 MHz
Capacitance line-line (C)	≤ 10 pF
Capacitance line-PG (C)	≤ 13 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection (with plugged-in protection module)	IP 20
Plugs into	BCO base part
Earthing via	BCO base part
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 700 V
^*) For details, see: www.dehn-international.com

Artikel 927010 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927010 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

BCO MOD ML2 BE

Protection module with a width of 6 mm for BLITZDUCTORconnect combined arrester with status inidication for protecting two single lines sharing a common reference potential as well as unbalanced interfaces.

4 Produkte

Art.-Nr. 927022 BCO MOD ML2 BE 12

GTIN 4013364410121, Zolltarifnr. (EU): 85363010, Bruttogewicht: 39.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Combined arrester protection module
BLITZDUCTORconnect MOD ML2 BE 12
Pluggable combined arrester module
for protecting two single lines sharing
a common reference potential as well as
unbalanced interfaces
Tested to EN/IEC 61643-21 and energy coordinated according
to IEC 61643-22
SPD class: type 1 / P1
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 15.0 V DC / 10.6 V AC
Nominal current at 70°C: 0.75 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Replacement module

Brand: DEHN
Type: BCO MOD ML2 BE 12
Part No.: 927022
or equivalent.

Zertifikate

Technische Daten

SPD class	M
Nominal voltage (U_N )	12 V
Max. continuous operating voltage (d.c.) (U_C )	15 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	1.4 MHz
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	M
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	12 V
Max. continuous operating voltage (d.c.) (U_C )	15 V
Max. continuous operating voltage (a.c.) (U_C )	10.6 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 48 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 45 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 48 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 45 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 38 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 20 V
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	1.4 MHz
Capacitance line-line (C)	≤ 2.5 nF
Capacitance line-PG (C)	≤ 4 nF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection (with plugged-in protection module)	IP 20
Plugs into	BCO base part
Earthing via	BCO base part
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 20 V
^*) For details, see: www.dehn-international.com

Artikel 927022 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927022 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 927024 BCO MOD ML2 BE 24

GTIN 4013364410138, Zolltarifnr. (EU): 85363010, Bruttogewicht: 39.27 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Combined arrester protection module
BLITZDUCTORconnect MOD ML2 BE 24
Pluggable combined arrester module
for protecting two single lines sharing
a common reference potential as well as
unbalanced interfaces
Tested to EN/IEC 61643-21 and energy
coordinated according to IEC 61643-22
SPD class: type 1 / P1
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 33.0 V DC / 23.3 V AC
Nominal current at 70°C: 0.75 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Replacement module

Brand: DEHN
Type: BCO MOD ML2 BE 24
Part No.: 927024
or equivalent.

Zertifikate

Technische Daten

SPD class	M
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	33 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	3.4 MHz
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	M
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	33 V
Max. continuous operating voltage (a.c.) (U_C )	23.3 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 90 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 75 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 90 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 75 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 85 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 45 V
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	3.4 MHz
Capacitance line-line (C)	≤ 1 nF
Capacitance line-PG (C)	≤ 2 nF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection (with plugged-in protection module)	IP 20
Plugs into	BCO base part
Earthing via	BCO base part
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 45 V
^*) For details, see: www.dehn-international.com

Artikel 927024 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927024 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 927025 BCO MOD ML2 BE 48

GTIN 4013364410145, Zolltarifnr. (EU): 85363010, Bruttogewicht: 39.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Combined arrester protection module
BLITZDUCTORconnect MOD ML2 BE 48
Pluggable combined arrester module
for protecting two single lines sharing
a common reference potential as well as
unbalanced interfaces
Tested to EN/IEC 61643-21 and energy
coordinated according to IEC 61643-22
SPD class: type 1 / P1
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 54.0 V DC / 38.1 V AC
Nominal current at 70°C: 0.75 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Replacement module

Brand: DEHN
Type: BCO MOD ML2 BE 48
Part No.: 927025
or equivalent.

Zertifikate

Technische Daten

SPD class	M
Nominal voltage (U_N )	48 V
Max. continuous operating voltage (d.c.) (U_C )	54 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	5 MHz
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	M
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	48 V
Max. continuous operating voltage (d.c.) (U_C )	54 V
Max. continuous operating voltage (a.c.) (U_C )	38.1 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 140 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 90 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 140 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 90 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 130 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 68 V
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	5 MHz
Capacitance line-line (C)	≤ 1 nF
Capacitance line-PG (C)	≤ 1.5 nF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection (with plugged-in protection module)	IP 20
Plugs into	BCO base part
Earthing via	BCO base part
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 68 V
^*) For details, see: www.dehn-international.com

Artikel 927025 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927025 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 927027 BCO MOD ML2 BE 180

GTIN 4013364468689, Zolltarifnr. (EU): 85363010, Bruttogewicht: 39.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Combined arrester protection module
BLITZDUCTORconnect MOD ML2 BE 180
Pluggable combined arrester module
for protecting two single lines
sharing a common reference potential
as well as unbalanced interfaces
Tested to EN/IEC 61643-21 and
energy-coordinated according to IEC 61643-22
SPD class type 1 / P1
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 180 V DC / 127 V AC
Nominal current at 70°C: 0.5 A
C2 nominal impulse discharge current per line (8/20): 5 kA
C2 total nominal impulse discharge current (8/20): 10 kA
D1 lightning current impulse (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Exchange module

Brand: DEHN
Type: BCO MOD ML2 BE 180
Part No.: 927027
or equivalent.

Zertifikate

Technische Daten

SPD class	M
Nominal voltage (U_N )	180 V
Max. continuous operating voltage (d.c.) (U_C )	180 V
Nominal current at 70 °C (I_L )	0.5 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1.8 ohm(s)
Cut-off frequency line-line (f_G )	10 MHz
Approvals	UL 497B, SIL
^*) For details, see: www.dehn-international.com

SPD class	M
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	180 V
Max. continuous operating voltage (d.c.) (U_C )	180 V
Max. continuous operating voltage (a.c.) (U_C )	127 V
Nominal current at 70 °C (I_L )	0.5 A
Nominal current at 40°C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 630 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 450 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 630 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 450 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 460 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 230 V
Series resistance per line	1.8 ohm(s)
Cut-off frequency line-line (f_G )	10 MHz
Capacitance line-line (C)	≤ 250
Capacitance line-PG (C)	≤ 450
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection (with plugged-in protection module)	IP 20
Plugs into	BCO base part
Earthing via	BCO base part
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, SIL
SIL classification	up to SIL3 ^*)
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 230 V
^*) For details, see: www.dehn-international.com

Artikel 927027 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927027 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

BCO MOD ML2 BD

Protection module with a width of 6 mm for BLITZDUCTORconnect combined arrester with status inidication for protecting one pair of unearthed balanced interfaces.

4 Produkte

Art.-Nr. 927042 BCO MOD ML2 BD 12

GTIN 4013364410152, Zolltarifnr. (EU): 85363010, Bruttogewicht: 39.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Combined arrester protection module
BLITZDUCTORconnect MOD ML2 BD 12
Pluggable combined arrester module
for protecting one pair of unearthed
balanced interfaces
Tested to EN/IEC 61643-21 and energy
coordinated according to IEC 61643-22
SPD class: type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 15.0 V DC / 10.6 V AC
Nominal current at 70°C: 0.75 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Replacement module

Brand: DEHN
Type: BCO MOD ML2 BD 12
Part No.: 927042
or equivalent.

Zertifikate

Technische Daten

SPD class	L
Nominal voltage (U_N )	12 V
Max. continuous operating voltage (d.c.) (U_C )	15 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	2.6 MHz
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	12 V
Max. continuous operating voltage (d.c.) (U_C )	15 V
Max. continuous operating voltage (a.c.) (U_C )	10.6 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 32 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 600 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 32 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 600 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 20 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 600 V
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	2.6 MHz
Capacitance line-line (C)	≤ 2.5 nF
Capacitance line-PG (C)	≤ 16 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection (with plugged-in protection module)	IP 20
Plugs into	BCO base part
Earthing via	BCO base part
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 600 V
^*) For details, see: www.dehn-international.com

Artikel 927042 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927042 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 927044 BCO MOD ML2 BD 24

GTIN 4013364410169, Zolltarifnr. (EU): 85363010, Bruttogewicht: 39.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Combined arrester protection module
BLITZDUCTORconnect MOD ML2 BD 24
Pluggable combined arrester module
for protecting one pair of unearthed
balanced interfaces
Tested to EN/IEC 61643-21 and energy
coordinated according to IEC 61643-22
SPD class: type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 36.0 V DC / 25.4 V AC
Nominal current at 70°C: 0.75 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Replacement module

Brand: DEHN
Type: BCO MOD ML2 BD 24
Part No.: 927044
or equivalent.

Zertifikate

Technische Daten

SPD class	L
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	5.8 MHz
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Max. continuous operating voltage (a.c.) (U_C )	25.4 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 57 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 600 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 57 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 600 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 46 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 600 V
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	5.8 MHz
Capacitance line-line (C)	≤ 1.5 nF
Capacitance line-PG (C)	≤ 16 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection (with plugged-in protection module)	IP 20
Plugs into	BCO base part
Earthing via	BCO base part
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 600 V
^*) For details, see: www.dehn-international.com

Artikel 927044 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927044 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 927045 BCO MOD ML2 BD 48

GTIN 4013364410176, Zolltarifnr. (EU): 85363010, Bruttogewicht: 39.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Combined arrester protection module
BLITZDUCTORconnect MOD ML2 BD 48
Pluggable combined arrester module
for protecting one pair of unearthed
balanced interfaces
Tested to EN/IEC 61643-21 and energy
coordinated according to IEC 61643-22
SPD class: type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 54.0 V DC / 38.1 V AC
Nominal current at 70°C: 0.75 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Replacement module

Brand: DEHN
Type: BCO MOD ML2 BD 48
Part No.: 927045
or equivalent.

Zertifikate

Technische Daten

SPD class	L
Nominal voltage (U_N )	48 V
Max. continuous operating voltage (d.c.) (U_C )	56 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	7.2 MHz
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	48 V
Max. continuous operating voltage (d.c.) (U_C )	56 V
Max. continuous operating voltage (a.c.) (U_C )	38.1 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 90 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 600 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 90 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 600 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 70 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 600 V
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	7.2 MHz
Capacitance line-line (C)	≤ 1 nF
Capacitance line-PG (C)	≤ 16 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection (with plugged-in protection module)	IP 20
Plugs into	BCO base part
Earthing via	BCO base part
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 600 V
^*) For details, see: www.dehn-international.com

Artikel 927045 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927045 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 927047 BCO MOD ML2 BD 180

GTIN 4013364468672, Zolltarifnr. (EU): 85363010, Bruttogewicht: 39.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Combined arrester protection module
BLITZDUCTORconnect MOD ML2 BD 180
Pluggable combined arrester module
For protecting one pair
of unearthed balanced interfaces
Tested to EN/IEC 61643-21 and
energy-coordinated according to IEC 61643-22
SPD class type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 180 V DC / 127 V AC
Nominal current at 70°C: 0.5 A
C2 nominal impulse discharge current per line (8/20): 5 kA
C2 total nominal impulse discharge current (8/20): 10 kA
D1 lightning current impulse (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Exchange module

Brand: DEHN
Type: BCO MOD ML2 BD 180
Part No.: 927047
or equivalent.

Zertifikate

Technische Daten

SPD class	L
Nominal voltage (U_N )	180 V
Max. continuous operating voltage (d.c.) (U_C )	180 V
Nominal current at 70 °C (I_L )	0.5 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1.8 ohm(s)
Cut-off frequency line-line (f_G )	10 MHz
Approvals	UL 497B, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	180 V
Max. continuous operating voltage (d.c.) (U_C )	180 V
Max. continuous operating voltage (a.c.) (U_C )	127 V
Nominal current at 70 °C (I_L )	0.5 A
Nominal current at 40°C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 420 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 800 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 420 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 800 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 240 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 700 V
Series resistance per line	1.8 ohm(s)
Cut-off frequency line-line (f_G )	10 MHz
Capacitance line-line (C)	≤ 450 pF
Capacitance line-PG (C)	≤ 20 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection (with plugged-in protection module)	IP 20
Plugs into	BCO base part
Earthing via	BCO base part
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, SIL
SIL classification	up to SIL3 ^*)
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 700 V
^*) For details, see: www.dehn-international.com

Artikel 927047 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927047 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

BCO MOD ML2 BE HF

Protection module with a width of 6 mm for BLITZDUCTORconnect combined arrester with status inidication for protecting two single lines of high-frequency transmissions sharing a common reference potential as well as unbalanced interfaces.

2 Produkte

Art.-Nr. 927070 BCO MOD ML2 BE HF 5

GTIN 4013364410183, Zolltarifnr. (EU): 85363010, Bruttogewicht: 39.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Combined arrester protection module
BLITZDUCTORconnect MOD ML2 BE HF 5
Pluggable combined arrester module
for protecting two single lines of
high-frequency transmissions sharing
a common reference potential as well as
unbalanced interfaces
Tested to EN/IEC 61643-21 and energy
coordinated according to IEC 61643-22
SPD class: type 1 / P1
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 8.5 V DC / 6.0 V AC
Nominal current at 70°C: 0.75 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Replacement module

Brand: DEHN
Type: BCO MOD ML2 BE HF 5
Part No.: 927070
or equivalent.

Zertifikate

Technische Daten

SPD class	M
Nominal voltage (U_N )	5 V
Max. continuous operating voltage (d.c.) (U_C )	8.5 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohm(s)
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	M
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	5 V
Max. continuous operating voltage (d.c.) (U_C )	8.5 V
Max. continuous operating voltage (a.c.) (U_C )	6.0 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 50 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 70 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 50 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 70 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 15 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 15 V
Series resistance per line	1 ohm(s)
Cut-off frequency line-PG (f_G )	100 MHz
Capacitance line-line (C)	≤ 20 pF
Capacitance line-PG (C)	≤ 23 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection (with plugged-in protection module)	IP 20
Plugs into	BCO base part
Earthing via	BCO base part
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 15 V
^*) For details, see: www.dehn-international.com

Artikel 927070 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927070 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 927074 BCO MOD ML2 BE HF 24

GTIN 4013364468573, Zolltarifnr. (EU): 85363010, Bruttogewicht: 39.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Combined arrester protection module
BLITZDUCTORconnect MOD ML2 BE HF 24
Pluggable combined arrester module
For protecting two single lines of high-frequency
transmissions with a common reference potential
as well as unbalanced interfaces
Tested to EN/IEC 61643-21 and energetically
coordinated according to IEC 61643-22
SPD class type 1 / P1
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 36 V DC / 25.4 V AC
Nominal current at 70°C: 0.75 A
Cut-off frequency 100 MHz
C2 nominal impulse discharge current per line (8/20): 5 kA
C2 total nominal impulse discharge current (8/20): 10 kA
D1 lightning current impulse (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Exchange module

Brand: DEHN
Type: BCO MOD ML2 BE HF 24
Part No.: 927074
or equivalent.

Zertifikate

Technische Daten

SPD class	M
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohm(s)
Approvals	UL 497B, SIL
^*) For details, see: www.dehn-international.com

SPD class	M
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Max. continuous operating voltage (a.c.) (U_C )	25.4 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 100 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 115 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 100 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 115 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 48 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 48 V
Series resistance per line	1 ohm(s)
Cut-off frequency line-PG (f_G )	100 MHz
Capacitance line-line (C)	≤ 25 pF
Capacitance line-PG (C)	≤ 25 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection (with plugged-in protection module)	IP 20
Plugs into	BCO base part
Earthing via	BCO base part
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, SIL
SIL classification	up to SIL3 ^*)
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 48 V
^*) For details, see: www.dehn-international.com

Artikel 927074 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927074 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

BCO MOD ML2 BD HF

Protection module with a width of 6 mm for BLITZDUCTORconnect combined arrester with status inidication for protecting one pair of unearthed high-frequency bus systems as well as balanced interfaces.

2 Produkte

Art.-Nr. 927071 BCO MOD ML2 BD HF 5

GTIN 4013364410190, Zolltarifnr. (EU): 85363010, Bruttogewicht: 39.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Combined arrester protection module
BLITZDUCTORconnect MOD ML2 BD HF 5
Pluggable combined arrester module
for protecting one pair of unearthed
high-frequency bus systems as well as
balanced interfaces
Tested to EN/IEC 61643-21 and energy
coordinated according to IEC 61643-22
SPD class: type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 8.5 V DC / 6.0 V AC
Nominal current at 70°C: 0.75 A
Cut-off frequency: 100 MHz
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Replacement module

Brand: DEHN
Type: BCO MOD ML2 BD HF 5
Part No.: 927071
or equivalent.

Zertifikate

Technische Daten

SPD class	L
Nominal voltage (U_N )	5 V
Max. continuous operating voltage (d.c.) (U_C )	8.5 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	100 MHz
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	5 V
Max. continuous operating voltage (d.c.) (U_C )	8.5 V
Max. continuous operating voltage (a.c.) (U_C )	6.0 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 42 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 600 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 42 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 600 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 15 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 600 V
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	100 MHz
Capacitance line-line (C)	≤ 21 pF
Capacitance line-PG (C)	≤ 15 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection (with plugged-in protection module)	IP 20
Plugs into	BCO base part
Earthing via	BCO base part
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, CSA, ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals	TÜV 20 ATEX 8527 X: II 3G Ex ec IIC T4 Gc
IECEx approvals	IECEx TUR 20.0063X: Ex ec IIC T4 Gc
China Compulsory Certification	CCC no. 2021312304001192
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 600 V
^*) For details, see: www.dehn-international.com

Artikel 927071 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927071 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 927075 BCO MOD ML2 BD HF 24

GTIN 4013364468580, Zolltarifnr. (EU): 85363010, Bruttogewicht: 39.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Combined arrester protection module
BLITZDUCTORconnect MOD ML2 BD HF 24
Pluggable combined arrester module
For protecting 1 pair of unearthed
high-frequency bus systems
and balanced interfaces
Tested to EN/IEC 61643-21 and energetically
coordinated according to IEC 61643-22
SPD class type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 36 V DC / 25.4 V AC
Nominal current at 70°C: 0.75 A
Cut-off frequency 100 MHz
C2 nominal impulse discharge current per line (8/20): 5 kA
C2 total nominal impulse discharge current (8/20): 10 kA
D1 lightning current impulse (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Exchange module

Brand: DEHN
Type: BCO MOD ML2 BD HF 24
Part No.: 927075
or equivalent.

Zertifikate

Technische Daten

SPD class	L
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	100 MHz
Approvals	UL 497B, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Max. continuous operating voltage (a.c.) (U_C )	25.4 V
Nominal current at 70 °C (I_L )	0.75 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 85 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 650 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 85 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 650 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 48 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 600 V
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	100 MHz
Capacitance line-line (C)	≤ 25 pF
Capacitance line-PG (C)	≤ 15 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection (with plugged-in protection module)	IP 20
Plugs into	BCO base part
Earthing via	BCO base part
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, SIL
SIL classification	up to SIL3 ^*)
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 600 V
^*) For details, see: www.dehn-international.com

Artikel 927075 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927075 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

BCO MOD ML2 BD HC5A 24

1 Produkt

Art.-Nr. 927054 BCO MOD ML2 BD HC5A 24

GTIN 4013364513426, Zolltarifnr. (EU): 85363010, Bruttogewicht: 41.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Combined arrester protection module
BLITZDUCTORconnect MOD ML2 BD HC5A 24
Pluggable combined arrester module
for the protection of 1 pair of unearthed
signal circuits with a high nominal current
in IT systems and measuring and control circuits.
Tested to EN/IEC 61643-21 and energetically
coordinated according to IEC 61643-22
SPD class type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 36 V DC / 25.4 V AC
Nominal current at 80°C: 5 A
C2 nominal impulse discharge current per line (8/20): 5 kA
C2 total nominal impulse discharge current (8/20): 10 kA
D1 lightning current impulse (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Exchange module

Brand: DEHN
Type: BCO MOD ML2 BD HC5A 24
Part No.: 927054
or equivalent.

Technische Daten

SPD class	L
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Nominal current at 80 °C (I_L )	5 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	0 ohm(s)
Approvals	UL 497B, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Max. continuous operating voltage (a.c.) (U_C )	25.4 V
Nominal current at 80 °C (I_L )	5 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
C1 Nominal discharge current (8/20 µs) per line (I_n )	1 kA
Voltage protection level line-PG for I_n C2 (U_P )	≤ 750 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 70 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 750 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 60 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 750 V
Series resistance per line	0 ohm(s)
Cut-off frequency line-line at 100 ohms (f_G )	1.5 MHz
Capacitance line-line (C)	≤ 4 nF
Capacitance line-PG (C)	≤ 40 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection (with plugged-in protection module)	IP 20
Plugs into	BCO base part
Earthing via	BCO base part
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, SIL
SIL classification	up to SIL3 ^*)
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 750 V
^*) For details, see: www.dehn-international.com

Artikel 927054 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927054 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

BCO MOD ML2 BPD

Combined arrester protection module with a width of 6 mm for BLITZDUCTORconnect with status indication for protecting one pair in 24 V DC systems. Also suitable for use with an earthed negative pole. Integrated PTC resistors allow for secure resetting of the arrester after interference in the system circuit with short-circuit currents of up to 40 A.

1 Produkt

Art.-Nr. 927014 BCO MOD ML2 BPD 24

GTIN 4013364473010, Zolltarifnr. (EU): 85363010, Bruttogewicht: 39.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Combined arrester protection module BLITZDUCTORconnect MOD ML2 BPD 24
Pluggable combined arrester module for protecting
a pair in 24 V DC systems; also suitable for use
with an earthed negative pole;
with integrated PTC resistors for
overcurrent protection of up to 40 A
Tested to EN/IEC 61643-21 and energetically
coordinated according to IEC 61643-22
SPD class type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 33.0 V DC / 23.3 V AC
Nominal current at 70°C: 0.1 A
C2 nominal impulse discharge current per line (8/20): 5 kA
C2 total nominal impulse discharge current (8/20): 10 kA
D1 lightning current impulse (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Exchange module

Brand: DEHN
Type: BCO MOD ML2 BPD 24
Part No.: 927014
or equivalent.

Zertifikate

Technische Daten

SPD class	L
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	33 V
Nominal current at 70 °C (I_L )	0.1 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	10 ohm(s)
Cut-off frequency line-line (f_G )	4.5 MHz
Approvals	UL 497B, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	33 V
Max. continuous operating voltage (a.c.) (U_C )	23.3 V
Nominal current at 70 °C (I_L )	0.1 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 65 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 650 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 65 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 650 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 44 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 600 V
Series resistance per line	10 ohm(s)
Cut-off frequency line-line (f_G )	4.5 MHz
Capacitance line-line (C)	≤ 1 nF
Capacitance line-PG (C)	≤ 15 pF
Operating temperature range (T_U )	-40°C to +70°C
Operating state / fault indication	green / red
Degree of protection (with plugged-in protection module)	IP 20
Plugs into	BCO base part
Earthing via	BCO base part
Enclosure material	polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	UL 497B, SIL
SIL classification	up to SIL3 ^*)
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 600 V
^*) For details, see: www.dehn-international.com

Artikel 927014 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927014 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

BCO MOD ML2 MVG 230

Surge arrester protection module with a width of 6 mm for BLITZDUCTORconnect with status indication for protecting 2 lines of stranded unearthed signal interfaces with a nominal voltage of 230 V.
Meets, amongst other things, the requirements for signalling systems in the railway industry (e.g. DB RIL 819.0808 railway directive).

1 Produkt

Art.-Nr. 927090 BCO MOD ML2 MVG 230

GTIN 4013364466531, Zolltarifnr. (EU): 85363010, Bruttogewicht: 39.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Surge arrester protection module
BLITZDUCTORconnect MOD ML2 MVG 230
Pluggable surge arrester module
For protecting 2 lines of stranded
signal interfaces with a nominal voltage of 230 V AC.
Tested to EN/IEC 61643-21 and energetically
coordinated according to IEC 61643-22
SPD class type 2 / P3
Impulse category: C1, C2, C3
Status indication, width of 6 mm
Max. continuous operating voltage: 320 V DC / 250 V AC
Nominal current at 80°C: 3 A
C2 nominal impulse discharge current per line (8/20): 3 kA
C2 total nominal impulse discharge current (8/20): 6 kA
Exchange module
Compliant with DB Ril 819.0808.

Brand: DEHN
Type: BCO MOD ML2 MVG 230
Part No.: 927090
or equivalent.

Zertifikate

Technische Daten

SPD class	V
Nominal voltage (U_N )	230 V
Nominal current at 80 °C (I_L )	3 A
C2 Total nominal discharge current (8/20 µs) (I_n )	6 kA
Series resistance per line	0 ohm(s)
Approvals	SIL
^*) For details, see: www.dehn-international.com

SPD class	V
Impulse category	C1, C2, C3
Nominal voltage (U_N )	230 V
Max. continuous operating voltage (DC) line-PG (U_C )	320 V
Max. continuous operating voltage (AC) line-PG (U_C )	250 V
Nominal current at 80 °C (I_L )	3 A
Nominal current at 80°C (I_L )	6 A for 240 ms
Total lightning impulse current (10/350 µs)	0.5 kA
Lightning impulse current (10/350 µs) per line	0.25 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	6 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	3 kA
Voltage protection level line-PG for I_n C2 (U_P )	≤ 1100 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 1100 V
Series resistance per line	0 ohm(s)
Cut-off frequency line-PG at 100 ohms (f_G )	200 MHz
Capacitance line-line (C)	≤ 7.32 pF
Capacitance line-PG (C)	≤ 12 pF
Operating temperature range (T_U )	-40°C to +80°C
Operating state / fault indication	green / red
Degree of protection (with plugged-in protection module)	IP 20
Plugs into	BCO base part
Earthing via	BCO base part
Enclosure material	Polyamide PA 6.6
Colour	yellow
Test standards	IEC 61643-21 / EN 61643-21
Approvals	SIL
SIL classification	up to SIL3 ^*)
^*) For details, see: www.dehn-international.com

Artikel 927090 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927090 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

BCO MOD ML2 BD EX 24

Protection module with a width of 6 mm for BLITZDUCTORconnect combined arresters with status indication for protecting one pair of intrinsically safe measuring circuits and bus systems, meets FISCO requirements. Insulation strength > 500 V line-ground.

1 Produkt

Art.-Nr. 927084 BCO MOD ML2 BD EX 24

GTIN 4013364410206, Zolltarifnr. (EU): 85363010, Bruttogewicht: 39.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Combined arrester protection module
BLITZDUCTORconnect MOD ML2 BD EX 24
Pluggable combined arrester module
for protecting one pair of intrinsically safe
measuring circuits and bus systems
Tested to EN/IEC 61643-21 and energy
coordinated according to IEC 61643-22
SPD class: type 1 / P2
Impulse category: C1, C2, C3, B2, D1
Status indication, width of 6 mm
Max. continuous operating voltage: 36.0 V DC / 25.4 V AC
Nominal current at 70°C: 0.75 A
Max. input voltage according to EN 60079-11: 30 V
Max. input current according to EN 60079-11: 0.5 A
C2 nominal discharge current per line (8/20): 5 kA
C2 total nominal discharge current (8/20): 10 kA
D1 lightning impulse current (10/350 µs) per line: 1.5 kA
D1 total lightning impulse current (10/350 µs): 3 kA
Replacement module

Brand: DEHN
Type: BCO MOD ML2 BD EX 24
Part No.: 927084
or equivalent.

Zertifikate

Technische Daten

SPD class	L
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Nominal current at 80 °C (I_L )	0.5 A
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	3.5 MHz
Approvals	ATEX, IECEx, CCC, SIL
^*) For details, see: www.dehn-international.com

SPD class	L
Impulse category	D1, C1, C2, C3, B2
Nominal voltage (U_N )	24 V
Max. continuous operating voltage (d.c.) (U_C )	36 V
Max. continuous operating voltage (a.c.) (U_C )	25.4 V
Nominal current at 80 °C (I_L )	0.5 A
D1 Total lightning impulse current (10/350 µs) (I_imp )	3 kA
D1 Lightning impulse current (10/350 µs) per line (I_imp )	1.5 kA
C2 Total nominal discharge current (8/20 µs) (I_n )	10 kA
C2 Nominal discharge current (8/20 µs) per line (I_n )	5 kA
Voltage protection level line-line for I_n C2 (U_P )	≤ 65 V
Voltage protection level line-PG for I_n C2 (U_P )	≤ 1100 V
Voltage protection level line-line for I_n C1 (U_P )	≤ 65 V
Voltage protection level line-PG for I_n C1 (U_P )	≤ 1100 V
Voltage protection level line-line at 1 kV/µs C3 (U_P )	≤ 48 V
Voltage protection level line-PG at 1 kV/µs C3 (U_P )	≤ 1000 V
Series resistance per line	1 ohm(s)
Cut-off frequency line-line (f_G )	3.5 MHz
Capacitance line-line (C)	≤ 2 nF
Capacitance line-PG (C)	≤ 15 pF
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Degree of protection (with plugged-in protection module)	IP 20
Plugs into	BCO Ex base part
Earthing via	BCO Ex base part
Enclosure material	polyamide PA 6.6
Colour	blue
Test standards	IEC 61643-21 / EN 61643-21
Approvals	ATEX, IECEx, CCC, SIL
SIL classification	up to SIL3 ^*)
ATEX approvals (1)	TÜV 19 ATEX 8476 X: II (1)2 G Ex ia [ia Ga] IIC T4 ... T6 Gb
ATEX approvals (2)	TÜV 19 ATEX 8476 X: II 2 G Ex ib IIC T4 ... T6 Gb
ATEX approvals (3)	TÜV 19 ATEX 8476 X: II (1) D [Ex ia Da] IIIC
IECEx approvals (1)	IECEx TUR 20.0025X: Ex ia [ia Ga] IIC T4 ... T6 Gb
IECEx approvals (2)	IECEx TUR 20.0025X: Ex ib IIC T4 ... T6 Gb
IECEx approvals (3)	IECEx TUR 20.0025X: [Ex ia Da] IIIC
China Compulsory Certification	CCC No. 2021312304001130 (Ex ia, Ex ib)
Extended technical data:	---------------------------------
– Max. discharge current (8/20 µs) [1/2 - PG], [1+2 - PG] (I_max )	20 kA
– Discharge current (8/20 µs) [1/2 - PG], [1+2 - PG]	10 kA (10x)
– Voltage protection level line-PG at 1 kV/μs C3 after being subjected to I_max (U_P )	≤ 1000 V
^*) For details, see: www.dehn-international.com

Artikel 927084 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 927084 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

BLITZDUCTORconnect – Modular

Details

BCO ML2 B 180

Art.-Nr. 927210 BCO ML2 B 180

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.stp herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.igs herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.jt herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.dwg herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_m_D_E.dxf herunterzuladen.

Sie müssen angemeldet sein um 9272XX_XD.ema herunterzuladen.

Sie müssen angemeldet sein um DEHN.927210.wspak herunterzuladen.

Artikel 927210 wurde zum Merkzettel hinzugefügt.

Artikel 927210 wurde zum Warenkorb hinzugefügt.

BCO ML2 BE

Art.-Nr. 927222 BCO ML2 BE 12

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.stp herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.igs herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.jt herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.dwg herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_m_D_E.dxf herunterzuladen.

Sie müssen angemeldet sein um 927224_eplan.zip herunterzuladen.

Sie müssen angemeldet sein um DEHN.927222.wspak herunterzuladen.

Artikel 927222 wurde zum Merkzettel hinzugefügt.

Artikel 927222 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 927224 BCO ML2 BE 24

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.stp herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.igs herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.jt herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.dwg herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_m_D_E.dxf herunterzuladen.

Sie müssen angemeldet sein um 927224_eplan.zip herunterzuladen.

Sie müssen angemeldet sein um 927224.ema herunterzuladen.

Artikel 927224 wurde zum Merkzettel hinzugefügt.

Artikel 927224 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 927225 BCO ML2 BE 48

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.stp herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.igs herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.jt herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.dwg herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_m_D_E.dxf herunterzuladen.

Sie müssen angemeldet sein um 927224_eplan.zip herunterzuladen.

Sie müssen angemeldet sein um DEHN.927225.wspak herunterzuladen.

Artikel 927225 wurde zum Merkzettel hinzugefügt.

Artikel 927225 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 927227 BCO ML2 BE 180

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.stp herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.igs herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.jt herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.dwg herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_m_D_E.dxf herunterzuladen.

Sie müssen angemeldet sein um DEHN.927227.edz herunterzuladen.

Artikel 927227 wurde zum Merkzettel hinzugefügt.

Artikel 927227 wurde zum Warenkorb hinzugefügt.

BCO ML2 BD

Art.-Nr. 927242 BCO ML2 BD 12

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.stp herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.igs herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.jt herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.dwg herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_m_D_E.dxf herunterzuladen.

Sie müssen angemeldet sein um 927244_eplan.zip herunterzuladen.

Sie müssen angemeldet sein um DEHN.927242.wspak herunterzuladen.

Artikel 927242 wurde zum Merkzettel hinzugefügt.

Artikel 927242 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 927244 BCO ML2 BD 24

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.stp herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.igs herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.jt herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.dwg herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_m_D_E.dxf herunterzuladen.

Sie müssen angemeldet sein um 927244_eplan.zip herunterzuladen.

Sie müssen angemeldet sein um DEHN.927244.wspak herunterzuladen.

Artikel 927244 wurde zum Merkzettel hinzugefügt.

Artikel 927244 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 927245 BCO ML2 BD 48

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.stp herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.igs herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.jt herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_gelb.dwg herunterzuladen.

Sie müssen angemeldet sein um 9272XX_BCO ML2 XXX_m_D_E.dxf herunterzuladen.
