Connection Elements for HVI long Conductor
:quality(98)/dehn.at/store/f/51764324/HDVORSCHAU/819294_16-9.jpg)
:quality(98)/dehn.at/store/f/51764324/HDVORSCHAU/819294_16-9.jpg)
Connection kit for HVI long Conductor Ø20 mm, installation inside the supporting tube
Connection elements for sealing the HVI long Conductor at both ends, for implementing the sealing end of the conductor in the supporting tube (head piece) and connection element for connecting other parts of the external lightning protection system or earth-termination system (incl. two heat-shrinkable sleeves).
These connection elements may be used with HVI long supporting tubes.
1 Produkt
Art.-Nr. 819145 HVI LO ASS RIV KF 20 V2A
GTIN 4013364152533, Zolltarifnr. (EU): 85359000, Bruttogewicht: 348.00 g, VPE: 1.00 pc(s)
:quality(98)/dehn.at/store/f/51764335/HDVORSCHAU/819145.jpg)
:quality(98)/dehn.at/store/f/51764335/HDVORSCHAU/819145.jpg)
:quality(98)/dehn.at/store/f/51764336/HDVORSCHAU/819145m_D.jpg)
:quality(98)/dehn.at/store/f/51764336/HDVORSCHAU/819145m_D.jpg)
Technische Daten
| Material | StSt |
| Connection | bolt Ø10 mm, L 50 mm |
| Diameter Ø connection element | 23 mm |
| Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8) |
Connection kit for HVI long Conductor Ø20 mm, installation outside the supporting tube
Connection elements for sealing the HVI long Conductor at both ends, for establishing the sealing end of the conductor outside the supporting tube (head piece for connection plate) and connection element for connecting to other parts of the external lightning protection system or earthing system (incl. two heat-shrinkable sleeves).
These connection elements may only be used for HVI long supporting tubes in combination with the fixing kit (Part No. 819 294).
1 Produkt
Art.-Nr. 819146 HVI LO ASS RAV KF 20 V2A
GTIN 4013364152540, Zolltarifnr. (EU): 85359000, Bruttogewicht: 380.00 g, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/dehn.at/store/f/51764348/HDVORSCHAU/819146.jpg)
:quality(98)/dehn.at/store/f/51764348/HDVORSCHAU/819146.jpg)
:quality(98)/dehn.at/store/f/51764349/HDVORSCHAU/819146m_D.jpg)
:quality(98)/dehn.at/store/f/51764349/HDVORSCHAU/819146m_D.jpg)
Technische Daten
| Material | StSt |
| Connection | bolt Ø10 mm, L 50 mm |
| Diameter Ø connection element | 23 mm |
| Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8) |
Connection element (head piece) for HVI long Conductor Ø20 mm, installation outside the supporting tube
Connection element for sealing the HVI long Conductor, for establishing the sealing end of the conductor on the outside of the supporting tube (head piece for connection plate), incl. one heat-shrinkable sleeve.
1 Produkt
Art.-Nr. 819197 AEA KO KF HVI 20 SW V2A
GTIN 4013364222236, Zolltarifnr. (EU): 85359000, Bruttogewicht: 195.98 g, VPE: 1.00 pc(s)
:quality(98)/dehn.at/store/f/51764359/HDVORSCHAU/819197.jpg)
:quality(98)/dehn.at/store/f/51764359/HDVORSCHAU/819197.jpg)
:quality(98)/dehn.at/store/f/51764360/HDVORSCHAU/819197m_D.jpg)
:quality(98)/dehn.at/store/f/51764360/HDVORSCHAU/819197m_D.jpg)
Technische Daten
| Material | StSt |
| Connection | M12 thread |
| Diameter Ø connection element | 23 mm |
| Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8) |
Art.-Nr. 819199 AE BO10 KF HVI 20 SW V2A
GTIN 4013364222274, Zolltarifnr. (EU): 85359000, Bruttogewicht: 196.00 g, VPE: 1.00 pc(s)
:quality(98)/dehn.at/store/f/51764370/HDVORSCHAU/819199.jpg)
:quality(98)/dehn.at/store/f/51764370/HDVORSCHAU/819199.jpg)
:quality(98)/dehn.at/store/f/51764371/HDVORSCHAU/819199m_D.jpg)
:quality(98)/dehn.at/store/f/51764371/HDVORSCHAU/819199m_D.jpg)
Technische Daten
| Material | StSt |
| Connection | bolt Ø10 mm, L 50 mm |
| Diameter Ø connection element | 23 mm |
| Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8) |
Connection kit for HVI long Conductor Ø23 mm, installation inside the supporting tube
Connection elements for sealing the HVI long Conductor at both ends for implementing the sealing end of the conductor inside of the supporting tube (head piece) and connection element for connecting to other parts of the external lightning protection or earth-termination system (incl. four heat shrinkable sleeves, 2x black, 2x grey).
These connection elements may be used with HVI long supporting tubes.
1 Produkt
Art.-Nr. 819147 HVI LO ASS RIV KF 23 V2A
GTIN 4013364152557, Zolltarifnr. (EU): 85359000, Bruttogewicht: 360.01 g, VPE: 1.00 pc(s)
:quality(98)/dehn.at/store/f/51764382/HDVORSCHAU/819147.jpg)
:quality(98)/dehn.at/store/f/51764382/HDVORSCHAU/819147.jpg)
:quality(98)/dehn.at/store/f/51764383/HDVORSCHAU/819147m_D.jpg)
:quality(98)/dehn.at/store/f/51764383/HDVORSCHAU/819147m_D.jpg)
Technische Daten
| Material | StSt |
| Connection | bolt Ø10 mm, L 50 mm |
| Diameter Ø connection element | 23 mm |
| Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8) |
Connection kit for HVI long Conductor Ø23 mm, installation outside the supporting tube
Connection elements for sealing the HVI long Conductor at both ends, for establishing the sealing end of the conductor outside the supporting tube (head piece for connection plate) and connection element for connecting to other parts of the external lightning protection system or earthing system (incl. four heat-shrinkable sleeves 2x black, 2x grey).
These connection elements may only be used with the fixing kit (Part No. 819 294) and with HVI supporting tubes.
1 Produkt
Art.-Nr. 819148 HVI LO ASS RAV KF 23 V2A
GTIN 4013364152564, Zolltarifnr. (EU): 85359000, Bruttogewicht: 388.00 g, VPE: 1.00 pc(s)
:quality(98)/dehn.at/store/f/51764393/HDVORSCHAU/819148.jpg)
:quality(98)/dehn.at/store/f/51764393/HDVORSCHAU/819148.jpg)
:quality(98)/dehn.at/store/f/51764394/HDVORSCHAU/819148m_D.jpg)
:quality(98)/dehn.at/store/f/51764394/HDVORSCHAU/819148m_D.jpg)
Technische Daten
| Material | StSt |
| Connection | bolt Ø10 mm, L 50 mm |
| Diameter Ø connection element | 23 mm |
| Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8) |
Connection element (head piece) for HVI long Conductor Ø23 mm, installation outside the supporting tube
Connection element for sealing the HVI long Conductor, for establishing the sealing end of the conductor on the outside of the supporting tube (head piece for connection plate, including two heat-shrinkable sleeves, 1x black, 1x grey).
1 Produkt
Art.-Nr. 819196 AEA KO KF HVI 23 GR V2A
GTIN 4013364222229, Zolltarifnr. (EU): 85359000, Bruttogewicht: 195.50 g, VPE: 1.00 pc(s)
:quality(98)/dehn.at/store/f/51764404/HDVORSCHAU/819196.jpg)
:quality(98)/dehn.at/store/f/51764404/HDVORSCHAU/819196.jpg)
:quality(98)/dehn.at/store/f/51764405/HDVORSCHAU/819196m_D.jpg)
:quality(98)/dehn.at/store/f/51764405/HDVORSCHAU/819196m_D.jpg)
Technische Daten
| Material | StSt |
| Connection | M12 thread |
| Diameter Ø connection element | 23 mm |
| Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8) |
Connection element for HVI long Conductor Ø23 mm
Connection element for sealing the HVI long Conductor for establishing the sealing end of the conductor for other parts of the external lightning protection or earth-termination system (including two heat-shrinkable sleeves, 1x black, 1x grey).
1 Produkt
Art.-Nr. 819198 AE BO10 KF HVI 23 GR V2A
GTIN 4013364222250, Zolltarifnr. (EU): 85359000, Bruttogewicht: 202.00 g, VPE: 1.00 pc(s)
:quality(98)/dehn.at/store/f/51764415/HDVORSCHAU/819198.jpg)
:quality(98)/dehn.at/store/f/51764415/HDVORSCHAU/819198.jpg)
:quality(98)/dehn.at/store/f/51764416/HDVORSCHAU/819198m_D.jpg)
:quality(98)/dehn.at/store/f/51764416/HDVORSCHAU/819198m_D.jpg)
Technische Daten
| Material | StSt |
| Connection | bolt Ø10 mm, L 50 mm |
| Diameter Ø connection element | 23 mm |
| Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8) |

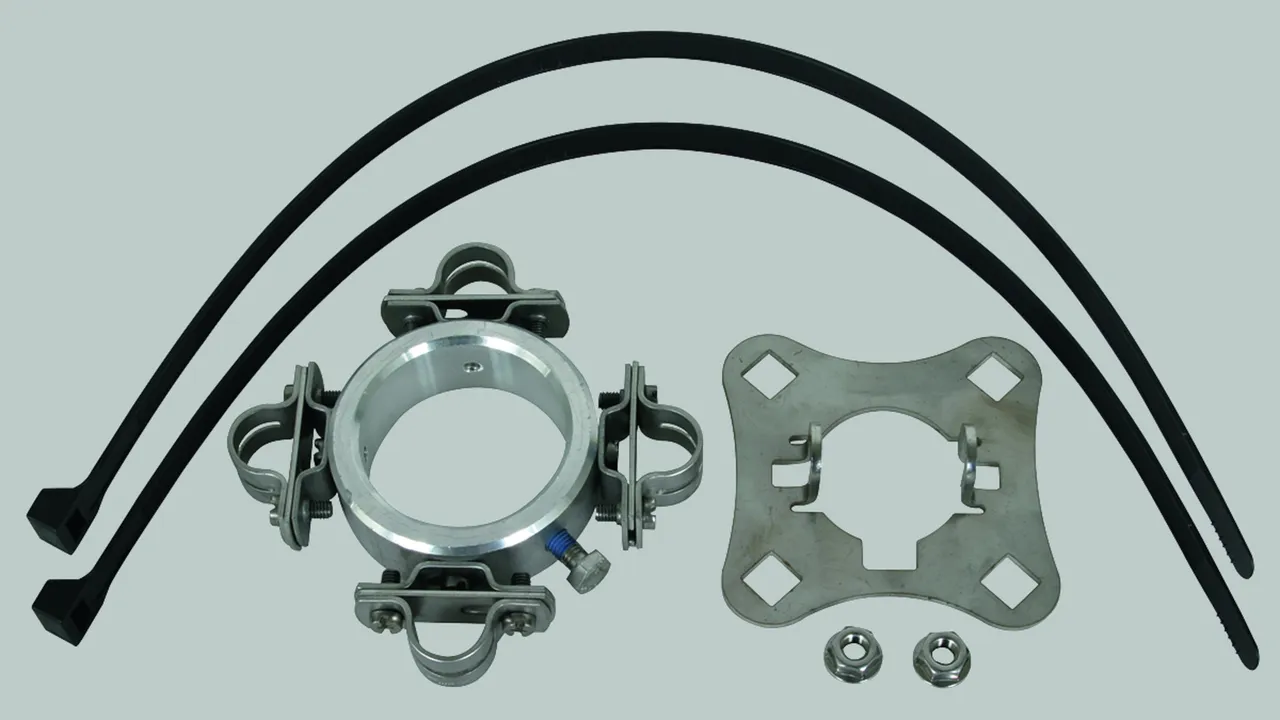

Fixing kit for HVI long Conductor black / grey
Fixing kit for installation of the HVI long Conductor on HVI long supporting tubes, consisting of a connection plate (4x, including two self-locking nuts with serrated bearings) and a fixing ring with four slotted conductor holders (Ø20 mm) for the sealing end (including two cable ties with plastic holder halves).
1 Produkt
Art.-Nr. 819294 BFS D61 4X20
GTIN 4013364152571, Zolltarifnr. (EU): 85389099, Bruttogewicht: 780.80 g, VPE: 1.00 pc(s)
:quality(98)/dehn.at/store/f/51764426/HDVORSCHAU/819294.jpg)
:quality(98)/dehn.at/store/f/51764426/HDVORSCHAU/819294.jpg)
:quality(98)/dehn.at/store/f/51764427/HDVORSCHAU/819294m_D.jpg)
:quality(98)/dehn.at/store/f/51764427/HDVORSCHAU/819294m_D.jpg)
Technische Daten
| Material | StSt / Al |
| Connection plate support | square hole 13 mm |
| Conductor holder | 4 x 20 mm |
| Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8) |
Art.-Nr. 410229 PAE 20 23 AB11 V2A
GTIN 4013364107731, Zolltarifnr. (EU): 85359000, Bruttogewicht: 72.00 g, VPE: 1.00 pc(s)
:quality(98)/dehn.at/store/f/51764452/HDVORSCHAU/410229.jpg)
:quality(98)/dehn.at/store/f/51764452/HDVORSCHAU/410229.jpg)
:quality(98)/dehn.at/store/f/51764453/HDVORSCHAU/410229m_D.jpg)
:quality(98)/dehn.at/store/f/51764453/HDVORSCHAU/410229m_D.jpg)
Technische Daten
| Material | StSt |
| Clamping range Ø | 20 mm |
| Connection hole Ø | 11 mm |
| Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8) |
Art.-Nr. 819288 AP SR D50 4AE HVI V2A
GTIN 4013364236479, Zolltarifnr. (EU): 85389099, Bruttogewicht: 176.00 g, VPE: 1.00 pc(s)
Vorgänger:quality(98)/dehn.at/store/f/51764466/HDVORSCHAU/819288.jpg)
:quality(98)/dehn.at/store/f/51764466/HDVORSCHAU/819288.jpg)
:quality(98)/dehn.at/store/f/51764467/HDVORSCHAU/819288m_D.jpg)
:quality(98)/dehn.at/store/f/51764467/HDVORSCHAU/819288m_D.jpg)
Technische Daten
| Material | StSt |
| Connection plate support | square hole 13 |
| Standard | DIN IEC/TS 62561-8 (VDE V 0185-561-8) |
Art.-Nr. 819235 SCHIRM HVI SCH RED
GTIN 4013364477216, Zolltarifnr. (EU): 85389099, Bruttogewicht: 109.60 g, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/dehn.at/store/f/51764472/HDVORSCHAU/819235.jpg)
:quality(98)/dehn.at/store/f/51764472/HDVORSCHAU/819235.jpg)
Zertifikate
Technische Daten
| Material | Plastic |
| Can be used for | HVI long black and HVI long grey |
| conductor diameter Ø | 20 / 23 mm |
