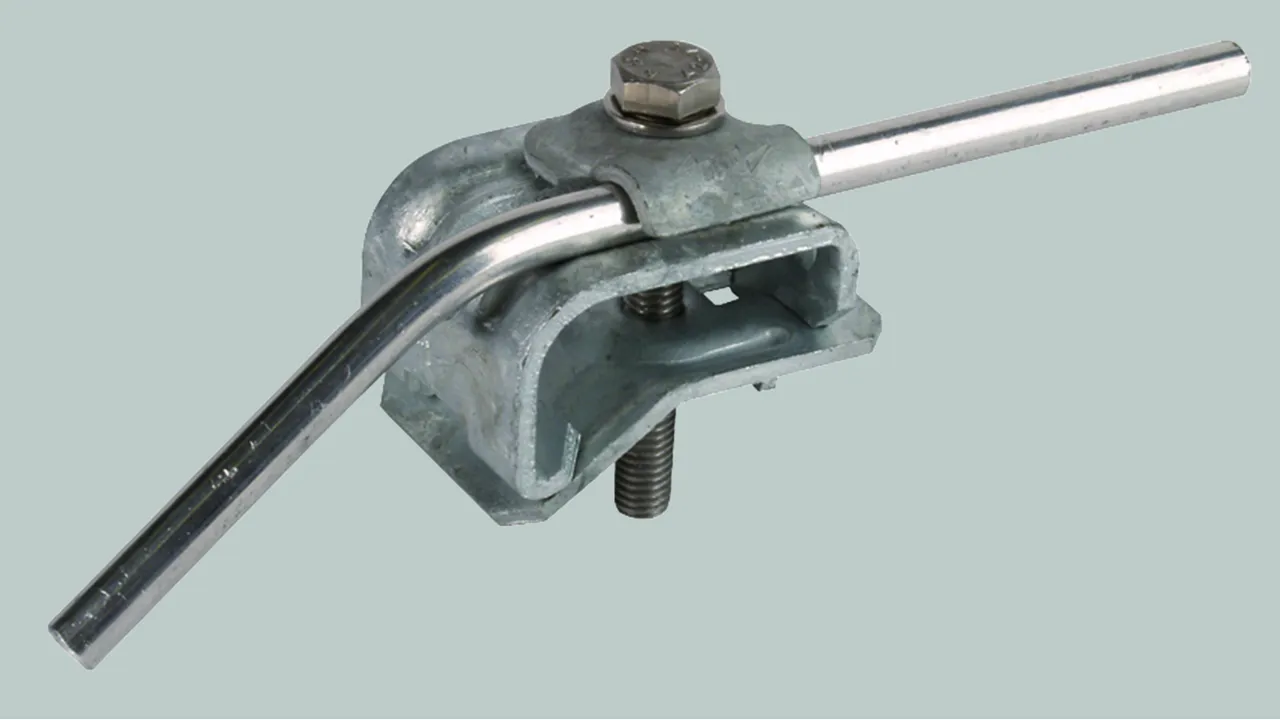

Gutter Clamps with Single-screw Technique
:quality(98)/dehn.at/store/f/50293400/HDVORSCHAU/339100_16-9.jpg)
:quality(98)/dehn.at/store/f/50293400/HDVORSCHAU/339100_16-9.jpg)
Art.-Nr. 339100 DRK KB 8.10 W16.22 EST STTZN
GTIN 4013364092068, Zolltarifnr. (EU): 85359000, Bruttogewicht: 184.80 g, VPE: 25.00 pc(s)
:quality(98)/dehn.at/store/f/50293412/HDVORSCHAU/339100.jpg)
:quality(98)/dehn.at/store/f/50293412/HDVORSCHAU/339100.jpg)
:quality(98)/dehn.at/store/f/50293413/HDVORSCHAU/339100m_D.jpg)
:quality(98)/dehn.at/store/f/50293413/HDVORSCHAU/339100m_D.jpg)
Technische Daten
| Clamping range bead | 16-22 mm |
| Material of clamp | St/tZn |
| Clamping range Rd | 8-10 mm |
| Width | 40 mm |
| Standard | EN 62561-1 |
| *) See test certificate for exact classification. | |
Art.-Nr. 339101 DRK KB 8.10 W16.22 EST AL
GTIN 4013364092082, Zolltarifnr. (EU): 85359000, Bruttogewicht: 88.80 g, VPE: 1.00 pc(s)
:quality(98)/dehn.at/store/f/50293423/HDVORSCHAU/339101.jpg)
:quality(98)/dehn.at/store/f/50293423/HDVORSCHAU/339101.jpg)
:quality(98)/dehn.at/store/f/50293424/HDVORSCHAU/339100m_D.jpg)
:quality(98)/dehn.at/store/f/50293424/HDVORSCHAU/339100m_D.jpg)
Technische Daten
| Clamping range bead | 16-22 mm |
| Material of clamp | Al |
| Clamping range Rd | 8-10 mm |
| Width | 40 mm |
| Standard | EN 62561-1 |
| *) See test certificate for exact classification. | |
Art.-Nr. 339110 DRK DUL 8.10 W16.22 EST STTZN
GTIN 4013364092105, Zolltarifnr. (EU): 85359000, Bruttogewicht: 180.80 g, VPE: 25.00 pc(s)
:quality(98)/dehn.at/store/f/50293436/HDVORSCHAU/339110.jpg)
:quality(98)/dehn.at/store/f/50293436/HDVORSCHAU/339110.jpg)
:quality(98)/dehn.at/store/f/50293437/HDVORSCHAU/339100m_D.jpg)
:quality(98)/dehn.at/store/f/50293437/HDVORSCHAU/339100m_D.jpg)
Technische Daten
| Clamping range bead | 16-22 mm |
| Material of clamp | St/tZn |
| Clamping range Rd | 8-10 mm |
| Width | 40 mm |
| Standard | EN 62561-1 |
| *) See test certificate for exact classification. | |
Art.-Nr. 339111 DRK DUL 8.10 W16.22 EST AL
GTIN 4013364092129, Zolltarifnr. (EU): 85359000, Bruttogewicht: 96.80 g, VPE: 25.00 pc(s)
:quality(98)/dehn.at/store/f/50293447/HDVORSCHAU/339111.jpg)
:quality(98)/dehn.at/store/f/50293447/HDVORSCHAU/339111.jpg)
:quality(98)/dehn.at/store/f/50293448/HDVORSCHAU/339110m_D.jpg)
:quality(98)/dehn.at/store/f/50293448/HDVORSCHAU/339110m_D.jpg)
Technische Daten
| Clamping range bead | 16-22 mm |
| Material of clamp | Al |
| Clamping range Rd | 8-10 mm |
| Width | 40 mm |
| Standard | EN 62561-1 |
| *) See test certificate for exact classification. | |
