Bridging Brackets
:quality(98)/dehn.at/store/f/50287379/HDVORSCHAU/377006a2_16-9.jpg)
:quality(98)/dehn.at/store/f/50287379/HDVORSCHAU/377006a2_16-9.jpg)
Application note:

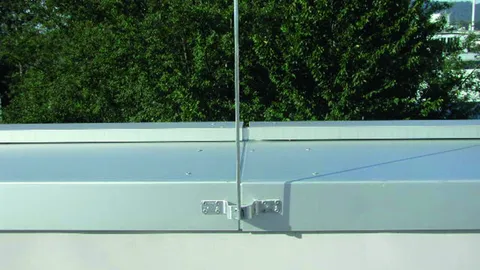

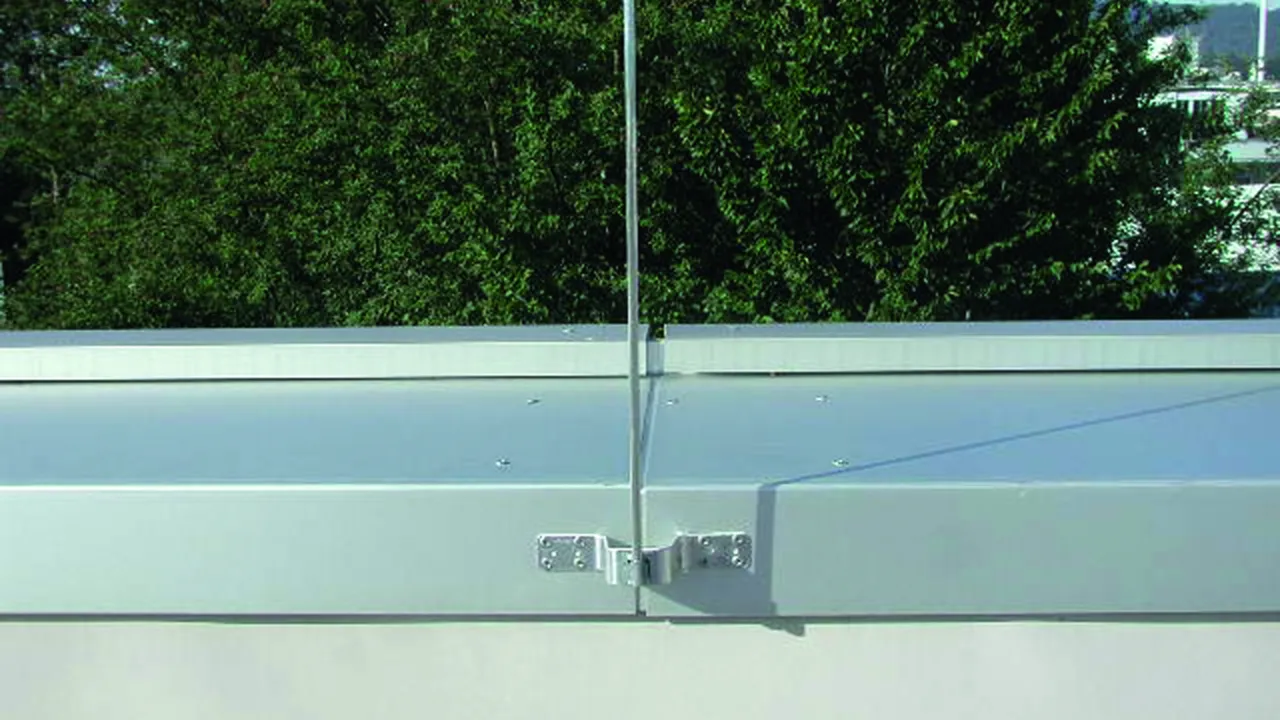

According to DIN EN 62305-3 Suppl. 1, four rivets Ø5 mm shall be used to connect material of ≥ 0.5 mm thickness, or two StSt self-tapping screws Ø6.3 mm (one on each side) for material of ≥ 2 mm thickness.
Art.-Nr. 377006 UEBL L170 B11 B5.2 6.5 AL
GTIN 4013364024922, Zolltarifnr. (EU): 85359000, Bruttogewicht: 39.30 g, VPE: 50.00 pc(s)
:quality(98)/dehn.at/store/f/50287392/HDVORSCHAU/377006.jpg)
:quality(98)/dehn.at/store/f/50287392/HDVORSCHAU/377006.jpg)
:quality(98)/dehn.at/store/f/50287393/HDVORSCHAU/377006m_D.jpg)
:quality(98)/dehn.at/store/f/50287393/HDVORSCHAU/377006m_D.jpg)
Technische Daten
| Material | Al |
| Dimensions | 30 x 2 mm |
| Length | 170 mm |
| Fixing | [8x] Ø5.2 / [4x] Ø6.5 mm |
| Middle hole | Ø11 mm |
| Standard | EN 62561-1 |
| *) For exact assignment, see test certificate. | |
Art.-Nr. 377027 UEBL L170 B11 B5.2 6.5 CU
GTIN 4013364034204, Zolltarifnr. (EU): 85359000, Bruttogewicht: 114.30 g, VPE: 50.00 pc(s)
:quality(98)/dehn.at/store/f/50287403/HDVORSCHAU/377027.jpg)
:quality(98)/dehn.at/store/f/50287403/HDVORSCHAU/377027.jpg)
:quality(98)/dehn.at/store/f/50287404/HDVORSCHAU/377006m_D.jpg)
:quality(98)/dehn.at/store/f/50287404/HDVORSCHAU/377006m_D.jpg)
Technische Daten
| Material | Cu |
| Dimensions | 28 x 2 mm |
| Length | 170 mm |
| Fixing | [8x] Ø5.2 / [4x] Ø6.5 mm |
| Middle hole | Ø11 mm |
| Standard | EN 62561-1 |
| *) For exact assignment, see test certificate. | |
Art.-Nr. 377016 UEBL L170 B5.2 6.5 AL
GTIN 4013364083417, Zolltarifnr. (EU): 85359000, Bruttogewicht: 38.30 g, VPE: 50.00 pc(s)
:quality(98)/dehn.at/store/f/50287416/HDVORSCHAU/377016.jpg)
:quality(98)/dehn.at/store/f/50287416/HDVORSCHAU/377016.jpg)
:quality(98)/dehn.at/store/f/50287417/HDVORSCHAU/377016m_D.jpg)
:quality(98)/dehn.at/store/f/50287417/HDVORSCHAU/377016m_D.jpg)
Technische Daten
| Material | Al |
| Dimensions | 30 x 2 mm |
| Length | 170 mm |
| Fixing | [8x] Ø5.2 / [4x] Ø6.5 mm |
| Standard | EN 62561-1 |
| *) For exact assignment, see test certificate. | |
Art.-Nr. 377026 UEBL L220 B11 B5.2 6.5 AL
GTIN 4013364068582, Zolltarifnr. (EU): 85359000, Bruttogewicht: 48.02 g, VPE: 50.00 pc(s)
:quality(98)/dehn.at/store/f/50287429/HDVORSCHAU/377026.jpg)
:quality(98)/dehn.at/store/f/50287429/HDVORSCHAU/377026.jpg)
:quality(98)/dehn.at/store/f/50287430/HDVORSCHAU/377026m_D.jpg)
:quality(98)/dehn.at/store/f/50287430/HDVORSCHAU/377026m_D.jpg)
Technische Daten
| Material | Al |
| Dimensions | 30 x 2 mm |
| Length | 220 mm |
| Fixing | [8x] Ø5.2 / [4x] Ø6.5 mm |
| Middle hole | Ø11 mm |
| Standard | EN 62561-1 |
| *) For exact assignment, see test certificate. | |
