Bridging Braids
:quality(98)/dehn.at/store/f/51101811/HDVORSCHAU/377015a1_16-9.jpg)
:quality(98)/dehn.at/store/f/51101811/HDVORSCHAU/377015a1_16-9.jpg)

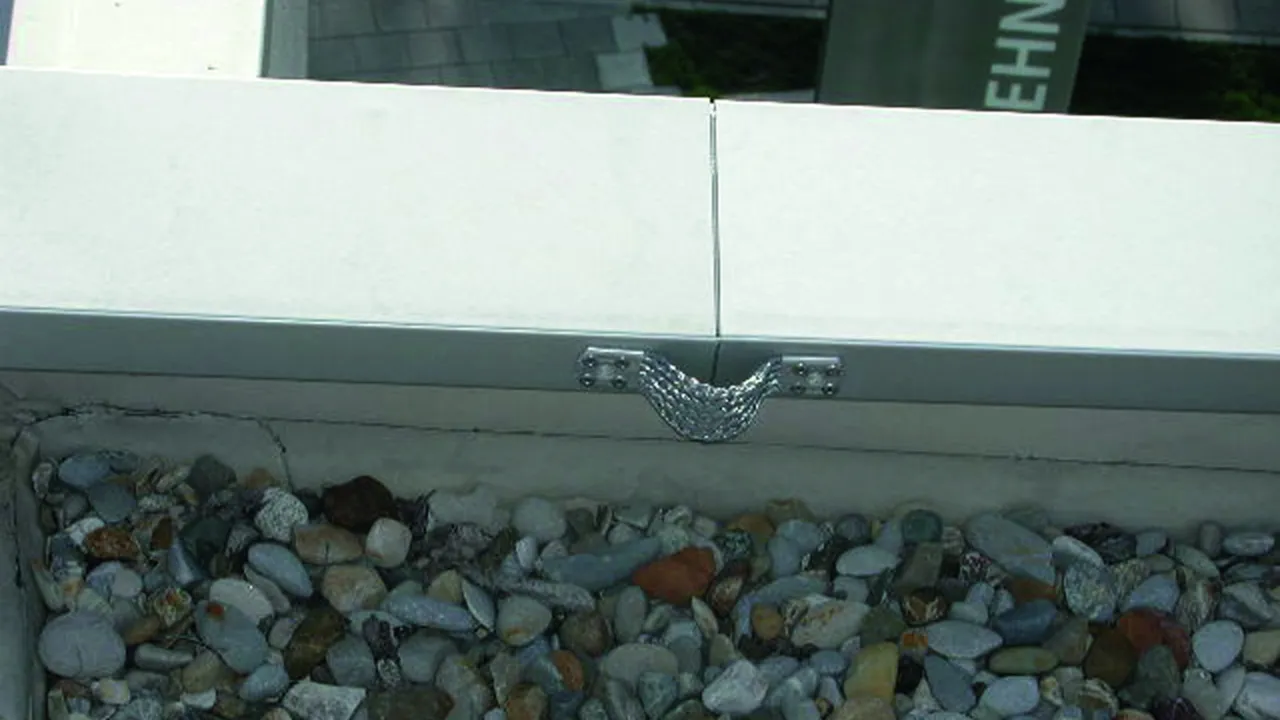

Application note:
According to DIN EN 62305-3 Suppl. 1, four rivets Ø5 mm shall be used to connect material of ≥ 0.5 mm thickness, or two StSt tapping screws Ø6.3 mm (one on each side) for material of ≥ 2 mm thickness.
Art.-Nr. 377015 UEBB L180 B10.5 B5.2 AL
GTIN 4013364092693, Zolltarifnr. (EU): 85359000, Bruttogewicht: 36.00 g, VPE: 10.00 pc(s)
:quality(98)/dehn.at/store/f/51101824/HDVORSCHAU/377015.jpg)
:quality(98)/dehn.at/store/f/51101824/HDVORSCHAU/377015.jpg)
:quality(98)/dehn.at/store/f/51101825/HDVORSCHAU/377015m_D.jpg)
:quality(98)/dehn.at/store/f/51101825/HDVORSCHAU/377015m_D.jpg)
Technische Daten
| Material | Al |
| Length (lG ) | 180 mm |
| Cross-section | 50 mm2 |
| Fixing | [8x] Ø5.2 / [2x] Ø10.5 mm |
| Fixing possibility | blind rivets / screws |
| Standard | EN 62561-1 |
| *) For exact assignment, see test certificate. | |
Art.-Nr. 377007 UEBB L180 B10.5 B5.2 CU
GTIN 4013364092686, Zolltarifnr. (EU): 85359000, Bruttogewicht: 107.00 g, VPE: 10.00 pc(s)
:quality(98)/dehn.at/store/f/51101835/HDVORSCHAU/377007.jpg)
:quality(98)/dehn.at/store/f/51101835/HDVORSCHAU/377007.jpg)
:quality(98)/dehn.at/store/f/51101836/HDVORSCHAU/377007m_D.jpg)
:quality(98)/dehn.at/store/f/51101836/HDVORSCHAU/377007m_D.jpg)
Technische Daten
| Material | Cu |
| Length (lG ) | 180 mm |
| Cross-section | 50 mm2 |
| Fixing | [8x] Ø5.2 / [2x] Ø10.5 mm |
| Fixing possibility | blind rivets / screws |
| Standard | EN 62561-1 |
| *) For exact assignment, see test certificate. | |
Art.-Nr. 377045 UEBB L180 B10.5 B6.5 AL
GTIN 4013364099296, Zolltarifnr. (EU): 85359000, Bruttogewicht: 37.05 g, VPE: 100.00 pc(s)
:quality(98)/dehn.at/store/f/51101848/HDVORSCHAU/377045.jpg)
:quality(98)/dehn.at/store/f/51101848/HDVORSCHAU/377045.jpg)
:quality(98)/dehn.at/store/f/51101849/HDVORSCHAU/377045m_D.jpg)
:quality(98)/dehn.at/store/f/51101849/HDVORSCHAU/377045m_D.jpg)
Technische Daten
| Material | Al |
| Length (lG ) | 180 mm |
| Cross-section | 50 mm2 |
| Fixing | [4x] Ø6.5 / [2x] Ø10.5 mm |
| Fixing possibility | drilling screws / screws |
| Standard | EN 62561-1 |
| *) For exact assignment, see test certificate. | |
Art.-Nr. 377115 UEBB L300 3XB10.5 B5,2 AL
GTIN 4013364092716, Zolltarifnr. (EU): 85359000, Bruttogewicht: 59.00 g, VPE: 10.00 pc(s)
Vorgänger:quality(98)/dehn.at/store/f/51101863/HDVORSCHAU/377115.jpg)
:quality(98)/dehn.at/store/f/51101863/HDVORSCHAU/377115.jpg)
:quality(98)/dehn.at/store/f/51101864/HDVORSCHAU/377115m_D.jpg)
:quality(98)/dehn.at/store/f/51101864/HDVORSCHAU/377115m_D.jpg)
Technische Daten
| Material | Al |
| Length (lG ) | 300 mm |
| Cross-section | 50 mm2 |
| Fixing | [8x] Ø5.2 / [3x] Ø10.5 mm |
| Central hole Ø | 10.5 mm |
| Fixing possibility | blind rivets / screws |
| Standard | EN 62561-1 |
| *) For exact assignment, see test certificate. | |
Art.-Nr. 377107 UEBB L300 3XB10.5 B5.2 CU
GTIN 4013364092709, Zolltarifnr. (EU): 85359000, Bruttogewicht: 172.00 g, VPE: 10.00 pc(s)
:quality(98)/dehn.at/store/f/51101874/HDVORSCHAU/377107.jpg)
:quality(98)/dehn.at/store/f/51101874/HDVORSCHAU/377107.jpg)
:quality(98)/dehn.at/store/f/51101875/HDVORSCHAU/377115m_D.jpg)
:quality(98)/dehn.at/store/f/51101875/HDVORSCHAU/377115m_D.jpg)
Technische Daten
| Material | Cu |
| Length (lG ) | 300 mm |
| Cross-section | 50 mm2 |
| Fixing | [8x] Ø5.2 / [3x] Ø10.5 mm |
| Central hole Ø | 10.5 mm |
| Fixing possibility | blind rivets / screws |
| Standard | EN 62561-1 |
| *) For exact assignment, see test certificate. | |
