Connection Clamps with Threaded Bolt
:quality(98)/dehn.at/store/f/50303593/HDVORSCHAU/478141a1_16-9.jpg)
:quality(98)/dehn.at/store/f/50303593/HDVORSCHAU/478141a1_16-9.jpg)

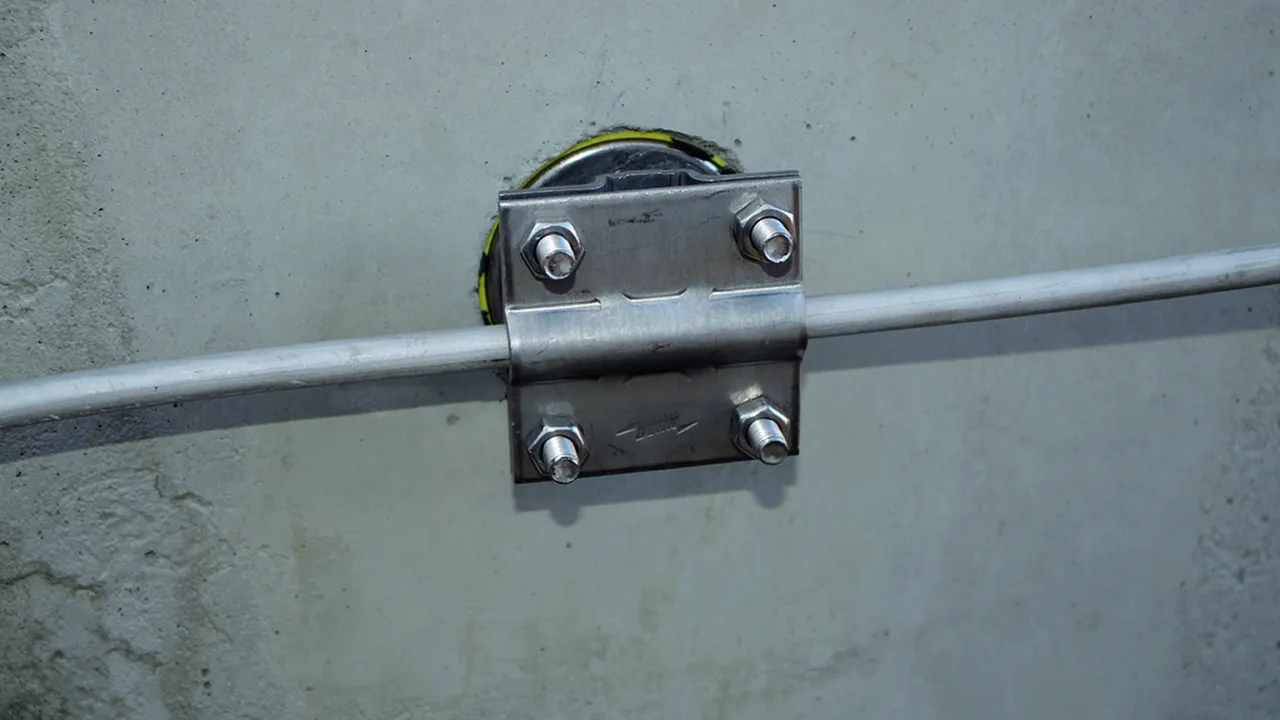

Clamps with M10 thread are also suitable for installation on the rear side of the fixed earthing terminal (without connecting shaft), e.g. to connect a flat strip.
Art.-Nr. 478141 AK 7.10 FL40 GBM10X45 STTZN
GTIN 4013364101425, Zolltarifnr. (EU): 85359000, Bruttogewicht: 348.00 g, VPE: 10.00 pc(s)
:quality(98)/dehn.at/store/f/50303606/HDVORSCHAU/478141.jpg)
:quality(98)/dehn.at/store/f/50303606/HDVORSCHAU/478141.jpg)
:quality(98)/dehn.at/store/f/50303607/HDVORSCHAU/478141m_D.jpg)
:quality(98)/dehn.at/store/f/50303607/HDVORSCHAU/478141m_D.jpg)
Technische Daten
| Material of clamp | St/tZn |
| Clamping range Rd / Fl | 7-10 / 30-40 mm |
| Clamping range (stranded / cable) | 35-95 mm2 |
| Dimensions | 70 x 70 x 3 mm |
| Standard | EN 62561-1 |
| *) For exact assignment see test certificate. | |
Art.-Nr. 478149 AK 7.10 FL40 GBM12X55 V4A
GTIN 4013364154964, Zolltarifnr. (EU): 85359000, Bruttogewicht: 400.50 g, VPE: 10.00 pc(s)
:quality(98)/dehn.at/store/f/50303619/HDVORSCHAU/478149.jpg)
:quality(98)/dehn.at/store/f/50303619/HDVORSCHAU/478149.jpg)
:quality(98)/dehn.at/store/f/50303620/HDVORSCHAU/478149m_D.jpg)
:quality(98)/dehn.at/store/f/50303620/HDVORSCHAU/478149m_D.jpg)
Technische Daten
| Material of clamp | StSt (V4A) |
| Clamping range Rd / Fl | 7-10 / 30-40 mm |
| Dimensions | 70 x 70 x 3 mm |
| Standard | EN 62561-1 |
| Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 3.3 kA |
| *) For exact assignment see test certificate. | |
Art.-Nr. 478150 AK 7.10 FL40 GBM16X65 V4A
GTIN 4013364359512, Zolltarifnr. (EU): 85359000, Bruttogewicht: 472.60 g, VPE: 10.00 pc(s)
:quality(98)/dehn.at/store/f/50303632/HDVORSCHAU/478150.jpg)
:quality(98)/dehn.at/store/f/50303632/HDVORSCHAU/478150.jpg)
:quality(98)/dehn.at/store/f/50303633/HDVORSCHAU/478150m_D.jpg)
:quality(98)/dehn.at/store/f/50303633/HDVORSCHAU/478150m_D.jpg)
Technische Daten
| Material of clamp | StSt (V4A) |
| Clamping range Rd / Fl | 7-10 / 30-40 mm |
| Clamping range (stranded / cable) | 35-95 mm2 |
| Dimensions | 70 x 70 x 3 mm |
| Standard | EN 62561-1 |
| Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 5.9 kA |
| *) For exact assignment see test certificate. | |
Art.-Nr. 478129 AK ZS 8.10 FL30 GBM10X60 V4A
GTIN 4013364118508, Zolltarifnr. (EU): 85359000, Bruttogewicht: 148.00 g, VPE: 10.00 pc(s)
:quality(98)/dehn.at/store/f/50303645/HDVORSCHAU/478129.jpg)
:quality(98)/dehn.at/store/f/50303645/HDVORSCHAU/478129.jpg)
:quality(98)/dehn.at/store/f/50303646/HDVORSCHAU/478129m_D.jpg)
:quality(98)/dehn.at/store/f/50303646/HDVORSCHAU/478129m_D.jpg)
Technische Daten
| Material of clamp | StSt (V4A) |
| Clamping range Rd / Fl | 8-10 / 30 mm |
| Clamping range (stranded / cable) | 35-95 mm2 |
| Dimensions | 58 x 30 x 2.5 mm |
| Standard | EN 62561-1 |
| Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 2.7 kA |
| *) For exact assignment see test certificate. | |
