Earthing system for railways

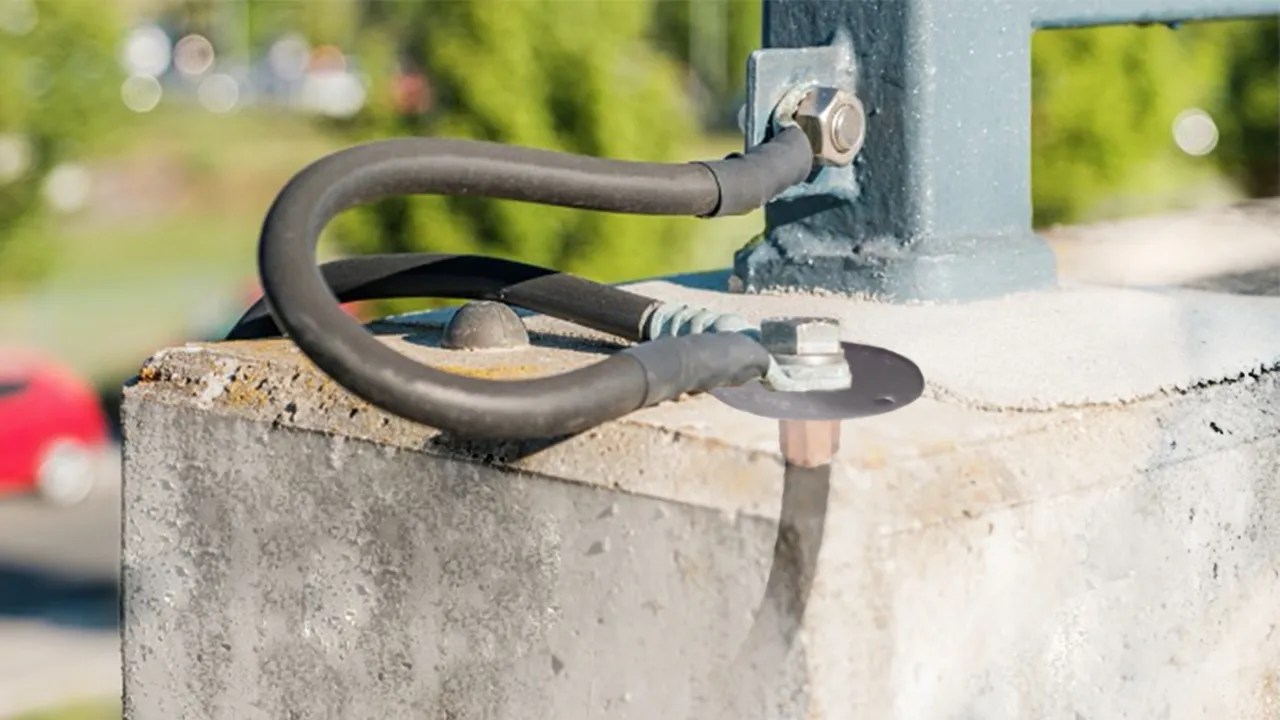

Our DEHN railway earthing system has proven itself in traffic engineering as it was specifically developed for earthing the reinforcement of concrete parts in the vicinity of high-voltage electrical installations. It is used for the equipotential bonding of concrete structures and to conduct short-circuit currents if the contact wire breaks.
For this purpose, DEHN offers the user a range of earthing bridges and earthing connectors which, due to variable end caps and connection elements, make up a comprehensive modular system with various possible combinations. Our DEHN railway earthing systems are approved by DB Netz AG.

Stainless steel earthing bridges

The earthing bridges are designed for earthing, current return circuits and equipotential bonding in railway line applications. The stainless steel earthing bridge ensures this via a defined welding seam to the earthing conductor. This earthing bridge also has a technical approval from DB Netz AG and can be reliably used in planning.

3 Produkte

Art.-Nr. 419000 D BEB 0 - 63 / EBS 15-03-19

GTIN 4013364439412, Zolltarifnr. (EU): 85369010, Bruttogewicht: 840.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Stainless steel earthing bridge D BEB 0 - 63 / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of connection element: StSt
Material No.: 1.4301
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Thread: M16
Diameter of connection plate: 50 mm
Total height : 63 mm
Installation height: 55 mm
DB drawing No.: 3 Ebs 15.03.19 - 37

Brand: DEHN
Type: D BEB 0 - 63 / EBS 15-03-19
Part No.: 419000
or equivalent.

Technische Daten

Material of connection element	StSt
Material No.	1.4301
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Total height	63 mm
Installation height	55 mm
DB drawing No.	3 Ebs 15.03.19 - 37

Material of connection element	StSt
Material No.	1.4301
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Total height	63 mm
Installation height	55 mm
DB drawing No.	3 Ebs 15.03.19 - 37

Artikel 419000 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419000 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419001 D BEB 0 - 70 / EBS 15-03-19

GTIN 4013364439429, Zolltarifnr. (EU): 85369010, Bruttogewicht: 950.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Stainless steel earthing bridge D BEB 0 - 70 / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of connection element: StSt
Material No.: 1.4301
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Thread: M16
Diameter of connection plate: 50 mm
Total height : 70 mm
Installation height: 62 mm
DB drawing No.: 3 Ebs 15.03.19 - 37

Brand: DEHN
Type: D BEB 0 - 70 / EBS 15-03-19
Part No.: 419001
or equivalent.

Technische Daten

Material of connection element	StSt
Material No.	1.4301
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Total height	70 mm
Installation height	62 mm
DB drawing No.	3 Ebs 15.03.19 - 37

Material of connection element	StSt
Material No.	1.4301
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Total height	70 mm
Installation height	62 mm
DB drawing No.	3 Ebs 15.03.19 - 37

Artikel 419001 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419001 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419002 D BEB 0 - 77 / EBS 15-03-19

GTIN 4013364439436, Zolltarifnr. (EU): 85369010, Bruttogewicht: 1.05 kg, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Stainless steel earthing bridge D BEB 0 - 77 / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of connection element: StSt
Material No.: 1.4301
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Thread: M16
Diameter of connection plate: 50 mm
Total height : 77 mm
Installation height: 69 mm
DB drawing No.: 3 Ebs 15.03.19 - 37

Brand: DEHN
Type: D BEB 0 - 77 / EBS 15-03-19
Part No.: 419002
or equivalent.

Technische Daten

Material of connection element	StSt
Material No.	1.4301
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Total height	77 mm
Installation height	69 mm
DB drawing No.	3 Ebs 15.03.19 - 37

Material of connection element	StSt
Material No.	1.4301
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Total height	77 mm
Installation height	69 mm
DB drawing No.	3 Ebs 15.03.19 - 37

Artikel 419002 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419002 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Stainless steel earthing bridges D BEB 16

The earthing bridges are designed for earthing, return circuits and equipotential bonding in railway line applications. The stainless steel earthing bridge ensures this via a defined welding seam to the earthing conductor. This earthing bridge also has the technical approval of DB Netz AG and can be used there without hesitation in planning.

1 Produkt

Art.-Nr. 419160 D BEB 16 - 105 / 3 EBS 15-03-19-38

GTIN 4013364510203, Zolltarifnr. (EU): 85369010, Bruttogewicht: 697.72 g, VPE: 8.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

CAD-Daten

Stainless steel earthing bridge D BEB 16 - 105 / 3 EBS 15-03-19-38
Stainless steel earthing bridge
D BEB 16 - 105 / 3 EBS 15-03-19-38
for earthing the
reinforcement of
concrete parts with
the approval of
DB Netz AG
Material of connection element: StSt
Material No.: 1.4301
Angle material: St
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Thread: M16
Diameter of connection plate: 40 mm
Angle dimensions: 50 x 50 x 5 mm
Total height : 105 mm
DB drawing No.: 3 Ebs 15.03.19 - 38

Brand: DEHN
Type: D BEB 16 - 105 / 3 EBS 15-03-19-38
Part No.: 419160
or equivalent.

Technische Daten

Material of connection element	StSt
Material No.	1.4301
Angle material	St
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	40 mm
Angle dimensions (l x w x d)	50 x 50 x 5 mm
Total height	105 mm
DB drawing No.	3 Ebs 15.03.19 - 38

Material of connection element	StSt
Material No.	1.4301
Angle material	St
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	40 mm
Angle dimensions (l x w x d)	50 x 50 x 5 mm
Total height	105 mm
DB drawing No.	3 Ebs 15.03.19 - 38

Artikel 419160 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419160 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Flat steel earthing bridges D BEB 1

The earthing bridges are designed for earthing, current return circuits and equipotential bonding in railway line applications. This version is installed flush with the surface and the flat steel is welded to the earthing reinforcement via a defined welding seam. This earthing bridge also has a technical approval from DB Netz AG and can therefore be reliably used in planning.

2 Produkte

Art.-Nr. 419010 D BEB 1 / EBS 15-03-19

GTIN 4013364439443, Zolltarifnr. (EU): 85369010, Bruttogewicht: 760.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Flat steel earthing bridge D BEB 1 / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of plate: StSt
Material No.: 1.4301
Material of socket: St / Cu
Material of flat steel: S235
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Thread: M16
Diameter of connection plate: 50 mm
Dimensions of flat steel: 400 x 40 x 5 mm
Total height : 58 mm
DB drawing No.: 3 Ebs 15.03.19 - 30

Brand: DEHN
Type: D BEB 1 / EBS 15-03-19
Part No.: 419010
or equivalent.

Technische Daten

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of flat steel	S235
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Dimensions of flat steel	400 x 40 x 5 mm
Total height	58 mm
DB drawing No.	3 Ebs 15.03.19 - 30

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of flat steel	S235
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Dimensions of flat steel	400 x 40 x 5 mm
Total height	58 mm
DB drawing No.	3 Ebs 15.03.19 - 30

Artikel 419010 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419010 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419500 D BEB 1 - L100 / EBS 15-03-19

GTIN 4013364458383, Zolltarifnr. (EU): 85369010, Bruttogewicht: 205.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Flat steel earthing bridge D BEB 1 / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of plate: StSt
Material No.: 1.4301
Material of socket: St / Cu
Material of flat steel: S235
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Thread: M16
Diameter of connection plate: 50 mm
Dimensions of flat steel: 100 x 40 x 5 mm
Total height : 58 mm
DB drawing No.: 3 Ebs 15.03.19 - 30

Brand: DEHN
Type: D BEB 1 - L100 / EBS 15-03-19
Part No.: 419500
or equivalent.

Technische Daten

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of flat steel	S235
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Dimensions of flat steel	100 x 40 x 5 mm
Total height	58 mm
DB drawing No.	3 Ebs 15.03.19 - 30

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of flat steel	S235
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Dimensions of flat steel	100 x 40 x 5 mm
Total height	58 mm
DB drawing No.	3 Ebs 15.03.19 - 30

Artikel 419500 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419500 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Flat steel earthing bridges D BEB 1-L

1 Produkt

Art.-Nr. 419011 D BEB 1-L / EBS 15-03-19

GTIN 4013364439450, Zolltarifnr. (EU): 85369010, Bruttogewicht: 740.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Flat steel earthing bridge D BEB 1-L / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of plate: StSt
Material No.: 1.4301
Material of socket: St / Cu
Material of flat steel: S235
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Thread: M16
Diameter of connection plate: 50 mm
Dimensions of flat steel: 402 x 40 x 5 mm
Total height : 58 mm
Installation height: 410 mm
DB drawing No.: 3 Ebs 15.03.19 - 30

Brand: DEHN
Type: D BEB 1-L / EBS 15-03-19
Part No.: 419011
or equivalent.

Technische Daten

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of flat steel	S235
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Dimensions of flat steel	402 x 40 x 5 mm
Total height	58 mm
Installation height	410 mm
DB drawing No.	3 Ebs 15.03.19 - 30

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of flat steel	S235
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Dimensions of flat steel	402 x 40 x 5 mm
Total height	58 mm
Installation height	410 mm
DB drawing No.	3 Ebs 15.03.19 - 30

Artikel 419011 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419011 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Flat steel earthing bridges D BEB 1-NR

1 Produkt

Art.-Nr. 419012 D BEB 1-NR / EBS 15-03-19

GTIN 4013364439467, Zolltarifnr. (EU): 85369010, Bruttogewicht: 1.46 kg, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Flat steel earthing bridge D BEB 1-NR / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of connection element: StSt
Material No.: 1.4301
Material of flat steel: S235
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Thread: M16
Diameter of connection plate: 50 mm
Dimensions of flat steel: 400 x 50 x 5 mm
Total height : 63 mm
DB drawing No.: 3 Ebs 15.03.19 - 36

Brand: DEHN
Type: D BEB 1-NR / EBS 15-03-19
Part No.: 419012
or equivalent.

Technische Daten

Material of connection element	StSt
Material No.	1.4301
Material of flat steel	S235
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Dimensions of flat steel	400 x 50 x 5 mm
Total height	63 mm
DB drawing No.	3 Ebs 15.03.19 - 36

Material of connection element	StSt
Material No.	1.4301
Material of flat steel	S235
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Dimensions of flat steel	400 x 50 x 5 mm
Total height	63 mm
DB drawing No.	3 Ebs 15.03.19 - 36

Artikel 419012 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419012 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Reinforcing steel earthing bridges D BEB 2

The earthing bridges are designed for earthing, current return circuits and equipotential bonding in railway line applications. This version is installed flush with the surface and welded to the earthing reinforcement with the angled reinforcing steel, particularly in installation situations where space is critical. This earthing bridge also has a technical approval from DB Netz AG and can therefore be reliably used in planning.

1 Produkt

Art.-Nr. 419020 D BEB 2 / EBS 15-03-19

GTIN 4013364439405, Zolltarifnr. (EU): 85369010, Bruttogewicht: 950.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Reinforcing steel earthing bridge D BEB 2 / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of plate: StSt
Material No.: 1.4301
Material of socket: St / Cu
Material of shaft: reinforcing steel B500B
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Thread: M16
Diameter of connection plate: 50 mm
Diameter of reinforcing steel: 16 mm
Installation height: 160 mm
Length: 400 mm
DB drawing No.: 3 Ebs 15.03.19 - 31

Brand: DEHN
Type: D BEB 2 / EBS 15-03-19
Part No.: 419020
or equivalent.

Technische Daten

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of shaft	reinforcing steel B500B
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Diameter of reinforcing steel	16 mm
Installation height	160 mm
Length	400 mm
DB drawing No.	3 Ebs 15.03.19 - 31

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of shaft	reinforcing steel B500B
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Diameter of reinforcing steel	16 mm
Installation height	160 mm
Length	400 mm
DB drawing No.	3 Ebs 15.03.19 - 31

Artikel 419020 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419020 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Reinforcing steel earthing bridges D BEB 3

The earthing bridges are designed for earthing, current return circuits and equipotential bonding in railway line applications. This version is installed flush with the surface and welded to the earthing reinforcement with the straight reinforcing steel. This earthing bridge also has a technical approval from DB Netz AG and can therefore be reliably used in planning.

1 Produkt

Art.-Nr. 419030 D BEB 3 / EBS 15-03-19

GTIN 4013364439474, Zolltarifnr. (EU): 85369010, Bruttogewicht: 750.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Reinforcing steel earthing bridge D BEB 3 / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of plate: StSt
Material No.: 1.4301
Material of socket: St / Cu
Material of shaft: reinforcing steel B500B
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Thread: M16
Diameter of connection plate: 50 mm
Diameter of reinforcing steel: 16 mm
Length: 400 mm
DB drawing No.: 3 Ebs 15.03.19 - 31

Brand: DEHN
Type: D BEB 3 / EBS 15-03-19
Part No.: 419030
or equivalent.

Technische Daten

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of shaft	reinforcing steel B500B
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Diameter of reinforcing steel	16 mm
Length	400 mm
DB drawing No.	3 Ebs 15.03.19 - 31

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of shaft	reinforcing steel B500B
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Diameter of reinforcing steel	16 mm
Length	400 mm
DB drawing No.	3 Ebs 15.03.19 - 31

Artikel 419030 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419030 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Reinforcing steel earthing bridges D BEB 8

The earthing bridges are designed for earthing, current return circuits and equipotential bonding in railway line applications. This version is installed flush with the surface and the reinforcing steel is welded to the earthing reinforcement. The sockets mounted on both ends allow effective and economical component feed-through. This earthing bridge also has a technical approval from DB Netz AG and can therefore be reliably used in planning.

1 Produkt

Art.-Nr. 419080 D BEB 8 / EBS 15-03-19

GTIN 4013364439566, Zolltarifnr. (EU): 85369010, Bruttogewicht: 1.00 kg, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Reinforcing steel earthing bridge D BEB 8 / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of plate: StSt
Material No.: 1.4301
Material of socket: St / Cu
Material of shaft: reinforcing steel B500B
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Thread: M16
Diameter of connection plate: 50 mm
Diameter of reinforcing steel: 16 mm
Length: 500 mm
DB drawing No.: 3 Ebs 15.03.19 - 33

Brand: DEHN
Type: D BEB 8 / EBS 15-03-19
Part No.: 419080
or equivalent.

Technische Daten

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of shaft	reinforcing steel B500B
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Diameter of reinforcing steel	16 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 33

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of shaft	reinforcing steel B500B
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Diameter of reinforcing steel	16 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 33

Artikel 419080 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419080 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Copper cable earthing bridges D BEB 4 / 5

The earthing bridges are designed for earthing, return circuits and equipotential bonding in railway line applications. This version is installed flush with the surface, and with the copper-plated steel lug pressed on to the copper cable welded to the earthing reinforcement. The flexibility of the cable simplifies installation in the reinforcement for the user. The special FLEX versions are especially well suited for installation situations where space is critical – ultra flexible fine stranded copper cables are used here. These earthing bridges also have the technical approval of DB Netz AG and can be used there without hesitation in planning.
Special lengths are available on request: up to 500 mm total length in steps of 50 mm and from 500 mm total length in steps of 100 mm.

8 Produkte

Art.-Nr. 419040 D BEB 4 / EBS 15-03-19

GTIN 4013364439481, Zolltarifnr. (EU): 85369010, Bruttogewicht: 610.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper cable earthing bridge D BEB 4 / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of plate: StSt
Material No.: 1.4301
Material of socket: St / Cu
Material of lug: St / Cu
Material of cable: Cu
Short-circuit current: ≤ 25 kA
Test current: 25 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 7.9 kA
Thread: M16
Diameter of connection plate: 50 mm
Cable: NYY-O
Cable cross-section : 70 mm²
Cable diameter: 17 mm
Dimensions of lug: 80 x 30 mm
Length: 500 mm
DB drawing No.: 3 Ebs 15.03.19 - 32

Brand: DEHN
Type: D BEB 4 / EBS 15-03-19
Part No.: 419040
or equivalent.

Technische Daten

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	≤ 25 kA
Test current	25 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	7.9 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	NYY-O
Cable cross-section	70 mm²
Cable diameter	17 mm
Dimensions of lug	80 x 30 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 32

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	≤ 25 kA
Test current	25 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	7.9 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	NYY-O
Cable cross-section	70 mm²
Cable diameter	17 mm
Dimensions of lug	80 x 30 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 32

Artikel 419040 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419040 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419041 D BEB 4-FLEX / EBS 15-03-19

GTIN 4013364439498, Zolltarifnr. (EU): 85369010, Bruttogewicht: 560.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper cable earthing bridge D BEB 4-FLEX / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of plate: StSt
Material No.: 1.4301
Material of socket: St / Cu
Material of lug: St / Cu
Material of cable: Cu
Short-circuit current: ≤ 25 kA
Test current: 25 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 7.9 kA
Thread: M16
Diameter of connection plate: 50 mm
Cable: H07V-K
Cable cross-section : 70 mm²
Cable diameter: 17 mm
Dimensions of lug: 80 x 30 mm
Length: 500 mm
DB drawing No.: 3 Ebs 15.03.19 - 32

Brand: DEHN
Type: D BEB 4-FLEX / EBS 15-03-19
Part No.: 419041
or equivalent.

Technische Daten

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	≤ 25 kA
Test current	25 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	7.9 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	H07V-K
Cable cross-section	70 mm²
Cable diameter	17 mm
Dimensions of lug	80 x 30 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 32

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	≤ 25 kA
Test current	25 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	7.9 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	H07V-K
Cable cross-section	70 mm²
Cable diameter	17 mm
Dimensions of lug	80 x 30 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 32

Artikel 419041 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419041 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419050 D BEB 5 / EBS 15-03-19

GTIN 4013364439504, Zolltarifnr. (EU): 85369010, Bruttogewicht: 700.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper cable earthing bridge D BEB 5 / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of plate: StSt
Material No.: 1.4301
Material of socket: St / Cu
Material of lug: St / Cu
Material of cable: Cu
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Thread: M16
Diameter of connection plate: 50 mm
Cable: NYY-O
Cable cross-section : 95 mm²
Cable diameter: 19 mm
Dimensions of lug: 80 x 30 mm
Length: 500 mm
DB drawing No.: 3 Ebs 15.03.19 - 32

Brand: DEHN
Type: D BEB 5 / EBS 15-03-19
Part No.: 419050
or equivalent.

Technische Daten

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	NYY-O
Cable cross-section	95 mm²
Cable diameter	19 mm
Dimensions of lug	80 x 30 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 32

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	NYY-O
Cable cross-section	95 mm²
Cable diameter	19 mm
Dimensions of lug	80 x 30 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 32

Artikel 419050 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419050 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419051 D BEB 5-FLEX / EBS 15-03-19

GTIN 4013364439511, Zolltarifnr. (EU): 85369010, Bruttogewicht: 630.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper cable earthing bridge D BEB 5-FLEX / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of plate: StSt
Material No.: 1.4301
Material of socket: St / Cu
Material of lug: St / Cu
Material of cable: Cu
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Thread: M16
Diameter of connection plate: 50 mm
Cable: H07V-K
Cable cross-section : 95 mm²
Cable diameter: 19 mm
Dimensions of lug: 80 x 30 mm
Length: 500 mm
DB drawing No.: 3 Ebs 15.03.19 - 32

Brand: DEHN
Type: D BEB 5-FLEX / EBS 15-03-19
Part No.: 419051
or equivalent.

Technische Daten

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	H07V-K
Cable cross-section	95 mm²
Cable diameter	19 mm
Dimensions of lug	80 x 30 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 32

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	H07V-K
Cable cross-section	95 mm²
Cable diameter	19 mm
Dimensions of lug	80 x 30 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 32

Artikel 419051 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419051 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419501 D BEB 5 - L700 / EBS 15-03-19

GTIN 4013364458390, Zolltarifnr. (EU): 85369010, Bruttogewicht: 980.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper cable earthing bridge D BEB 5 / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of plate: StSt
Material No.: 1.4301
Material of socket: St / Cu
Material of lug: St / Cu
Material of cable: Cu
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Thread: M16
Diameter of connection plate: 50 mm
Cable: NYY-O
Cable cross-section : 95 mm²
Cable diameter: 19 mm
Dimensions of lug: 80 x 30 mm
Length: 700 mm
DB drawing No.: 3 Ebs 15.03.19 - 32

Brand: DEHN
Type: D BEB 5 - L700 / EBS 15-03-19
Part No.: 419501
or equivalent.

Technische Daten

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	NYY-O
Cable cross-section	95 mm²
Cable diameter	19 mm
Dimensions of lug	80 x 30 mm
Length	700 mm
DB drawing No.	3 Ebs 15.03.19 - 32

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	NYY-O
Cable cross-section	95 mm²
Cable diameter	19 mm
Dimensions of lug	80 x 30 mm
Length	700 mm
DB drawing No.	3 Ebs 15.03.19 - 32

Artikel 419501 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419501 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419502 D BEB 5 - L1000 / EBS 15-03-19

GTIN 4013364458406, Zolltarifnr. (EU): 85369010, Bruttogewicht: 1.40 kg, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper cable earthing bridge D BEB 5 / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of plate: StSt
Material No.: 1.4301
Material of socket: St / Cu
Material of lug: St / Cu
Material of cable: Cu
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Thread: M16
Diameter of connection plate: 50 mm
Cable: NYY-O
Cable cross-section : 95 mm²
Cable diameter: 19 mm
Dimensions of lug: 80 x 30 mm
Length: 1000 mm
DB drawing No.: 3 Ebs 15.03.19 - 32

Brand: DEHN
Type: D BEB 5 - L1000 / EBS 15-03-19
Part No.: 419502
or equivalent.

Technische Daten

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	NYY-O
Cable cross-section	95 mm²
Cable diameter	19 mm
Dimensions of lug	80 x 30 mm
Length	1000 mm
DB drawing No.	3 Ebs 15.03.19 - 32

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	NYY-O
Cable cross-section	95 mm²
Cable diameter	19 mm
Dimensions of lug	80 x 30 mm
Length	1000 mm
DB drawing No.	3 Ebs 15.03.19 - 32

Artikel 419502 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419502 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419503 D BEB 5 - L1500 / EBS 15-03-19

GTIN 4013364458413, Zolltarifnr. (EU): 85369010, Bruttogewicht: 2.10 kg, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper cable earthing bridge D BEB 5 / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of plate: StSt
Material No.: 1.4301
Material of socket: St / Cu
Material of lug: St / Cu
Material of cable: Cu
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Thread: M16
Diameter of connection plate: 50 mm
Cable: NYY-O
Cable cross-section : 95 mm²
Cable diameter: 19 mm
Dimensions of lug: 80 x 30 mm
Length: 1500 mm
DB drawing No.: 3 Ebs 15.03.19 - 32

Brand: DEHN
Type: D BEB 5 - L1500 / EBS 15-03-19
Part No.: 419503
or equivalent.

Technische Daten

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	NYY-O
Cable cross-section	95 mm²
Cable diameter	19 mm
Dimensions of lug	80 x 30 mm
Length	1500 mm
DB drawing No.	3 Ebs 15.03.19 - 32

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	NYY-O
Cable cross-section	95 mm²
Cable diameter	19 mm
Dimensions of lug	80 x 30 mm
Length	1500 mm
DB drawing No.	3 Ebs 15.03.19 - 32

Artikel 419503 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419503 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419504 D BEB 5 - L2000 / EBS 15-03-19

GTIN 4013364458420, Zolltarifnr. (EU): 85369010, Bruttogewicht: 2.80 kg, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper cable earthing bridge D BEB 5 / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of plate: StSt
Material No.: 1.4301
Material of socket: St / Cu
Material of lug: St / Cu
Material of cable: Cu
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Thread: M16
Diameter of connection plate: 50 mm
Cable: NYY-O
Cable cross-section : 95 mm²
Cable diameter: 19 mm
Dimensions of lug: 80 x 30 mm
Length: 2000 mm
DB drawing No.: 3 Ebs 15.03.19 - 32

Brand: DEHN
Type: D BEB 5 - L2000 / EBS 15-03-19
Part No.: 419504
or equivalent.

Technische Daten

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	NYY-O
Cable cross-section	95 mm²
Cable diameter	19 mm
Dimensions of lug	80 x 30 mm
Length	2000 mm
DB drawing No.	3 Ebs 15.03.19 - 32

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	NYY-O
Cable cross-section	95 mm²
Cable diameter	19 mm
Dimensions of lug	80 x 30 mm
Length	2000 mm
DB drawing No.	3 Ebs 15.03.19 - 32

Artikel 419504 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419504 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Copper cable earthing bridges D BEB 6 / 7

The earthing bridges are designed for earthing, return circuits and equipotential bonding in railway line applications. This version is used as an earthing bushing of components, with it being installed flush with the surface on both sides. The flexibility of the cable simplifies installation in the reinforcement for the user. The special FLEX versions are especially well suited for installation situations where space is critical – ultra flexible fine stranded copper cables are used here. These earthing bridges also have the technical approval of DB Netz AG and can be used there without hesitation in planning.
Special lengths are available on request: up to 500 mm total length in steps of 50 mm and from 500 mm total length in steps of 100 mm.

4 Produkte

Art.-Nr. 419060 D BEB 6 / EBS 15-03-19

GTIN 4013364439528, Zolltarifnr. (EU): 85369010, Bruttogewicht: 590.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper cable earthing bridge D BEB 6 / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of plate: StSt
Material No.: 1.4301
Material of socket: St / Cu
Material of cable: Cu
Short-circuit current: ≤ 25 kA
Test current: 25 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 7.9 kA
Thread: M16
Diameter of connection plate: 50 mm
Cable: NYY-O
Cable cross-section : 70 mm²
Cable diameter: 17 mm
Length: 500 mm
DB drawing No.: 3 Ebs 15.03.19 - 33

Brand: DEHN
Type: D BEB 6 / EBS 15-03-19
Part No.: 419060
or equivalent.

Technische Daten

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of cable	Cu
Short-circuit current	≤ 25 kA
Test current	25 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	7.9 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	NYY-O
Cable cross-section	70 mm²
Cable diameter	17 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 33

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of cable	Cu
Short-circuit current	≤ 25 kA
Test current	25 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	7.9 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	NYY-O
Cable cross-section	70 mm²
Cable diameter	17 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 33

Artikel 419060 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419060 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419061 D BEB 6-FLEX / EBS 15-03-19

GTIN 4013364439535, Zolltarifnr. (EU): 85369010, Bruttogewicht: 530.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper cable earthing bridge D BEB 6-FLEX / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of plate: StSt
Material No.: 1.4301
Material of socket: St / Cu
Material of cable: Cu
Short-circuit current: ≤ 25 kA
Test current: 25 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 7.9 kA
Thread: M16
Diameter of connection plate: 50 mm
Cable: H07V-K
Cable cross-section : 70 mm²
Cable diameter: 17 mm
Length: 500 mm
DB drawing No.: 3 Ebs 15.03.19 - 33

Brand: DEHN
Type: D BEB 6-FLEX / EBS 15-03-19
Part No.: 419061
or equivalent.

Technische Daten

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of cable	Cu
Short-circuit current	≤ 25 kA
Test current	25 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	7.9 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	H07V-K
Cable cross-section	70 mm²
Cable diameter	17 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 33

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of cable	Cu
Short-circuit current	≤ 25 kA
Test current	25 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	7.9 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	H07V-K
Cable cross-section	70 mm²
Cable diameter	17 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 33

Artikel 419061 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419061 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419070 D BEB 7 / EBS 15-03-19

GTIN 4013364439542, Zolltarifnr. (EU): 85369010, Bruttogewicht: 700.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper cable earthing bridge D BEB 7 / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of plate: StSt
Material No.: 1.4301
Material of socket: St / Cu
Material of cable: Cu
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Thread: M16
Diameter of connection plate: 50 mm
Cable: NYY-O
Cable cross-section : 95 mm²
Cable diameter: 19 mm
Length: 500 mm
DB drawing No.: 3 Ebs 15.03.19 - 33

Brand: DEHN
Type: D BEB 7 / EBS 15-03-19
Part No.: 419070
or equivalent.

Technische Daten

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of cable	Cu
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	NYY-O
Cable cross-section	95 mm²
Cable diameter	19 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 33

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of cable	Cu
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	NYY-O
Cable cross-section	95 mm²
Cable diameter	19 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 33

Artikel 419070 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419070 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419071 D BEB 7-FLEX / EBS 15-03-19

GTIN 4013364439559, Zolltarifnr. (EU): 85369010, Bruttogewicht: 620.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper cable earthing bridge D BEB 7-FLEX / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of plate: StSt
Material No.: 1.4301
Material of socket: St / Cu
Material of cable: Cu
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Thread: M16
Diameter of connection plate: 50 mm
Cable: H07V-K
Cable cross-section : 95 mm²
Cable diameter: 19 mm
Length: 500 mm
DB drawing No.: 3 Ebs 15.03.19 - 33

Brand: DEHN
Type: D BEB 7-FLEX / EBS 15-03-19
Part No.: 419071
or equivalent.

Technische Daten

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of cable	Cu
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	H07V-K
Cable cross-section	95 mm²
Cable diameter	19 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 33

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of cable	Cu
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	H07V-K
Cable cross-section	95 mm²
Cable diameter	19 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 33

Artikel 419071 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419071 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Copper cable earthing bridges D BEB 9 / 10

The earthing bridges are designed for earthing, return circuits and equipotential bonding in railway line applications. This version establishes a non-visible connection within the concrete due to the copper-plated steel lugs that are pressed onto the copper cable being welded to the earthing reinforcement. The flexibility of the cable simplifies installation in the reinforcement for the user. The special FLEX versions are especially well suited for installation situations where space is critical – ultra flexible fine stranded copper cables are used here. These earthing bridges also have the technical approval of DB Netz AG and can be used there without hesitation in planning.
Special lengths are available on request: up to 500 mm total length in steps of 50 mm and from 500 mm total length in steps of 100 mm.

5 Produkte

Art.-Nr. 419090 D BEB 9 / EBS 15-03-19

GTIN 4013364439573, Zolltarifnr. (EU): 85369010, Bruttogewicht: 610.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper cable earthing bridge D BEB 9 / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of lug: St / Cu
Material of cable: Cu
Short-circuit current: ≤ 25 kA
Test current: 25 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 7.9 kA
Cable: NYY-O
Cable cross-section : 70 mm²
Cable diameter: 17 mm
Dimensions of lug: 80 x 30 mm
Length: 500 mm
DB drawing No.: 3 Ebs 15.03.19 - 33

Brand: DEHN
Type: D BEB 9 / EBS 15-03-19
Part No.: 419090
or equivalent.

Technische Daten

Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	≤ 25 kA
Test current	25 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	7.9 kA
Cable	NYY-O
Cable cross-section	70 mm²
Cable diameter	17 mm
Dimensions of lug	80 x 30 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 33

Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	≤ 25 kA
Test current	25 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	7.9 kA
Cable	NYY-O
Cable cross-section	70 mm²
Cable diameter	17 mm
Dimensions of lug	80 x 30 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 33

Artikel 419090 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419090 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419091 D BEB 9-FLEX / EBS 15-03-19

GTIN 4013364439580, Zolltarifnr. (EU): 85369010, Bruttogewicht: 570.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper cable earthing bridge D BEB 9-FLEX / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of lug: St / Cu
Material of cable: Cu
Short-circuit current: ≤ 25 kA
Test current: 25 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 7.9 kA
Cable: H07V-K
Cable cross-section : 70 mm²
Cable diameter: 17 mm
Dimensions of lug: 80 x 30 mm
Length: 500 mm
DB drawing No.: 3 Ebs 15.03.19 - 33

Brand: DEHN
Type: D BEB 9-FLEX / EBS 15-03-19
Part No.: 419091
or equivalent.

Technische Daten

Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	≤ 25 kA
Test current	25 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	7.9 kA
Cable	H07V-K
Cable cross-section	70 mm²
Cable diameter	17 mm
Dimensions of lug	80 x 30 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 33

Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	≤ 25 kA
Test current	25 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	7.9 kA
Cable	H07V-K
Cable cross-section	70 mm²
Cable diameter	17 mm
Dimensions of lug	80 x 30 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 33

Artikel 419091 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419091 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419100 D BEB 10 / EBS 15-03-19

GTIN 4013364439597, Zolltarifnr. (EU): 85369010, Bruttogewicht: 700.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper cable earthing bridge D BEB 10 / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of lug: St / Cu
Material of cable: Cu
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Cable: NYY-O
Cable cross-section : 95 mm²
Cable diameter: 19 mm
Dimensions of lug: 80 x 30 mm
Length: 500 mm
DB drawing No.: 3 Ebs 15.03.19 - 33

Brand: DEHN
Type: D BEB 10 / EBS 15-03-19
Part No.: 419100
or equivalent.

Technische Daten

Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Cable	NYY-O
Cable cross-section	95 mm²
Cable diameter	19 mm
Dimensions of lug	80 x 30 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 33

Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Cable	NYY-O
Cable cross-section	95 mm²
Cable diameter	19 mm
Dimensions of lug	80 x 30 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 33

Artikel 419100 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419100 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419101 D BEB 10-FLEX / EBS 15-03-19

GTIN 4013364439603, Zolltarifnr. (EU): 85369010, Bruttogewicht: 640.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper cable earthing bridge D BEB 10-FLEX / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of lug: St / Cu
Material of cable: Cu
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Cable: H07V-K
Cable cross-section : 95 mm²
Cable diameter: 19 mm
Dimensions of lug: 80 x 30 mm
Length: 500 mm
DB drawing No.: 3 Ebs 15.03.19 - 33

Brand: DEHN
Type: D BEB 10-FLEX / EBS 15-03-19
Part No.: 419101
or equivalent.

Technische Daten

Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Cable	H07V-K
Cable cross-section	95 mm²
Cable diameter	19 mm
Dimensions of lug	80 x 30 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 33

Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Cable	H07V-K
Cable cross-section	95 mm²
Cable diameter	19 mm
Dimensions of lug	80 x 30 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.19 - 33

Artikel 419101 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419101 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419505 D BEB 10 - L800 / EBS 15-03-19

GTIN 4013364458437, Zolltarifnr. (EU): 85369010, Bruttogewicht: 1.12 kg, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper cable earthing bridge D BEB 10 / EBS 15-03-19
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of lug: St / Cu
Material of cable: Cu
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Cable: NYY-O
Cable cross-section : 95 mm²
Cable diameter: 19 mm
Dimensions of lug: 80 x 30 mm
Length: 800 mm
DB drawing No.: 3 Ebs 15.03.19 - 33

Brand: DEHN
Type: D BEB 10 - L800 / EBS 15-03-19
Part No.: 419505
or equivalent.

Technische Daten

Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Cable	NYY-O
Cable cross-section	95 mm²
Cable diameter	19 mm
Dimensions of lug	80 x 30 mm
Length	800 mm
DB drawing No.	3 Ebs 15.03.19 - 33

Material of lug	St / Cu
Material of cable	Cu
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Cable	NYY-O
Cable cross-section	95 mm²
Cable diameter	19 mm
Dimensions of lug	80 x 30 mm
Length	800 mm
DB drawing No.	3 Ebs 15.03.19 - 33

Artikel 419505 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419505 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Earthing bridge for earthing large pipes D BEB 11

The earthing bridges are designed for earthing, return circuits and equipotential bonding in railway line applications. The version for earthing large pipes is intended for use with pile and large pipe foundations. The product consists of a copper cable with a pressed-on sleeve and stainless steel connection plate with integrated boreholes for the formwork fixing at one end, and a cable lug at the opposite end. The cable lug is used to establish a short-circuit-resistant connection to the pile or large pipe foundation. The flexibility of the cable simplifies installation in the reinforcement for the user. This earthing bridge also has the technical approval of DB Netz AG and can be used there without hesitation in planning.
Special lengths are available on request: up to 500 mm total length in steps of 50 mm and from 500 mm total length in steps of 100 mm.

2 Produkte

Art.-Nr. 419110 D BEB 11 / EBS 15-03-27

GTIN 4013364439665, Zolltarifnr. (EU): 85369010, Bruttogewicht: 550.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Earthing bridge for earthing large pipes D BEB 11 / EBS 15-03-27
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of plate: StSt
Material No.: 1.4301
Material of socket: St / Cu
Material of cable lug: Cu/gal Sn
Material of cable: Cu
Short-circuit current: ≤ 25 kA
Test current: 25 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 7.9 kA
Thread: M16
Diameter of connection plate: 50 mm
Cable: NYY-O
Cable cross-section : 70 mm²
Cable diameter: 17 mm
Borehole cable lug: 13 mm
Length: 500 mm
DB drawing No.: 4 Ebs 15.03.27 - 2

Brand: DEHN
Type: D BEB 11 / EBS 15-03-27
Part No.: 419110
or equivalent.

Technische Daten

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of cable lug	Cu /gal Sn
Material of cable	Cu
Short-circuit current	≤ 25 kA
Test current	25 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	7.9 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	NYY-O
Cable cross-section	70 mm²
Cable diameter	17 mm
Borehole cable lug	13 mm
Length	500 mm
DB drawing No.	4 Ebs 15.03.27 - 2

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of cable lug	Cu /gal Sn
Material of cable	Cu
Short-circuit current	≤ 25 kA
Test current	25 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	7.9 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	NYY-O
Cable cross-section	70 mm²
Cable diameter	17 mm
Borehole cable lug	13 mm
Length	500 mm
DB drawing No.	4 Ebs 15.03.27 - 2

Artikel 419110 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419110 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419506 D BEB 11 - L1000 / EBS 15-03-27

GTIN 4013364458444, Zolltarifnr. (EU): 85369010, Bruttogewicht: 1.10 kg, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Earthing bridge for earthing large pipes D BEB 11 / EBS 15-03-27
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of plate: StSt
Material No.: 1.4301
Material of socket: St / Cu
Material of cable lug: Cu/gal Sn
Material of cable: Cu
Short-circuit current: ≤ 25 kA
Test current: 25 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 7.9 kA
Thread: M16
Diameter of connection plate: 50 mm
Cable: NYY-O
Cable cross-section : 70 mm²
Cable diameter: 17 mm
Borehole cable lug: 13 mm
Length: 1000 mm
DB drawing No.: 4 Ebs 15.03.27 - 2

Brand: DEHN
Type: D BEB 11 - L1000 / EBS 15-03-27
Part No.: 419506
or equivalent.

Technische Daten

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of cable lug	Cu /gal Sn
Material of cable	Cu
Short-circuit current	≤ 25 kA
Test current	25 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	7.9 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	NYY-O
Cable cross-section	70 mm²
Cable diameter	17 mm
Borehole cable lug	13 mm
Length	1000 mm
DB drawing No.	4 Ebs 15.03.27 - 2

Material of plate	StSt
Material No.	1.4301
Material of socket	St / Cu
Material of cable lug	Cu /gal Sn
Material of cable	Cu
Short-circuit current	≤ 25 kA
Test current	25 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	7.9 kA
Thread	M16
Diameter of connection plate	50 mm
Cable	NYY-O
Cable cross-section	70 mm²
Cable diameter	17 mm
Borehole cable lug	13 mm
Length	1000 mm
DB drawing No.	4 Ebs 15.03.27 - 2

Artikel 419506 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419506 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Earthing connector for earthing large pipes D BEB 40

The earthing connectors are designed for earthing, return circuits and equipotential bonding in railway line applications. The version for earthing large pipes is designed for use with pile and large pipe foundations. The product consists of a steel cable with a copper-plated steel lug at one end and a cable lug at the other end. A heat-shrinkable sleeve at the welding lug end prevents water from penetrating the steel cable. The steel cable is therefore a preventative anti-theft measure. This earthing connector also has the technical approval of DB Netz AG and can be used there without hesitation in planning.
Special lengths are available on request: up to 500 mm total length in steps of 50 mm and from 500 mm total length in steps of 100 mm.

1 Produkt

Art.-Nr. 419400 D BEB 40 / EBS 15-03-25

GTIN 4013364439672, Zolltarifnr. (EU): 85359000, Bruttogewicht: 700.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Earthing connector for earthing large pipes D BEB 40 / EBS 15-03-25
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of lug: St / Cu
Material of cable lug: Cu/gal Sn
Material of rope: St
Short-circuit current: ≤ 25 kA
Test current: 25 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 7.9 kA
Rope cross-section: 95 mm²
Cable diameter: 17 mm
Dimensions of lug: 80 x 30 mm
Borehole cable lug: 17 mm
Length: 500 mm
DB drawing No.: 4 Ebs 15.03.25 - 4

Brand: DEHN
Type: D BEB 40 / EBS 15-03-25
Part No.: 419400
or equivalent.

Technische Daten

Material of lug	St / Cu
Material of cable lug	Cu /gal Sn
Material of rope	St
Short-circuit current	≤ 25 kA
Test current	25 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	7.9 kA
Rope cross-section	95 mm²
Cable diameter	17 mm
Dimensions of lug	80 x 30 mm
Borehole cable lug	17 mm
Length	500 mm
DB drawing No.	4 Ebs 15.03.25 - 4

Material of lug	St / Cu
Material of cable lug	Cu /gal Sn
Material of rope	St
Short-circuit current	≤ 25 kA
Test current	25 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	7.9 kA
Rope cross-section	95 mm²
Cable diameter	17 mm
Dimensions of lug	80 x 30 mm
Borehole cable lug	17 mm
Length	500 mm
DB drawing No.	4 Ebs 15.03.25 - 4

Artikel 419400 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419400 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Steel cable earthing connector D BEB 26

The earthing connectors are designed for earthing, return circuits and equipotential bonding in railway line applications. The halogen-free (sheathed) version D BEB 26 – for the external connection of earthing points or other parts to be earthed – consists of a steel cable as an earthing conductor and is thus a preventive anti-theft measure. This earthing connector also has the technical approval of DB Netz AG and can be used there without hesitation in planning.
Special lengths are available on request: up to 500 mm total length in steps of 50 mm and from 500 mm total length in steps of 100 mm.

1 Produkt

Art.-Nr. 419260 D BEB 26 / EBS 15-03-17

GTIN 4013364439610, Zolltarifnr. (EU): 85359000, Bruttogewicht: 630.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Steel cable earthing bridge D BEB 26 / EBS 15-03-17
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of cable lug: Cu/gal Sn
Material of rope: St
Short-circuit current: ≤ 25 kA
Test current: 25 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 7.9 kA
Rope: 1-12-12 B 350 sZ PE
Rope cross-section: ≥ 95 mm²
Design: halogen-free
Cable diameter: 17 mm
Borehole cable lug: 17 mm
Length: 500 mm
DB drawing No.: 3 Ebs 15.03.17 - 11

Brand: DEHN
Type: D BEB 26 / EBS 15-03-17
Part No.: 419260
or equivalent.

Technische Daten

Material of cable lug	Cu /gal Sn
Material of rope	St
Short-circuit current	≤ 25 kA
Test current	25 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	7.9 kA
Rope	1-12-12 B 350 sZ PE
Rope cross-section	≥ 95 mm²
Design	halogen-free
Cable diameter	17 mm
Borehole cable lug	17 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.17 - 11

Material of cable lug	Cu /gal Sn
Material of rope	St
Short-circuit current	≤ 25 kA
Test current	25 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	7.9 kA
Rope	1-12-12 B 350 sZ PE
Rope cross-section	≥ 95 mm²
Design	halogen-free
Cable diameter	17 mm
Borehole cable lug	17 mm
Length	500 mm
DB drawing No.	3 Ebs 15.03.17 - 11

Artikel 419260 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419260 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

CuStAl cable earthing connection D BEB 29

The earthing connectors are designed for earthing, return circuits and equipotential bonding in railway line applications. The halogen-free version D BEB 29 / the halogen-free and flame-retardant version D BEB 29-NF – for the external connection of earth connection points and other connection elements – is designed with a cable lug version for M16 connections. These earthing connectors consist of a copper-steel-aluminium cable, thus representing a preventive anti-theft measure. These earthing connectors also have the technical approval of DB Netz AG and can be used there without hesitation in planning. With the halogen-free and flame-retardant version, use in tunnels is possible as per EU regulations.
Special lengths are available on request: up to 500 mm total length in steps of 50 mm and from 500 mm total length in steps of 100 mm.

8 Produkte

Art.-Nr. 419290 D BEB 29 / EBS 15-03-17

GTIN 4013364439627, Zolltarifnr. (EU): 85359000, Bruttogewicht: 400.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper-steel-aluminium cable earthing connector
D BEB 29 / EBS 15-03-17
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of cable lug: Cu/gal Sn
Material of cable: CuStAl
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Cable: (N)2X RF CuStAl
Cable cross-section : ≥ 70 mm²
Design: halogen-free
Cable diameter: 17 mm
Borehole cable lug: 17 mm
Length: 500 mm
DB drawing No.: 4 Ebs 15.03.17 - 6 (Bayka)

Brand: DEHN
Type: D BEB 29 / EBS 15-03-17
Part No.: 419290
or equivalent.

Technische Daten

Material of cable lug	Cu /gal Sn
Material of cable	Cu St Al
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Cable	(N)2X RF Cu St Al
Cable cross-section	≥ 70 mm²
Design	halogen-free
Cable diameter	17 mm
Borehole cable lug	17 mm
Length	500 mm
DB drawing No.	4 Ebs 15.03.17 - 6 (Bayka)

Material of cable lug	Cu /gal Sn
Material of cable	Cu St Al
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Cable	(N)2X RF Cu St Al
Cable cross-section	≥ 70 mm²
Design	halogen-free
Cable diameter	17 mm
Borehole cable lug	17 mm
Length	500 mm
DB drawing No.	4 Ebs 15.03.17 - 6 (Bayka)

Artikel 419290 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419290 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419291 D BEB 29-NF / EBS 15-03-17

GTIN 4013364439634, Zolltarifnr. (EU): 85359000, Bruttogewicht: 400.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper-steel-aluminium cable earthing connector
D BEB 29-NF / EBS 15-03-17
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of cable lug: Cu/gal Sn
Material of cable: CuStAl
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Cable: B2ca RF CuStAl
Cable cross-section : ≥ 70 mm²
Design: halogen-free and flame-retardant
Cable diameter: 17 mm
Borehole cable lug: 17 mm
Length: 500 mm
DB drawing No.: 4 Ebs 15.03.17 - 6 (Bayka)

Brand: DEHN
Type: D BEB 29-NF / EBS 15-03-17
Part No.: 419291
or equivalent.

Technische Daten

Material of cable lug	Cu /gal Sn
Material of cable	Cu St Al
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Cable	B2ca RF Cu St Al
Cable cross-section	≥ 70 mm²
Design	halogen-free and flame-retardant
Cable diameter	17 mm
Borehole cable lug	17 mm
Length	500 mm
DB drawing No.	4 Ebs 15.03.17 - 6 (Bayka)

Material of cable lug	Cu /gal Sn
Material of cable	Cu St Al
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Cable	B2ca RF Cu St Al
Cable cross-section	≥ 70 mm²
Design	halogen-free and flame-retardant
Cable diameter	17 mm
Borehole cable lug	17 mm
Length	500 mm
DB drawing No.	4 Ebs 15.03.17 - 6 (Bayka)

Artikel 419291 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419291 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419507 D BEB 29 - L350 / EBS 15-03-17

GTIN 4013364458451, Zolltarifnr. (EU): 85359000, Bruttogewicht: 280.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper-steel-aluminium cable earthing connector
D BEB 29 / EBS 15-03-17
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of cable lug: Cu/gal Sn
Material of cable: CuStAl
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Cable: (N)2X RF CuStAl
Cable cross-section : ≥ 70 mm²
Design: halogen-free
Cable diameter: 17 mm
Borehole cable lug: 17 mm
Length: 350 mm
DB drawing No.: 4 Ebs 15.03.17 - 6 (Bayka)

Brand: DEHN
Type: D BEB 29 - L350 / EBS 15-03-17
Part No.: 419507
or equivalent.

Technische Daten

Material of cable lug	Cu /gal Sn
Material of cable	Cu St Al
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Cable	(N)2X RF Cu St Al
Cable cross-section	≥ 70 mm²
Design	halogen-free
Cable diameter	17 mm
Borehole cable lug	17 mm
Length	350 mm
DB drawing No.	4 Ebs 15.03.17 - 6 (Bayka)

Material of cable lug	Cu /gal Sn
Material of cable	Cu St Al
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Cable	(N)2X RF Cu St Al
Cable cross-section	≥ 70 mm²
Design	halogen-free
Cable diameter	17 mm
Borehole cable lug	17 mm
Length	350 mm
DB drawing No.	4 Ebs 15.03.17 - 6 (Bayka)

Artikel 419507 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419507 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419508 D BEB 29 - L800 / EBS 15-03-17

GTIN 4013364458468, Zolltarifnr. (EU): 85359000, Bruttogewicht: 640.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper-steel-aluminium cable earthing connector
D BEB 29 / EBS 15-03-17
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of cable lug: Cu/gal Sn
Material of cable: CuStAl
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Cable: (N)2X RF CuStAl
Cable cross-section : ≥ 70 mm²
Design: halogen-free
Cable diameter: 17 mm
Borehole cable lug: 17 mm
Length: 800 mm
DB drawing No.: 4 Ebs 15.03.17 - 6 (Bayka)

Brand: DEHN
Type: D BEB 29 - L800 / EBS 15-03-17
Part No.: 419508
or equivalent.

Technische Daten

Material of cable lug	Cu /gal Sn
Material of cable	Cu St Al
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Cable	(N)2X RF Cu St Al
Cable cross-section	≥ 70 mm²
Design	halogen-free
Cable diameter	17 mm
Borehole cable lug	17 mm
Length	800 mm
DB drawing No.	4 Ebs 15.03.17 - 6 (Bayka)

Material of cable lug	Cu /gal Sn
Material of cable	Cu St Al
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Cable	(N)2X RF Cu St Al
Cable cross-section	≥ 70 mm²
Design	halogen-free
Cable diameter	17 mm
Borehole cable lug	17 mm
Length	800 mm
DB drawing No.	4 Ebs 15.03.17 - 6 (Bayka)

Artikel 419508 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419508 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419511 D BEB 29 M12 M16 / EBS 15-03-17

GTIN 4013364480513, Zolltarifnr. (EU): 85359000, Bruttogewicht: 396.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper-steel-aluminium cable earthing connector
D BEB 29 M12 M16 / EBS 15-03-17
For earthing on components (M16) / railway track (M12)
approved by DB Netz AG
Material of cable lug: Cu/gal Sn
Material of cable: CuStAl
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Cable: (N)2X RF CuStAl
Cable cross-section : ≥ 70 mm²
Design: halogen-free
Cable diameter: 17 mm
Borehole cable lug: 13 mm for M12 and 17 mm for M16
Length: 500 mm
DB drawing No.: 4 Ebs 15.03.17 - 6 (Bayka)

Brand: DEHN
Type: D BEB 29 M12 M16 / EBS 15-03-17
Part No.: 419511
or equivalent.

Technische Daten

Material of cable lug	Cu /gal Sn
Material of cable	Cu St Al
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Cable	(N)2X RF Cu St Al
Cable cross-section	≥ 70 mm²
Design	halogen-free
Cable diameter	17 mm
Borehole cable lug	13 mm for M12 and 17 mm for M16
Length	500 mm
DB drawing No.	4 Ebs 15.03.17 - 6 (Bayka)

Material of cable lug	Cu /gal Sn
Material of cable	Cu St Al
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Cable	(N)2X RF Cu St Al
Cable cross-section	≥ 70 mm²
Design	halogen-free
Cable diameter	17 mm
Borehole cable lug	13 mm for M12 and 17 mm for M16
Length	500 mm
DB drawing No.	4 Ebs 15.03.17 - 6 (Bayka)

Artikel 419511 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419511 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419512 D BEB 29-NF M12 M16 / EBS 15-03-17

GTIN 4013364480520, Zolltarifnr. (EU): 85359000, Bruttogewicht: 414.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper-steel-aluminium cable earthing connector
D BEB 29-NF / EBS 15-03-17
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of cable lug: Cu/gal Sn
Material of cable: CuStAl
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Cable: B2ca RF CuStAl
Cable cross-section : ≥ 70 mm²
Design: halogen-free and flame-retardant
Cable diameter: 17 mm
Borehole cable lug: 13 mm for M12 and 17 mm for M16
Length: 500 mm
DB drawing No.: 4 Ebs 15.03.17 - 6 (Bayka)

Brand: DEHN
Type: D BEB 29-NF M12 M16 / EBS 15-03-17
Part No.: 419512
or equivalent.

Technische Daten

Material of cable lug	Cu /gal Sn
Material of cable	Cu St Al
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Cable	B2ca RF Cu St Al
Cable cross-section	≥ 70 mm²
Design	halogen-free and flame-retardant
Cable diameter	17 mm
Borehole cable lug	13 mm for M12 and 17 mm for M16
Length	500 mm
DB drawing No.	4 Ebs 15.03.17 - 6 (Bayka)

Material of cable lug	Cu /gal Sn
Material of cable	Cu St Al
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Cable	B2ca RF Cu St Al
Cable cross-section	≥ 70 mm²
Design	halogen-free and flame-retardant
Cable diameter	17 mm
Borehole cable lug	13 mm for M12 and 17 mm for M16
Length	500 mm
DB drawing No.	4 Ebs 15.03.17 - 6 (Bayka)

Artikel 419512 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419512 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419513 D BEB 29 R / EBS 15-03-17

GTIN 4013364480506, Zolltarifnr. (EU): 85359000, Bruttogewicht: 398.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper-steel-aluminium cable earthing connector
Twisted on the right version
D BEB 29 R / EBS 15-03-17
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of cable lug: Cu/gal Sn
Material of cable: CuStAl
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Cable: (N)2X RF CuStAl
Cable cross-section : ≥ 70 mm²
Design: halogen-free
Cable diameter: 17 mm
Borehole cable lug: 17 mm
Design cable lug: rotated 90° right
Length: 500 mm
DB drawing No.: 4 Ebs 15.03.17 - 6 (Bayka)

Brand: DEHN
Type: D BEB 29 R / EBS 15-03-17
Part No.: 419513
or equivalent.

Technische Daten

Material of cable lug	Cu /gal Sn
Material of cable	Cu St Al
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Cable	(N)2X RF Cu St Al
Cable cross-section	≥ 70 mm²
Design	halogen-free
Cable diameter	17 mm
Borehole cable lug	17 mm
Design cable lug	rotated 90° right
Length	500 mm
DB drawing No.	4 Ebs 15.03.17 - 6 (Bayka)

Material of cable lug	Cu /gal Sn
Material of cable	Cu St Al
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Cable	(N)2X RF Cu St Al
Cable cross-section	≥ 70 mm²
Design	halogen-free
Cable diameter	17 mm
Borehole cable lug	17 mm
Design cable lug	rotated 90° right
Length	500 mm
DB drawing No.	4 Ebs 15.03.17 - 6 (Bayka)

Artikel 419513 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419513 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 419514 D BEB 29 L / EBS 15-03-17

GTIN 4013364480537, Zolltarifnr. (EU): 85359000, Bruttogewicht: 398.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Copper-steel-aluminium cable earthing connector
Twisted on the left version
D BEB 29 R / EBS 15-03-17
for earthing the reinforcement of concrete parts
approved by DB Netz AG
Material of cable lug: Cu/gal Sn
Material of cable: CuStAl
Short-circuit current: > 25 kA
Test current: 40 kA / 100 ms
Standard: Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC): 12.6 kA
Cable: (N)2X RF CuStAl
Cable cross-section : ≥ 70 mm²
Design: halogen-free
Cable diameter: 17 mm
Borehole cable lug: 17 mm
Design cable lug: rotated 90° left
Length: 500 mm
DB drawing No.: 4 Ebs 15.03.17 - 6 (Bayka)

Brand: DEHN
Type: D BEB 29 L / EBS 15-03-17
Part No.: 419514
or equivalent.

Technische Daten

Material of cable lug	Cu /gal Sn
Material of cable	Cu St Al
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Cable	(N)2X RF Cu St Al
Cable cross-section	≥ 70 mm²
Design	halogen-free
Cable diameter	17 mm
Borehole cable lug	17 mm
Design cable lug	rotated 90° left
Length	500 mm
DB drawing No.	4 Ebs 15.03.17 - 6 (Bayka)

Material of cable lug	Cu /gal Sn
Material of cable	Cu St Al
Short-circuit current	> 25 kA
Test current	40 kA / 100 ms
Standard	Ril 997.0205A01
Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300°C)	12.6 kA
Cable	(N)2X RF Cu St Al
Cable cross-section	≥ 70 mm²
Design	halogen-free
Cable diameter	17 mm
Borehole cable lug	17 mm
Design cable lug	rotated 90° left
Length	500 mm
DB drawing No.	4 Ebs 15.03.17 - 6 (Bayka)

Artikel 419514 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419514 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Adhesive pad

The adhesive pad is used to fix railway earthing products to the formwork by means of an adhesive connection. The adhesive pad can be stuck to the StSt connection plate of D BEB 0 and is then connected to the formwork itself.

1 Produkt

Art.-Nr. 419900 D KLP D50 BEB

GTIN 4013364439641, Zolltarifnr. (EU): 39191080, Bruttogewicht: 2.00 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Adhesive pad D KLP D50 BEB
for railway earthing products D BEB 0-x
Diameter: 50 mm
Diameter: 50 mm

Brand: DEHN
Type: D KLP D50 BEB
Part No.: 419900
or equivalent.

Technische Daten

Diameter

50 mm

Artikel 419900 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419900 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Earthing sticker

The earthing sticker is a spare part for marking installed railway earthing products. It is simply stuck to the StSt connection plate. This kind of marking can be used for earthing bridges D BEB 1 to 8 as well as for the D BEB 11 version for earthing large pipes if the sticker applied in the factory has fallen off or is damaged.

1 Produkt

Art.-Nr. 419901 D EAK D50 BEB

GTIN 4013364439658, Zolltarifnr. (EU): 39191080, Bruttogewicht: 3.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

Earthing sticker D EAK D50 BEB
for marking installed railway earthing products
Diameter: 50 mm
Diameter: 50 mm

Brand: DEHN
Type: D EAK D50 BEB
Part No.: 419901
or equivalent.

Technische Daten

Diameter

50 mm

Artikel 419901 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419901 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Hexagon screw

1 Produkt

Art.-Nr. 419902 D SKS M16X30 V4A

GTIN 4013364439689, Zolltarifnr. (EU): 85389099, Bruttogewicht: 76.89 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Hexagon screw D SKS M16X30 V2A
Material: StSt A4-70
Thread: M16 x 30 mm
Material: StSt A4-70
Thread: M16 x 30 mm

Brand: DEHN
Type: D SKS M16X30 V4A
Part No.: 419902
or equivalent.

Technische Daten

Material	StSt A4-70
Thread	M16 x 30 mm

Artikel 419902 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419902 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Hexagon nut

1 Produkt

Art.-Nr. 419903 D SKM M16 V4A

GTIN 4013364439696, Zolltarifnr. (EU): 85389099, Bruttogewicht: 33.76 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Hexagon nut D SKM M16 V2A
Material: StSt A4-70
Thread: M16
Material: StSt A4-70
Thread: M16

Brand: DEHN
Type: D SKM M16 V4A
Part No.: 419903
or equivalent.

Technische Daten

Material	StSt A4-70
Thread	M16

Artikel 419903 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419903 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Washer

1 Produkt

Art.-Nr. 419904 D SCH A17 V4A

GTIN 4013364439702, Zolltarifnr. (EU): 85389099, Bruttogewicht: 9.10 g, VPE: 1.00 pc(s)

Abbildungen

PDF öffnen

Weitere Information

Washer D SCH A17 V2A
Material: StSt A4-70
Outer diameter: 30 mm
Inner diameter: 17 mm
Material: StSt A4-70
Outer diameter: 30 mm
Inner diameter: 17 mm

Brand: DEHN
Type: D SCH A17 V4A
Part No.: 419904
or equivalent.

Technische Daten

Material	StSt A4-70
Outer diameter	30 mm
Inner diameter	17 mm

Artikel 419904 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 419904 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Earthing system for railways

Stainless steel earthing bridges

Art.-Nr. 419000 D BEB 0 - 63 / EBS 15-03-19

Sie müssen angemeldet sein um 419000m_D.dxf herunterzuladen.

Artikel 419000 wurde zum Merkzettel hinzugefügt.

Artikel 419000 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 419001 D BEB 0 - 70 / EBS 15-03-19

Sie müssen angemeldet sein um 419001m_D.dxf herunterzuladen.

Artikel 419001 wurde zum Merkzettel hinzugefügt.

Artikel 419001 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 419002 D BEB 0 - 77 / EBS 15-03-19

Sie müssen angemeldet sein um 419002m_D.dxf herunterzuladen.

Artikel 419002 wurde zum Merkzettel hinzugefügt.

Artikel 419002 wurde zum Warenkorb hinzugefügt.

Stainless steel earthing bridges D BEB 16

Art.-Nr. 419160 D BEB 16 - 105 / 3 EBS 15-03-19-38

Sie müssen angemeldet sein um 419160.stp herunterzuladen.

Sie müssen angemeldet sein um 419160.igs herunterzuladen.

Sie müssen angemeldet sein um 419160.jt herunterzuladen.

Sie müssen angemeldet sein um 419160.dwg herunterzuladen.

Sie müssen angemeldet sein um 419160m_D.dxf herunterzuladen.

Artikel 419160 wurde zum Merkzettel hinzugefügt.

Artikel 419160 wurde zum Warenkorb hinzugefügt.

Flat steel earthing bridges D BEB 1

Art.-Nr. 419010 D BEB 1 / EBS 15-03-19

Sie müssen angemeldet sein um 419010m_D.dxf herunterzuladen.

Artikel 419010 wurde zum Merkzettel hinzugefügt.

Artikel 419010 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 419500 D BEB 1 - L100 / EBS 15-03-19

Sie müssen angemeldet sein um 419500m_D.dxf herunterzuladen.

Artikel 419500 wurde zum Merkzettel hinzugefügt.

Artikel 419500 wurde zum Warenkorb hinzugefügt.

Flat steel earthing bridges D BEB 1-L

Art.-Nr. 419011 D BEB 1-L / EBS 15-03-19

Sie müssen angemeldet sein um 419011m_D.dxf herunterzuladen.

Artikel 419011 wurde zum Merkzettel hinzugefügt.

Artikel 419011 wurde zum Warenkorb hinzugefügt.

Flat steel earthing bridges D BEB 1-NR

Art.-Nr. 419012 D BEB 1-NR / EBS 15-03-19

Sie müssen angemeldet sein um 419012m_D.dxf herunterzuladen.

Artikel 419012 wurde zum Merkzettel hinzugefügt.

Artikel 419012 wurde zum Warenkorb hinzugefügt.

Reinforcing steel earthing bridges D BEB 2

Art.-Nr. 419020 D BEB 2 / EBS 15-03-19

Sie müssen angemeldet sein um 419020m_D.dxf herunterzuladen.

Artikel 419020 wurde zum Merkzettel hinzugefügt.

Artikel 419020 wurde zum Warenkorb hinzugefügt.

Reinforcing steel earthing bridges D BEB 3

Art.-Nr. 419030 D BEB 3 / EBS 15-03-19

Sie müssen angemeldet sein um 419030m_D.dxf herunterzuladen.

Artikel 419030 wurde zum Merkzettel hinzugefügt.

Artikel 419030 wurde zum Warenkorb hinzugefügt.

Reinforcing steel earthing bridges D BEB 8

Art.-Nr. 419080 D BEB 8 / EBS 15-03-19

Sie müssen angemeldet sein um 419080m_D.dxf herunterzuladen.

Artikel 419080 wurde zum Merkzettel hinzugefügt.

Artikel 419080 wurde zum Warenkorb hinzugefügt.

Copper cable earthing bridges D BEB 4 / 5

Art.-Nr. 419040 D BEB 4 / EBS 15-03-19

Sie müssen angemeldet sein um 419040_419041m_D.dxf herunterzuladen.

Artikel 419040 wurde zum Merkzettel hinzugefügt.

Artikel 419040 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 419041 D BEB 4-FLEX / EBS 15-03-19

Sie müssen angemeldet sein um 419040_419041m_D.dxf herunterzuladen.

Artikel 419041 wurde zum Merkzettel hinzugefügt.

Artikel 419041 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 419050 D BEB 5 / EBS 15-03-19

Sie müssen angemeldet sein um 419050_419051m_D.dxf herunterzuladen.

Artikel 419050 wurde zum Merkzettel hinzugefügt.

Artikel 419050 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 419051 D BEB 5-FLEX / EBS 15-03-19

Sie müssen angemeldet sein um 419050_419051m_D.dxf herunterzuladen.

Artikel 419051 wurde zum Merkzettel hinzugefügt.

Artikel 419051 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 419501 D BEB 5 - L700 / EBS 15-03-19

Sie müssen angemeldet sein um 419501m_D.dxf herunterzuladen.

Artikel 419501 wurde zum Merkzettel hinzugefügt.

Artikel 419501 wurde zum Warenkorb hinzugefügt.

Art.-Nr. 419502 D BEB 5 - L1000 / EBS 15-03-19

Sie müssen angemeldet sein um 419502m_D.dxf herunterzuladen.
