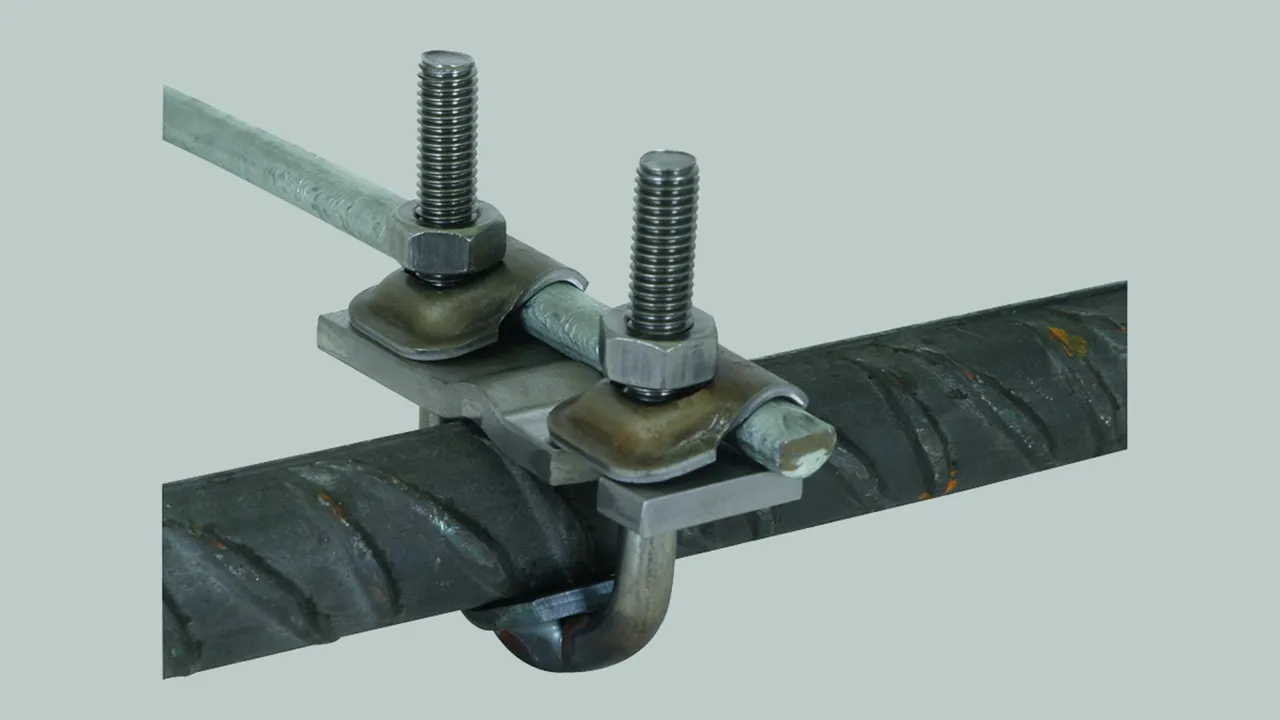

Connecting Clamps for Fixed Earthing Terminals and Reinforcement
:quality(98)/dehn.at/store/f/50303414/HDVORSCHAU/308046_16-9.jpg)
:quality(98)/dehn.at/store/f/50303414/HDVORSCHAU/308046_16-9.jpg)
For round conductors or fixed earthing terminals with simultaneous fixing in the formwork.
Arrangement:
(II) = parallel
(+) = cross
Art.-Nr. 308035 VK 6.22 FL40 KB6.10 BSB STBL
GTIN 4013364123472, Zolltarifnr. (EU): 85359000, Bruttogewicht: 169.60 g, VPE: 25.00 pc(s)
:quality(98)/dehn.at/store/f/50303426/HDVORSCHAU/308035.jpg)
:quality(98)/dehn.at/store/f/50303426/HDVORSCHAU/308035.jpg)
:quality(98)/dehn.at/store/f/50303427/HDVORSCHAU/308035m_D.jpg)
:quality(98)/dehn.at/store/f/50303427/HDVORSCHAU/308035m_D.jpg)
Technische Daten
| Material | St/bare |
| Clamping range Rd / Rd | (+/II) 6-22 / 6-10 mm |
| Clamping range Rd / Fl | (+) 6-22 / 40 mm |
| Screw | di M10 x 60 mm |
| Standard | EN 62561-1 |
| Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 1.0 kA |
| *) For exact assignment see test certificate. | |
Art.-Nr. 308046 BVK 16.48 FL40 KB6.10 BSB STBL
GTIN 4013364124462, Zolltarifnr. (EU): 85359000, Bruttogewicht: 292.40 g, VPE: 25.00 pc(s)
:quality(98)/dehn.at/store/f/50303439/HDVORSCHAU/308046_1.jpg)
:quality(98)/dehn.at/store/f/50303439/HDVORSCHAU/308046_1.jpg)
:quality(98)/dehn.at/store/f/50303440/HDVORSCHAU/308046m_D.jpg)
:quality(98)/dehn.at/store/f/50303440/HDVORSCHAU/308046m_D.jpg)
Technische Daten
| Material | St/bare |
| Clamping range Rd / Rd | (+/II) 16-48 / 6-10 mm |
| Clamping range Rd / Fl | (II) 16-48 / 30-40 mm |
| Screw | U-bolt M10 x 48 mm |
| Standard | EN 62561-1 |
| Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 9.9 kA |
| *) For exact assignment see test certificate. | |
