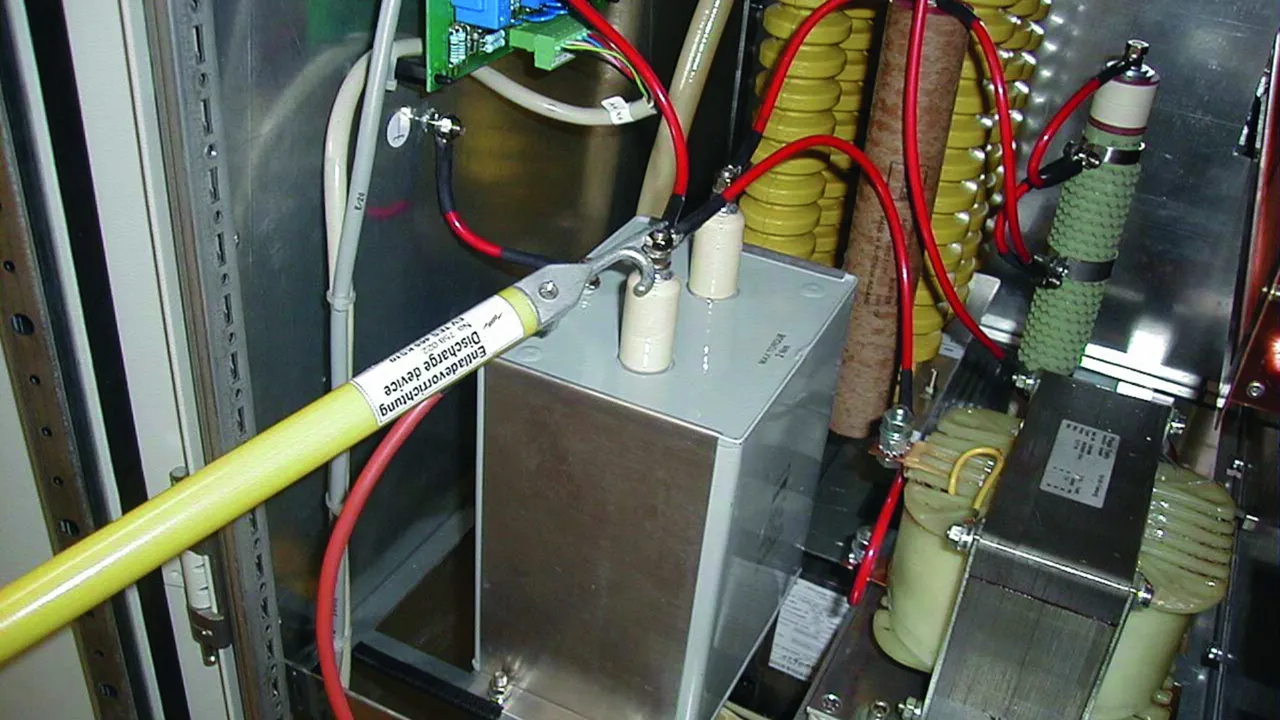

Discharge and Equipotential Bonding Devices
:quality(98)/dehn.at/store/f/50281936/HDVORSCHAU/758000a1_16-9.jpg)
:quality(98)/dehn.at/store/f/50281936/HDVORSCHAU/758000a1_16-9.jpg)
- For discharging static charges
- Different contact electrodes
- Coupling electrode, especially for round conductors (Ø12 ... 26.5 mm) of electrostatic precipitator systems
- Waterproof, plastic-sheathed cable entries, with additional anti-kink protection
Art.-Nr. 758020 EV TES 465 EK
GTIN 4013364098992, Zolltarifnr. (EU): 85369095, Bruttogewicht: 1.44 kg, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/dehn.at/store/f/50281941/HDVORSCHAU/758020.jpg)
:quality(98)/dehn.at/store/f/50281941/HDVORSCHAU/758020.jpg)
:quality(98)/dehn.at/store/f/50281942/HDVORSCHAU/758020m_D.jpg)
:quality(98)/dehn.at/store/f/50281942/HDVORSCHAU/758020m_D.jpg)
Technische Daten
| Cable length | 3500 mm |
| Cable cross-section | 16 mm2 |
| Cable sheath | Transparent |
| Tube length | 465 mm |
| Total length (lG ) | 550 mm |
| Clamping range | Up to 20 mm |
| Material (contact and coupling electrode) | Zamak |
Art.-Nr. 758021 EV TES 465 EZ
GTIN 4013364099005, Zolltarifnr. (EU): 85369095, Bruttogewicht: 1.20 kg, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/dehn.at/store/f/50281946/HDVORSCHAU/758021.jpg)
:quality(98)/dehn.at/store/f/50281946/HDVORSCHAU/758021.jpg)
:quality(98)/dehn.at/store/f/50281947/HDVORSCHAU/758021m_D.jpg)
:quality(98)/dehn.at/store/f/50281947/HDVORSCHAU/758021m_D.jpg)
Technische Daten
| Cable length | 3500 mm |
| Cable cross-section | 16 mm2 |
| Cable sheath | Transparent |
| Tube length | 465 mm |
| Total length (lG ) | 550 mm |
| Clamping range Rd / Fl | up to Ø16 mm / to 13 mm |
| Material (contact and coupling electrode) | Zamak |
Art.-Nr. 758022 EV TES 465 KS10
GTIN 4013364099012, Zolltarifnr. (EU): 85369095, Bruttogewicht: 750.00 g, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/dehn.at/store/f/50281951/HDVORSCHAU/758022.jpg)
:quality(98)/dehn.at/store/f/50281951/HDVORSCHAU/758022.jpg)
:quality(98)/dehn.at/store/f/50281952/HDVORSCHAU/758022m_D.jpg)
:quality(98)/dehn.at/store/f/50281952/HDVORSCHAU/758022m_D.jpg)
Technische Daten
| Cable length | 3500 mm |
| Cable cross-section | 10 mm2 |
| Cable sheath | Red silicone cable |
| Tube length | 465 mm |
| Total length (lG ) | 550 mm |
| Material (contact and coupling electrode) | Zamak |
Art.-Nr. 758001 EV TS 2000 EK
GTIN 4013364004030, Zolltarifnr. (EU): 85369095, Bruttogewicht: 3.22 kg, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/dehn.at/store/f/50281956/HDVORSCHAU/758001.jpg)
:quality(98)/dehn.at/store/f/50281956/HDVORSCHAU/758001.jpg)
:quality(98)/dehn.at/store/f/50281957/HDVORSCHAU/758001m_D.jpg)
:quality(98)/dehn.at/store/f/50281957/HDVORSCHAU/758001m_D.jpg)
Technische Daten
| Cable length | 3500 mm |
| Cable cross-section | 16 mm2 |
| Cable sheath | Transparent |
| Tube length | 2000 mm |
| Total length (lG ) | 2050 mm |
| Clamping range | Up to 20 mm |
| Material (contact electrode) | Cu alloy/gal Sn |
Art.-Nr. 758003 EV TS 2000 EZ
GTIN 4013364004047, Zolltarifnr. (EU): 85369095, Bruttogewicht: 2.95 kg, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/dehn.at/store/f/50281961/HDVORSCHAU/758003mb_D.jpg)
:quality(98)/dehn.at/store/f/50281961/HDVORSCHAU/758003mb_D.jpg)
:quality(98)/dehn.at/store/f/50281962/HDVORSCHAU/758003m_D.jpg)
:quality(98)/dehn.at/store/f/50281962/HDVORSCHAU/758003m_D.jpg)
Technische Daten
| Cable length | 3500 mm |
| Cable cross-section | 16 mm2 |
| Cable sheath | Transparent |
| Tube length | 2000 mm |
| Total length (lG ) | 2050 mm |
| Clamping range Rd / Fl | up to Ø16 mm / to 13 mm |
| Material (contact electrode) | Cu alloy/gal Sn |
| *) Check according to own data | |
Art.-Nr. 758015 EV EH 1725 EK
GTIN 4013364041608, Zolltarifnr. (EU): 85369095, Bruttogewicht: 3.62 kg, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/dehn.at/store/f/50281966/HDVORSCHAU/758015.jpg)
:quality(98)/dehn.at/store/f/50281966/HDVORSCHAU/758015.jpg)
:quality(98)/dehn.at/store/f/50281967/HDVORSCHAU/758015m_D.jpg)
:quality(98)/dehn.at/store/f/50281967/HDVORSCHAU/758015m_D.jpg)
Technische Daten
| Cable length | 3500 mm |
| Cable cross-section | 25 mm2 |
| Cable sheath | Transparent |
| Tube length | 1500 mm |
| Total length (lG ) | 1725 mm |
| Clamping range | Up to 30 mm |
| Material (coupling electrode) | Bronze/gal Sn |
Art.-Nr. 758025 EV TES STK 1500 KS
GTIN 4013364127838, Zolltarifnr. (EU): 85369095, Bruttogewicht: 2.29 kg, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/dehn.at/store/f/50281971/HDVORSCHAU/758025.jpg)
:quality(98)/dehn.at/store/f/50281971/HDVORSCHAU/758025.jpg)
:quality(98)/dehn.at/store/f/50281972/HDVORSCHAU/758025m_D.jpg)
:quality(98)/dehn.at/store/f/50281972/HDVORSCHAU/758025m_D.jpg)
Technische Daten
| Cable length | 3500 mm |
| Cable cross-section | 16 mm2 |
| Cable sheath | Transparent |
| Tube length | 1310 mm |
| Total length (lG ) | 1500 mm |
| Material (contact and coupling electrode) | Zamak |
Art.-Nr. 758028 EV EHB 1600 SN7114
GTIN 4013364132450, Zolltarifnr. (EU): 85369095, Bruttogewicht: 5.16 kg, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/dehn.at/store/f/50281977/HDVORSCHAU/758028.jpg)
:quality(98)/dehn.at/store/f/50281977/HDVORSCHAU/758028.jpg)
:quality(98)/dehn.at/store/f/50281978/HDVORSCHAU/758028m_D.jpg)
:quality(98)/dehn.at/store/f/50281978/HDVORSCHAU/758028m_D.jpg)
Technische Daten
| Cable length | 3500 mm |
| Cable cross-section | 16 mm2 |
| Cable sheath | Transparent |
| Tube length | 1310 mm |
| Total length (lG ) | 1600 mm |
| Material (bracket) | StSt |
Art.-Nr. 758099 PAV 3+1 16 ZAK
GTIN 4013364287587, Zolltarifnr. (EU): 85369095, Bruttogewicht: 3.21 kg, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/dehn.at/store/f/50281982/HDVORSCHAU/758099.jpg)
:quality(98)/dehn.at/store/f/50281982/HDVORSCHAU/758099.jpg)
Technische Daten
| Cable length (A / B / C) | 1750 mm |
| Cable length (D) | 3200 mm |
| Cable cross-section | 16 mm2 |
| Cable sheath | transparent |
| Clamping range | 5-25 mm |
Art.-Nr. 758036 EV TES 465 SN7215
GTIN 4013364133884, Zolltarifnr. (EU): 85369095, Bruttogewicht: 1.35 kg, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/dehn.at/store/f/50281990/HDVORSCHAU/758036.jpg)
:quality(98)/dehn.at/store/f/50281990/HDVORSCHAU/758036.jpg)
:quality(98)/dehn.at/store/f/50281991/HDVORSCHAU/758036m_D.jpg)
:quality(98)/dehn.at/store/f/50281991/HDVORSCHAU/758036m_D.jpg)
Technische Daten
| Tube length | 465 mm |
| Total length (lG ) | 550 mm |
| Screw | M8 x 20 mm |
| Material (contact and coupling electrode) | Zamak |
Art.-Nr. 758075 EV TS STK 1470
GTIN 4013364247789, Zolltarifnr. (EU): 85369095, Bruttogewicht: 1.75 kg, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/dehn.at/store/f/50282007/HDVORSCHAU/758075.jpg)
:quality(98)/dehn.at/store/f/50282007/HDVORSCHAU/758075.jpg)
:quality(98)/dehn.at/store/f/50282008/HDVORSCHAU/758075m_D.jpg)
:quality(98)/dehn.at/store/f/50282008/HDVORSCHAU/758075m_D.jpg)
Technische Daten
| Tube length | 1310 mm |
| Total length (lG ) | 1470 mm |
| Screw | M8 x 20 mm |
| Material (contact electrode) | Cu alloy/gal Sn |
Art.-Nr. 758085 EV TES STK 1500
GTIN 4013364247819, Zolltarifnr. (EU): 85369095, Bruttogewicht: 1.42 kg, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/dehn.at/store/f/50282012/HDVORSCHAU/758085.jpg)
:quality(98)/dehn.at/store/f/50282012/HDVORSCHAU/758085.jpg)
:quality(98)/dehn.at/store/f/50282013/HDVORSCHAU/758085m_D.jpg)
:quality(98)/dehn.at/store/f/50282013/HDVORSCHAU/758085m_D.jpg)
Technische Daten
| Tube length | 1310 mm |
| Total length (lG ) | 1500 mm |
| Screw | M8 x 20 mm |
| Material (contact and coupling electrode) | Zamak |
Art.-Nr. 758095 EV EHB STK 1600
GTIN 4013364247826, Zolltarifnr. (EU): 85369095, Bruttogewicht: 2.32 kg, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/dehn.at/store/f/50282022/HDVORSCHAU/758095.jpg)
:quality(98)/dehn.at/store/f/50282022/HDVORSCHAU/758095.jpg)
:quality(98)/dehn.at/store/f/50282023/HDVORSCHAU/758095m_D.jpg)
:quality(98)/dehn.at/store/f/50282023/HDVORSCHAU/758095m_D.jpg)
Technische Daten
| Tube length | 1310 mm |
| Total length (lG ) | 1600 mm |
| Screw | M8 x 20 mm |
| Material (bracket) | StSt |
