Expansion Strap for Foundation Earth Electrodes
:quality(98)/dehn.at/store/f/50304149/HDVORSCHAU/308150a1_E.jpg)
:quality(98)/dehn.at/store/f/50304149/HDVORSCHAU/308150a1_E.jpg)

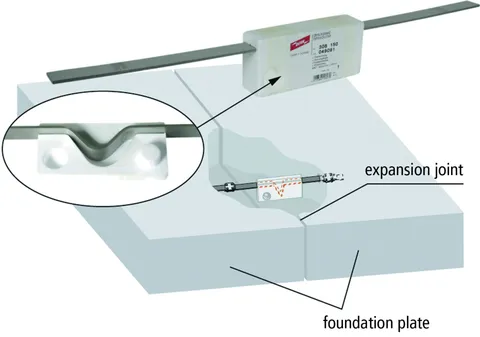

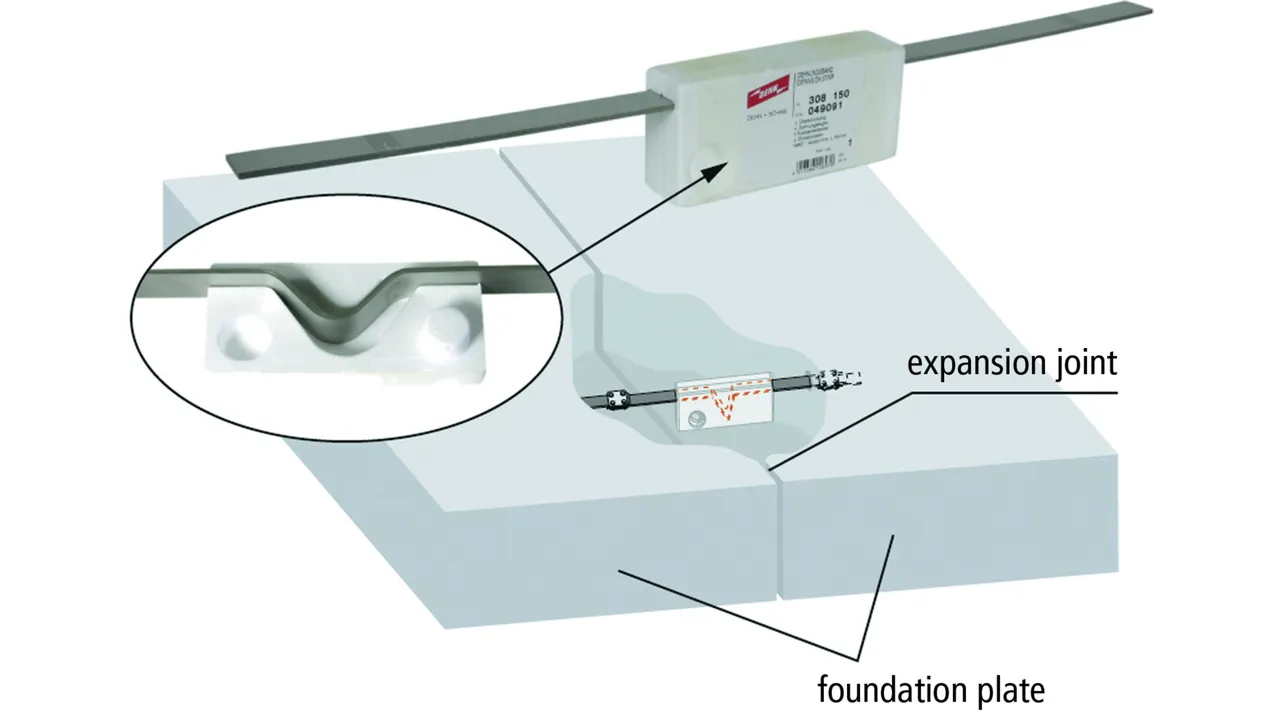

For leading the foundation earth electrode through the expansion joints of large foundations (several sections). It is not necessary to lead the earth electrode out of the base plate, because the polystyrene block can be concreted in the one section, the other end of the strap will be carried on loosely in the opposite section.
Art.-Nr. 308150 DB 700X30X4 V2A
GTIN 4013364106970, Zolltarifnr. (EU): 85359000, Bruttogewicht: 682.00 g, VPE: 1.00 pc(s)
:quality(98)/dehn.at/store/f/50304159/HDVORSCHAU/308150.jpg)
:quality(98)/dehn.at/store/f/50304159/HDVORSCHAU/308150.jpg)
:quality(98)/dehn.at/store/f/50304160/HDVORSCHAU/308150m_D.jpg)
:quality(98)/dehn.at/store/f/50304160/HDVORSCHAU/308150m_D.jpg)
Technische Daten
| Material of strap | StSt |
| Dimensions of strap (l x w x d) | approx. 700 x 30 x (4 x 1) mm |
| Cross-section | 120 mm2 |
| Material of block | polystyrene |
| Dimensions of block (l x w x d) | 180 x 85 x 45 mm |
| Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 6 kA |
