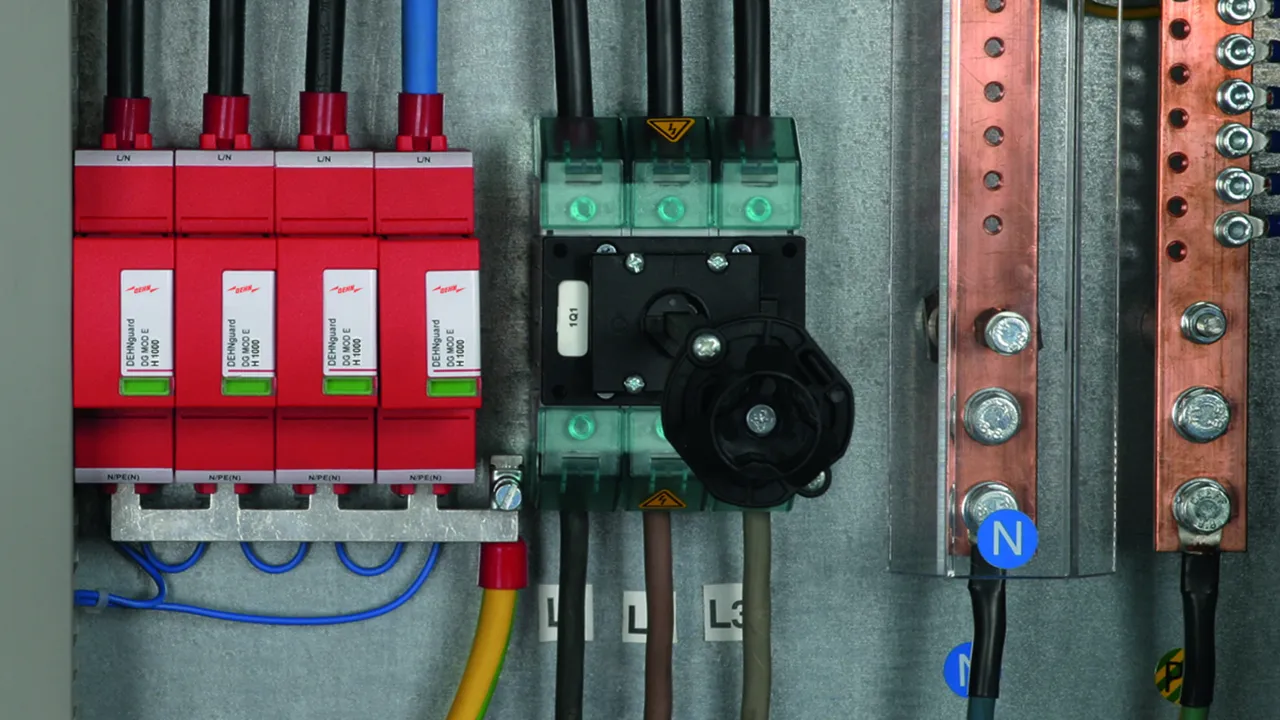

DEHNguard SE H ... FM

Universal surge arrester comprising a base part and a plug-in protection module
Energy coordination with other arresters of the Red/Line product family
High discharge capacity
High reliability due to "Thermo Dynamic Control" SPD monitoring device
Easy replacement of protection modules without tools due to module locking system with module release button

DEHNguard SE H 1000 FM

Pluggable single-pole surge arrester comprising a base part and a plug-in protection module; with floating remote signalling contact.

1 Produkt

Art.-Nr. 952938 DG SE H 1000 FM

GTIN 4013364264014, Zolltarifnr. (EU): 85363030, Bruttogewicht: 229.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DEHNguard SE H 1000 FM surge arrester
Modular and pluggable single-pole surge arrester
with remote signalling contact, width: 1.5 modules
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 1000 V a.c.
Voltage protection level: <= 4.5 kV
Nominal discharge current: 20 kA
Short-circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series

Brand: DEHN
Type: DG SE H 1000 FM
Part No.: 952938
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	1000 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 4.5 kV
Max. mains-side overcurrent protection	100 A gG
Operating state / fault indication	green / red
Type of remote signalling contact	changeover contact

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	690 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	1000 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	20 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 4.5 kV
Voltage protection level at 5 kA (U_P )	≤ 3.5 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	1205 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	1320 V / 120 min. – safe failure
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP20
Capacity	1.5 module(s), DIN 43880
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible

Artikel 952938 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 952938 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

DEHNguard SE H 1000 VA FM

Pluggable single-pole surge arrester comprising a base part and a plug-in protection module; with floating remote signalling contact. Series connection of a varistor and a gas discharge tube.

1 Produkt

Art.-Nr. 952940 DG SE H 1000 VA FM

GTIN 4013364308329, Zolltarifnr. (EU): 85363030, Bruttogewicht: 229.00 g, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

DEHNguard SE H VA 1000 FM surge arrester
Pluggable single-pole surge arrester with
remote signalling contact for the monitoring device
1.5 modules
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 1000 V a.c.
Voltage protection level: <= 5 kV
Nominal discharge current: 15 kA
Short-circuit withstand capability: 25 kArms
Energy coordination as per
IEC 62305-4 with the Red/Line family

Brand: DEHN
Type: DG SE H 1000 VA FM
Part No.: 952940
or equivalent.

Zertifikate

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Max. continuous operating voltage (a.c.) (U_C )	1000 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 5 kV
Max. mains-side overcurrent protection	100 A gG
Operating state / fault indication	green / red
Approvals	UL
Type of remote signalling contact	changeover contact
Supplementary data:	---------------------------------------
– Sparkover voltage gas discharge tube (U_agmin )	2200 V

SPD according to EN 61643-11 / IEC 61643-11	type 2 / class II
Energy coordination with terminal equipment (≤ 10 m)	type 2 + type 3
Nominal voltage (a.c.) (U_N )	690 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) (U_C )	1000 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (I_n )	15 kA
Max. discharge current (8/20 µs) (I_max )	40 kA
Voltage protection level (U_P )	≤ 5 kV
Response time (t_A )	≤ 25 ns
Max. mains-side overcurrent protection	100 A gG
Short-circuit withstand capability for max. mains-side overcurrent protection (I_SCCR )	25 kA_rms
Temporary overvoltage (TOV) (U_T) – Characteristic	1550 V / 5 sec. – withstand
Temporary overvoltage (TOV) (U_T) – Characteristic	1320 V / 120 min. – withstand
Operating temperature range (T_U )	-40 °C ... +80 °C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / flexible
Cross-sectional area (max.)	35 mm²stranded / 25 mm²flexible
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	thermoplastic, red, UL 94 V-0
Place of installation	indoor installation
Degree of protection	IP20
Capacity	1.5 module(s), DIN 43880
Approvals	UL
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Supplementary data:	---------------------------------------
– Sparkover voltage gas discharge tube (U_agmin )	2200 V
