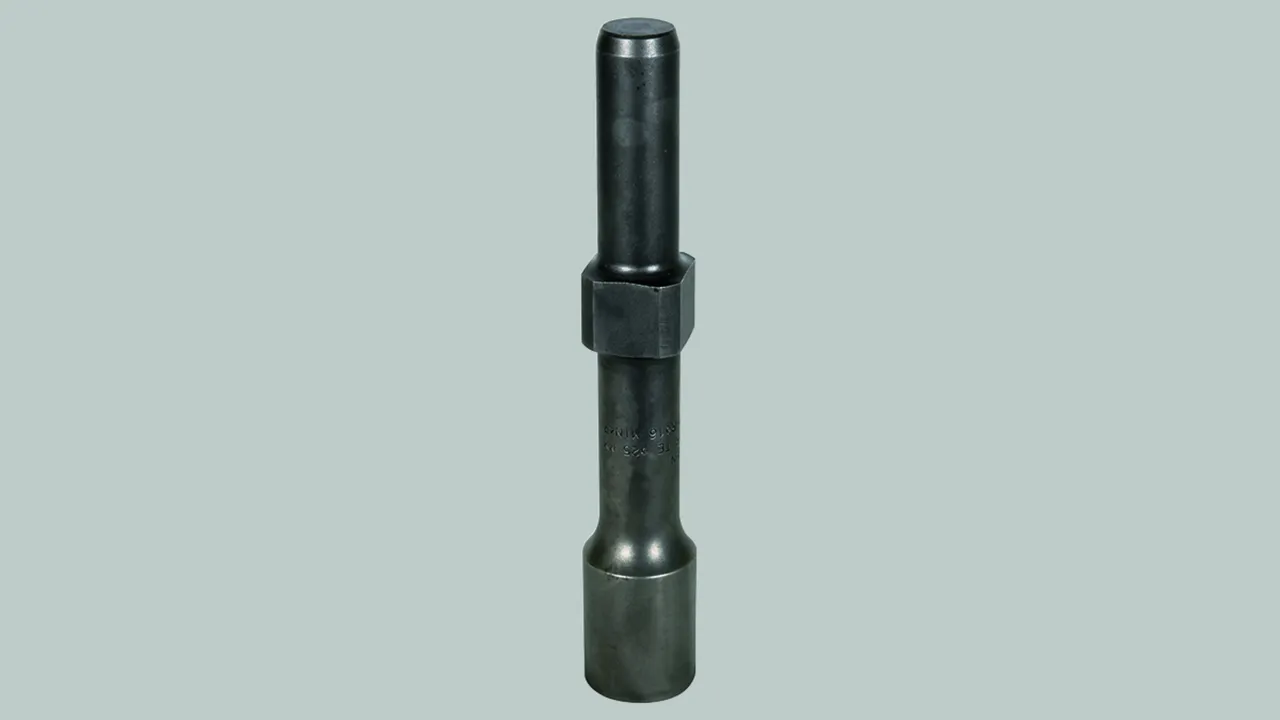

Hammer Inserts for Tubular Earth Rods
:quality(98)/dehn.at/store/f/50304720/HDVORSCHAU/649005_16-9.jpg)
:quality(98)/dehn.at/store/f/50304720/HDVORSCHAU/649005_16-9.jpg)
Details
:quality(98)/dehn.at/store/f/50304721/HDVORSCHAU/Hammereinsaetze_Auswahlhilfe_EN.jpg)
:quality(98)/dehn.at/store/f/50304721/HDVORSCHAU/Hammereinsaetze_Auswahlhilfe_EN.jpg)
Art.-Nr. 648005 HE RE 25 R27 VH WN STBLANK
GTIN 4013364129160, Zolltarifnr. (EU): 82079099, Bruttogewicht: 1.46 kg, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/dehn.at/store/f/50304727/HDVORSCHAU/649005.jpg)
:quality(98)/dehn.at/store/f/50304727/HDVORSCHAU/649005.jpg)
:quality(98)/dehn.at/store/f/50304728/HDVORSCHAU/648005m_D.jpg)
:quality(98)/dehn.at/store/f/50304728/HDVORSCHAU/648005m_D.jpg)
Technische Daten
| Type | EH 22/400, EH 23/230, EH 24/042/200, BH 23 and BHF 30 |
| Adapter | round Ø27 x 80 mm |
| Material | St/bare |
| Hole (d1 x l1) | 25.6 x 39 mm |
| Length | 246 mm |
| Earth rod diameter | 25 mm |
| Earth rod type | RE |
Art.-Nr. 648007 HE RE 25 SW22 VH AC STBLANK
GTIN 4013364129177, Zolltarifnr. (EU): 82079099, Bruttogewicht: 1.46 kg, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/dehn.at/store/f/50304733/HDVORSCHAU/649007.jpg)
:quality(98)/dehn.at/store/f/50304733/HDVORSCHAU/649007.jpg)
:quality(98)/dehn.at/store/f/50304734/HDVORSCHAU/648007m_D.jpg)
:quality(98)/dehn.at/store/f/50304734/HDVORSCHAU/648007m_D.jpg)
Technische Daten
| Type | Cobra 149+248 and Pionjär 120+130 |
| Adapter | hexagon, wrench size 22 x 108 mm |
| Material | St/bare |
| Hole (d1 x l1) | 25.6 x 39 mm |
| Length | 246 mm |
| Earth rod diameter | 25 mm |
| Earth rod type | RE |
Art.-Nr. 648009 HE RE 25 SDS MAX VH STBLANK
GTIN 4013364315501, Zolltarifnr. (EU): 82079099, Bruttogewicht: 973.00 g, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/dehn.at/store/f/50304743/HDVORSCHAU/648009.jpg)
:quality(98)/dehn.at/store/f/50304743/HDVORSCHAU/648009.jpg)
:quality(98)/dehn.at/store/f/50304744/HDVORSCHAU/648009m_D.jpg)
:quality(98)/dehn.at/store/f/50304744/HDVORSCHAU/648009m_D.jpg)
Technische Daten
| Type | vibration / impact hammer with SDS-max adapter |
| Adapter | round Ø18 x 175 mm |
| Material | St/bare |
| Hole (d1 x l1) | 25.6 x 39 mm |
| Length | 260 mm |
| Earth rod diameter | 25 mm |
| Earth rod type | RE |
| Note: It is recommended to use a hammer with a minimum striking force of 26 joules. The maximum drive-in depth depends on the soil conditions. | |
Art.-Nr. 648029 HE RE 25 SW28 VH BO STBLANK
GTIN 4013364236059, Zolltarifnr. (EU): 82079099, Bruttogewicht: 1.60 kg, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/dehn.at/store/f/50304749/HDVORSCHAU/648029.jpg)
:quality(98)/dehn.at/store/f/50304749/HDVORSCHAU/648029.jpg)
:quality(98)/dehn.at/store/f/50304750/HDVORSCHAU/648029m_D.jpg)
:quality(98)/dehn.at/store/f/50304750/HDVORSCHAU/648029m_D.jpg)
Technische Daten
| Type | GSH 27, GSH 27 VC, TE 3000 AVR (up to 2021 model), K 2628 H |
| Adapter | hexagon AF28 |
| Material | St/bare |
| Hole (d1 x l1) | 25.6 x 39 mm |
| Length | 266 mm |
| Earth rod diameter | 25 mm |
| Earth rod type | RE |
Art.-Nr. 648031 HE RE 25 TES VH HI STBLANK
GTIN 4013364293182, Zolltarifnr. (EU): 82079099, Bruttogewicht: 1.51 kg, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/dehn.at/store/f/50304755/HDVORSCHAU/648031.jpg)
:quality(98)/dehn.at/store/f/50304755/HDVORSCHAU/648031.jpg)
:quality(98)/dehn.at/store/f/50304756/HDVORSCHAU/648031m_D.jpg)
:quality(98)/dehn.at/store/f/50304756/HDVORSCHAU/648031m_D.jpg)
Technische Daten
| Type | vibration / impact hammer with TE-S adapter |
| Adapter | Hilti TE-S |
| Material | St/bare |
| Hole (d1 x l1) | 25,6 x 39 mm |
| Length | 280 mm |
| Earth rod diameter | 25 mm |
| Earth rod type | RE |
