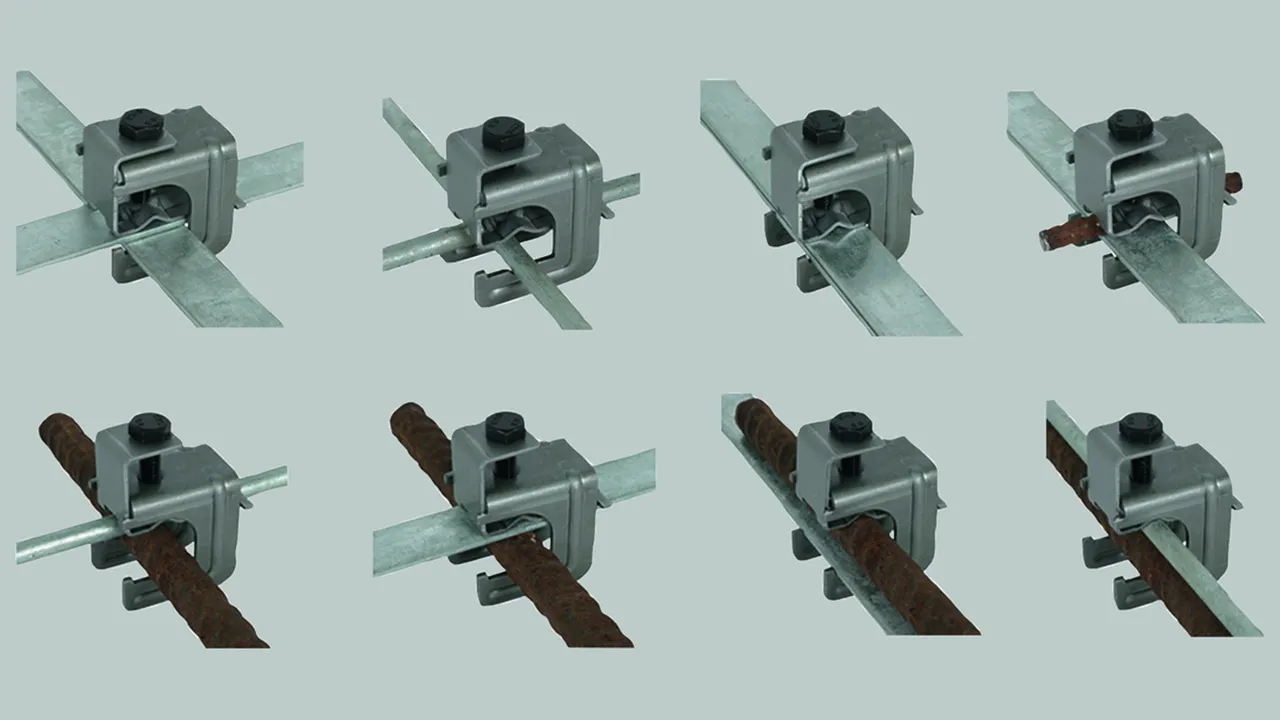

Connecting Clamps for Foundation Earth Electrodes and Reinforcements
:quality(98)/dehn.at/store/f/50310507/HDVORSCHAU/308031a1_16-9.jpg)
:quality(98)/dehn.at/store/f/50310507/HDVORSCHAU/308031a1_16-9.jpg)
Arrangement:
(II) = parallel
(+) = cross
Art.-Nr. 308031 VK DB 6.20 8.10 FL30 BSB STBL
GTIN 4013364136571, Zolltarifnr. (EU): 85359000, Bruttogewicht: 239.60 g, VPE: 25.00 pc(s)
:quality(98)/dehn.at/store/f/50310520/HDVORSCHAU/308031.jpg)
:quality(98)/dehn.at/store/f/50310520/HDVORSCHAU/308031.jpg)
:quality(98)/dehn.at/store/f/50310521/HDVORSCHAU/308031m_D.jpg)
:quality(98)/dehn.at/store/f/50310521/HDVORSCHAU/308031m_D.jpg)
Technische Daten
| Material | St/bare |
| Clamping range Rd / Rd | (+/II) 6-20 / 8-10 mm |
| Clamping range Rd / Fl | (+/II) 6-20 / 30 x 3-4 mm |
| Clamping range Fl / Fl | (+/II) 30 x 3-4 / 30 x 3-4 mm |
| Version | Without clamping ring |
| Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 8.4 kA |
| Standard | EN 62561-1 |
| *) For exact assignment see test certificate. | |
Art.-Nr. 308033 VK DB KR 6.20 8.10 FL30 BSB STBL
GTIN 4013364519978, Zolltarifnr. (EU): 85359000, Bruttogewicht: 240.40 g, VPE: 25.00 pc(s)
:quality(98)/dehn.at/store/f/50310530/HDVORSCHAU/308031.jpg)
:quality(98)/dehn.at/store/f/50310530/HDVORSCHAU/308031.jpg)
:quality(98)/dehn.at/store/f/50310531/HDVORSCHAU/308033m_D.jpg)
:quality(98)/dehn.at/store/f/50310531/HDVORSCHAU/308033m_D.jpg)
Technische Daten
| Material | St/bare |
| Clamping range Rd / Rd | (+/II) 6-20 / 8-10 mm |
| Clamping range Rd / Fl | (+/II) 6-20 / 30 x 3-4 mm |
| Clamping range Fl / Fl | (+/II) 30 x 3-4 / 30 x 3-4 mm |
| Version | With clamping ring |
| Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 8.4 kA |
| Standard | EN 62561-1 |
| *) For exact assignment see test certificate. | |
Art.-Nr. 308036 VK DB 20.32 8.10 FL40 BSB STBL
GTIN 4013364136588, Zolltarifnr. (EU): 85359000, Bruttogewicht: 275.60 g, VPE: 25.00 pc(s)
:quality(98)/dehn.at/store/f/50310544/HDVORSCHAU/308036.jpg)
:quality(98)/dehn.at/store/f/50310544/HDVORSCHAU/308036.jpg)
:quality(98)/dehn.at/store/f/50310545/HDVORSCHAU/308036m_D.jpg)
:quality(98)/dehn.at/store/f/50310545/HDVORSCHAU/308036m_D.jpg)
Technische Daten
| Material | St/bare |
| Clamping range Rd / Rd | (+/II) 20-32 / 8-10 mm |
| Clamping range Rd / Fl | (+/II) 20-32 / 40 x 4-5 mm |
| Version | With clamping ring |
| Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 14.0 kA |
| Standard | EN 62561-1 |
| *) For exact assignment see test certificate. | |
Art.-Nr. 308032 VK 6.20 FL30 BSB STBL
GTIN 4013364152823, Zolltarifnr. (EU): 85359000, Bruttogewicht: 178.50 g, VPE: 25.00 pc(s)
:quality(98)/dehn.at/store/f/50310557/HDVORSCHAU/308032.jpg)
:quality(98)/dehn.at/store/f/50310557/HDVORSCHAU/308032.jpg)
:quality(98)/dehn.at/store/f/50310558/HDVORSCHAU/308032m_D.jpg)
:quality(98)/dehn.at/store/f/50310558/HDVORSCHAU/308032m_D.jpg)
Technische Daten
| Material | St/bare |
| Clamping range Rd / Fl | (+) 6-20 / 30 x 3-4 mm |
| Clamping range Fl / Fl | (+/II) 30 x 3-4 / 30 x 3-4 mm |
| Short-circuit current (a.c. 50 Hz / d.c.) (1 s; ≤ 300 °C) | 7.0 kA |
| Standard | EN 62561-1 |
| *) For exact assignment see test certificate. | |
Art.-Nr. 308037 VK 20.32 FL40 BSB STBL
GTIN 4013364154704, Zolltarifnr. (EU): 85359000, Bruttogewicht: 218.00 g, VPE: 25.00 pc(s)
:quality(98)/dehn.at/store/f/50310570/HDVORSCHAU/308037.jpg)
:quality(98)/dehn.at/store/f/50310570/HDVORSCHAU/308037.jpg)
:quality(98)/dehn.at/store/f/50310571/HDVORSCHAU/308037m_D.jpg)
:quality(98)/dehn.at/store/f/50310571/HDVORSCHAU/308037m_D.jpg)
Technische Daten
| Material | St/bare |
| Clamping range Rd / Fl | (+) 20-32 / 30 x 3-40 x 5 mm |
| Standard | EN 62561-1 |
| *) For exact assignment see test certificate. | |
