Art.-Nr. 900901 DCU EMOB 2 16

GTIN 4013364506183, Zolltarifnr. (EU): 85371098, Bruttogewicht: 1.14 kg, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

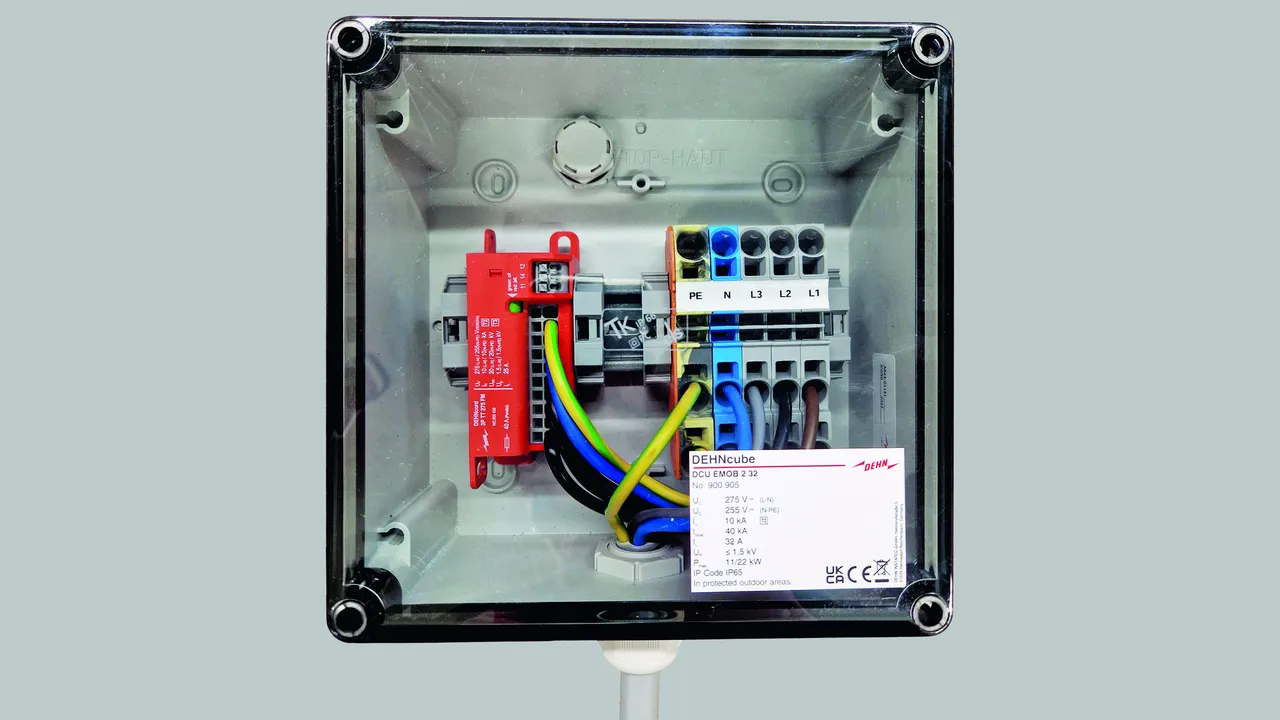

Junction box DCU EMOB 2 16
Junction box type 2+3 / II+III
as per EN 61643-11 / IEC 61643-11
EN 61439-2 / IEC 61439-2
Prewired complete unit for
universal installation upstream of the wallbox
with remote signalling contact, operating state/fault indication
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20) 10 kA
Total discharge current (8/20): 40 kA
Nominal current 16 A
Max. power: 11 kW
Dimensions: 110 x 110 x 66 mm

Brand: DEHN
Type: DCU EMOB 2 16
Part No.: 900901
or equivalent.

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	16 A
Max. power	11 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV

SPD according to EN 61643-11 / IEC 61643-11	type 2 + type 3 / class II + class III
Tested to	EN 61439-1 / ... IEC 61439-1
Tested to	EN 61439-2 / ... IEC 61439-2
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	16 A
Max. power	11 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	40 kA
Combination wave [L-N]/[N-PE] (U_OC )	20 kV
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	25 ns
Response time [L/N-PE] (t_A )	100 ns
Max. mains-side overcurrent protection (series connection)	20 A gG
Max. mains-side overcurrent protection (parallel connection)	40 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms. – withstand
Insulation measurement	up to 500 V DC when connected
Operating state / fault indication	green / red
Cross-sectional area for push-in terminals	0.2 ... 6 mm²solid / flexible
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Place of installation	Installation in protected outdoor areas
Degree of protection	IP 65
Design	with pressure compensating element
Cover	Transparent cover with product label
Enclosure colour	grey
Input	Ölflex 5x 4 mm², length 1.5 m
Output	System-side connection with M25 screw connection
Enclosure dimensions (W x H x D)	110 x 110 x 66 mm

Artikel 900901 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900901 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 900902 DCU EMOB 2 25

GTIN 4013364506190, Zolltarifnr. (EU): 85371098, Bruttogewicht: 1.63 kg, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Junction box DCU EMOB 2 25
Junction box type 2+3 / II+III
as per EN 61643-11 / IEC 61643-11
EN 61439-2 / IEC 61439-2
Prewired complete unit for
universal installation upstream of the wallbox
with remote signalling contact, operating state/fault indication
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20) 10 kA
Total discharge current (8/20): 40 kA
Nominal current: 25 A
Max. power: 11 / 22 kW
Dimensions: 182 x 180 x 100 mm

Brand: DEHN
Type: DCU EMOB 2 25
Part No.: 900902
or equivalent.

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	25 A
Max. power	11 / 22 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Tested to	EN 61439-1 / ... IEC 61439-1
Tested to	EN 61439-2 / ... IEC 61439-2
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	25 A
Max. power	11 / 22 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	40 kA
Combination wave [L-N]/[N-PE] (U_OC )	20 kV
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	25 ns
Response time [L/N-PE] (t_A )	100 ns
Max. mains-side overcurrent protection (series connection)	25 A gG
Max. mains-side overcurrent protection (parallel connection)	40 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Insulation measurement	up to 500 V DC when connected
Operating state / fault indication	green / red
Cross-sectional area for push-in terminals	0.2 ... 6 mm²solid / fine-stranded
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / fine-stranded
Place of installation	Installation in protected outdoor areas
Degree of protection	IP 65
Design	with pressure compensating element
Cover	Transparent cover with product label
Enclosure colour	grey
Input	Ölflex 5x 4 mm², length 1.5 m
Output	System-side connection with M25 screw connection
Enclosure dimensions (W x H x D)	182 x 180 x 100 mm

Artikel 900902 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900902 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 900903 DCU EMOB 2 25 C

GTIN 4013364506206, Zolltarifnr. (EU): 85371098, Bruttogewicht: 2.06 kg, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Junction box DCU EMOB 2 25
Junction box type 2+3 / II+III
as per EN 61643-11 / IEC 61643-11
EN 61439-2 / IEC 61439-2
Prewired complete unit, including
a 3-phase energy meter for
universal installation upstream of the wallbox
with remote signalling contact, operating state/fault indication
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20) 10 kA
Total discharge current (8/20): 40 kA
Nominal current: 25 A
Max. power: 11 / 22 kW
Dimensions: 217 x 253 x 115 mm

Brand: DEHN
Type: DCU EMOB 2 25 C
Part No.: 900903
or equivalent.

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	25 A
Max. power	11 / 22 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Tested to	EN 61439-1 / ... IEC 61439-1
Tested to	EN 61439-2 / ... IEC 61439-2
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	25 A
Max. power	11 / 22 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	40 kA
Combination wave [L-N]/[N-PE] (U_OC )	20 kV
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	25 ns
Response time [L/N-PE] (t_A )	100 ns
Max. mains-side overcurrent protection (series connection)	25 A gG
Max. mains-side overcurrent protection (parallel connection)	40 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Insulation measurement	up to 500 V DC when connected
Operating state / fault indication	green / red
Cross-sectional area for push-in terminals	0.2 ... 6 mm²solid / fine-stranded
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / fine-stranded
Place of installation	Installation in protected outdoor areas
Degree of protection	IP 65
Design	with pressure compensating element
Cover	Transparent cover with product label
Enclosure colour	grey
Input	Ölflex 5x 4 mm², length 1.5 m
Output	System-side connection with M25 screw connection
Enclosure dimensions (W x H x D)	217 x 253 x 115 mm
Meter	ABB (EV3 012-100)

Artikel 900903 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900903 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 900904 DCU EMOB 1 32

GTIN 4013364506213, Zolltarifnr. (EU): 85371098, Bruttogewicht: 2.55 kg, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Junction box DCU EMOB 1 32
Junction box type 1+2 / I+II
as per EN 61643-11 / IEC 61643-11
EN 61439-2 / IEC 61439-2
Prewired complete unit for
universal installation upstream of the wallbox
with remote signalling contact, operating state/fault indication
Max. continuous operating voltage: 255 V AC
Voltage protection level: <= 1.5 kV
Lightning impulse current (10/350): 12.5 / 50 kA
Nominal discharge current (8/20) 25 / 100 kA
Nominal current: 32 A
Max. power: 11 / 22 kW
Dimensions: 217 x 253 x 115 mm

Brand: DEHN
Type: DCU EMOB 1 32
Part No.: 900904
or equivalent.

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal alternating current (I_L )	32 A
Max. power	11 / 22 kW
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	12.5 / 50 kA
Nominal discharge current (8/20 µs) (I_n )	25 / 100 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV

SPD according to EN 61643-11 / IEC 61643-11	type 1 + type 2 / class I + class II
Tested to	EN 61439-1 / ... IEC 61439-1
Tested to	EN 61439-2 / ... IEC 61439-2
Energy coordination with terminal equipment (≤ 10 m)	type 1 + type 2 + type 3
Nominal voltage (a.c.) (U_N )	230 / 400 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (U_C )	255 V (50 / 60 Hz)
Nominal alternating current (I_L )	32 A
Max. power	11 / 22 kW
Lightning impulse current (10/350 µs) [L-N]/[N-PE] (I_imp )	12.5 / 50 kA
Specific energy [L-N]/[N-PE] (W/R)	39.06 kJ/ohms / 625.00 kJ/ohms
Nominal discharge current (8/20 µs) (I_n )	25 / 100 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [L-N]/[N-PE] (I_fi )	25 kA_rms/ 100 A_rms
Follow current limitation / Selectivity	no tripping of a 32 A gG fuse up to 25 kA_rms (prosp.)
Response time (t_A )	≤ 100 ns
Max. backup fuse (L) up to I_K ≤ 25 kA_rms	40 A gG
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – withstand
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Operating temperature range [parallel]/[series] (T_U )	-40°C...+80°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (L1, L2, L3, N, PE, 9) (min.)	0,5 mm²
Cross-sectional area (L1, L2, L3, N, PE, 9) (max.)	16 mm²
Type of remote signalling contact	changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / flexible
Place of installation	Installation in protected outdoor areas
Degree of protection	IP 65
Design	with pressure compensating element
Cover	Transparent cover with product label
Enclosure colour	grey
Input	Ölflex 5x 6 mm², length 1.5 m
Output	System-side connection with M25 screw connection
Enclosure dimensions (W x H x D)	217 x 253 x 115 mm

Artikel 900904 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900904 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Art.-Nr. 900905 DCU EMOB 2 32

GTIN 4013364506244, Zolltarifnr. (EU): 85371098, Bruttogewicht: 2.07 kg, VPE: 1.00 pc(s)

Abbildungen

Weitere Information

CAD-Daten

Junction box DCU EMOB 2 32
Junction box type 2+3 / II+III
as per EN 61643-11 / IEC 61643-11
EN 61439-2 / IEC 61439-2
Prewired complete unit for
universal installation upstream of the wallbox
with remote signalling contact, operating state/fault indication
Max. continuous operating voltage: 275 V AC
Voltage protection level: <= 1.5 kV
Nominal discharge current (8/20) 10 kA
Total discharge current (8/20): 40 kA
Nominal current: 32 A
Max. power: 11 / 22 kW
Dimensions: 182 x 180 x 100 mm

Brand: DEHN
Type: DCU EMOB 2 32
Part No.: 900905
or equivalent.

Technische Daten

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	32 A
Max. power	11 / 22 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV

SPD according to EN 61643-11 / IEC 61643-11	Type 2 + Type 3 / class II + class III
Tested to	EN 61439-1 / ... IEC 61439-1
Tested to	EN 61439-2 / ... IEC 61439-2
Nominal voltage (a.c.) (U_N )	230 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V (50 / 60 Hz)
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V (50 / 60 Hz)
Max. continuous operating voltage (d.c.) (U_C )	350 V
Nominal alternating current (I_L )	32 A
Max. power	11 / 22 kW
Nominal discharge current (8/20 µs) [L-N] (I_n )	10 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	20 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	10 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	20 kA
Total discharge current (8/20 µs) [L+N-PE] (I_total )	40 kA
Combination wave [L-N]/[N-PE] (U_OC )	20 kV
Voltage protection level [L-N] (U_P )	≤ 1.5 kV
Voltage protection level [N-PE] (U_P )	≤ 1.5 kV
Follow current extinguishing capability [N-PE] (I_fi )	100 A_rms
Response time [L-N] (t_A )	25 ns
Response time [L/N-PE] (t_A )	100 ns
Max. mains-side overcurrent protection (parallel connection)	40 A gG
Short-circuit withstand capability for mains-side overcurrent protection (I_SCCR )	6 kA_rms
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	335 V / 5 sec. – withstand
Temporary overvoltage (TOV) [L-N] (U_T) – Characteristic	440 V / 120 min. – safe failure
Temporary overvoltage (TOV) [N-PE] (U_T) – Characteristic	1200 V / 200 ms – withstand
Insulation measurement	up to 500 V DC when connected
Operating state / fault indication	green / red
Cross-sectional area for push-in terminals	0.5 ... 16 mm²solid / fine-stranded
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm²solid / fine-stranded
Place of installation	Installation in protected outdoor areas
Degree of protection	IP 65
Design	with pressure compensating element
Cover	Transparent cover with product label
Enclosure colour	grey
Input	Ölflex 5x 6 mm², length 1.5 m
Output	System-side connection with M25 screw connection
Enclosure dimensions (W x H x D)	182 x 180 x 100 mm

Artikel 900905 wurde zum Merkzettel hinzugefügt.

Zum Merkzettel

Artikel 900905 wurde zum Warenkorb hinzugefügt.

Zum Warenkorb

Ergebnisse für Produkte (0)

Ergebnisse für Inhalt (0)

DEHNcube EMOB

DEHNcube EMOB 2 16

Art.-Nr. 900901 DCU EMOB 2 16

Artikel 900901 wurde zum Merkzettel hinzugefügt.

Artikel 900901 wurde zum Warenkorb hinzugefügt.

DEHNcube EMOB 2 25

Art.-Nr. 900902 DCU EMOB 2 25

Artikel 900902 wurde zum Merkzettel hinzugefügt.

Artikel 900902 wurde zum Warenkorb hinzugefügt.

DEHNcube EMOB 2 25 C

Art.-Nr. 900903 DCU EMOB 2 25 C

Artikel 900903 wurde zum Merkzettel hinzugefügt.

Artikel 900903 wurde zum Warenkorb hinzugefügt.

DEHNcube EMOB 1 32

Art.-Nr. 900904 DCU EMOB 1 32

Artikel 900904 wurde zum Merkzettel hinzugefügt.

Artikel 900904 wurde zum Warenkorb hinzugefügt.

DEHNcube EMOB 2 32

Art.-Nr. 900905 DCU EMOB 2 32

Artikel 900905 wurde zum Merkzettel hinzugefügt.

Artikel 900905 wurde zum Warenkorb hinzugefügt.

DEHNcube EMOB

DEHNcube EMOB 2 16

Art.-Nr. 900901 DCU EMOB 2 16

Sie müssen angemeldet sein um 900901.stp herunterzuladen.

Sie müssen angemeldet sein um 900901.igs herunterzuladen.

Sie müssen angemeldet sein um 900901.jt herunterzuladen.

Sie müssen angemeldet sein um 900901.dwg herunterzuladen.

Sie müssen angemeldet sein um 900901m_D.dxf herunterzuladen.

Artikel 900901 wurde zum Merkzettel hinzugefügt.

Artikel 900901 wurde zum Warenkorb hinzugefügt.

DEHNcube EMOB 2 25

Art.-Nr. 900902 DCU EMOB 2 25

Sie müssen angemeldet sein um 900902.stp herunterzuladen.

Sie müssen angemeldet sein um 900902.igs herunterzuladen.

Sie müssen angemeldet sein um 900902.jt herunterzuladen.

Sie müssen angemeldet sein um 900902.dwg herunterzuladen.

Sie müssen angemeldet sein um 900902m_D.dxf herunterzuladen.

Artikel 900902 wurde zum Merkzettel hinzugefügt.

Artikel 900902 wurde zum Warenkorb hinzugefügt.

DEHNcube EMOB 2 25 C

Art.-Nr. 900903 DCU EMOB 2 25 C

Sie müssen angemeldet sein um 900903.stp herunterzuladen.

Sie müssen angemeldet sein um 900903.igs herunterzuladen.

Sie müssen angemeldet sein um 900903.jt herunterzuladen.

Sie müssen angemeldet sein um 900903.dwg herunterzuladen.

Sie müssen angemeldet sein um 900903m_D.dxf herunterzuladen.

Artikel 900903 wurde zum Merkzettel hinzugefügt.

Artikel 900903 wurde zum Warenkorb hinzugefügt.

DEHNcube EMOB 1 32

Art.-Nr. 900904 DCU EMOB 1 32

Sie müssen angemeldet sein um 900904.stp herunterzuladen.

Sie müssen angemeldet sein um 900904.igs herunterzuladen.

Sie müssen angemeldet sein um 900904.jt herunterzuladen.

Sie müssen angemeldet sein um 900904.dwg herunterzuladen.

Sie müssen angemeldet sein um 900904m_D.dxf herunterzuladen.

Artikel 900904 wurde zum Merkzettel hinzugefügt.

Artikel 900904 wurde zum Warenkorb hinzugefügt.

DEHNcube EMOB 2 32

Art.-Nr. 900905 DCU EMOB 2 32

Sie müssen angemeldet sein um 900905.stp herunterzuladen.

Sie müssen angemeldet sein um 900905.igs herunterzuladen.

Sie müssen angemeldet sein um 900905.jt herunterzuladen.

Sie müssen angemeldet sein um 900905.dwg herunterzuladen.

Sie müssen angemeldet sein um 900905m_D.dxf herunterzuladen.

Artikel 900905 wurde zum Merkzettel hinzugefügt.

Artikel 900905 wurde zum Warenkorb hinzugefügt.
