Connection Element for DEHNcon-H, HVI light Conductor
:quality(98)/dehn.at/store/f/50299535/HDVORSCHAU/819272_16-9.jpg)
:quality(98)/dehn.at/store/f/50299535/HDVORSCHAU/819272_16-9.jpg)

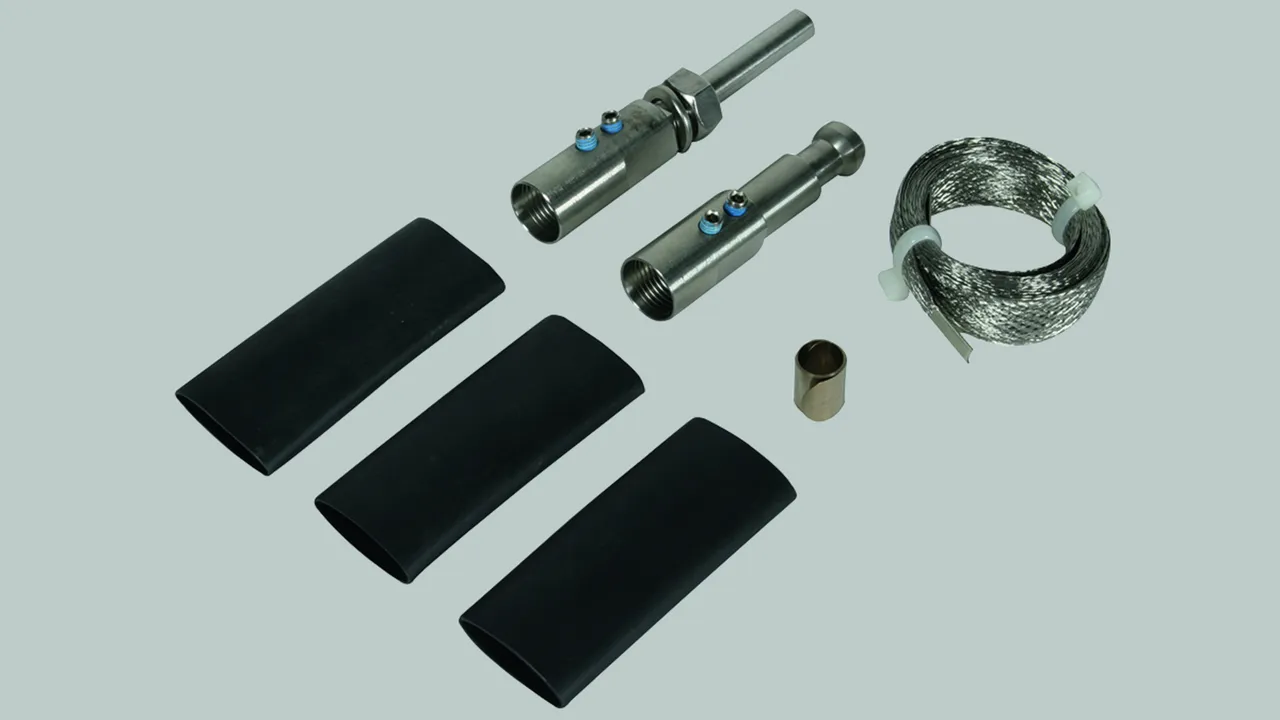

Connection kit for sealing the HVI light Conductor at both ends for implementing the adjustment range of the conductor in the supporting tube (head piece) and connection element for connection to other parts of the external lightning protection or earth-termination system (incl. EB connection cable, constant force spring and three heat-shrinkable sleeves).
Art.-Nr. 819272 HVI LI ASS RIV KF GFB2200 V2A
GTIN 4013364255876, Zolltarifnr. (EU): 85359000, Bruttogewicht: 296.00 g, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/dehn.at/store/f/50299545/HDVORSCHAU/819271_3014619.jpg)
:quality(98)/dehn.at/store/f/50299545/HDVORSCHAU/819271_3014619.jpg)
:quality(98)/dehn.at/store/f/50299546/HDVORSCHAU/819272m_D.jpg)
:quality(98)/dehn.at/store/f/50299546/HDVORSCHAU/819272m_D.jpg)
Technische Daten
| Material of connection elements | StSt |
| Connection | bolt Ø10 mm, L 50 mm |
| Diameter Ø connection element | 20 mm |
| Screw | threaded pin M6 x 8 mm |
| Nut | M12 |
| EB connection cable | strip 2200 x 18 x 0.4 mm |
| Material of EB connection element | StSt |
