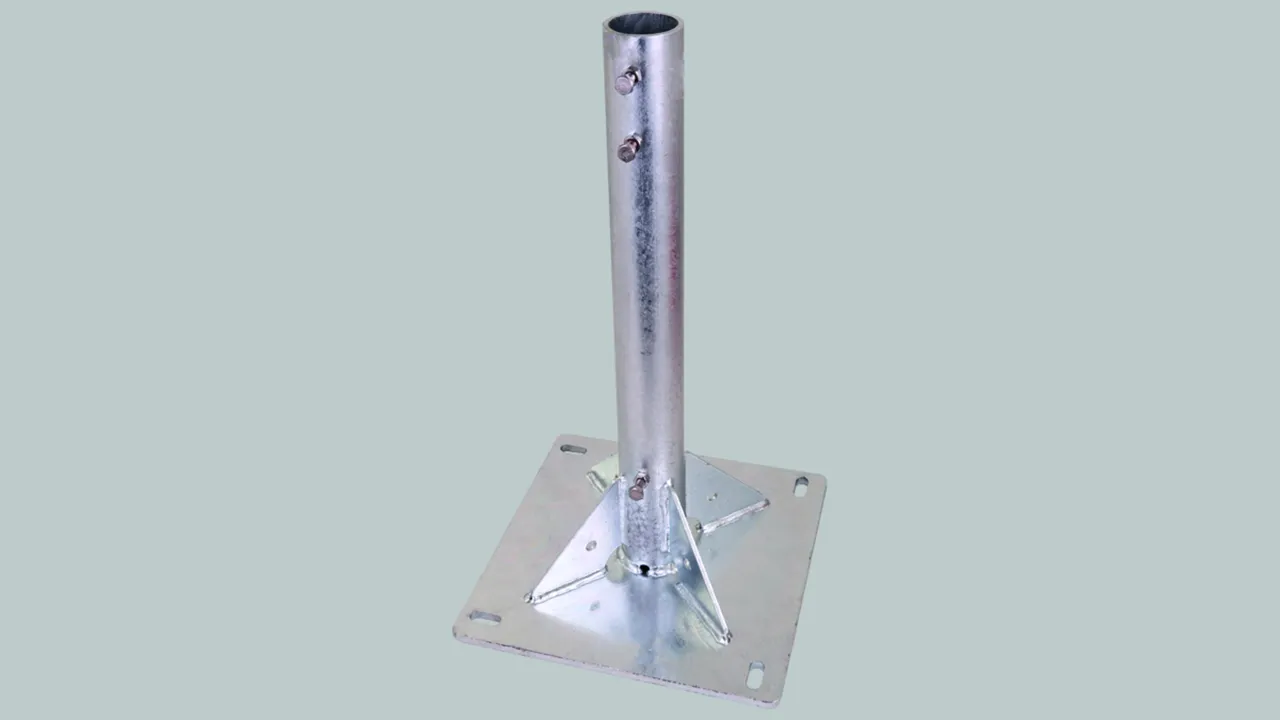

Supporting tube stand for GRP/Al supporting tubes and Ø40 air-termination rods
:quality(98)/dehn.at/store/f/51718297/HDVORSCHAU/105244_fam_16-9.jpg)
:quality(98)/dehn.at/store/f/51718297/HDVORSCHAU/105244_fam_16-9.jpg)
For erection by means of a counter plate on wire mesh cable trays and steel girders or other structures. The adapter set for Ø40 air-termination rods is available separately in the accessories.
The D40 air-termination rods / supporting tubes must be ordered separately.
The D40 air-termination rods / supporting tubes must be ordered separately.
Art.-Nr. 105244 SRS D50 300 300 H500 STTZN
GTIN 4013364503069, Zolltarifnr. (EU): 85389099, Bruttogewicht: 9.50 kg, VPE: 1.00 pc(s)
:quality(98)/dehn.at/store/f/51718306/HDVORSCHAU/105244.jpg)
:quality(98)/dehn.at/store/f/51718306/HDVORSCHAU/105244.jpg)
:quality(98)/dehn.at/store/f/51718307/HDVORSCHAU/105244m_D.jpg)
:quality(98)/dehn.at/store/f/51718307/HDVORSCHAU/105244m_D.jpg)
Technische Daten
| Material | HDG steel |
| Support | Ø50 mm and Ø40 mm *) |
| Fixing | 4x 13 x 30 mm |
| Plate dimensions | 300 x 300 x 8 mm |
| Height | 500 mm |
| *) For holding Ø40-mm air-termination rods, only possible with adapter kit, part no. 107 399, and the holding of Ø40-mm HVI supporting tubes, only possible with adapter, part no. 819 799. | |
